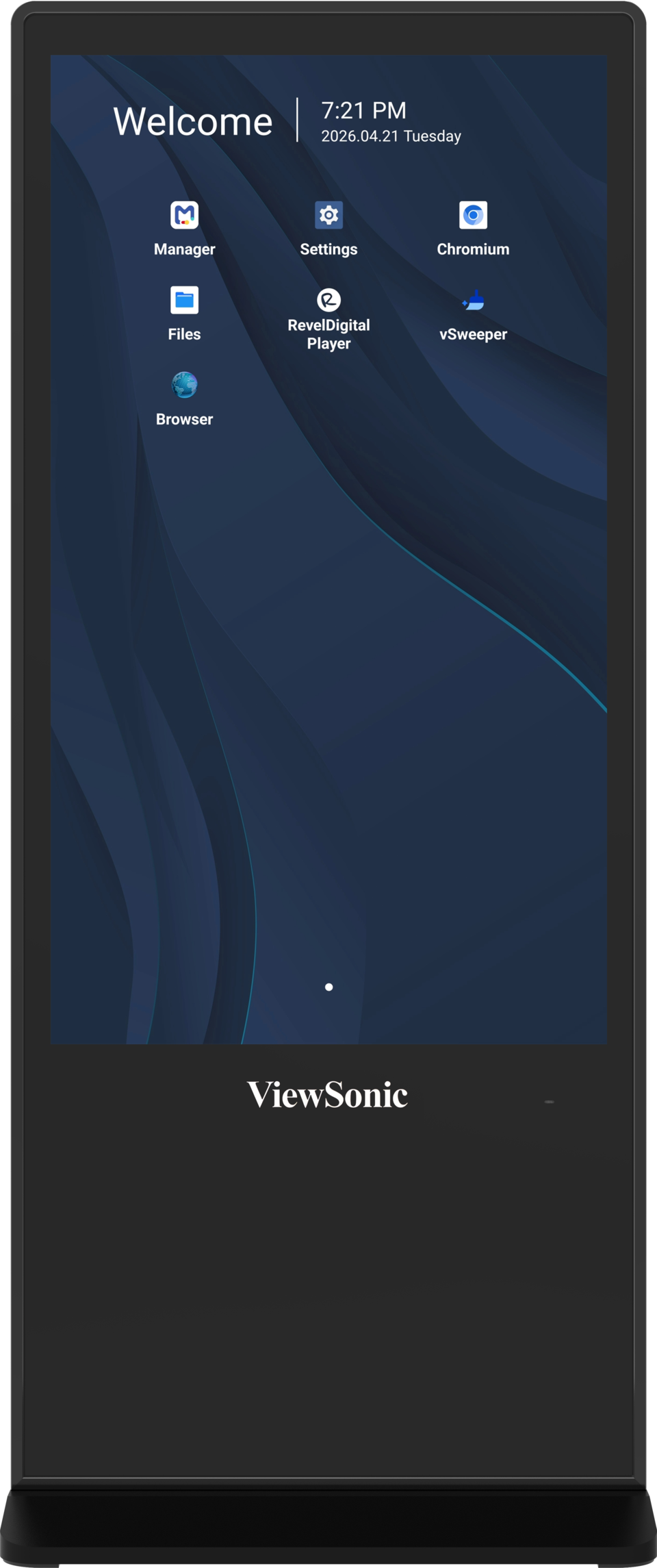

ePoster
EP5543T
Key Features
- Keep content visible in bright spaces with 700-nit brightness and anti-glare haze
- Deliver smooth 4K playback and multitasking powered by Android 14 octa-core processing
- Enhance user interaction with responsive 10-point multi-touch capability
- Integrate easily into signage systems via USB-C, HDMI, and CMS compatibility
- Centralize remote management using ViewSonic Manager™ scheduling and monitoring tools
Product Description
The ViewSonic EP5543T is an interactive commercial ePoster designed for wayfinding and self-service applications in hospitality and higher education environments. Featuring responsive 10-point touch, 700-nit brightness with 25% anti-glare haze, and reliable 24/7 operation, the EP5543T delivers clear, engaging experiences in brightly lit commercial spaces. An all-in-one freestanding design with a built-in Mini PC compartment, integrated AC power output, and hidden cable routing streamlines deployment without wall mounting or complex IT setup. Built on an octa-core Android 14 platform with 8GB RAM and 128GB storage, the EP5543T delivers smooth 4K multimedia playback and reliable commercial performance. Pre-installed with Revel Digital CMS and supporting additional platforms via Google Play Store, it enables centralized content management with support for JPEG, PNG, MP4, and HTML5. Ideal for campus directories, library navigation, visitor wayfinding, and interactive event schedules, the EP5543T transforms traditional signage into an engaging self-service information hub.

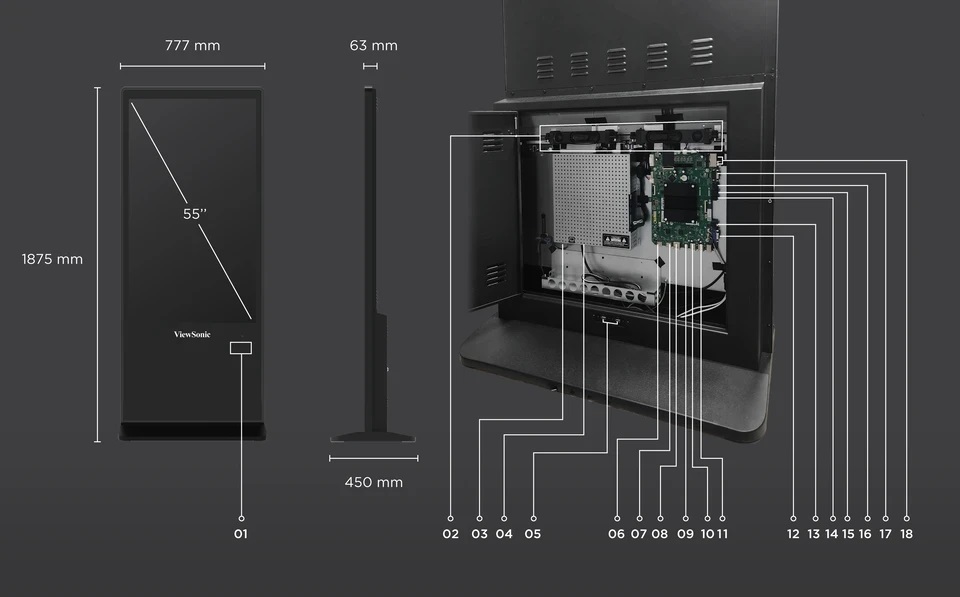

- Remote IR sensor
- Internal Speakers
- AC-IN & Power switch
- AC Out
- USBx2 (rear housing)
- HDMI-Out
- HDMI-In
- DP-In x1 & HDMI-In x1
- USB Type C
- USB Type A 3.2 Gen 1 x2
- USB Type A 2.0 x2
- VGA In
- Audio In
- Mic In
- Audio Out
- SPDIF
- RS-232
- LAN x2 (In & Out)
Visit Us
- www.viewsonic.com
-
DISPLAY
Panel Size: 55" Type/Tech: TFT LCD (ADS type, DLED backlight) Display Area (mm): 1209.6 (H) x 680.4 (V) Aspect Ratio: 9:16 Native Resolution: 2160x3840 Colors: 1.07G ( 8 bit +FRC) Brightness: 700 nits (typ.) Contrast Ratio: 1200:1 (typ.) Response Time: 8ms Viewing Angles: H=178, V=178 (typ.) Backlight Life: 30,000 hours (typ.) Surface Treatment: Anti-Glare 3H, Haze 25% Orientation: Portrait -
TOUCH
Type/ Tech: IR Recognition Touch Resolution: 32768 x 32768 Touch Point: 10 points -
INPUT
HDMI: (2.0) x 2 RGB / VGA: x1 DisplayPort: (1.2)x1 Audio: x1 (3.5mm) MIC(Microphone): x1 (3.5mm) RS232: x1 -
OUTPUT
HDMI: x1 Audio: x1 ( Earphone out) SPDIF: x1 -
LAN
RJ45: x2 -
USB
Type A: x4 (2.0x2 ; 3.0x2) -
OTHERS
Type-C x1 ( USB2.0, DP1.2 , PD15W) -
SPEAKERS
20Wx2 -
COMPATIBILITY
RGB PC/HDMI PC: 1920x1080@60Hz HDMI: 2160x3840@60Hz DisplayPort: 2160x3840@60Hz -
ANDROID VERSION
14.0 -
MULTIMEDIA
Photo: JPG, BMP, PNG
Video: MP4, MOV, MKV, DAT, MPG, MPEG, AVI, TS, WMV,RM,RMVB, FLV.
Audio: MP3,WAV, AAC, AVI. MKV. -
PRELOADED SOFTWARE*
RevelDigital Player
(Activation requires a separate subscription license, sold separately for Revel Digital )Manager -
POWER
Voltage: 100~240VAC +/- 10% wide range Consumption: 61.7W (Typ.), 230W (Max.) Standby mode < 0.5W , Off mode <0.3W -
OPERATING CONDITIONS
Temperature (º C): 0°C to 40°C Humidity: 20% ~ 80% non-condensing -
DIMENSIONS (W X H X D)
Physical (inch / mm): 30.64 x 73.82 x 17.72 inches/ 778.5 x 1875 x 450 mm Packaging (inch / mm): 38.19 x 80.08 x 23.98 inches/ 970x 2034 x 609 mm -
WEIGHT
Net (lb / kg): 138.89 lbs / 63 kg Gross (lb / kg): 159.84 lbs / 72.5 kg -
REGULATIONS
cTUVus, FCC, Energy Star 8.0, CE, CB, RoHs, Erp, EEI, WEEE. -
PACKAGE CONTENTS
• Power cord
• Remote control
• Bottom metal cover and screws
• Key
• Quick start guide
• Compliance statement
