Clé Caractéristiques
  • Monitor temperature, humidity levels, and air quality to maintain optimal learning conditions
  • Energy-saving automatic wake up of the ViewBoard when people enter the room
  • Unlock the ViewBoard with an NFC card to ensure secure access
  • Powered by the ViewBoard via USB, for less cable clutter

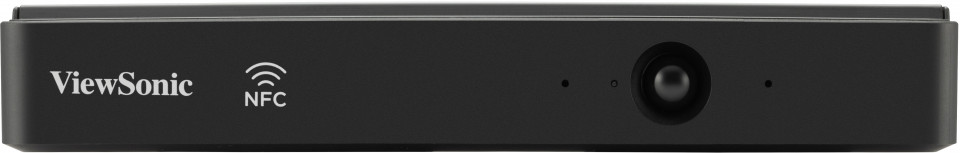

VB-SEN-001
Produit Description
The 6-in-1 Smart Sensor VB-SEN-001 is an accessory module for the ViewBoard IFP50-5 and IFP33 Series that provides smart classrooms with comprehensive conditions monitoring tools. Equipped with multiple sensors, it measures the CO2 and PM2.5 levels, temperature, and humidity to ensure optimal learning conditions at all times. The device provides extended interactive whiteboard access possibilities with advanced detectors and PIR technology that automatically wakes up the interactive whiteboard when people are in the room, and an NFC chip reader to restrict access to authorized personnel. The 6-in-1 Smart Sensor is powered by the ViewBoard via USB, eliminating the need for an additional adapter and maintaining a clutter-free learning space.
Visitez Nous
  • www.viewsonic.com
  • CAPTEUR DE PRéSENCE PIR
    Plage de détection: 0-7M
    Angle de détection: 0-5m, -40° to +40° (80°) ;
    5-7m, -10° to +10° (20°)
  • HUMIDITé
    Précision: ±5%
    Plage: 5%RH to 95%RH
  • TEMPéRATURE
    Précision: ±2°C
    Plage: -20°C to 85°C
  • NFC
    Mode de fonctionnement: Reader / Writer
    Distance de détection: 3-5cm
    ISO pris en charge: 15693 @13.56MHz and 14443 @13.56MHz
  • PM 2,5
    Plage de détection: 0-1000μg/m3
  • COV
    Temps de réponse: <2S
    Plage de détection: 400-29000ppm
  • USB
    Type B: USB B type (2.0)
  • ALIMENTATION
    Tension: 5V / 0.5A
  • SYSTèMES D'EXPLOITATION PRIS EN CHARGE
    Android 11
  • DIMENSIONS (L × L × H)
    Physique (pouces / mm): 8.1 x 2.7 x 1.24 in / 206 x 69 x 31.7mm
  • POIDS
    Net (lb / kg): 0.4 lb/0.183kg
  • CONDITIONS DE FONCTIONNEMENT
    Température: 0℃ ~ 40℃
    Humidité: 10% ~ 90% RH Non-Condensing
  • CONDITIONS DE STOCKAGE
    Température: -20°C ~ 60°C
    Humidité: 10% ~ 90% RH
  • CONTENU DE L'EMBALLAGE
    1.USB type-B to type-A cable
    2.Screws
    3.Cable Clips
    4.Quick Start Guide
