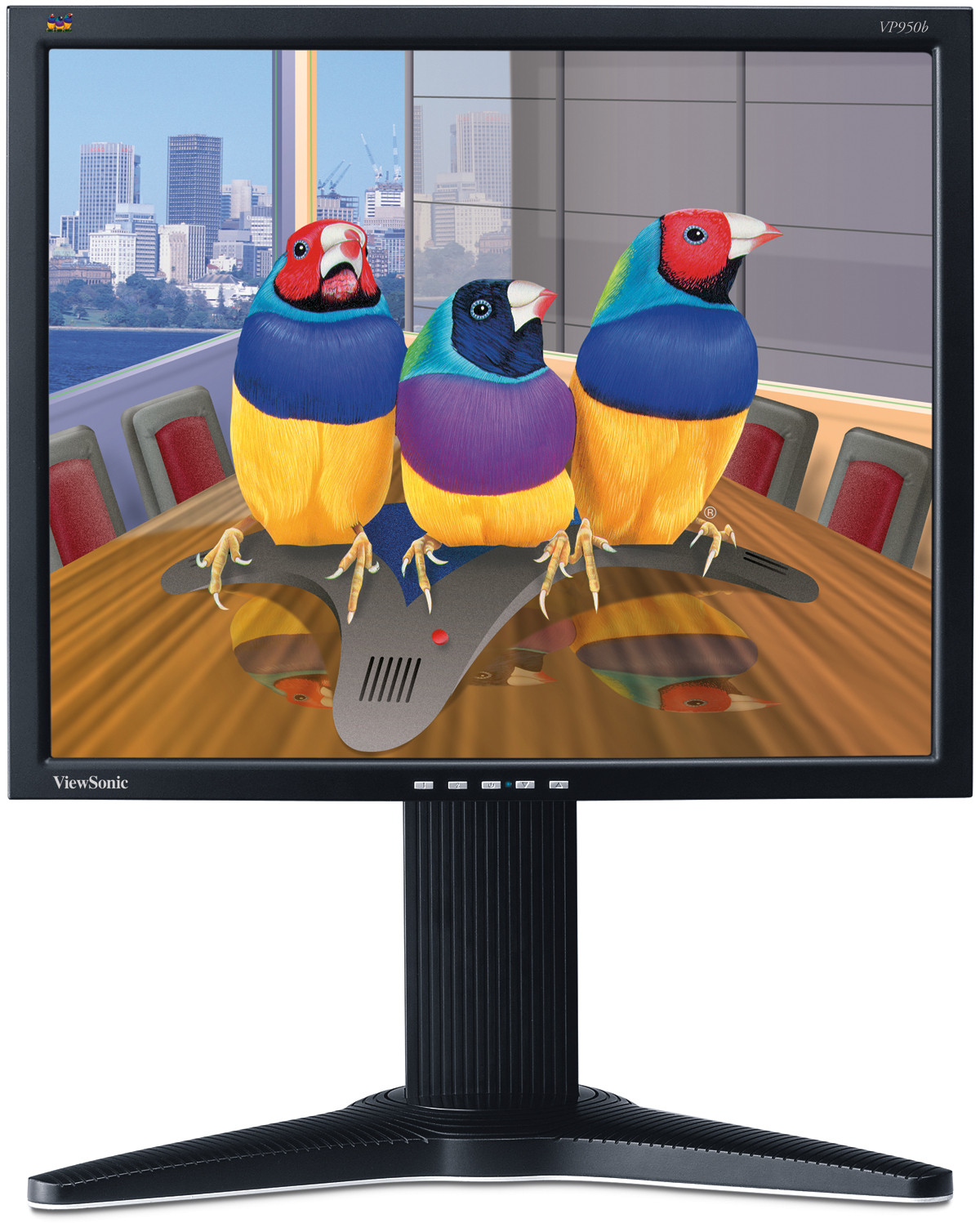

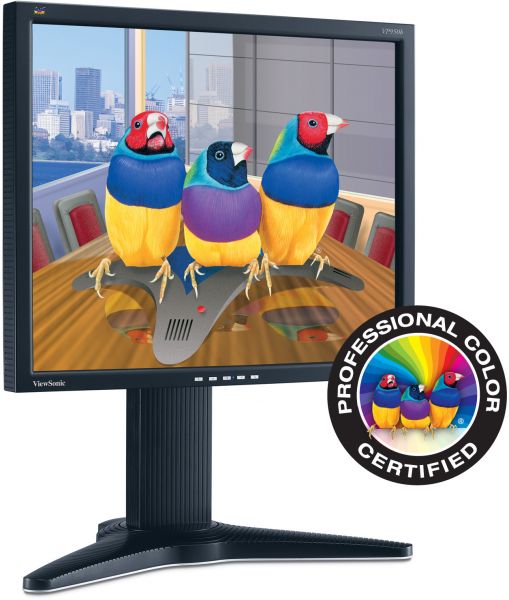

VP950b

Physical With Stand: 412 x 391-510 x 279
Physical Without Stand: 412 x 331 x 63
W x H x D mm: 470 x 523 x 195

LCD Monitor, power cable, 15-pin VGA video cable, DVI-D cable, USB cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers)
(multi-language)

Analogue: 15-pin mini D-sub (detachable cable)
Digital: 24-pin DVI-D (detachable cable) (HDCP enabled)
Stroom: 3-pin plug (CEE22)
USB: 1 x upstream (4-pin Typ B)/4 x downstream (4-pin Typ A), USB 2.0

Spanning: AC 100–240V, 50–60Hz (Auto-Switch), internal power supply
Consumptie: 40 watt (typ., without USB peripheral connected), <1 watt in power save mode

Basic: Power, menu [1], up, down, select [2]
OSD: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D),
ViewMatch® colour adjust (sRGB, 9300K, 7500K, 6500K, 5000K, user RGB),
information (resolution, H/V frequency, pixel clock, model number, serial
number), manual image adjust (H/V position, H size, fine tune, sharpness, DCR [on/off], response time [standard, advanced, ultra-fast]), setup menu
(language, resolution notice, OSD position, OSD timeout, OSD background, OSD pivot), auto white balance, OSD/power lock

Temperatuur: 0° to 40°
Luchtvochtigheid: 10% to 90% (non-condensation)

Net With Stand: 5.6kg
Net Without Stand: 4.4kg
Bruto: 7.5 kg

Frequency: Fh: 24-82kHz, fv: 50-85Hz
Sync: H/V separated (TTL), composite, sync on green
Analogue: RGB analogue (0.7/1.0 Vp-p , 75 ohms)
Digital: DVI-D (HDCP enabled, TMDS, 100 ohms, DDC/CI)

Meets TCO’03 and ENERGY STAR standards

Kensington security port

VESA FDMI 100mm x 100mm

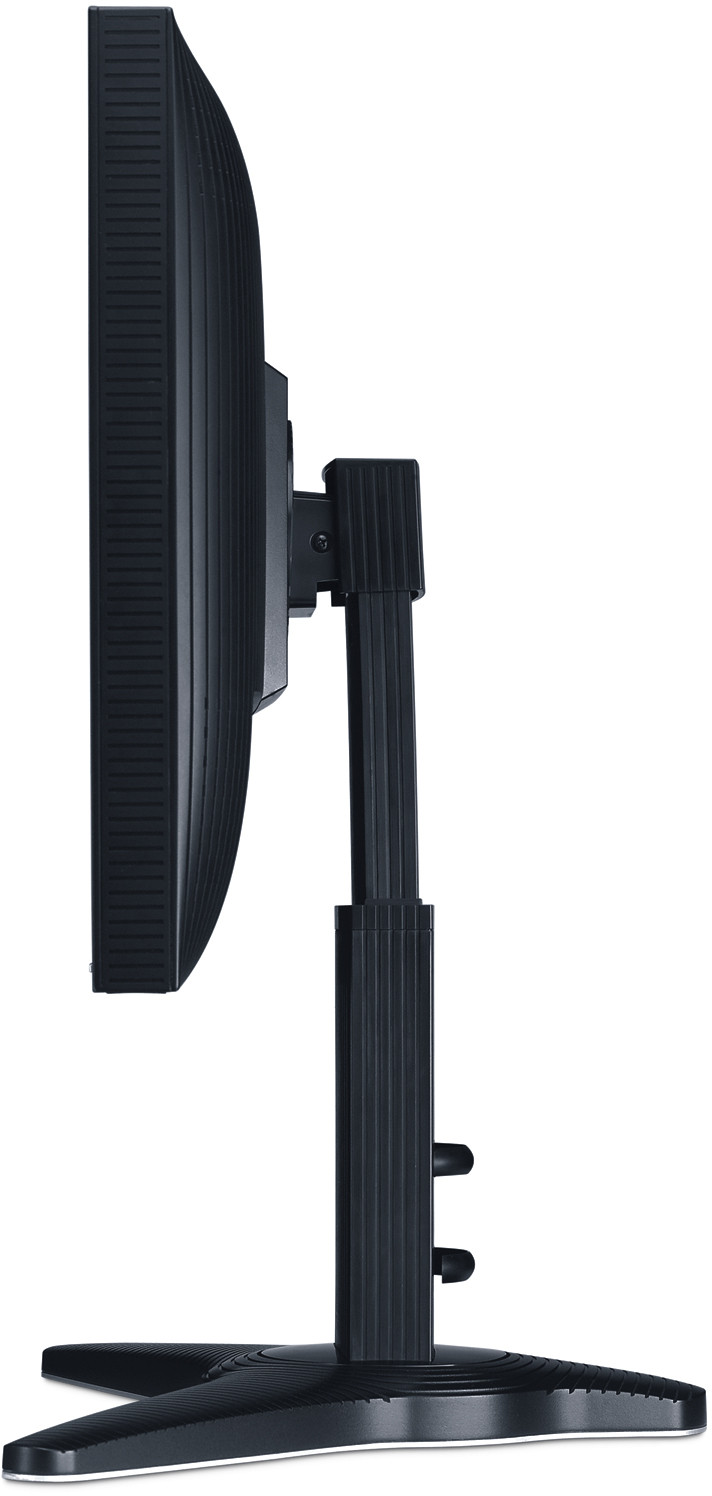

Kantelen: Down 5°, up 20°
draaibaar: 120° (60° left/right)
Height Adjustment: 0~120mm
Pivot: 0°~90°
