ViewSonic Slot in PC VPC25-W53-P1

VPC25-W53-P1

Slot-in PC voor ViewBoard®

Windows 10 Pro (ViewSonic recommends Windows 11 Pro for business) *
Ideale oplossing voor ViewBoard® interactieve displays en commerciële displays
Krachtige Intel® 10e Core-processors
Verbeterde systeemstabiliteit, beveiliging en thermische controle

Gallerij

Specificaties

Software
Besturingssysteem: Windows 10 Pro 64 bit (ViewSonic recommends Windows 11 Pro for business)*
Kern
CPU: Intel Core i5-10400T (non vPro) 2.0GHz Turbo boost 3.6GHz
Grafische afbeeldingen: Integrated Intel® UHD Graphics 630 Intel H410 chipset
Geheugen
Capaciteit: 16GB DDR4

Opslag
Afmeting: M.2 2280 (22 x 80 mm)
Capaciteit: 256GB SSD
Interface: PCIE and SATA 3

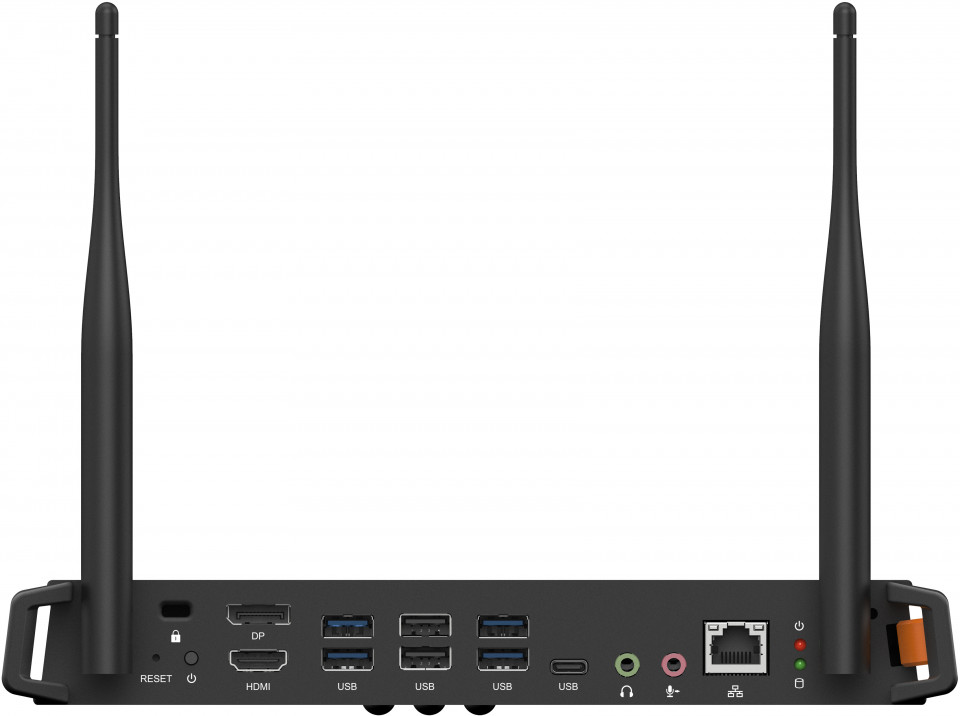

INPUT
MIC (microfoon): x1
OUTPUT
DisplayPort: x1 (1.4 resolution 3840x2160@60Hz)
HDMI: x1 (2.0 resolution 3840x2160@60Hz)
Audio: x1 Line Out
LAN
RJ45: GbE Lan Port
Draadloos / Bluetooth
Intel® Wi-Fi 6 AX200.NGWG.NV + BT5.2 Module dual band
USB
Type A: USB 2.0 x 2, USB 3.0 x 4
Type C: USB 3.2 x 1
Bundelsoftware
Adobe Reader / myViewBoard WhiteBoard for Windows / BIOS Winflash tool / FinchGuard (Watch Dog) / Intel Unite
Stroom
Consumptie: 110 W
Spanning: AC 110-240V 50/60Hz
OPERATING CONDITIONS
Temperatuur (º C): -5°C to 40°C
Luchtvochtigheid: 10% ~ 90% @ 40°C Non-condensing.
AFMETINGEN (B x H x D)
Fysiek (inch/mm): 9.69 x 10.45 x 1.27 inch / 246.2 x 265.4 x 32.2 mm
Verpakking (inch / mm): 13.78 x 12.2 x 3.54 inch / 350 x 310 x 90 mm
WEIGHT
Netto (lb / kg): 4.3lb / 1.95kg
Bruto ( lb/kg): 4.63lb / 2.1kg
VERPAKKINGSINHOUD
1. VPC OPS2. QSG
DISCLAIMER
* Upgrade timing may vary by device. Features and app availability may vary by region. Certain features require specific hardware (see Windows 11 Specifications https://www.microsoft.com/en-us/windows/windows-11-specifications?r=1).

COMPATIBEL MET VPC25-W53-P1

ViewBoard IFP6534

Enterprise Device Licensing Agreement (EDLA) Certified ViewBoard 65” 4K Interactive Display

ViewBoard IFP7534

Enterprise Device Licensing Agreement (EDLA) Certified ViewBoard 75” 4K Interactive Display

ViewBoard IFP8634

Enterprise Device Licensing Agreement (EDLA) Certified ViewBoard 86” 4K Interactive Display
