Klíčové Vlastnosti
  • Innovative All-in-One integration combines key systems within the cabinet for simplified deployment
  • 99% screen-to-body ratio creates a seamless, bezel-free viewing experience
  • The accessible LED solution delivers professional-grade performance and reliability
  • GOB surface protection resists impact, dust, and moisture for long-term durability
  • Full-front maintenance enables quick servicing via hot-swappable LED modules
  • AV control system compatibility with Q-SYS and major platforms streamlines integration

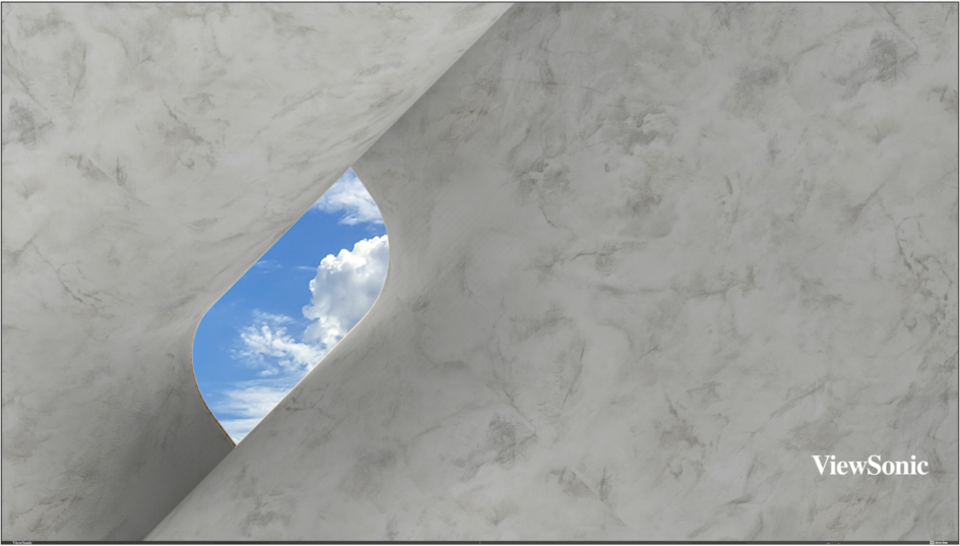

LDE163-183
Produkt Popis
The ViewSonic LDE163-183 is a 163“ accessible All-in-One LED display designed to deliver impressive visual clarity and dependable performance for corporate, educational, and public settings. All key systems, including power, control, and image stitching, are built into the cabinet, simplifying installation and creating a lighter, more integrated build. The lighter design and ADA-compliant slim 52 mm profile make wall mounting easier, while the 99% screen-to-body ratio creates a sleek, bezel-free look that blends seamlessly into modern interiors. Durable Glue-on-Board (GOB) surface protection resists impact, dust, and moisture, achieving IP65 and IK06 ratings for long-lasting reliability in high-traffic areas. The OS architecture restricts access to apps, network connectivity, and user storage to ensure simplified, secure operation and a reliable plug-and-play experience. Q-SYS-certified compatibility enables seamless integration with control systems for unified AV management and smoother workflows, and HDMI CEC support allows automatic power and device synchronization for simplified operation. With 600 nits of brightness and a 6,500:1 contrast ratio, the LDE series delivers vivid, high-impact visuals for meetings, lectures, and presentations.

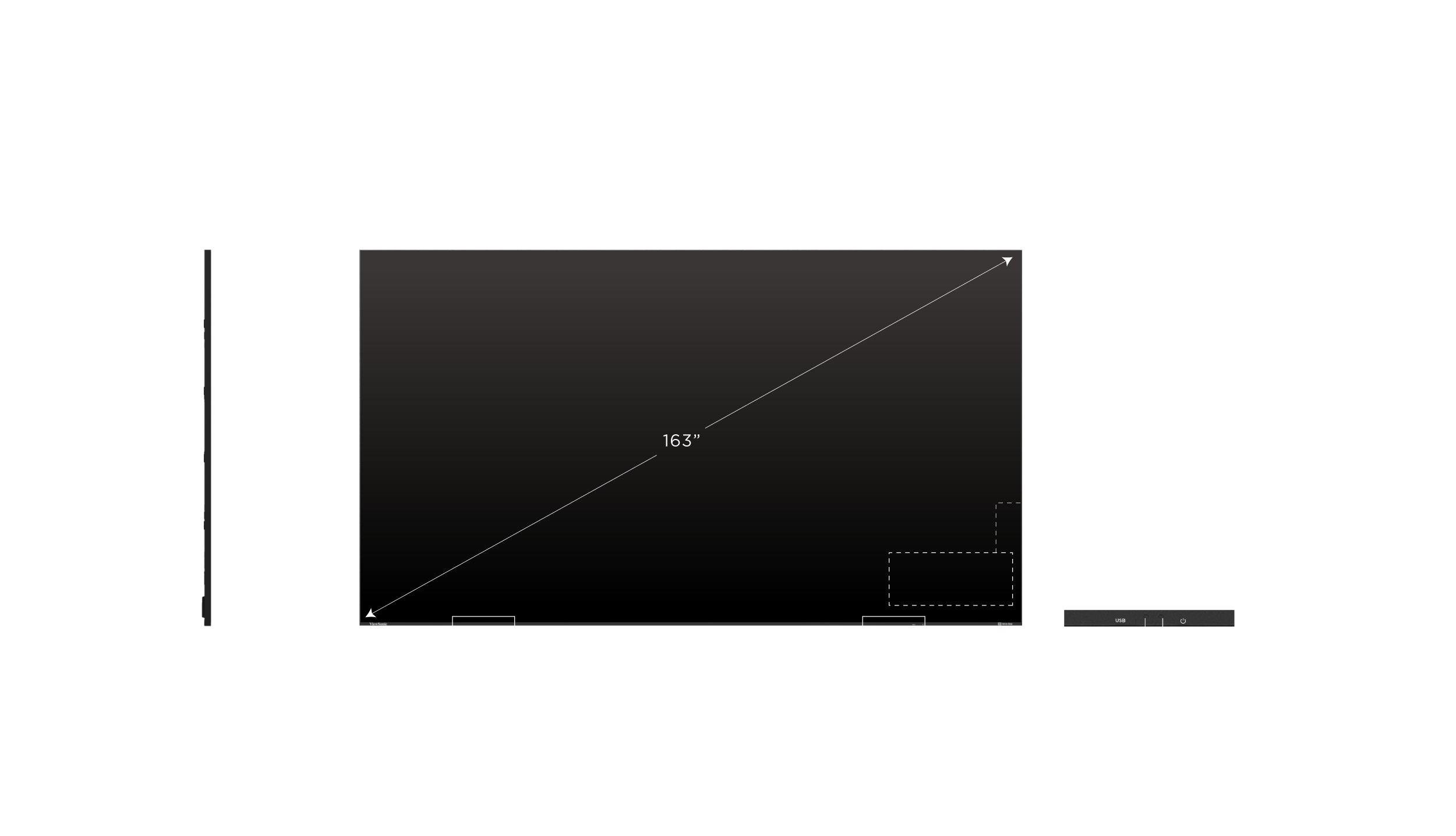

Dimension & I/O Ports 1
  1. Speaker
  2. USB
  3. IR Receiver
  4. HDMI 2.0 In
  5. HDMI 1.4 In
  6. LAN
  7. Audio Out
  8. USB
  9. HDMI Out
  10. HDMI 2.0 In
  11. HDMI 1.4 In
  12. LAN
Navštivte nás
  • www.viewsonic.com
  • SPECIFIKACE
    Screen Size: 163"
    Plocha displeje (mm): 3600 (H) x 2025 (V)
    Nativní rozlišení: 1920x1080
    Panel Technology: Direct view LED
    LED Package Type: SMD 3 in 1 (GOB)
    Bonding Wire: Copper
    Pixel Pitch (mm): 1.88
    Brightness (max.): 600 nits (100 levels adjustable)
    Contrast Ratio (typ.): 6500:1
    Color Temperature: 3000K-10000K
    Orientace: Landscape
    Viewing Angles (typ.): H = 170, V = 170
    LED Lifetime (typ.): 100,000 Hours
    Zabudovaný operační systém: Simplified OS
    Podpora rozlišení: VGA(640 x 480) to 4K(3840 x 2160@60hz)
    Kompatibilita s HDTV: 480p, 576p, 720p, 1080p, 2160p
    Horizontální frekvence: 31K-94kHz
    Vertikální rychlost snímání: 56-84Hz
  • VSTUP
    HDMI: 2
    (HDMI 2.0/HDCP 2.2 x1, HDMI1.4/HDCP1.4 x1)
    (internal x2)
    USB Typu A: 2
    (internal x1, external x1)
    RJ45 vstup: 1
    (control)
  • VýSTUP
    HDMI out: 1
    (HDMI 1.4/HDCP 1.4, internal)
    Reproduktor: 15Wx2
    Audio výstup (3,5 mm): 1
    USB typu A (napájení): Shared with USB A input
    (5V/0.9A )
  • KONTROLA
    RJ45 (LAN control): 1
    USB Type A (Services): 1(shared with USB A input)
    RS232 (DB 9-pin female): 1
    IR Receiver: 1
  • DALší
    Napětí zdroje napájení: 100-240V ~ 50/60Hz
    (vary by country)
    Power Consumption (W/unit): 669W (typ), 2060W (max)
    < 0.5W (Hibernate)
    Heat Dissipation (BTU/hr): 2282.6 (typ), 7028.7 (max)
    Heat Dissipation per Unit Area (BTU/h/m²): 313.1 (typ), 964.1 (max)
    Provozní teplota: 0~40℃
    Total LED Module Quantity: 144
    Ingress Protection Rating: IP65(Front)
    Impact Protection Rating: IK06(Front)
    Čistá hmotnost: 330.8 lbs
    (150.1 kg)
    Gross Weight: 650.35 lbs
    (295 kg)
    Product Dimensions (WxHxD): 142.2 x 80.55 x 2.04 inches
    (3612 x 2046 x 51.7 mm)
    Product Dimensions (WxHxD) with wall mount: 142.2 x 80.55 x 2.47 inches
    (3612 x 2046 x 62.7 mm)
    Packing Dimensions (WxHxD): 89.76 x 42.52 x 47.24 inches
    (2280 x 1080 x 1200 mm)
  • STANDARD ACCESSORIES
    Napájecí kabel: 2
    HDMI Cable: 1 (USB Type C to HDMI)
    LAN Cable (Cat 5E): 1
    Dálkové ovládání: 1(IR)
    QSG: 1
    Nástěnný držák: 1
    Spare Parts: LED module x10
    3 in 1 hub board x1
    Maintenance Tool: LD-MK-006 x1
  • OPTIONAL ACCESSORIES
    Maintenance Tool: LD-MK-006
    Floor Stand: LD-STND-009
