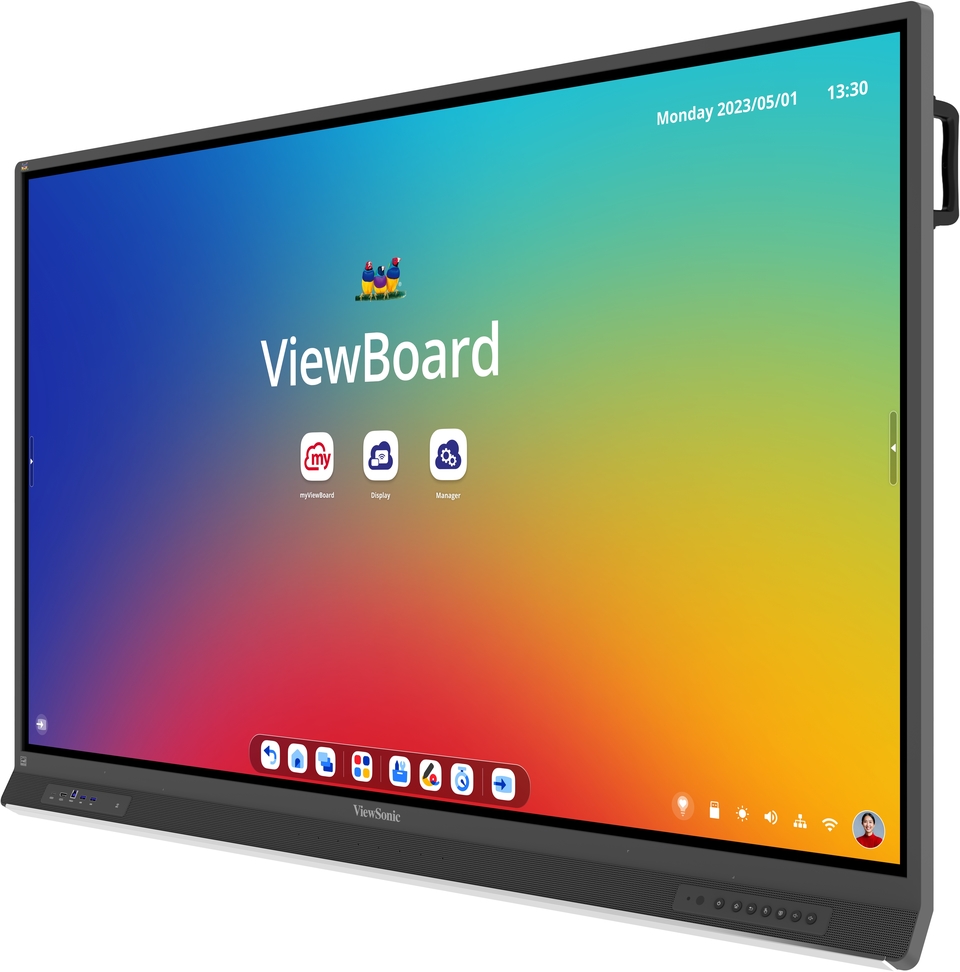

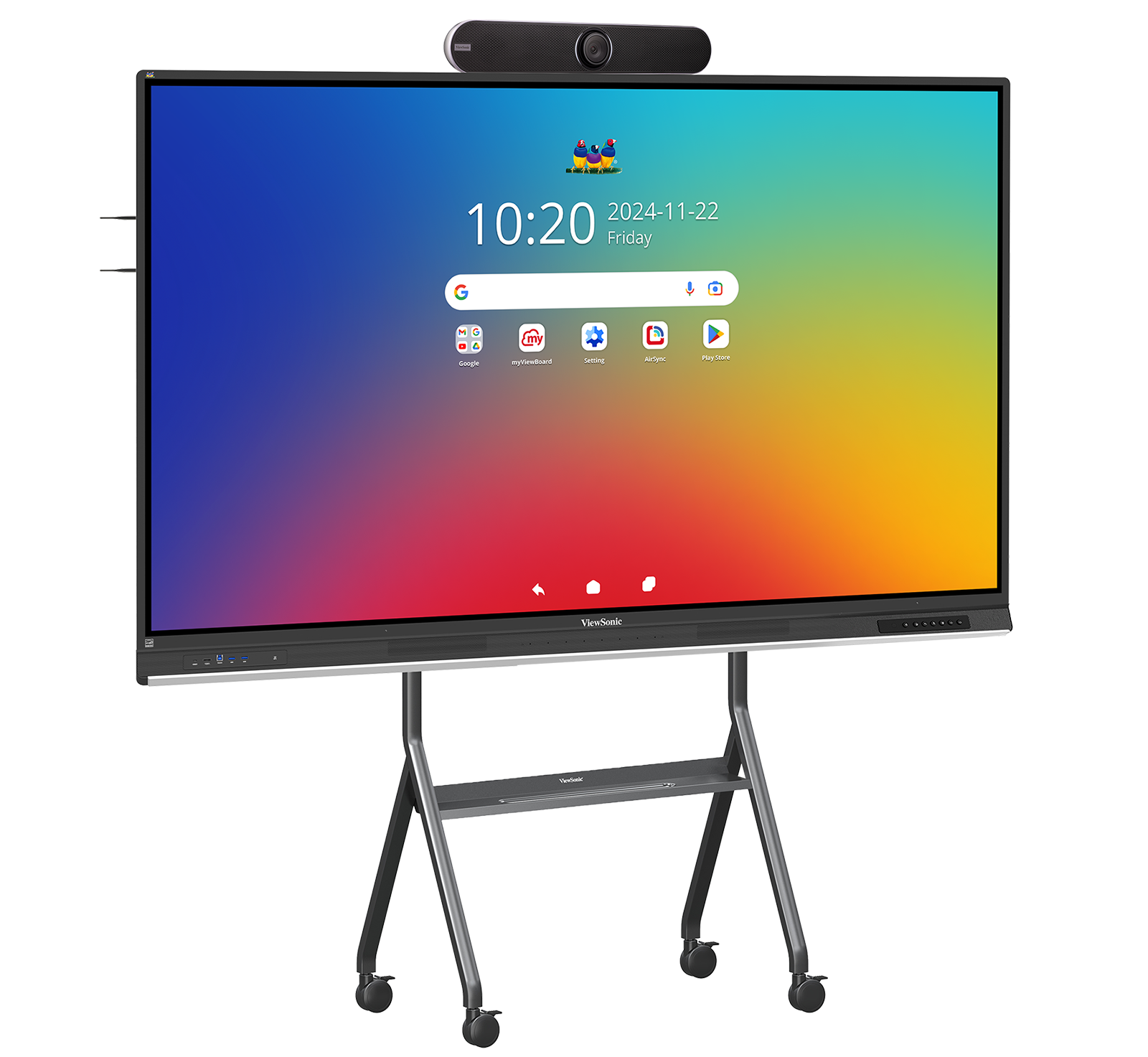

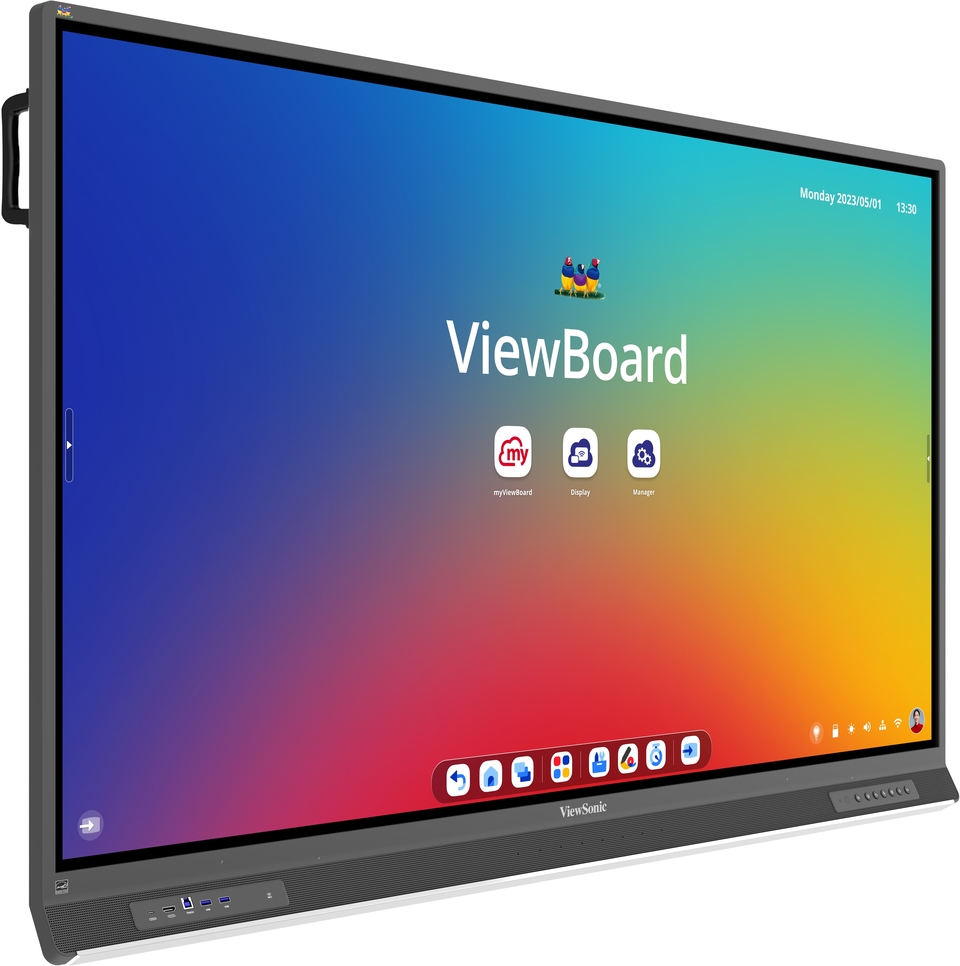

ViewBoard IFP7553

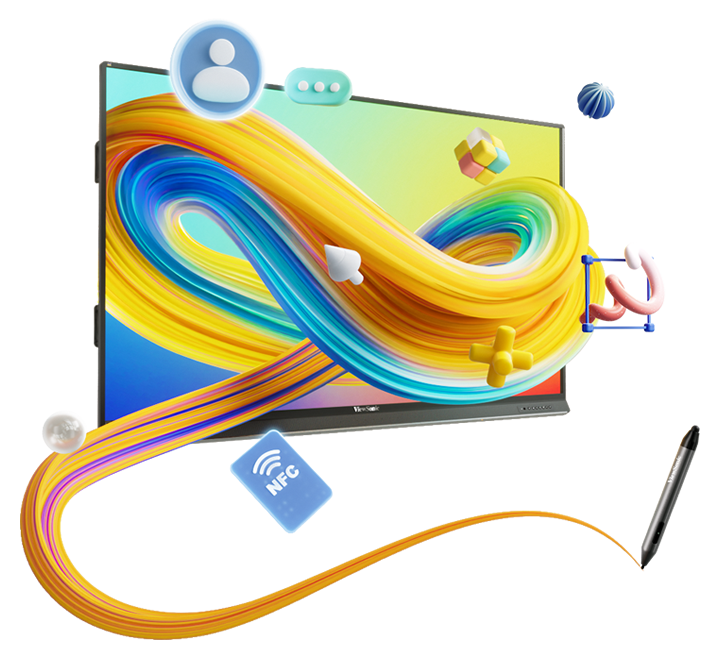

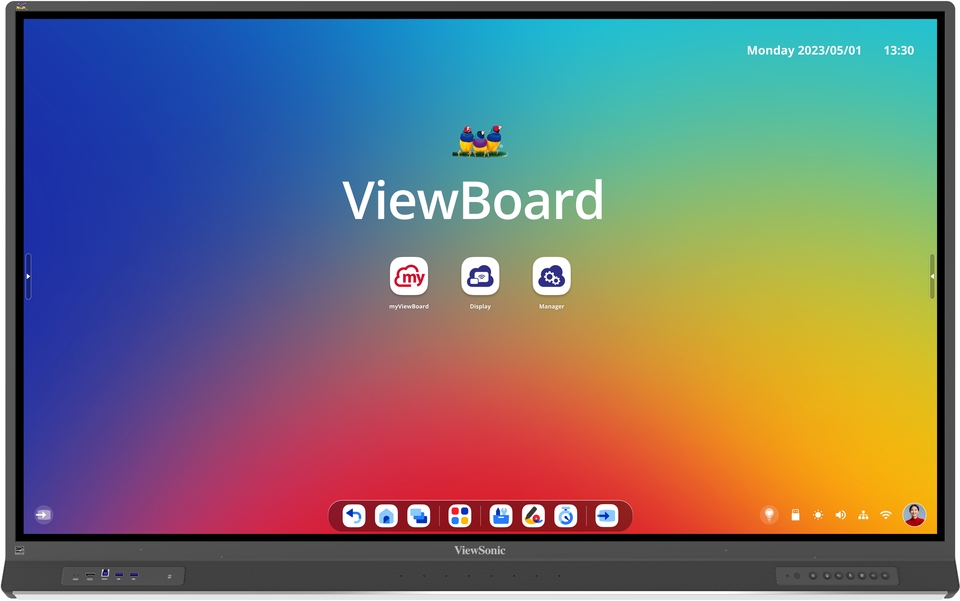

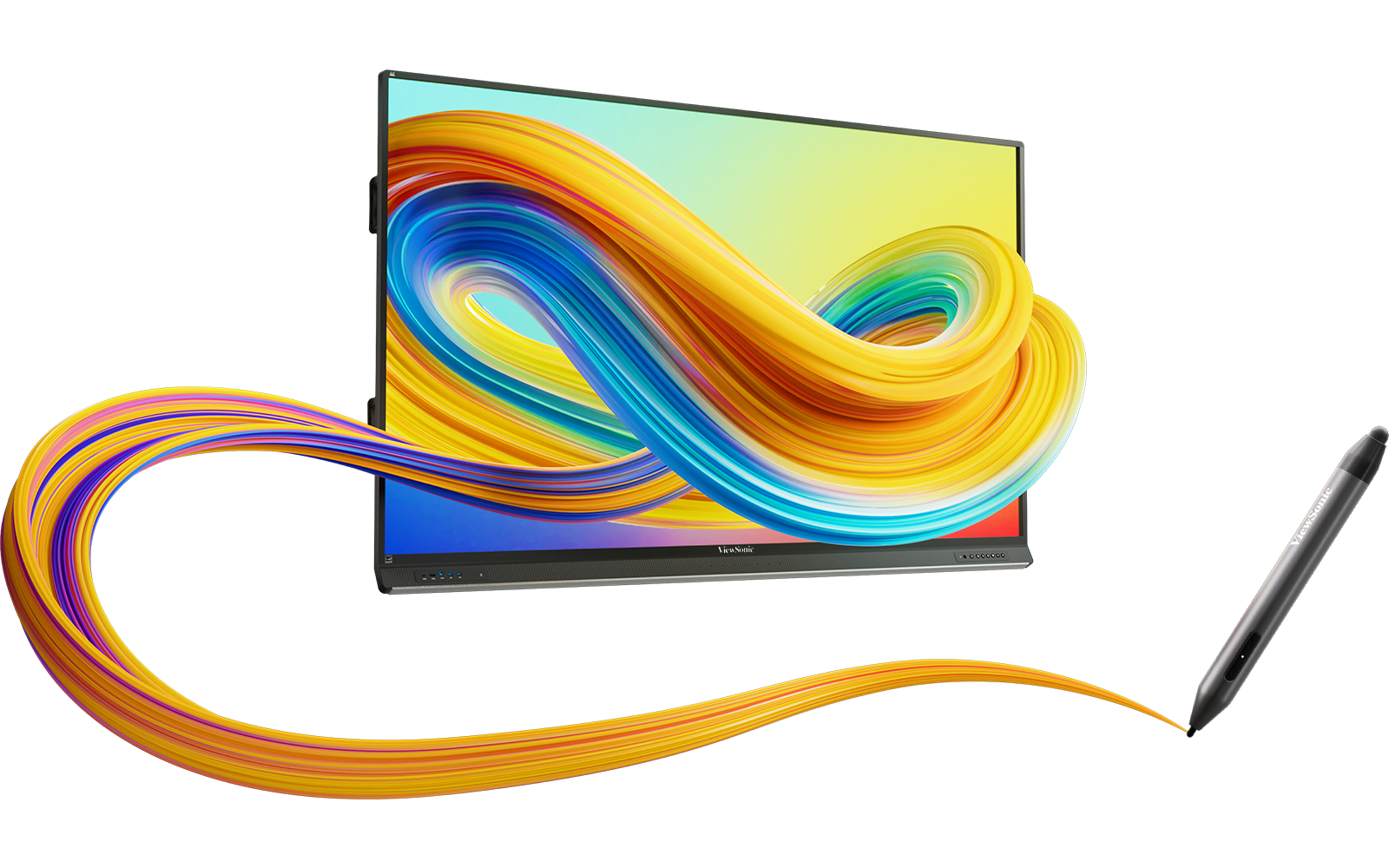

Pantalla interactiva ViewBoard® 75" 4K

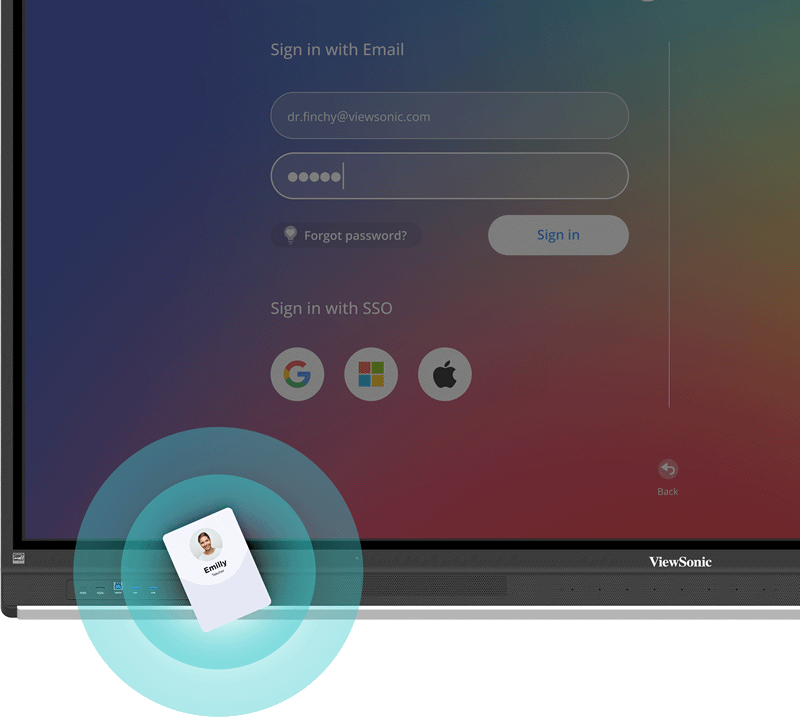

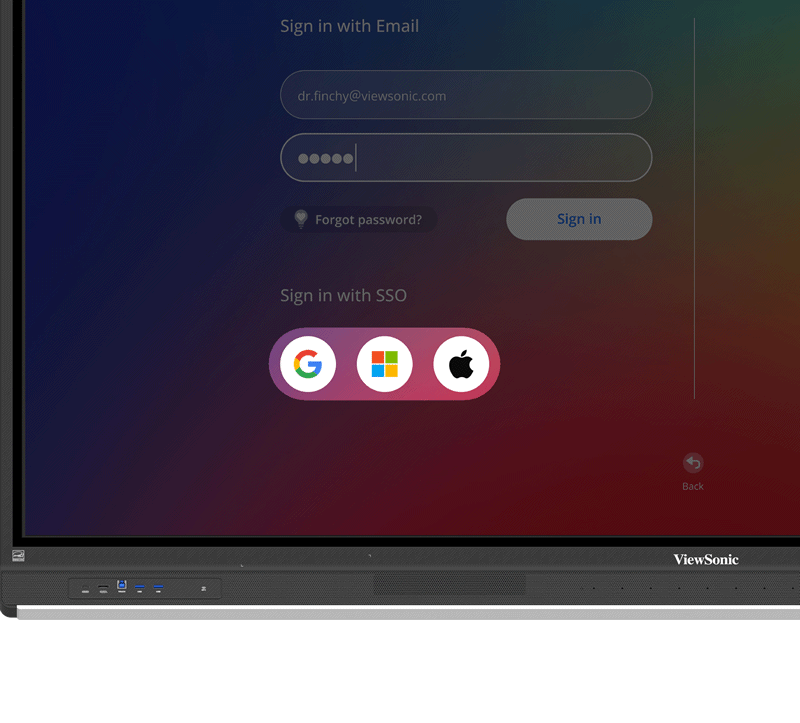

NFC e inicio de sesión SSO para acceder rápidamente al lanzador intuitivo y a los ajustes personales.
Anotación rápida, esbozo y cambio de cuatro colores con el lápiz óptico
CPU octa-core con 8 GB de RAM y 8 GB de memoria virtual para una multitarea fluida

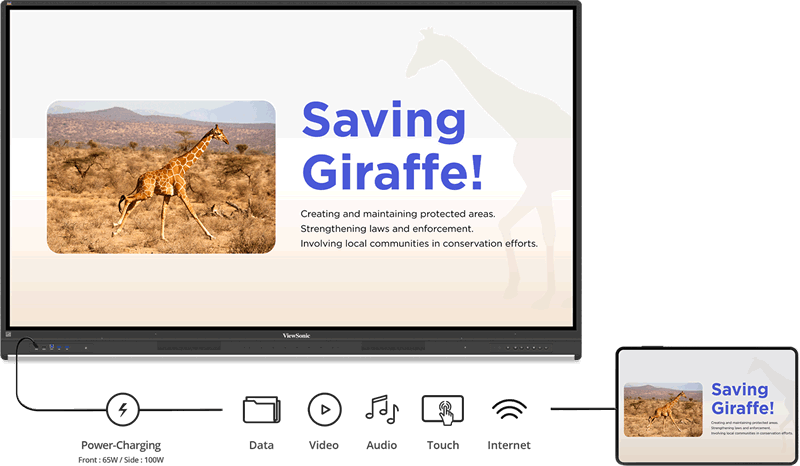

Cuatro puertos USB-C garantizan una conectividad perfecta y admiten una carga de hasta 100 W
Android 14 con ViewSonic Education Software integrado

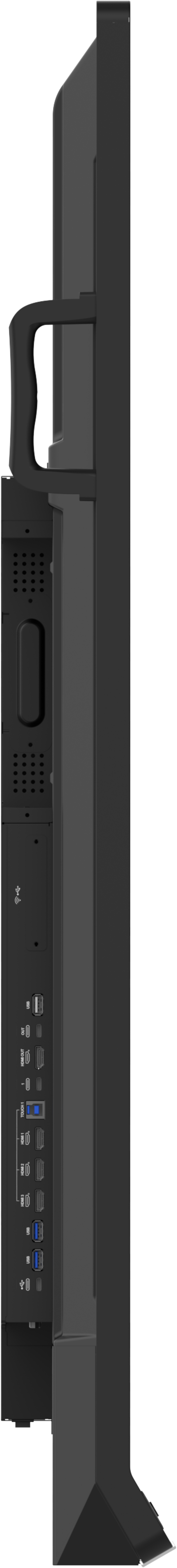

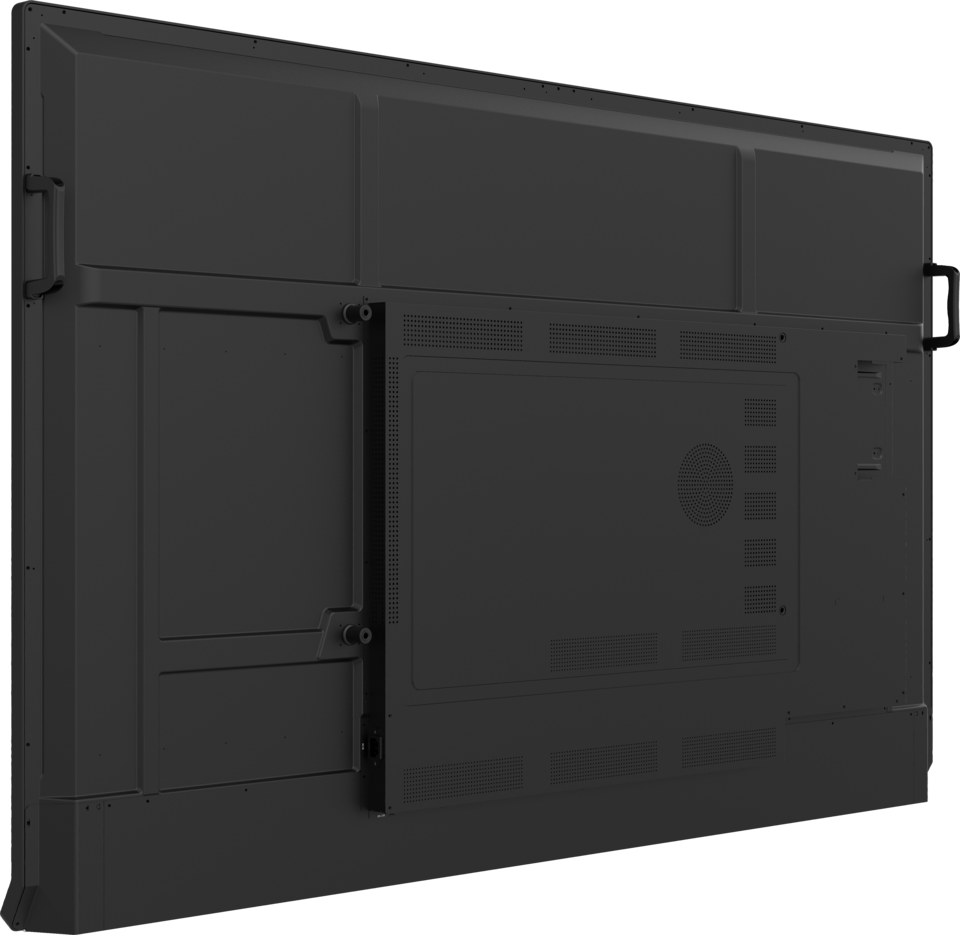

GALERÍA

ESPECIFICACIONES

Display
Tamaño del panel: 75"
Tipo de panel: TFT LCD Module with DLED Backlight
Área de visualización (mm): 1650.24 (H) x 928.26 (V) (74.5" diagonal)
Relación de aspecto: 16:9
Resolución: UHD 3840x2160(Pixels)
Colors: 1.07B colors
Brillo: 450 nits
Relación de contraste: 5500:1(Typ.)
5000:1(Min. with DCR enabled)
Tiempo de respuesta: 6.5 ms
Ángulos de visión: H = 178, V = 178 typ.
Vida útil de la retroiluminación: 50,000 hrs
Tratamiento de superficies: Panel Anti-Glare 3H + Anti-Fingerprint (7H Mohs; 9H pencil hardness)
Orientación: Landscape
Plataforma
Procesador: Octa-Core CPU (A73*4 + A53*4)
RAM: 8GB (Physical RAM) + 8GB (Virtual Ram) *
Almacenamiento: 128GB
Touch
Tipo/Tecnología: UFT (Ultra Fine Touch) Technology
Resolución táctil: 32767 x 32767
Puntos táctiles: Windows: 40 points touch, Android: 20 points touch
Touch Response Time: ≤5ms

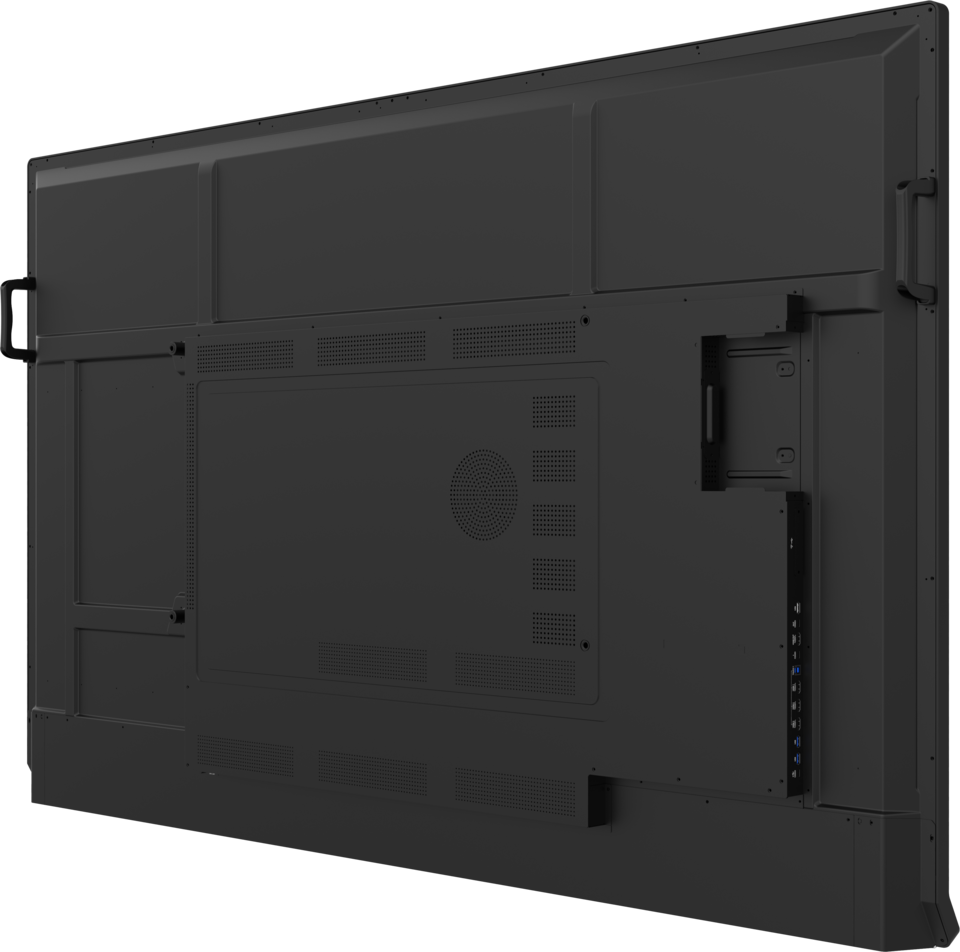

INPUT
HDMI: x4 (Frontx1:HDMI2.1 with CEC ; Rearx3:(HDMI2.1 with CEC)x2 & (HDMI2.1 with CEC,ARC)x1
RGB / VGA: x1
DisplayPort: x1
Audio: x1 (PC audio in)
RS232: x1
OPS: module slot x 1
OUTPUT
HDMI: x1
Audio: x1 (Earphone out)
SPDIF: x1
LAN
RJ45: x2
USB
Tipo A: USB3.0x4 (Frontx2; Rearx2)
USB2.0x1 (Rear)
Tipo B: USB 3.0x3(Frontx1; Rearx2)
Tipo C: Input:x3 (Frontx1 with USB3.0, DP1.2, Ethernet 100M, PD 100W; Rearx1 with USB3.0, DP1.2, Ethernet 100M, PD 65W; Rearx1 with USB3.0, PD 15W)
Output:x1, DP
ALTAVOCES
20W x 2 front soundbar + 20W x 1 subwoofer
MICROPHONE
built-in 8-array microphone
Top Camera Plate
Yes
Sistema operativo integrado
Android 14
Bundled Software
Software de anotación básico: myViewBoard for Android
Software de anotación Pro: myViewBoard for Windows (embedded in VPC)

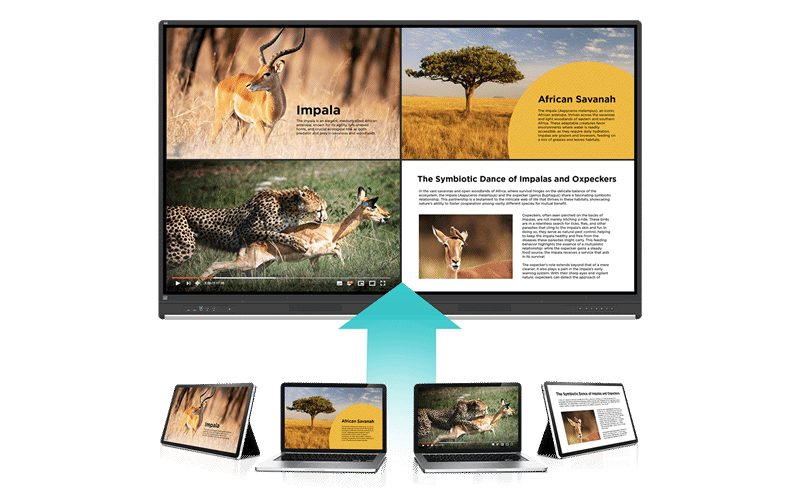

Presentación Inalámbrica: Display, vCast
Device Management: Manager
ViewSonic Launcher: Yes
Características especiales
All-in-one USB port: USB 3.0 “SmartPort USB” to all channels.
Intercambio de LAN simple entre IFP y dispositivo de entrada: 10/100/1000M (USB Type-C 10/100, Android & PC 10/100/1000)
Light Sensor: Yes
NFC Reader: Yes
Pen Sensor: Yes
Alimentación
Voltaje: 100-240VAC +/- 10% Wide Range
Consumo: On:101.77W / Off: <0.5W
ERGONOMICS
Montaje en pared (VESA®): 800 x 400
OPERATING CONDITIONS
Temperatura (º C): 0°C to 40°C
Humedad: 20% ~ 80% RH non-condensing

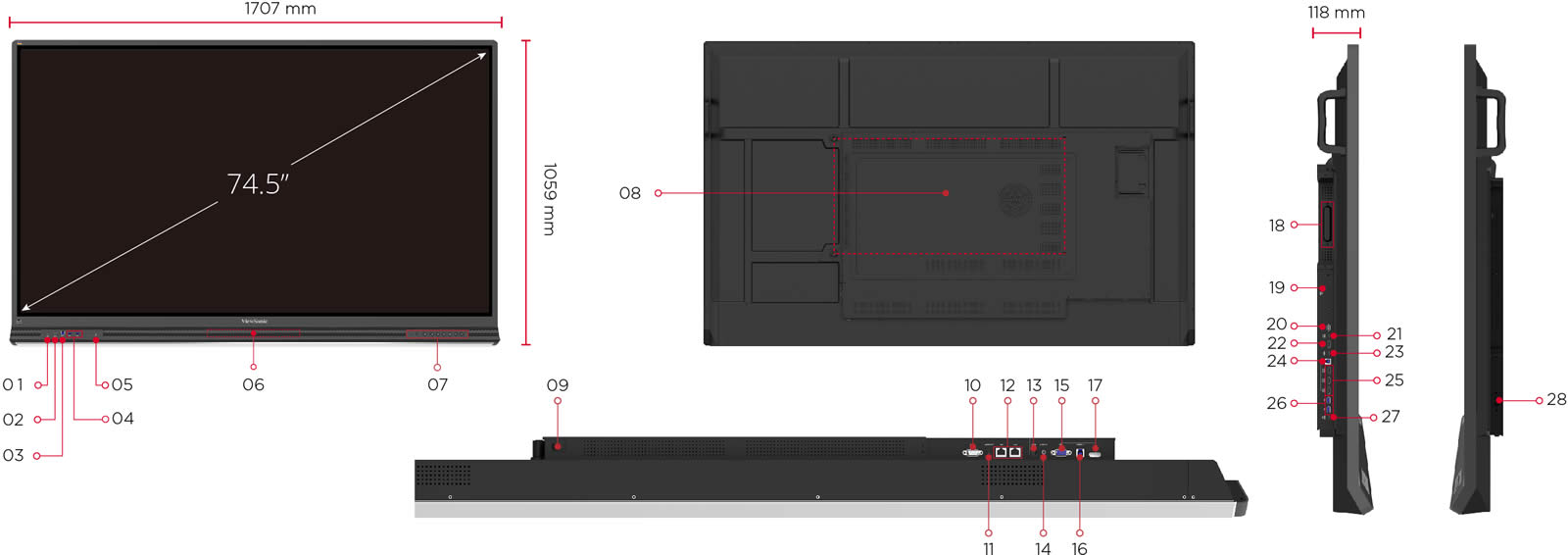

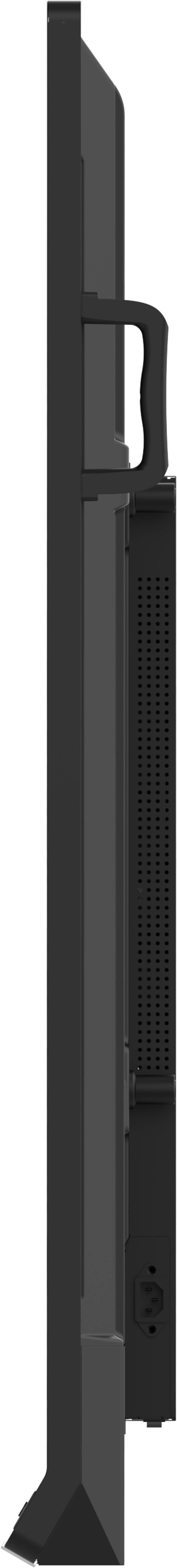

DIMENSIONES (W x H x D)
Físico (pulgadas / mm): 67.21 x 41.7 x 4.66 in / 1707 x 1059.2 x 118.4 mm
Embalaje (pulgadas / mm): 74.8 x 45.67 x 8.46 in / 1900 x 1160 x 225 mm
WEIGHT
Neto (lb / kg): 113.98 lb / 51.7 kg
Bruto (lb / kg): 140.87 lb / 63.9 kg
CONTENIDO DEL EMBALAJE
1. 3m power cord by ship area
2. Type C cable 1.8m(USB-IF certified)
3. Remote control with AAA battery
(new VS remote control)
4. 3m touch USB cable(USB 2.0)
5. Touch pen x 2 (VB-PEN-002)
6. Quick Start Guide
7. RS232 adapter
8. Clamp x 5
9. Camera Plate
10. Screw x 8 (camera 2+2, wall mount 4)
11. HDMI cable 3m(HDMI LA certified)
12. AAA Battery x 2
13. Compliance statement

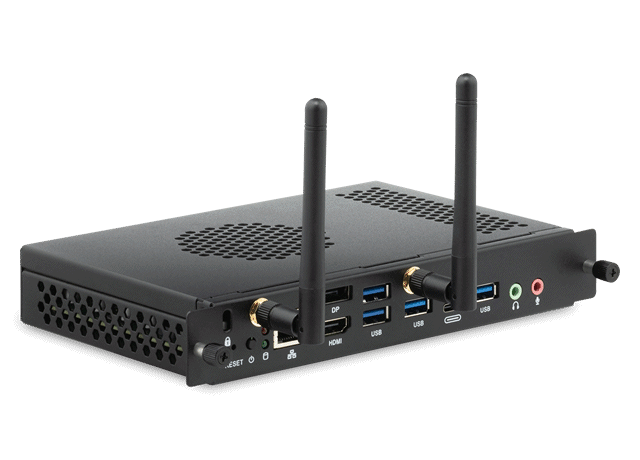

PC encastrable compatible
VPCF5-W33-G1
VPC37-W53-G1
VPC35-W53-G1
VPC-A31-O1
Note
*Disclaimer for Virtual RAM Usage:
This device's Virtual RAM uses part of the internal storage to potentially enhance performance. It's not a substitute for physical RAM and might impact storage availability and device longevity. Users should assess their needs before enabling this feature. Note that performance outcomes can vary based on application use and device conditions. The manufacturer may modify or discontinue this feature at any time without notice.
