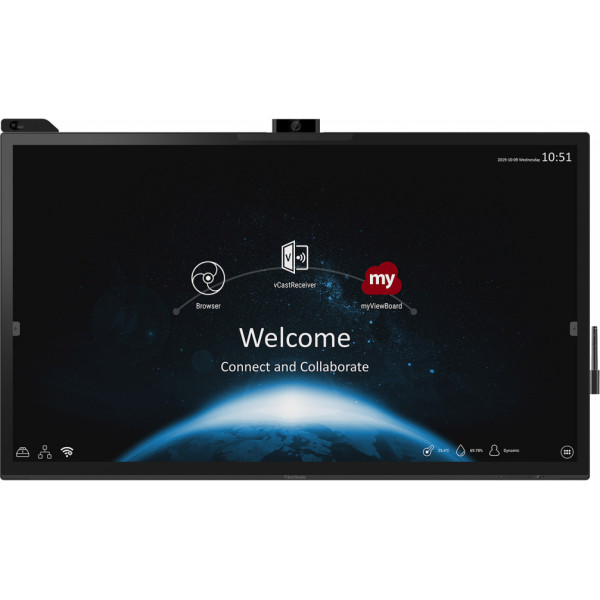

ViewSonic ViewBoard IFP6570

IFP6570

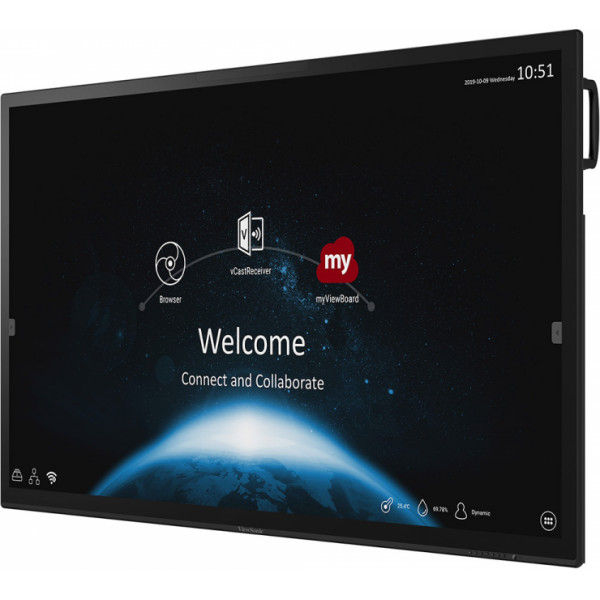

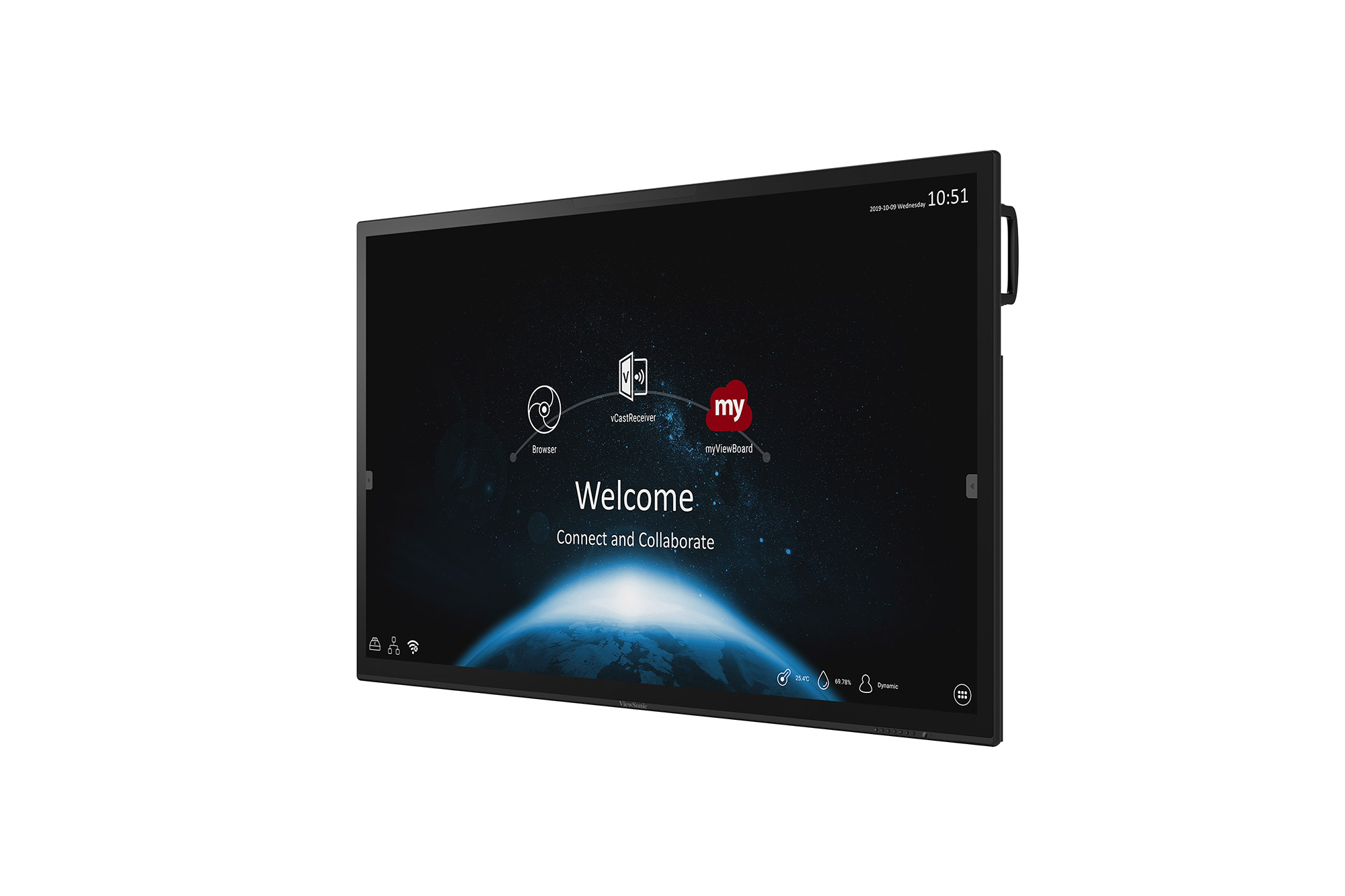

ViewBoard® 65'' 4K Flagship Interactive Display

Advanced Projected Capacitive (PCAP) touch technology

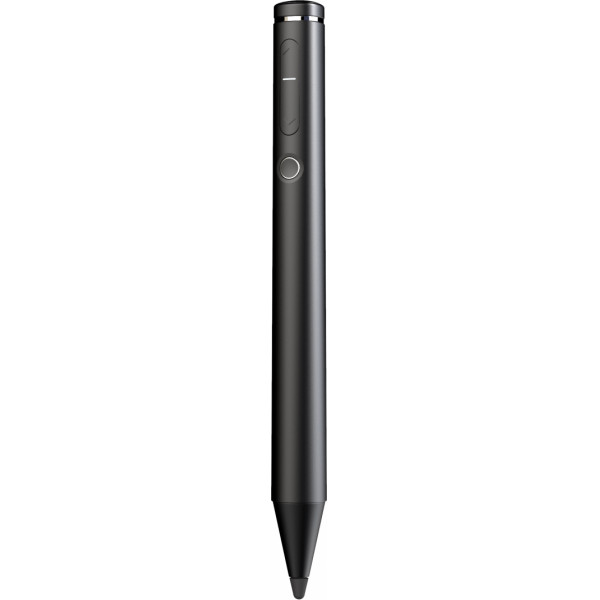

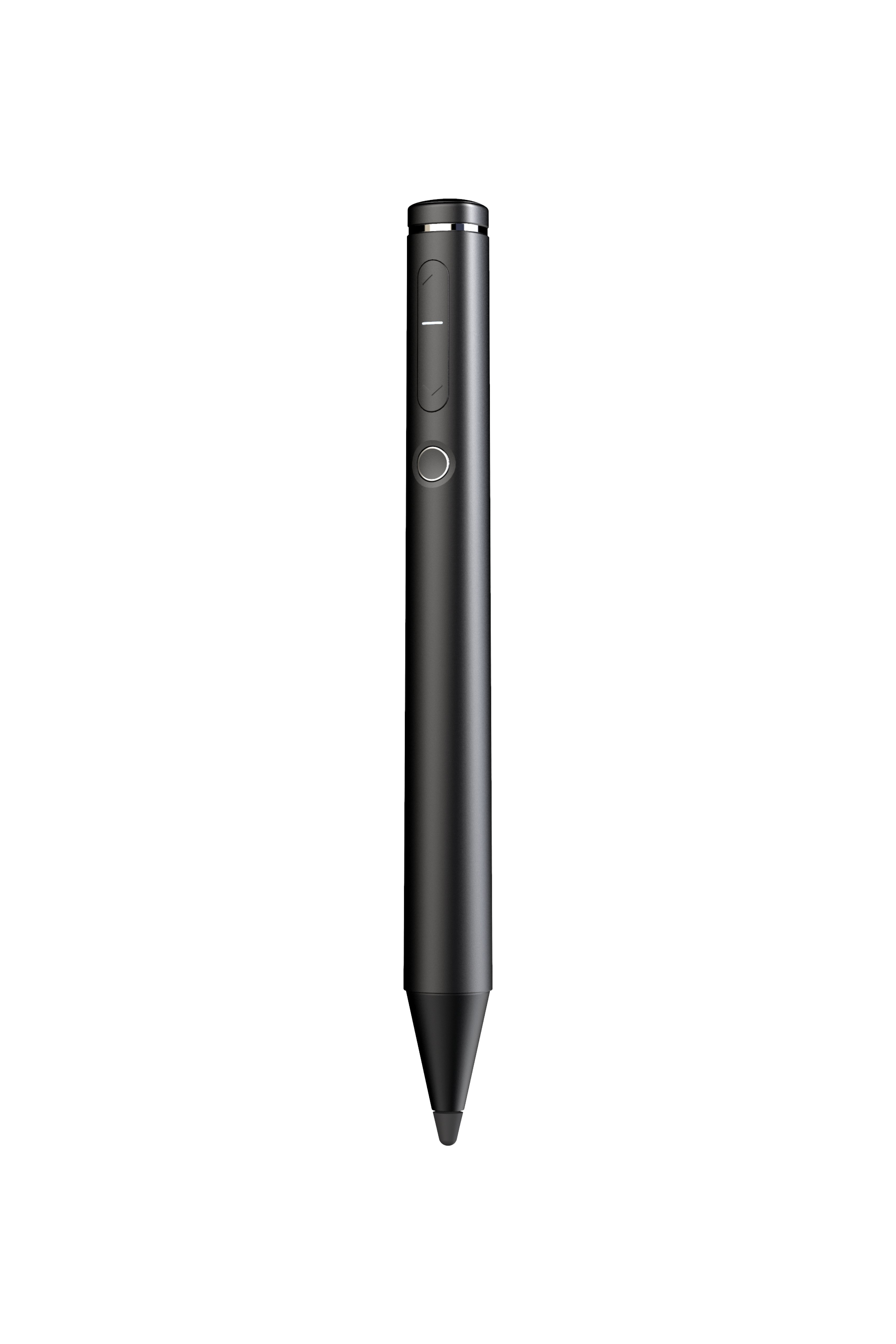

Write Naturally and Accurately with Smart Active Pen

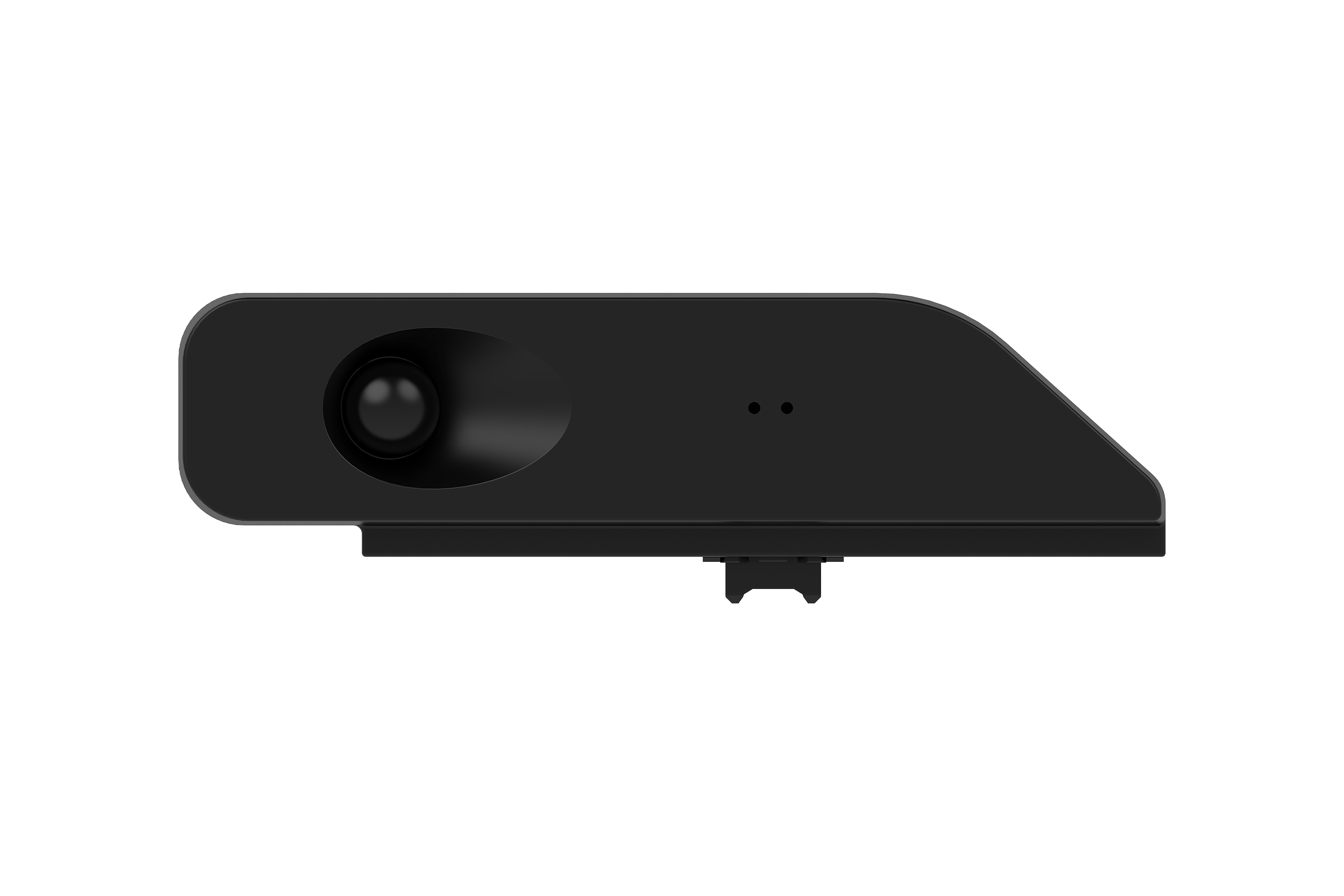

Azure certified IoT sensor hub for workplace management
High Quality Video Conferencing Solution
Single cable content sharing through USB Type C

GALLERY

SPECIFICATIONS

Display
Panel Size: 65"
Type/Tech: TFT LCD Module with DLED Backlight.
Display Area (mm): 1428.48(H) x 803.52(V) mm (64.5” diagonal)
Aspect Ratio: 16:9
Native Resolution: UHD 3840x2160(Pixels)
Colours: 1.07B colours (10bit)
Brightness: 350 nits (typ.)
Contrast Ratio: 1200:1 Typ.
Response Time: 8ms
Viewing Angles: H = 178, V = 178 typ.
Backlight Life: 30,000 Hours (Min)
Surface Treatment: Hardness: 7H (9H pencil), Anti-flare coating
Bezel: Slim
Orientation: Landscape
Platform
Processor: Dual core A73+Dual core A53
RAM: 4GB DDR4
Storage: 32GB
Touch
Type/ Tech: PCAP
Touch Resolution: 32767 x 32767
Touch Point: 20 points touch, 10 points writing

INPUT
HDMI: 2.0 x1 (3840x2160 @60Hz)
DisplayPort: X1 1.4
RS232: x1
OPS: x1 PC Slot
OUTPUT
HDMI: X1(4K2K@60Hz)
Audio: x1 (Earphone out)
SPDIF: 1(optical)
LAN
RJ45: x1
USB
Type A: USB 3.0 x3
Type B: USB 3.0 x2, for touch
Type C: x1 USB3.0, DP1.4 Alternate mode, Ethernet, PD 60W
SPEAKERS
SPEAKERS: 10W x 2 + 15W x 1 subwoofer
Camera plate on top for screw-in webcam installation
Camera plate on top for screw-in webcam installation: Yes
Bundle Software
Basic Annotation Software: myViewBoard for android
Pro Annotation Software: myViewBoard for windows (Embedded in Windows Slot-in PC)
Wireless Presentation with Touch Feedback: Viewboard Cast: ViewBoard Cast
Power
Voltage: 100-240VAC +/- 10% Wide Range
Consumption: On:99(Typ.)
Off: <0.5W
ERGONOMICS
Wall Mount (VESA® ): 800 x 600
OPERATING CONDITIONS
Temperature (º C): 0°C to 40°C
Humidity: 10% ~ 90% RH non-condensing
DIMENSIONS (W x H x D)
Physical (inch / mm): 1493X883X84(mm)
58.77x34.76x3.3(inch)
Packaging (inch / mm): 1669X1010X223(mm)
65.7X39.7X8.7(inch)
WEIGHT
Net (lb / kg): 94.79 lb/43Kg
Gross (lb / kg): 110.23 /51Kg
Energy Star version
Energy Star version: ES8.0
EEI rating
EEI rating: A+
PACKAGE CONTENTS
PACKAGE CONTENTS: 1. Power cable (3 metres) x 4
2. Remote control
3. AAA battery X2
4. USB cable Type C (1.5 metres pass logo)
5. activeTouch pen x 2
6. Pen Charger X1
7. Quick Start Guide
8. RS232 adapter
9. Clamp x 7

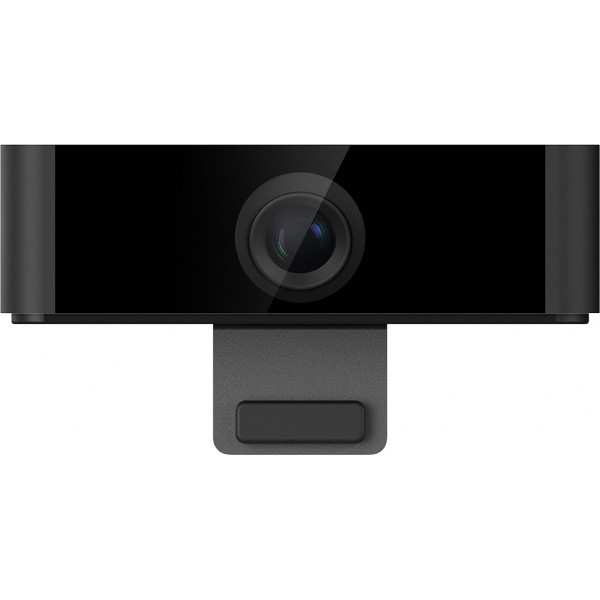

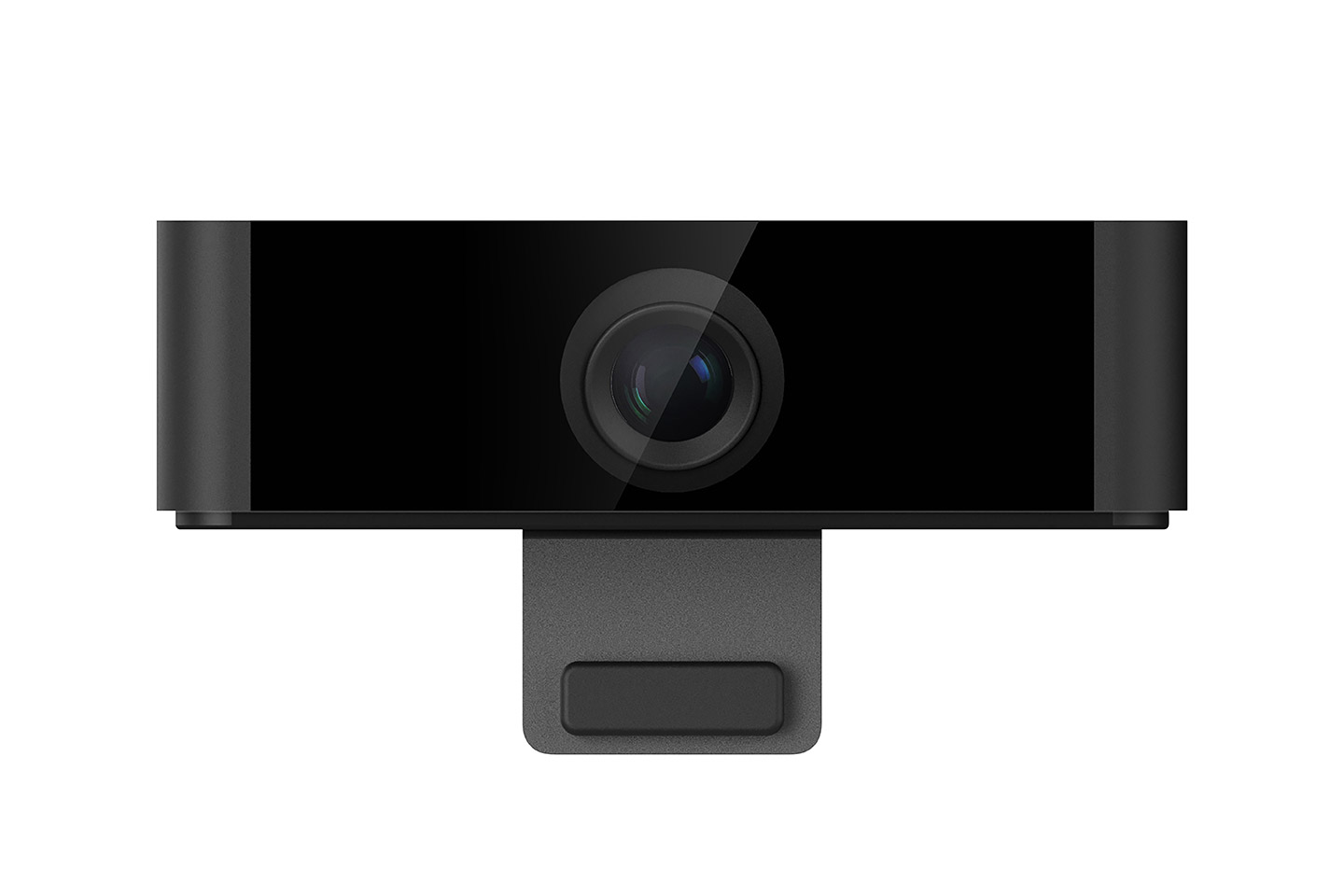

10. Camera
11. Screw x 6 (4 for wall mount ,2 for sensor hub)
12. HDMI cable (3 metres)

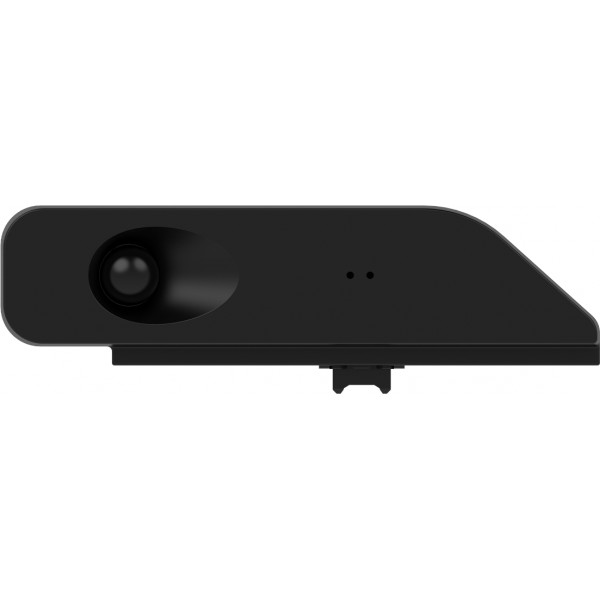

13. Sensor hub
14 .Touch USB cable (3 metres)
15. Micro USB cable for camera (2 metres)
Compatible Slot-in PC
Compatible Slot-in PC: VPC14-WP series
VPC10-WP series
VPC15-WP series
VPC16-WP series
VPC17-WP series
