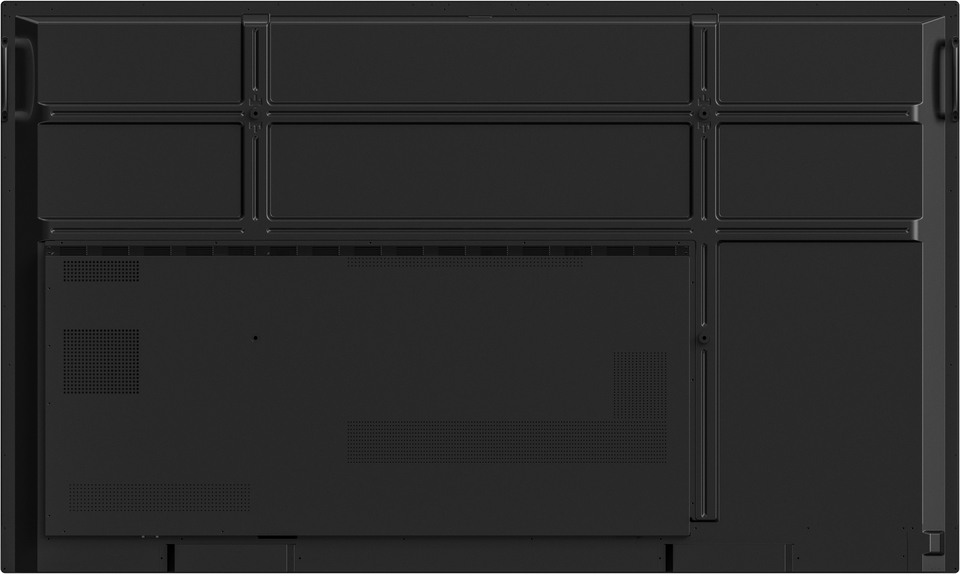

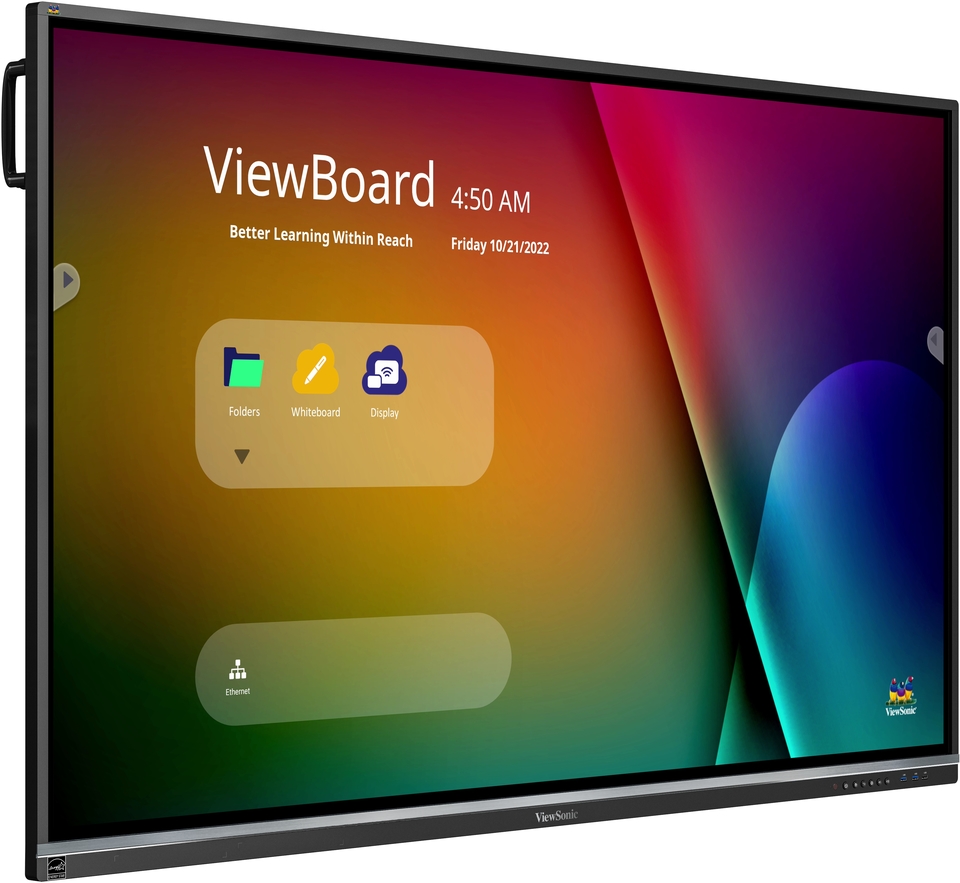

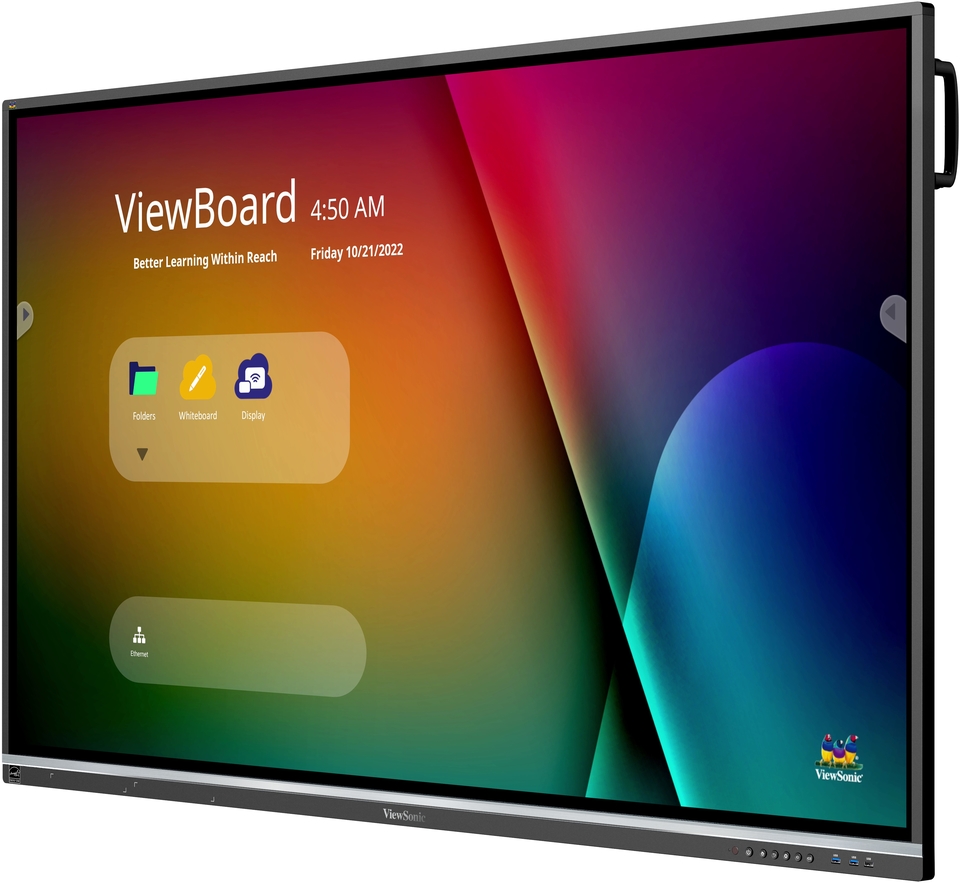

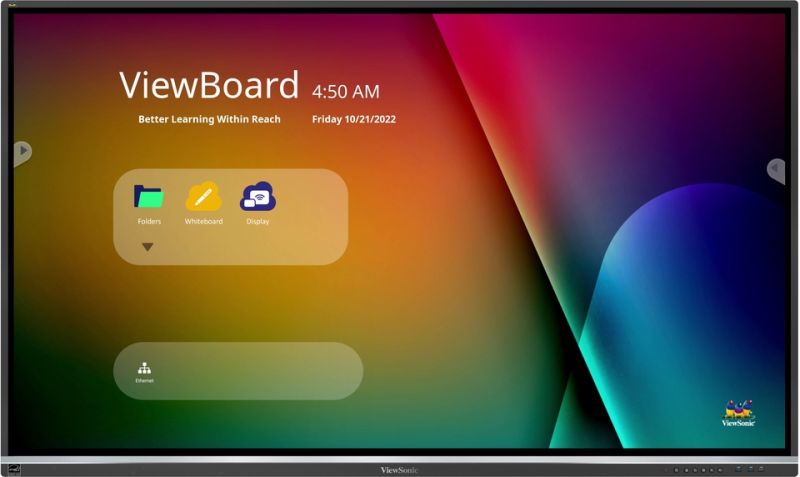

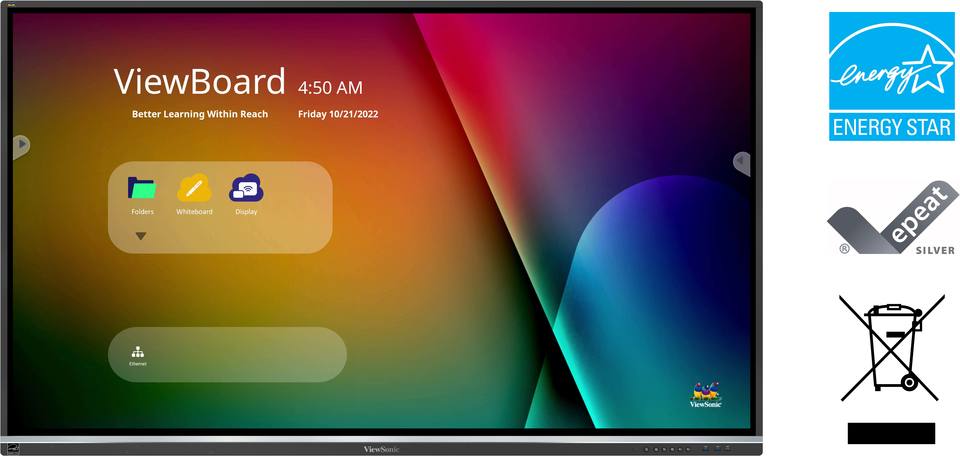

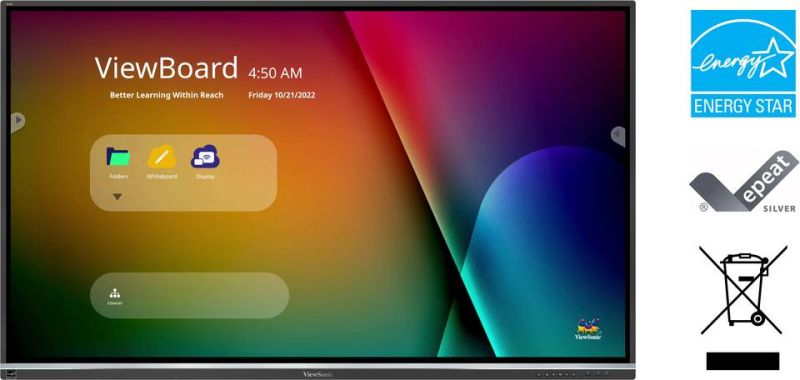

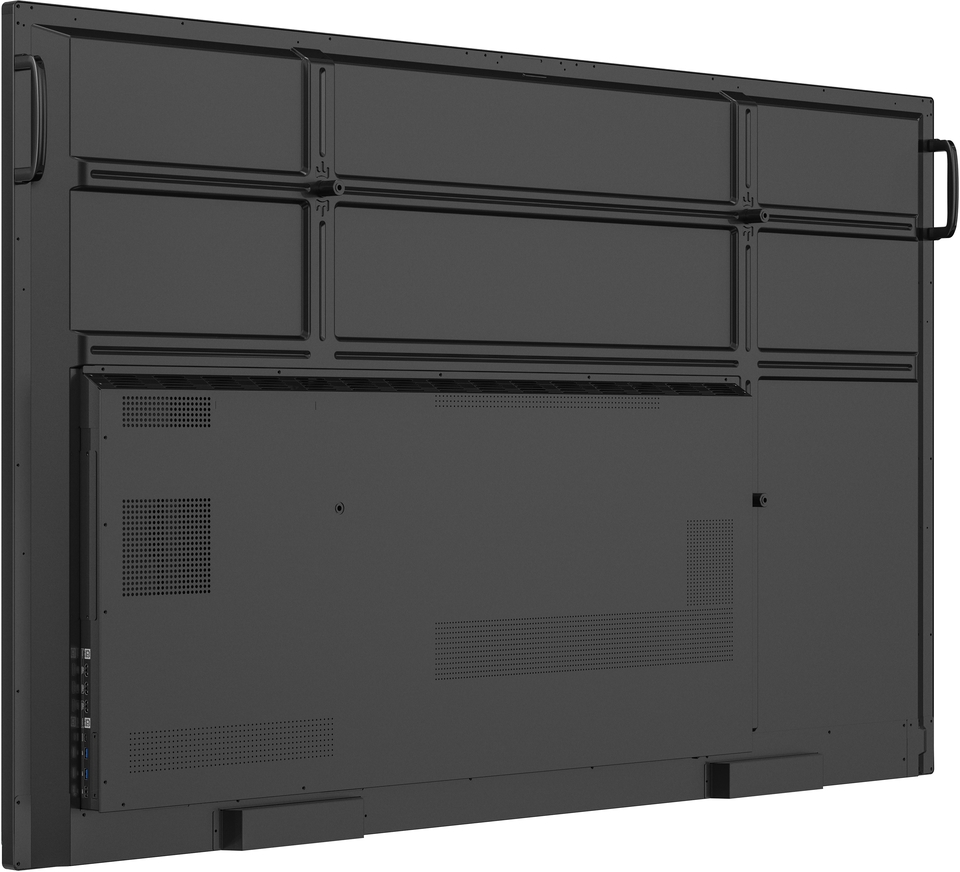

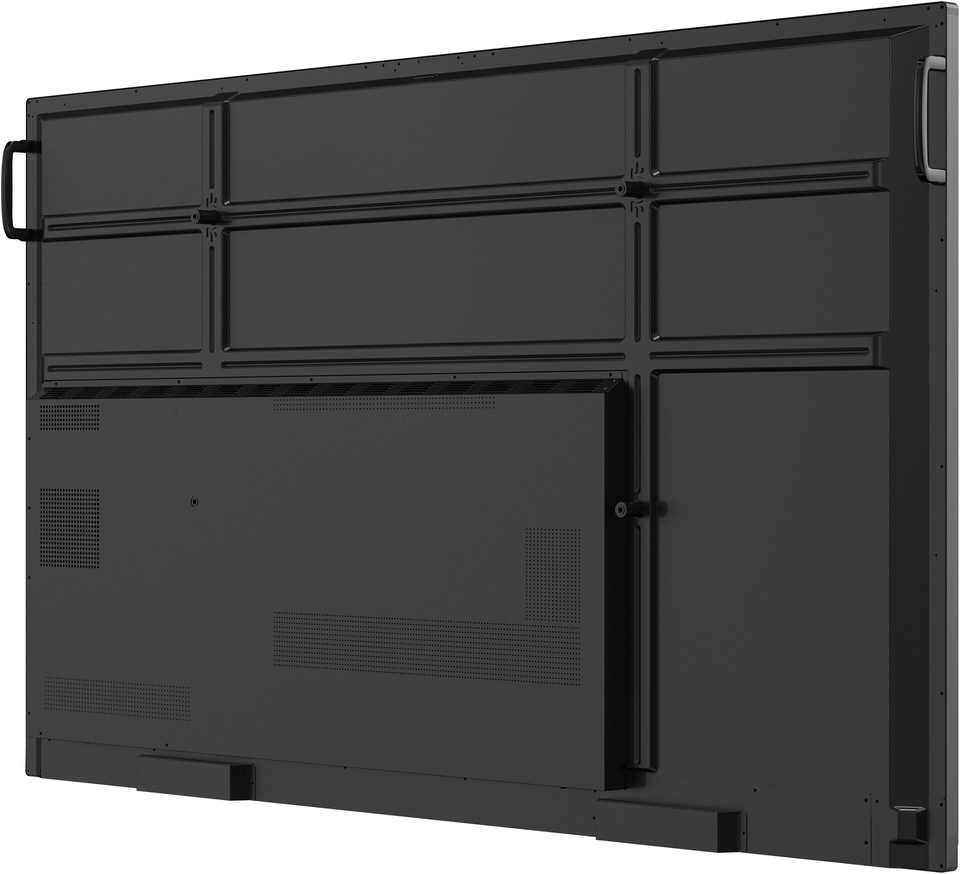

ViewBoard IFP7550-5

ViewBoard® 75” 4K Interactive Display

  • Ultra Fine Touch Technology offering up to 40-point touch for a pen-on-paper writing experience​
  • myViewBoard Whiteboard software with engaging classroom tools​
  • Screen share via USB-C or wirelessly via myViewBoard Display and ViewBoard Cast with Airplay and Chromecast
  • Intuitive remote device control and multimedia broadcast with myViewBoard Manager ​
  • Android 11 OS powered by an octa-core CPU for optimized efficiency and security (Upgradable to Android 13)

SPECIFICATIONS


  • Display
    Panel Size: 75"
    Panel Type: TFT LCD Module with DLED Backlight. IPS
    Display Area (mm): 1650.24(H) × 928.26(V)
    Aspect Ratio: 16:9
    Resolution: UHD 3840x2160
    Colors: 1.07B colors (10bit)
    Brightness: 500 nits
    Contrast Ratio: 1200:1 (typ.) 5000:1 (DCR)
    Response Time: 8ms
    Viewing Angles: H = 178, V = 178 typ.
    Backlight Life: 50,000 hours(Min)
    Surface Treatment: Hardness: 7H, Anti-glare coating
    Bezel: Slim
    Orientation: Landscape
  • Platform
    Processor: ARM Cortex-A73*4 + Cortex-A53*4
    RAM: 4GB
    Storage: 32GB
  • Touch
    Type/ Tech: Ultra Fine Touch Techology (IR Recognition)
    Touch Resolution: 32768 ×32768
    Touch Point: Windows: 40 points of touch, Android : 20 points of touch
