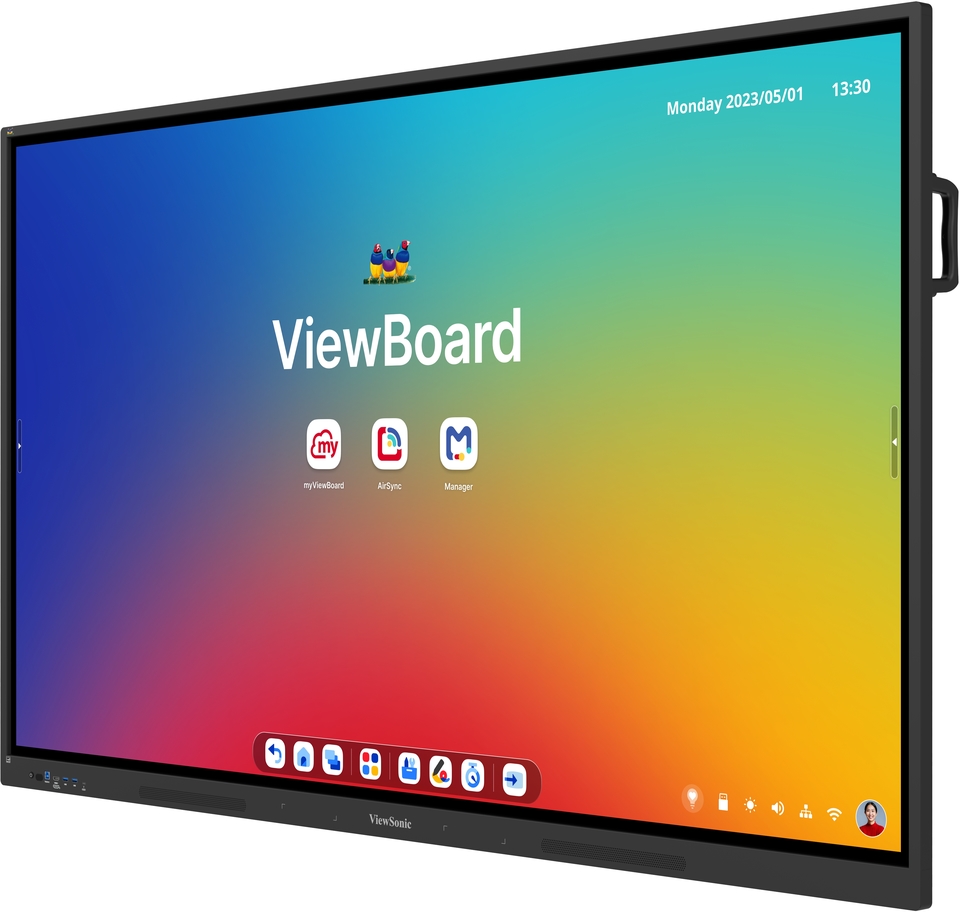

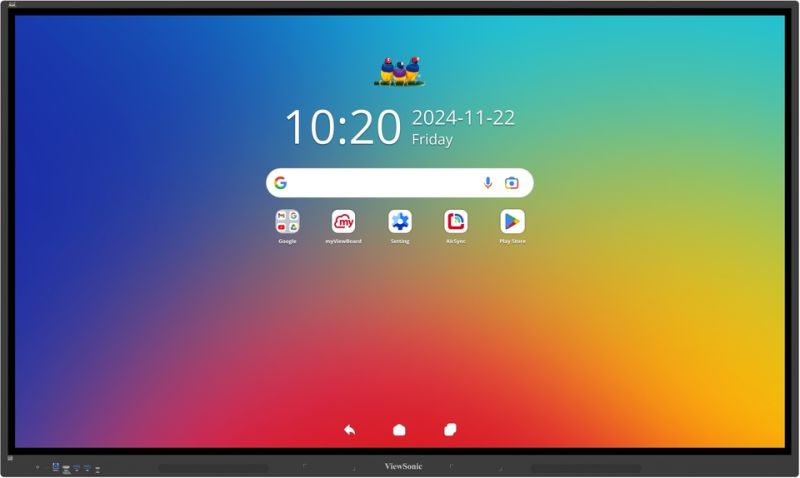

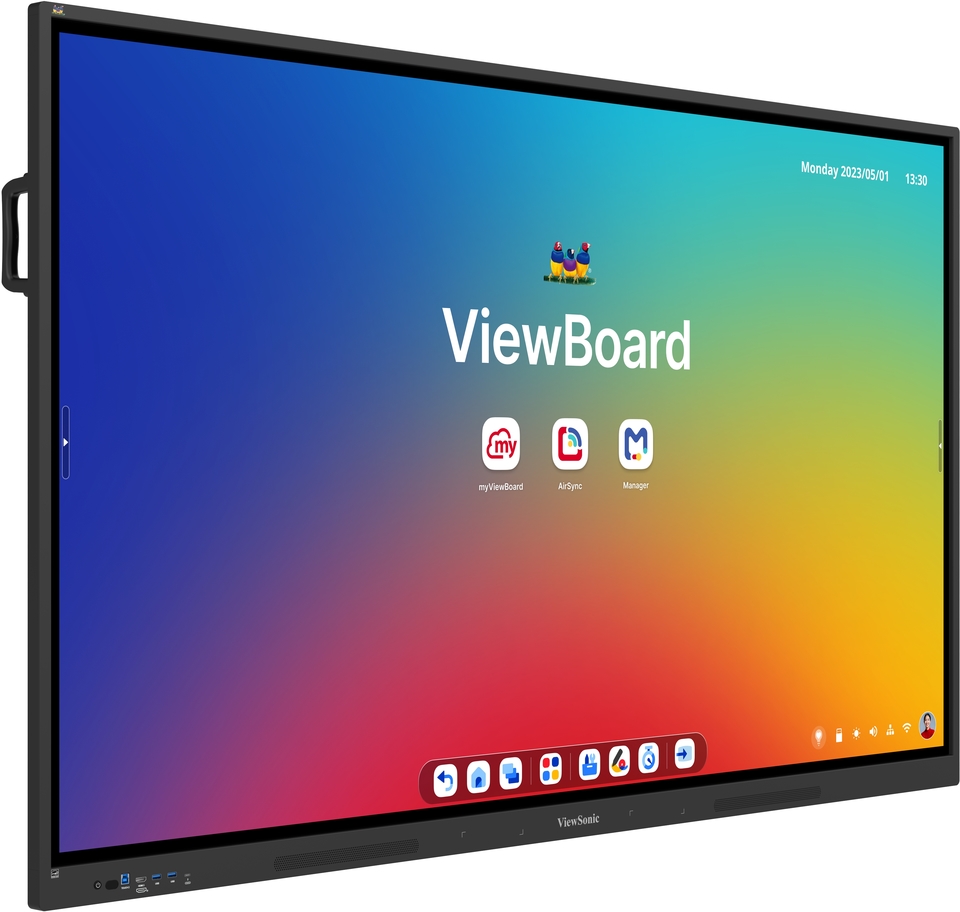

ViewBoard IFP6534

Enterprise Device Licensing Agreement (EDLA) Certified ViewBoard 65” 4K Interactive Display

EPEAT Gold Certification with 20% better power efficiency than the previous generation.
Integrated ViewSonic Education Software empowers teachers and boosts learning outcomes.

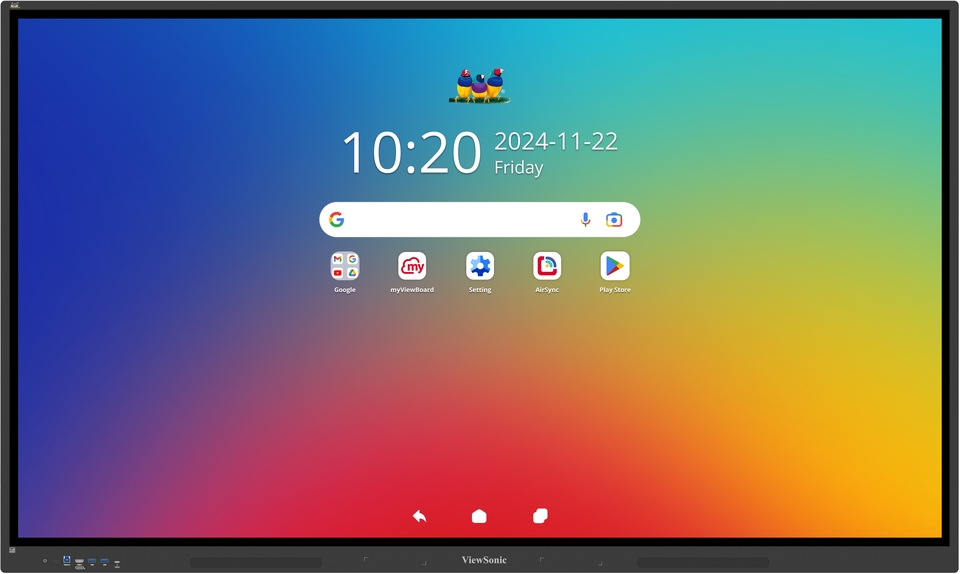

EDLA-certified Android 14 unlocks Google Play Store access for a world of apps.
Quad-core CPU and microSD port deliver fast performance with expandable storage.
Dual USB-C, with a front port supporting display, data, and charging, and a rear port for power and peripherals.

GALLERY

SPECIFICATIONS

Display
Panel Size: 65"
Panel Type: TFT LCD Module with DLED Backlight.
Display Area (mm): 1428.48(H) x 816.02(V)
Aspect Ratio: 16:9
Resolution: UHD 3840x2160(Pixels)
Colors: 1.07B colors
Brightness: 350 nits
Contrast Ratio: 5000:1 (max. with DCR enabled)
Response Time: 8ms
Viewing Angles: H=178, V=178
Backlight Life: 50,000 Hours (8 hours of use per day)
Surface Treatment: Hardness: 7H Anti-glare coating
Orientation: Landscape
Platform
Processor: Quad-core
RAM: 8GB DDR4
Storage: 128 GB
Touch
Type/ Tech: Ultra Fine Touch Technology
Touch Resolution: 32767 x 32767
Touch Point: 40 points touch
Palm Rejection: Yes

INPUT
HDMI: x3 (Front x1: HDMI2.0/HDCP 2.2/CEC; Rear x 2:HDMI2.0/HDCP 2.2/CEC/ARC for HDMI 2)
RGB / VGA: x1
DisplayPort: x1
Audio: x1
RS232: x1
SD/SDHC: x1
OPS: x1 (Optional Intel Standard OPS)
WiFi: x1 (Optional VB-WIFI-004/VB-WIFI-006/VSB-050)
OUTPUT
HDMI: HDMI 2.0 x1
Audio: x1
SPDIF: x1
LAN
RJ45: x2
USB
Type A: USB3.2 Gen 1 x 4 (Front x 2; Rear x 2 )
USB 2.0x1 (Rear)
Type B: USB 3.0 x2 (Rear x1 + Front x1)
Type C: Front*1 [PD65W(15W with OPS, 65W without OPS) + DP1.2 + Data + 10M/100M sharing]
Rear*1 (PD15W + Data)
SPEAKERS
16W x 2
Top Camera Plate
Yes
Embedded OS
Android 14 EDLA
Bundled Software
Basic Annotation Software: myViewBoard
Pro Annotation Software: myViewBoard for Windows (Embedded in optional Windows Slot-in PC)
Wireless Presentation: AirSync
Device Management: Manager
ViewSonic Launcher: Yes
Special Features
All-in-one USB port: (combine slot-in PC/Android/HDMI USB port) Front “SmartPort™ USB” to all channels.
Simple LAN sharing between IFP and slot-in device: 10/100M for Android & Slot-in PC
Light Sensor: Yes
Power
Voltage: 100-240V AC
Consumption: On:78.26W ; Off: ≤ 0.5W
ERGONOMICS

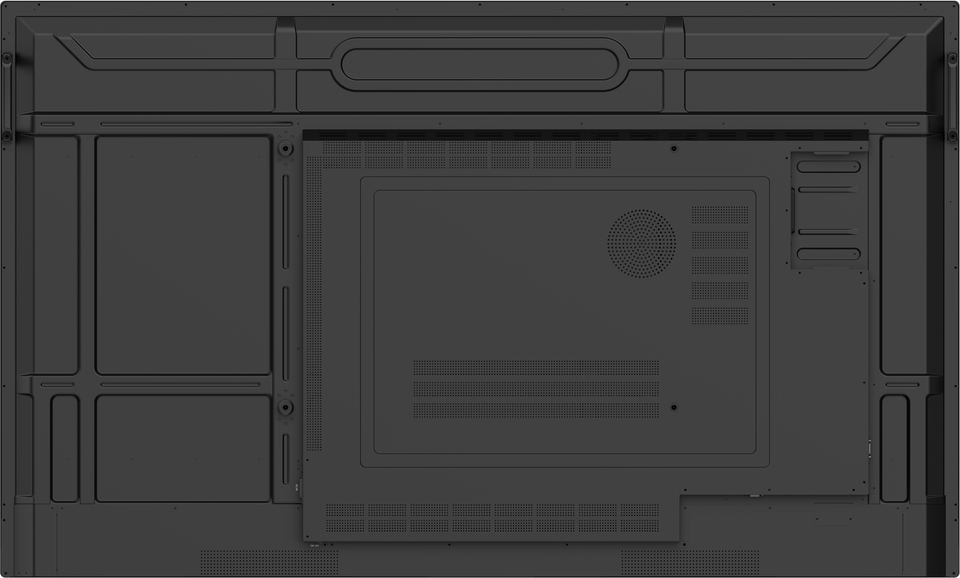

Wall Mount (VESA® ): 600*400
OPERATING CONDITIONS
Temperature (º C): 0°C to 40°C
Humidity: 20% ~ 80% RH non-condensing

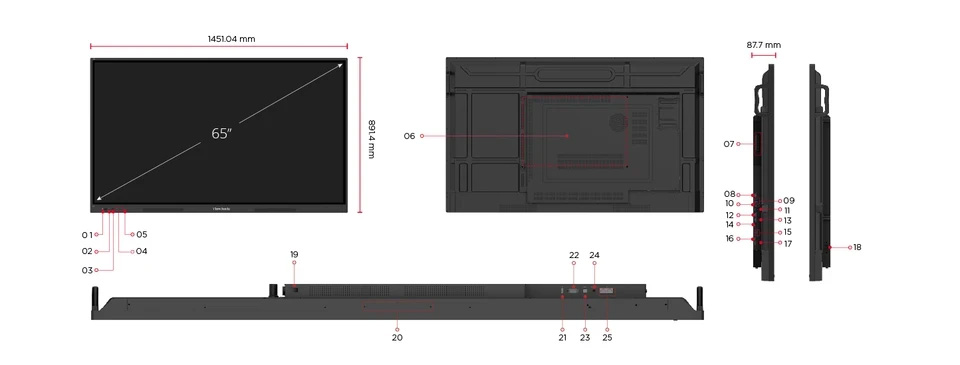

DIMENSIONS (W x H x D)
Physical (inch / mm): 58.4 x 35.1 x 3.45 (in.) / 1482.2 x 891.4 x 87.7 (mm)
Packaging (inch / mm): 64.56 x 39.76 x 7.28 (in.) / 1640 x 1010 x 185(mm)
WEIGHT
Net (lb / kg): 80.25lb / 36.4kg
Gross (lb / kg): 101.19lb / 45.9kg
Energy Star version
8.0
EEI rating
F
PACKAGE CONTENTS
1. 3m power cord by ship area 2. Remote control with AAA battery 3. 3m touch USB cable 4. Touch pen x 2 (VB-PEN-009) 5. Quick Start Guide + Compliance statement 6. RS232 adapter 7. Clamp x 5 8. Camera Plate 9. Screw x 8 (camera 2+2, wall mount 4) 10. HDMI cable 3m
Compatible Slot-in PC
VPC3X, VPCF5-2A, VPCF5, VPC2X, VPC-A31-O1
