IFP7551

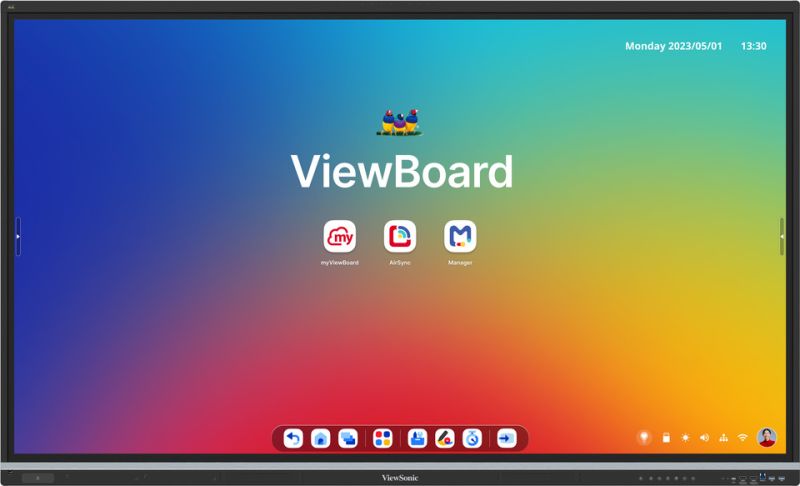

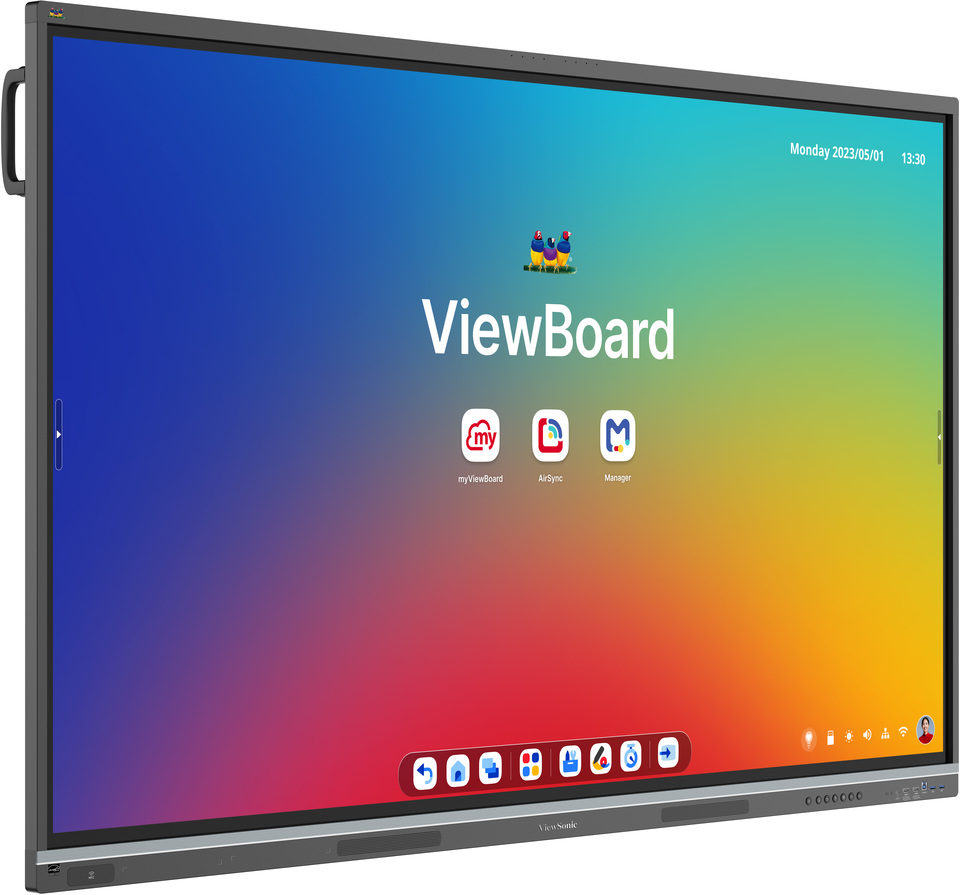

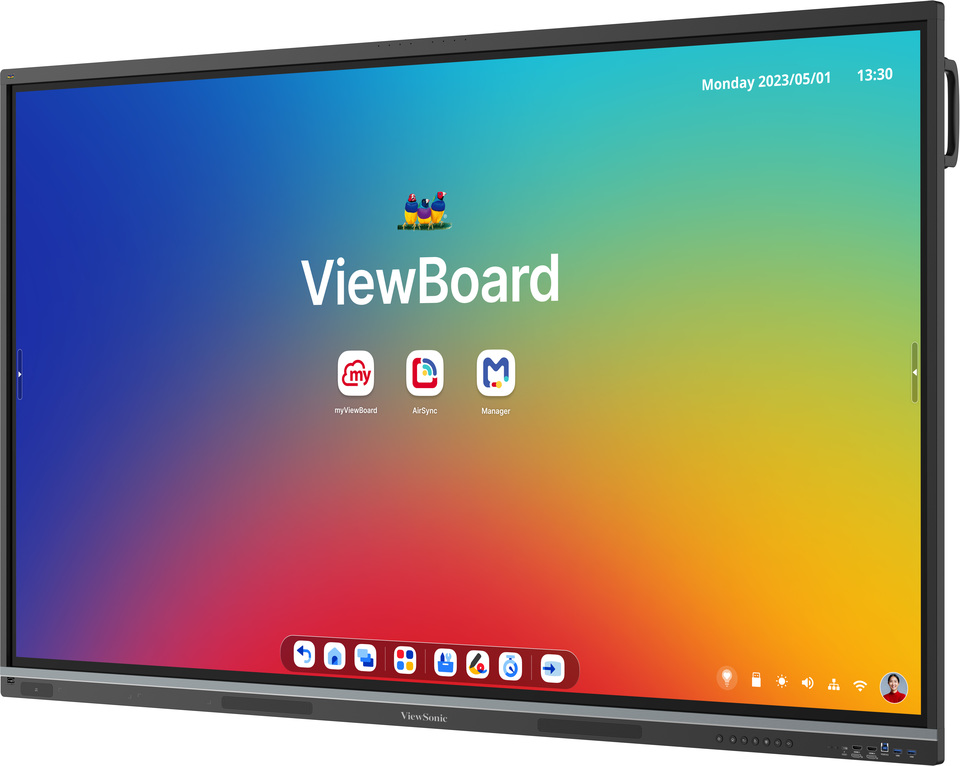

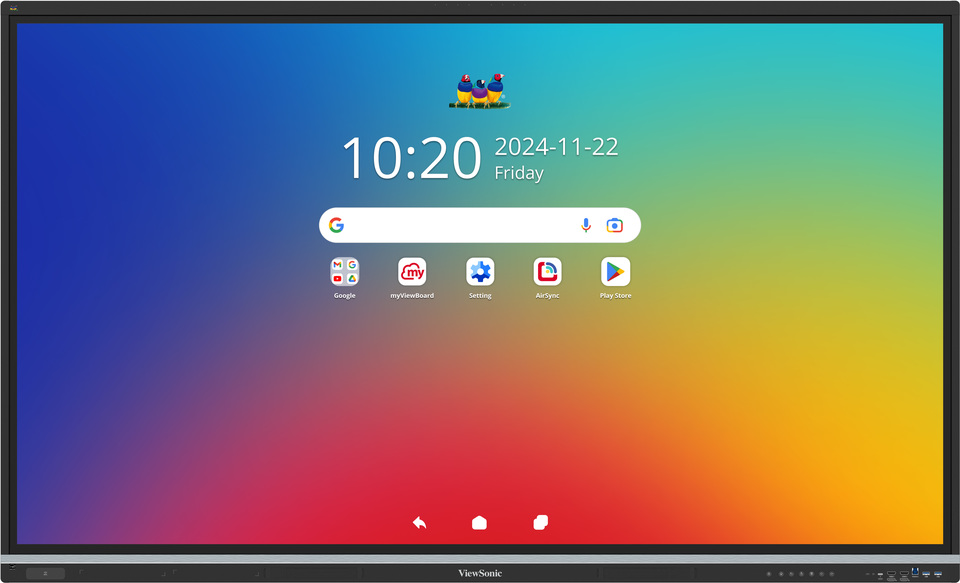

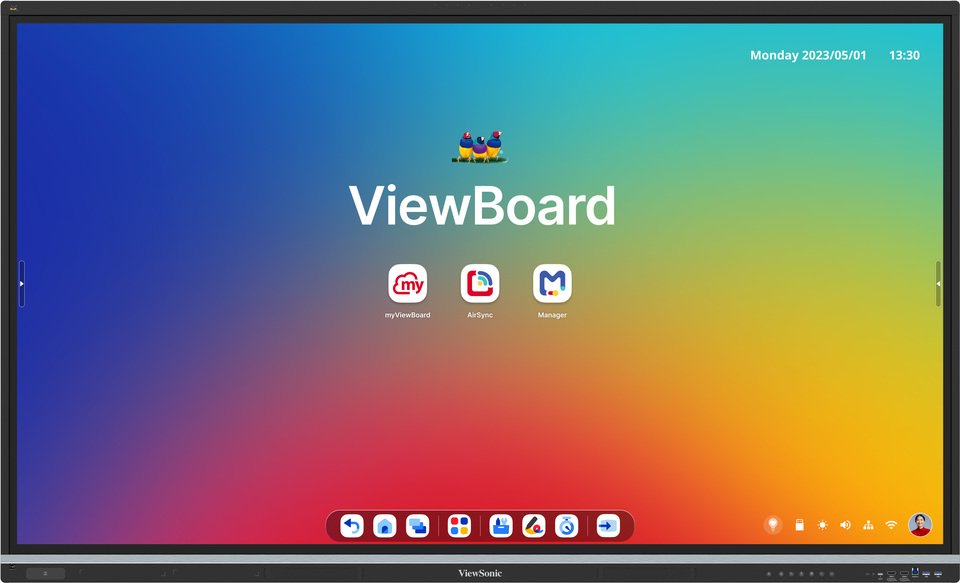

Enterprise Device Licensing Agreement (EDLA) Certified ViewBoard 75” 4K Interactive Display

Write Away quick-start annotation, enhanced by 50-point touch and palm rejection for precise writing.
70W total output power speaker system with built-in 8-microphone array, for rich, immersive audio.
EDLA-Certified with Android 14, integrated ViewSonic Education Software for seamless functionality.
NFC and SSO sign-in for swift access to the intuitive launcher and personal settings.

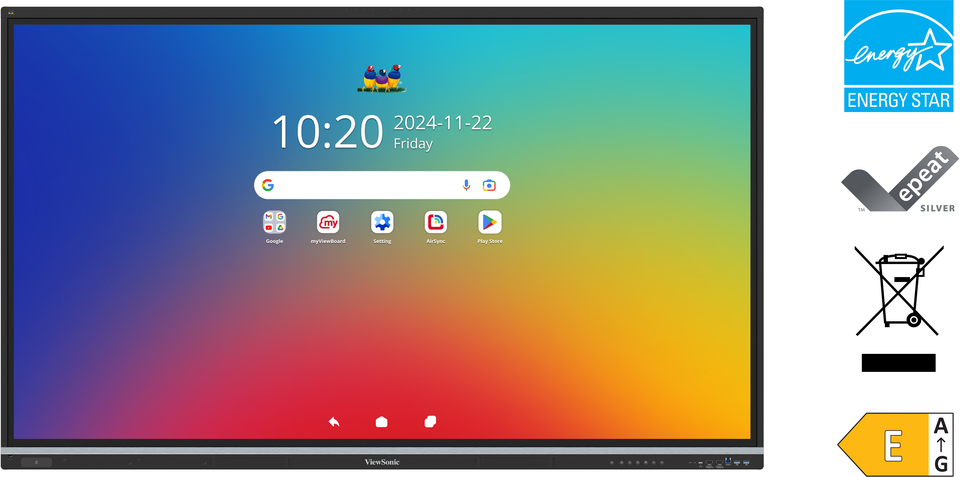

EPEAT Silver certified for enhanced energy efficiency and sustainability.

GALLERY

SPECIFICATIONS

Display
Panel Size: 75"
Panel Type: TFT LCD Module with DLED Backlight.
Display Area (mm): 1650.24mm(H) x 928.26mm(V) (74.5”)
Aspect Ratio: 16:9
Resolution: UHD 3840x2160
Colors: 1.07B colors
Brightness: 500 nits
Contrast Ratio: 1200:1 (typ.); 5000:1 (DCR)
Response Time: 6.5 ms
Viewing Angles: H = 178, V = 178 typ.
Backlight Life: 50,000 Hours (Min)
Surface Treatment: Hardness:9H, AG+AF
Orientation: Landscape
Platform
Processor: Octa-Core CPU
RAM: 16GB
Storage: 128GB
Touch
Type/ Tech: Ultra Fine Touch Techology (IR Recognition)
Touch Resolution: 32767 x 32767
Touch Point: EDLA/Android/Windows: 50 points of touch
Palm Rejection: Yes

INPUT
HDMI: x4 (Frontx2:HDMI2.1 with CEC,HDCP ; Rearx2: [(HDMI2.1 with CEC, HDCP)x1+(HDMI2.1 with CEC, HDCP, ARC)x1]
RGB / VGA: x1
DisplayPort: x1
Audio: x1
RS232: x1
SD/SDHC: TF Card Slot(Micro SD)
OPS: x1 PC Slot
OUTPUT
HDMI: x1 (HDMI 2.1, HDCP 1.x)
Audio: x1 (Line out)
SPDIF: x1 (optical)
LAN
RJ45: x2
USB
Type A: x5 (Front x2 and Rear x 2 with USB3.2 Gen 1, all support SmartPort USB ; Rear x 1 with USB 2.0 for system update)
Type B: x2 (Front x 1 and Rear x 1 with USB3.2 Gen 1)

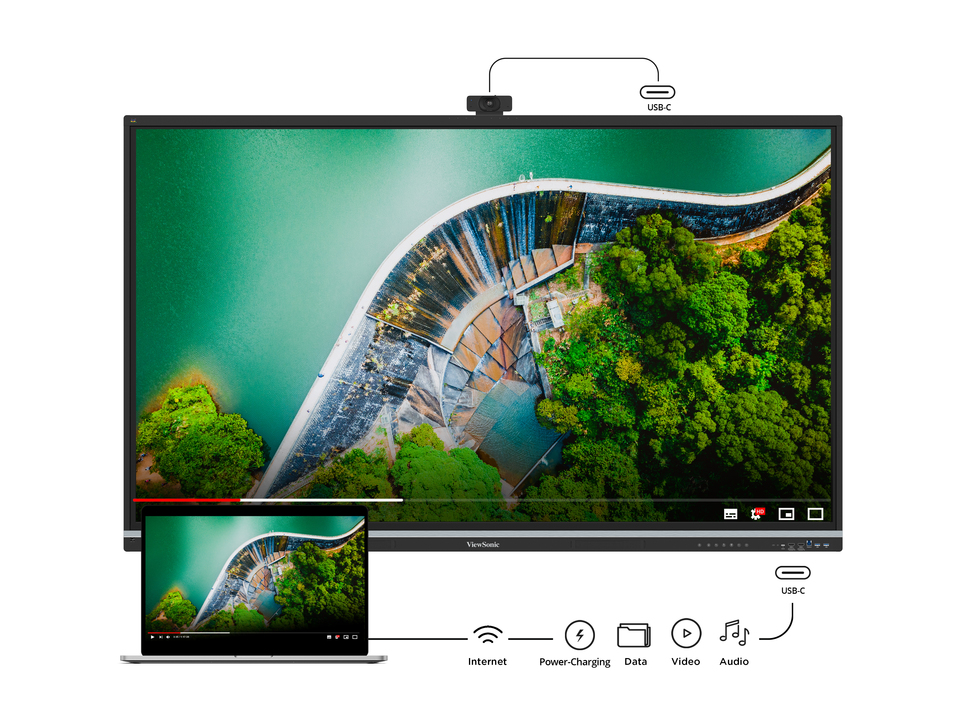

Type C: x3 (Frontx1 with USB3.2 Gen 1, DP1.2, Ethernet 100M, PD 65W; Rearx1 with USB3.2 Gen 1, DP1.2, Ethernet 100M, PD 15W; Topx1 with USB3.2 Gen 1, PD 15W)
SPEAKERS
25W x 2 front soundbar + 20W x 1 subwoofer
MICROPHONE
Built-in 8-array microphone
Top Camera Plate
Yes
COMPATIBILITY
RGB PC/HDMI PC: 1920x1080 @ 60Hz
HDMI: 3840x2160
DisplayPort: 3840x2160
Embedded OS
EDLA-certified with Android 14
Bundled Software

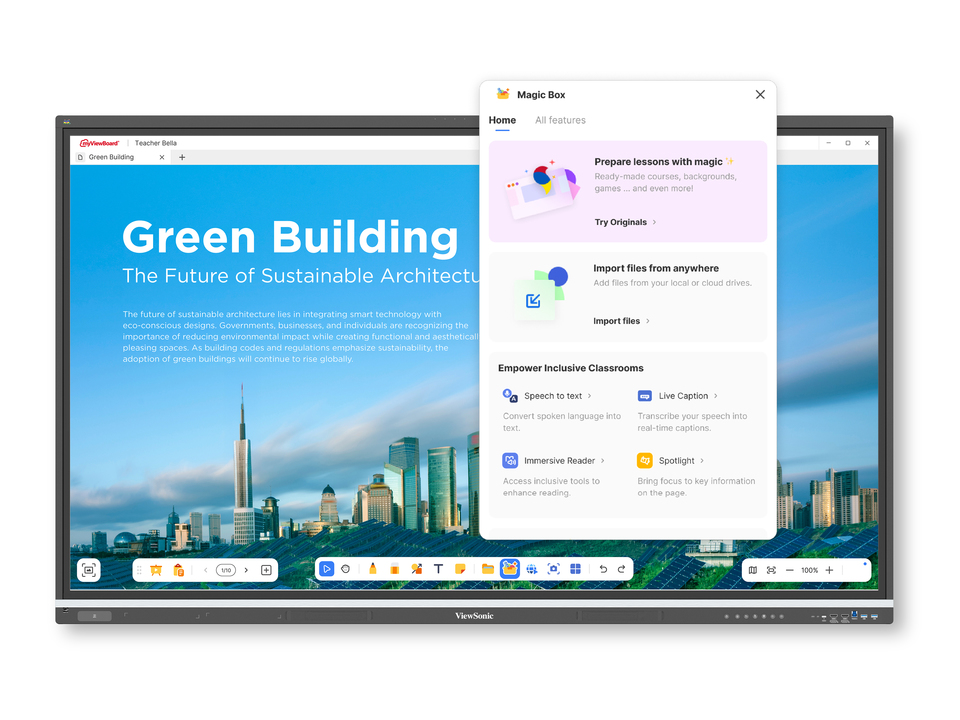

Basic Annotation Software: myViewBoard for Android
Pro Annotation Software: myViewBoard for Windows (embedded in VPC)
Wireless Presentation: AirSync
Device Management: Manager
ViewSonic Launcher: Yes
Special Features
All-in-one USB port: USB 3.2 Gen 1 “SmartPort USB” to all channels
Simple LAN sharing between IFP and slot-in device: 10/100/1000M (USB Type-C 10/100, Android & PC 10/100/1000)
Light Sensor: Yes
NFC Reader: Yes
Pen Sensor for supporting Write Away: Yes
Power
Voltage: 100-240V AC +/- 10% Wide Range
Consumption: On: 99.84W ; Ｏff:< 0.5 W
ERGONOMICS

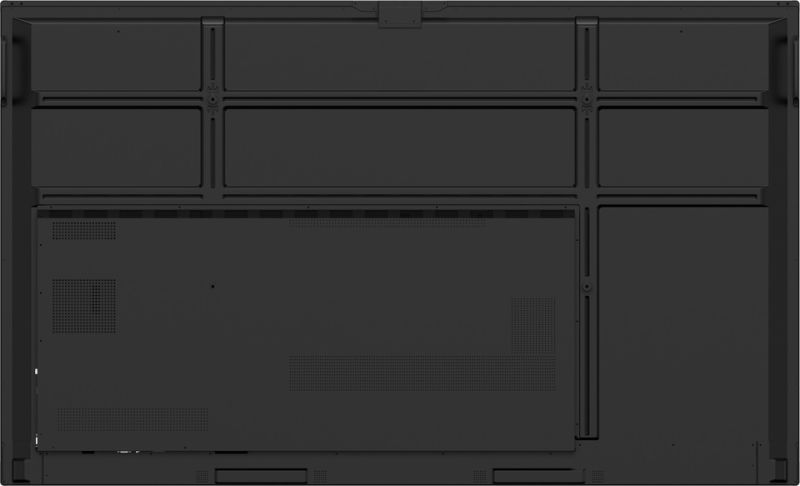

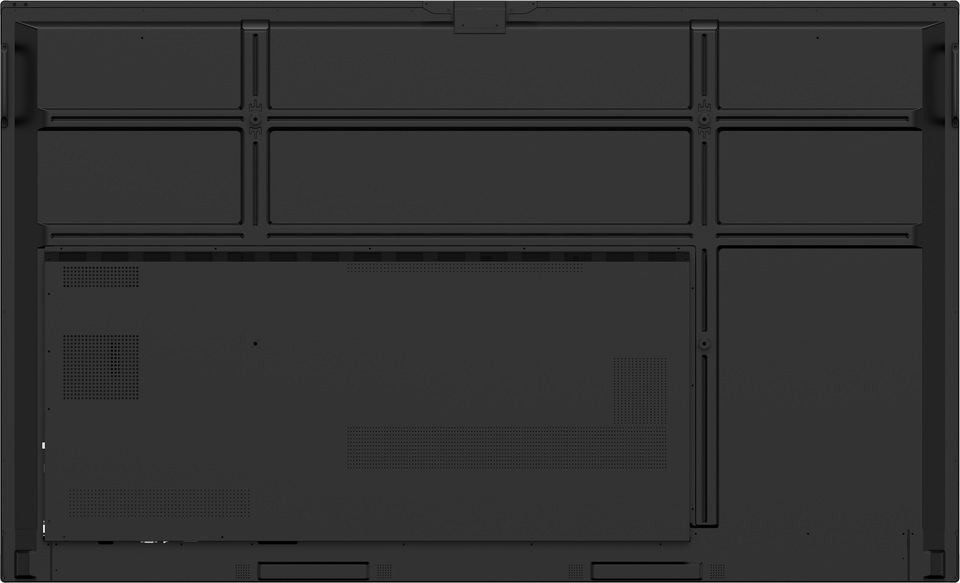

Wall Mount (VESA® ): 800 x 400
OPERATING CONDITIONS
Temperature (º C): 0°C to 40°C
Humidity: 20% ~ 80% RH non-condensing
DIMENSIONS (W x H x D)

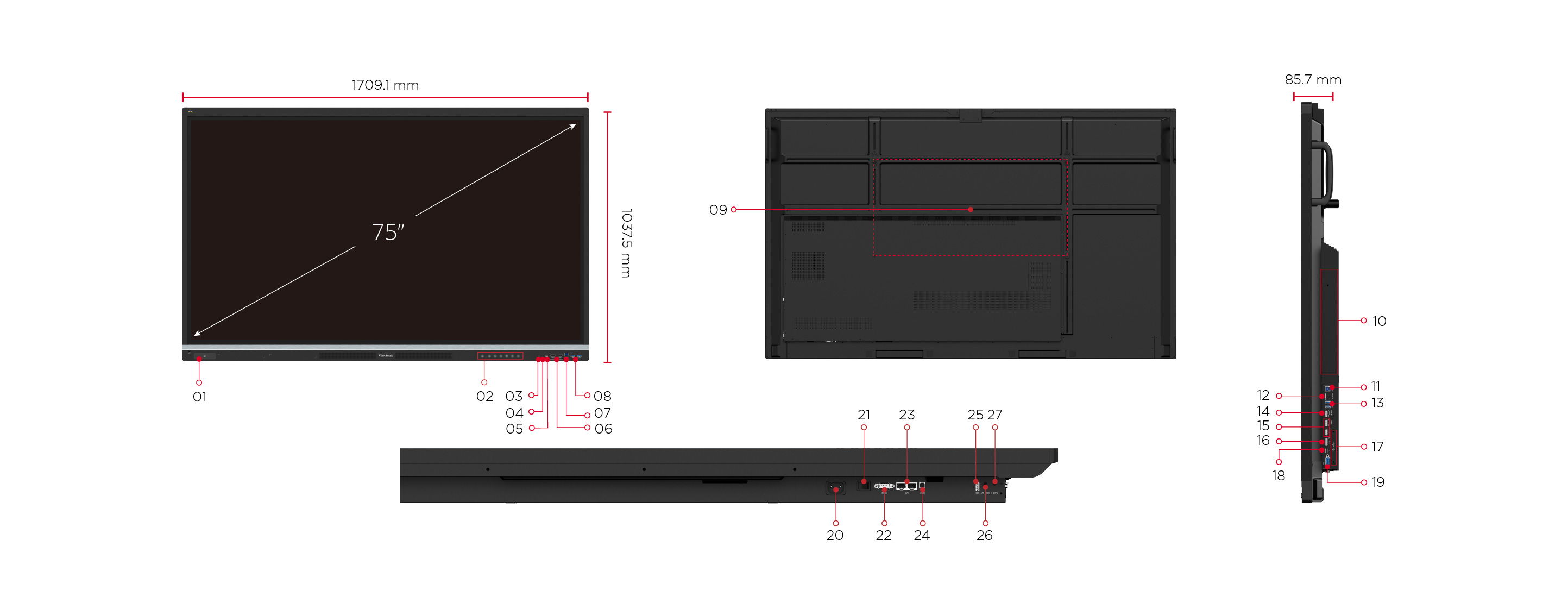

Physical (inch / mm): 67.29 x 40.85 x 3.36 in / 1709.1 x 1037.5 x 85.5 mm
Packaging (inch / mm): 73.35 x 45.79 x 8.86 in / 1863 x 1163 x 225 mm
WEIGHT
Net (lb / kg): 101.54 lb / 46.06 kg
Gross (lb / kg): 126.88 lb / 57.55 kg
Energy Star version
8.0
EEI rating
E
PACKAGE CONTENTS
1. Power Cord x1 3 meters,
2. USB Type-C cable x1 1.8 meters
, USB-IF certified
3. USB Touch cable x1 3 meters
4. Touch pen (Passive pen) x 2
5. Quick Start Guide
6. RS232 adapter x1
7. Clamp x 5
8. Camera Plate x1
9. Screw x 8 (camera 2+2, wall mount 4)
10. HDMI cable x1 3meters,
(HDMI LA certified)
11. Remote controller x1
12 AAA battery x2
13. Compliance statement
Compatible Slot-in PC
VPCF5-W33-G1,
VPC37-W53-G1,
VPC35-W53-G1,
VPC-A31-O1
