| Nombre de pixels (max.): | 3,900,000 |
| Largeur max.: | 10,240pixels |
| Hauteur max.: | 8,192 pixels |

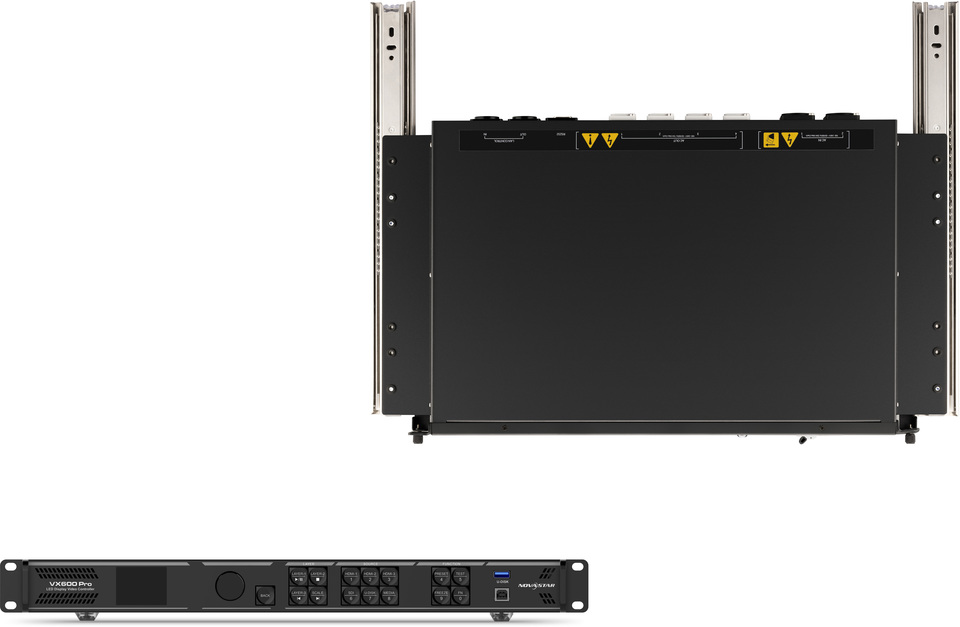

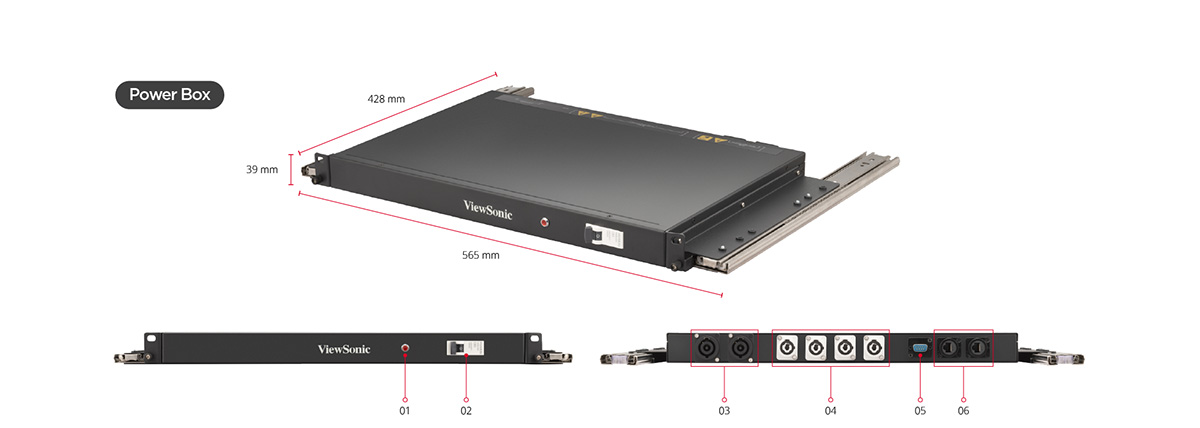

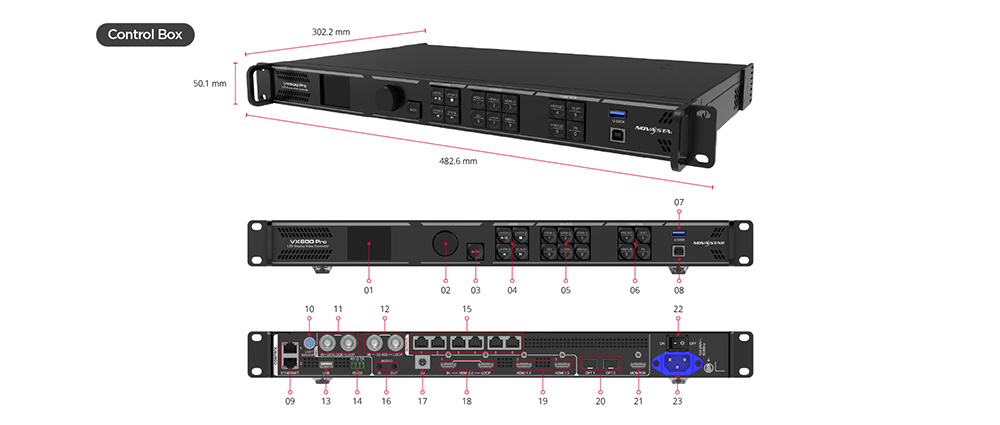

| Dimensions (L × H × P): | Power module : 22.24x1.54x16.85 inches (565x39x428 mm) Control box : 19x1.97x11.90 inches (482.6x50.1x302.2mm) |
| Processeur: | VX600 Pro |
| Consommation électrique: | 41W |
| Consommation d'énergie en sortie: | 13.2kW@220V 6.6kW@110V |
| Poids net: | Power module: 13.23 lbs (6 kg) Control box: 8.60 lbs (3.9 kg) |
| HDMI: | 3 (HDMI 2.0/HDCP 2.2 x1, HDMI 1.3/HDCP 1.4 x2) |
| USB Type A: | 2 (USB3.0 x1, USB2.0 x1) |
| RJ45 (Internet): | 2 (control) |
| HDMI: | 1 (HDMI 1.3/HDCP 1.4) |
| Sortie audio (3,5 mm): | 1 |
| USB Type A (Alimentation): | USB 3.0 5V/0.9A x1 USB 2.0 5V/0.5A x1 |
| Ports Ethernet vers armoire technique: | 6 |
| RJ45 (contrôle LAN): | 2 |
| USB Type A (Services): | 1(share USB A input) |
| RS-232 (DB 9 broches femelle): | 1(3 pin) |
| Cordon d'alimentation: | N/A (Neutrik powerCON 32A connector) |
| Câble LAN (débogage): | 1 |
| Contrôle LAN: | ●(TCP/IP) |
| Fonctionnement 24/7: | ● |
| PIP/PBP (HDMI 1/2/3/4): | ● |
