LD-SCB-202

LDC027A Series All-in-One Control Box

  • Integrated all-in-one design combining power and control simplifies setup and operation
  • Built-in dual 30W speakers deliver powerful audio without external components
  • Detachable design offers flexible mounting options for easier installation.
  • AV control system compatibility with Crestron, Q-SYS and major platforms streamlines integration
  • PIP/PBP screen-split modes enable simultaneous multi-source viewing
Sales Enquiry

OVERVIEW

The LD-SCB-202 is an integrated control box purpose-built for ViewSonic's Customizable All-in-One LED Displays (LDC027A Models). Combining power and control systems into a single unit, it simplifies setup and streamlines daily operation. Built-in dual 30W speakers deliver powerful audio performance without the need for external components, while its detachable design enables flexible installation to suit a variety of Pro AV deployment environments. Compatibility with leading AV control platforms, including Crestron and Q-SYS, streamlines system integration, and support for PIP/PBP screen-split modes enables seamless multi-source viewing.

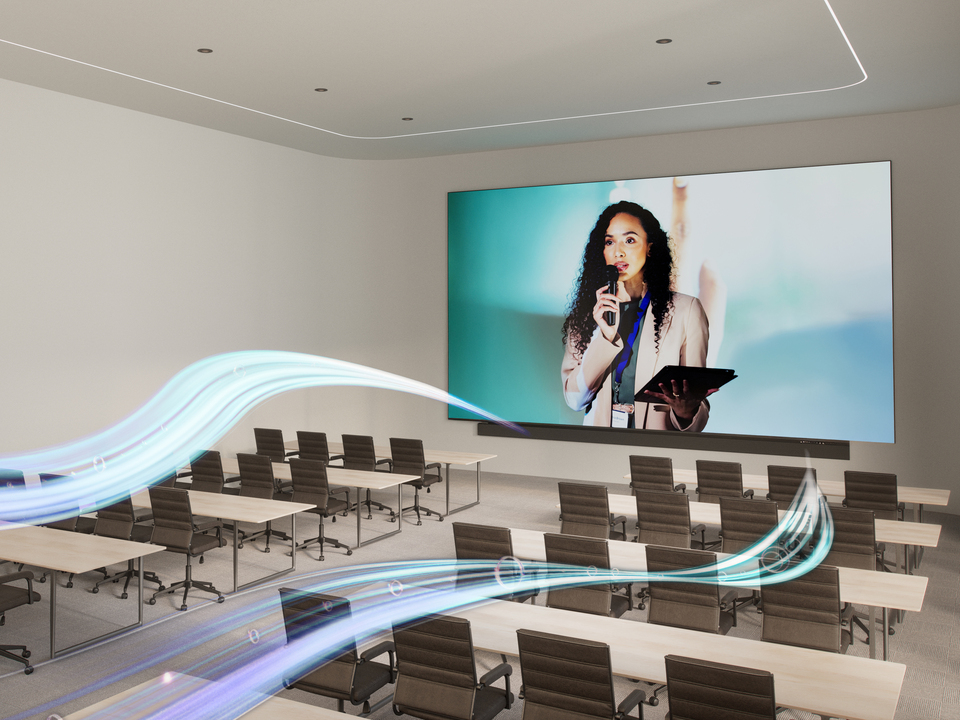

Engage Your Audience through Powerful Audio

Deliver compelling presentations with clear, powerful audio. Built-in dual 30W speakers provide room-filling sound, with no external speakers required.

Dual 30W Speakers

Detachable Design for a Minimalistic Appearance

Keep cabling and controls out of sight for a clean, minimalist display setup that blends seamlessly into any space. The LD-SCB-202's detachable control box can be installed up to 10 meters from the display, providing convenient access while preserving a premium appearance.

Pro AV Control System Integration

Integrate seamlessly with leading AV control platforms, including Crestron and Q-SYS, for centralized control within existing Pro AV ecosystems.

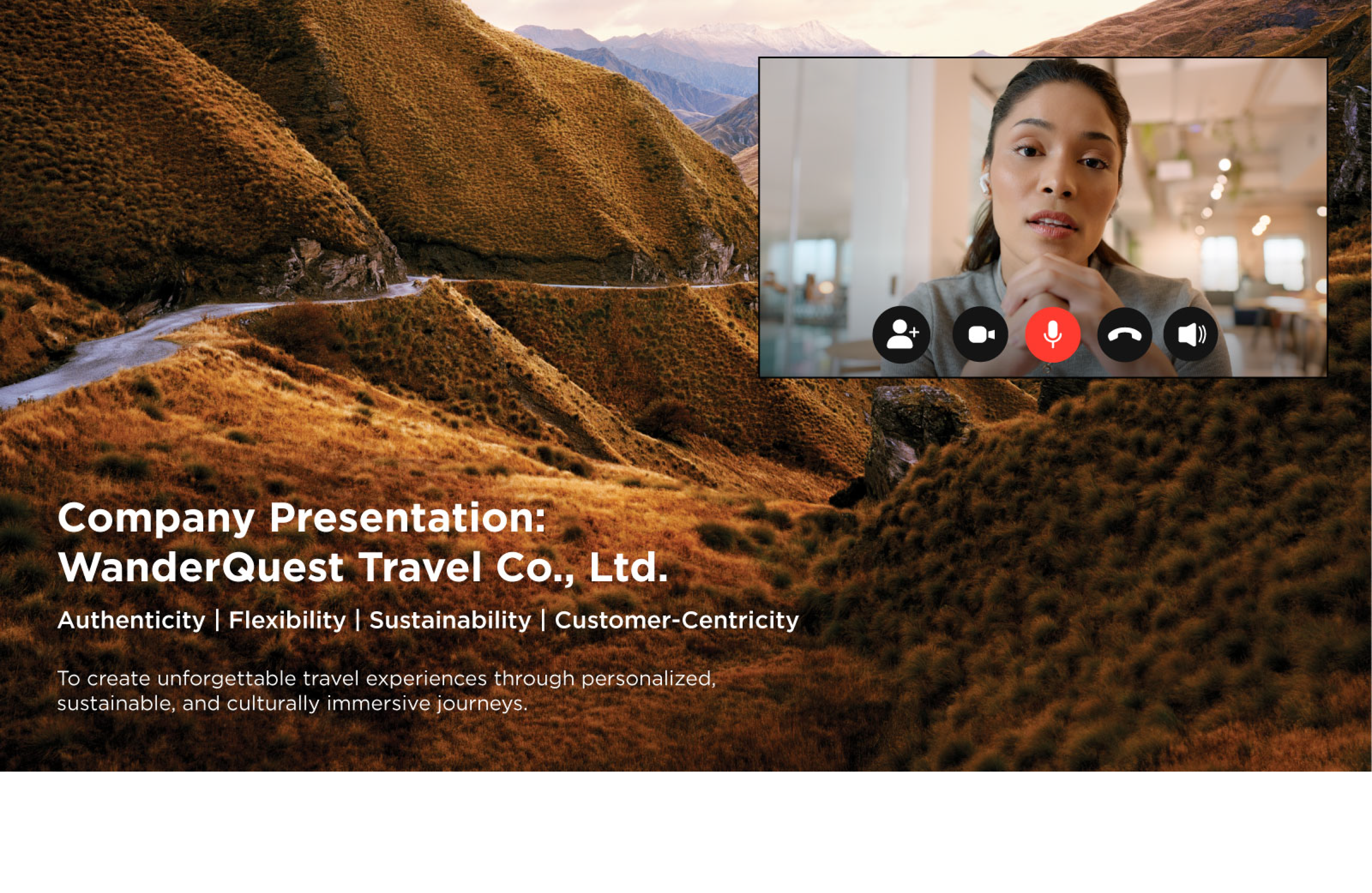

View Multiple Sources at Once with Split-Screen Modes

The LD-SCB-202 supports Picture-by-Picture with up to four inputs and Picture-in-Picture, making collaboration and content sharing more efficient.
*Both modes are only available via HDMI input.
Picture-by-Picture, Picture-in-Picture

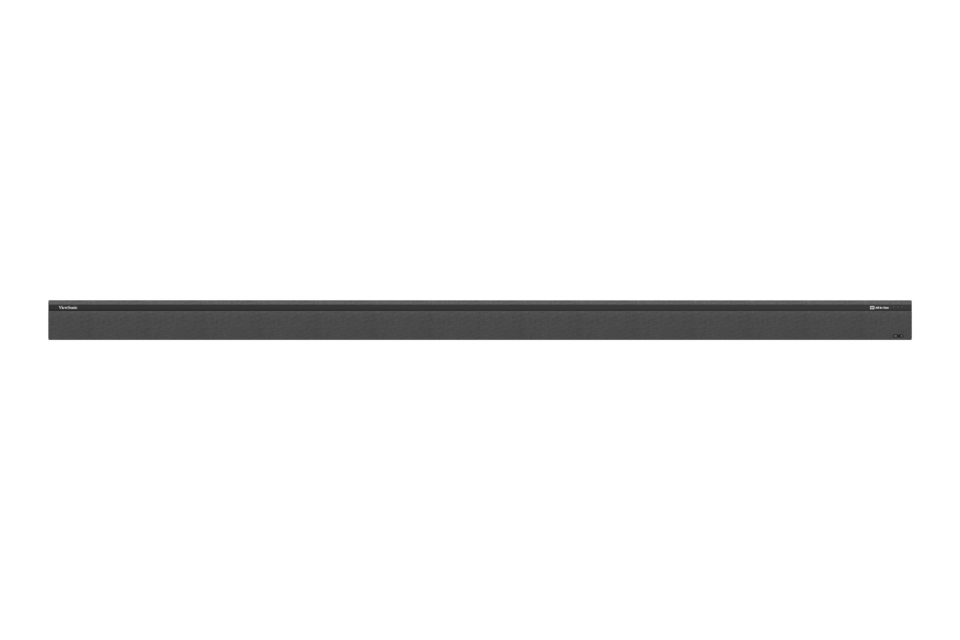

Dimensions & I/O Ports

  1. Speakers
  2. S/PDIF Out
  3. Audio Out
  4. HDMI In
  5. RJ45 x2
  6. USB-C
  7. USB-A x2
  8. RS-232
  9. HDMI Out
  10. IR In
  11. USB-A
  12. Power Button
  13. Indicator Light
  14. IR Receiver
  15. Light Sensor

SPECIFICATIONS


  • Specification
    Pixel count (max.): 8,294,400
    Max widest.: 4,096 pixels (4096x2025)
    Max highest: 4,320 pixels (1920x4320)
    Dimensions (WxHxD): 118.58 x 5.83 x 1.61 inches
    (3012 x 148 x 41mm)
    Processor: RK3588
    RAM: DDR5 8GB
    Local Storage: Total 64GB
    (38GB available storage)
    Embedded OS: Android 13
    Power Consumption: 130W
    Output Power Consumption: 12.32kW@220V
    6.16kW@110V
    Net Weight : 35.7 lbs
    (16.2kg)
  • Input
    HDMI: 4
    (HDMI 2.0/HDCP 2.2)
    USB Type A: 3
    (USB3.0 x2, USB2.0 x1)
    RJ45 (Internet): 3
    (internet x1, service x1, POE x1)
    IR in (3.5mm): 1
    Wi-Fi Input: 2.4G/5G Hz
    USB Type C: 1
    (data only)
  • Output
    HDMI: 1
    (HDMI 2.0/HDCP 2.2)
    Speaker: 30Wx2
    Audio out (3.5mm): 1
    Optical: 1
    USB Type A (Power): Shared with USB A input
    (USB 3.0 5V/1A x2, USB 2.0 5V/0.5A x1)
    USB Type C (Power): Shared with USB Type C input
    (5V/1A x1)
