New

LD-SCB-203

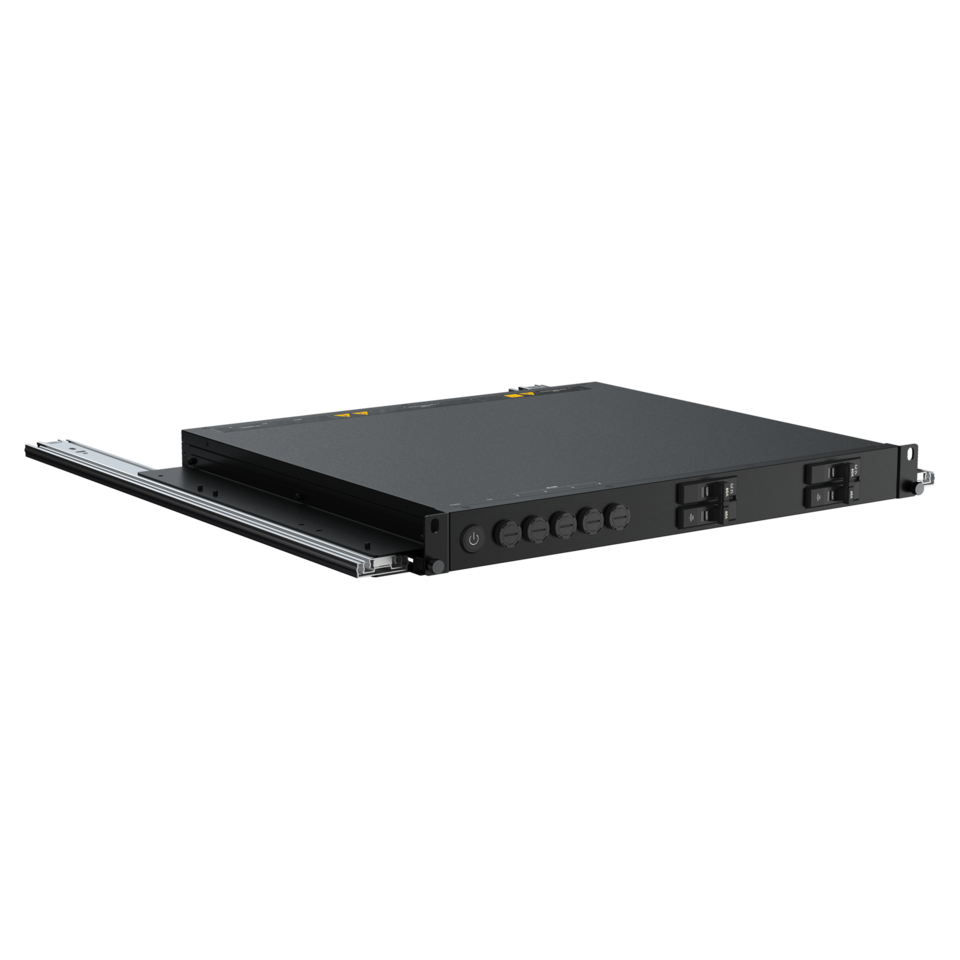

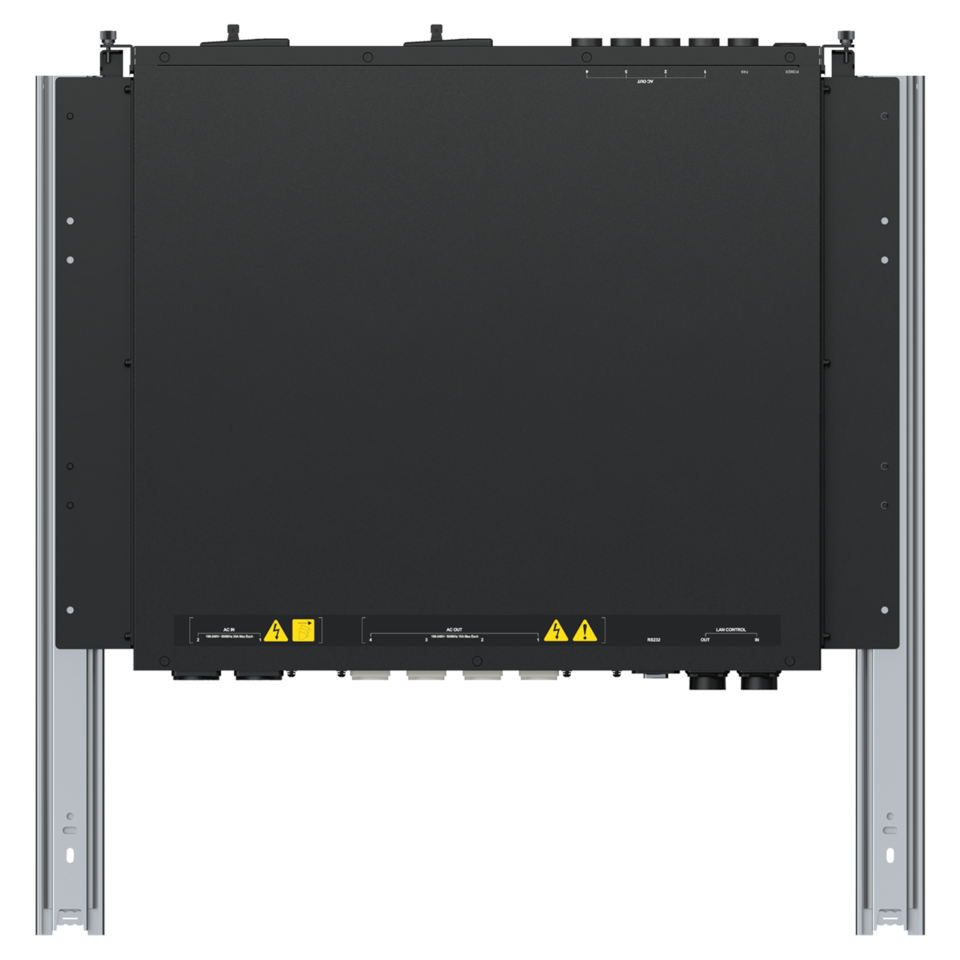

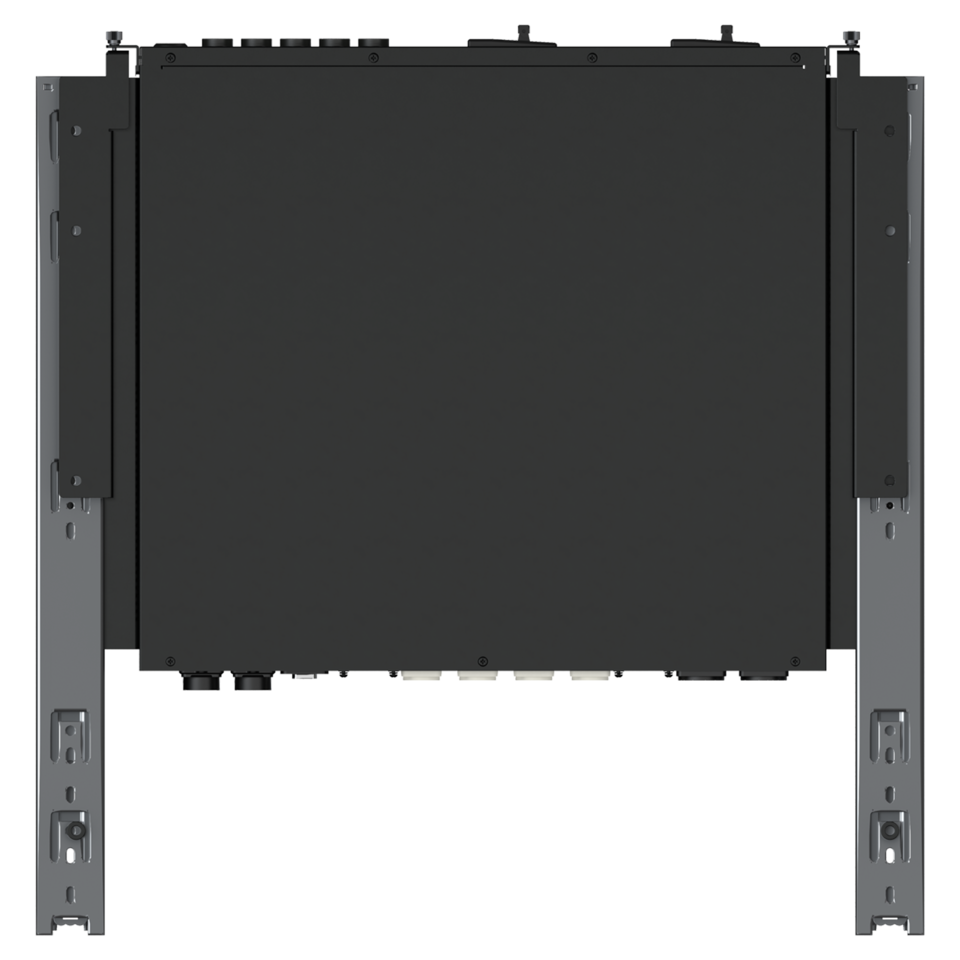

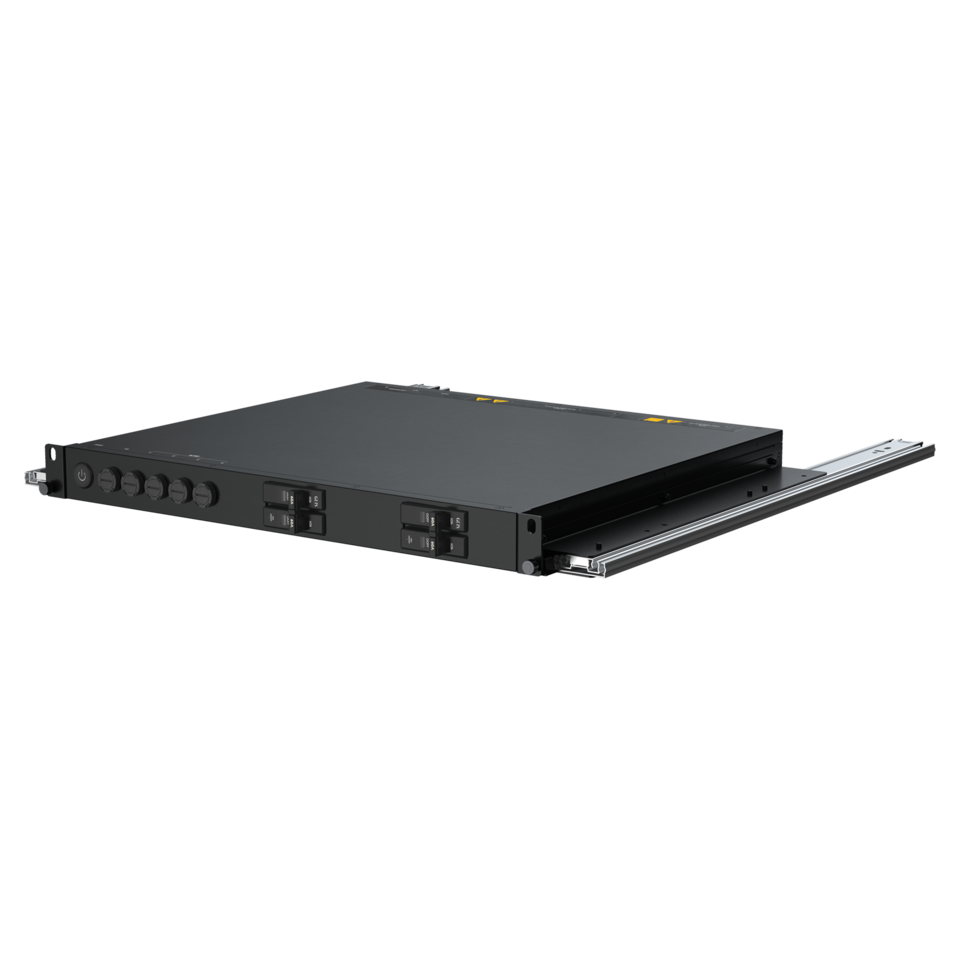

LDC027N Series All-in-One Power Box

  • Integrated all-in-one design simplifies setup and operation
  • Discreet power box installation behind the screen enables clean, clutter-free configurations
  • One-touch power control supports energy-efficient operation
Sales Enquiry

OVERVIEW

The LD-SCB-203 is an All-in-One Power Box purpose-built for ViewSonic's Customizable All-in-One LED Displays (LDC027N Models). Its discreet power system installs behind the display for a clean, professional setup with no visible cabling. One-touch power control supports energy-efficient operation, built for Pro AV environments that need scalable, low-maintenance solutions.

Behind-Screen Mounting for Effortless Power Setup

The All-in-One Power Box simplifies power installation and reduces the need for licensed electricians. Its discreet, behind-the-screen mounting minimizes cable length and hardware exposure for a cleaner installation. This enables faster deployment, lower regulatory complexity, and reduced installation costs across commercial and enterprise environments.

Clutter-Free Power Integration

Lower Power Consumption with Smarter Control

Power down the entire system with a single command, eliminating the need to manually access equipment in server rooms. The All-in-One System Control Box reduces energy waste and operating costs for more sustainable AV system management.

Full Power-Off with One Command

Dimensions & I/O Ports

  1. Indicator Light & Power Button
  2. Fuse_FAN
  3. Fuse_AC Out x 4
  4. Miniature Circuit Breakers x 2
  5. AC In x 2
  6. AC Out ×4
  7. RS232
  8. LAN Control In & Out

SPECIFICATIONS


  • Specification
    Dimensions (WxHxD): Power module :
    22.24x1.71x22.94 inches
    (565x43.5x582.7mm)
    Output Power Consumption: 13.2kW@220V
    6.6 kW@110V
    Net Weight: Power module：
    19.62 Ibs
    (8.9 kg)
  • Input
    RJ45 (Internet): 1
