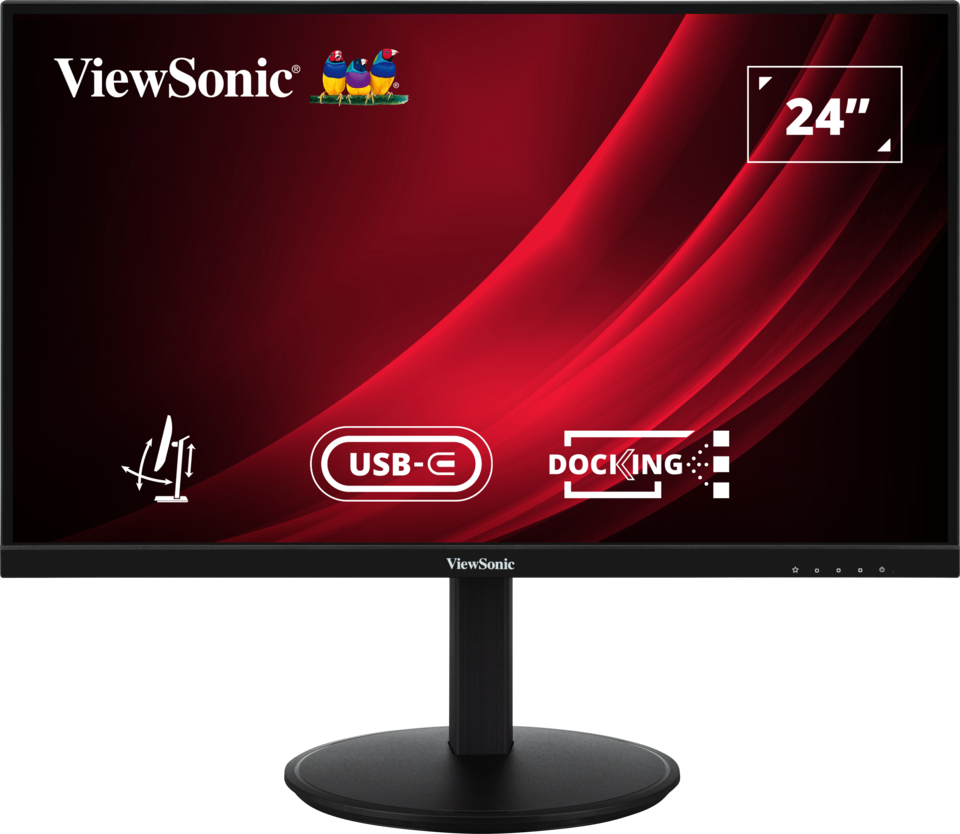

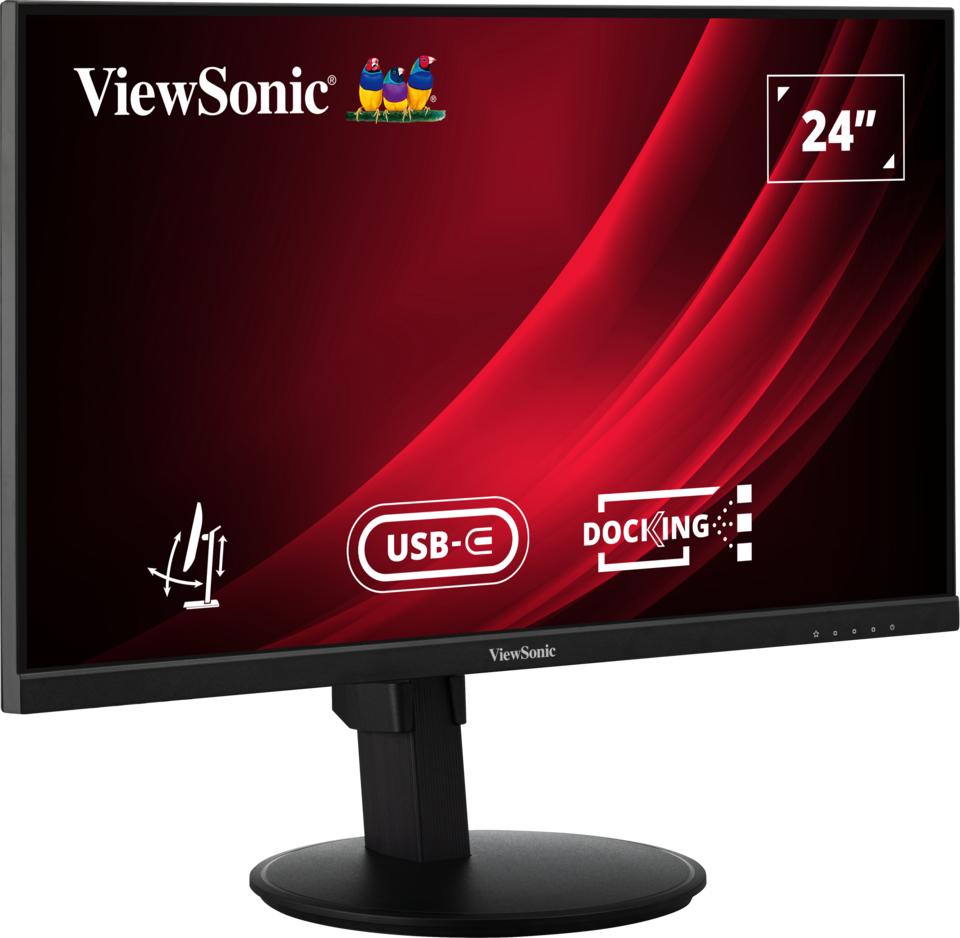

VG2409U-2

24” Full HD Ergonomic Docking Monitor with USB-C Hub

Integrated USB-C docking station with Ethernet, Daisy Chain capability and power charge up to 65W
USB 3.2 hub with 1 upstream, 2 downstream ports, HDMI, and DisplayPort inputs for easy connectivity
100Hz Variable refresh rate delivers fluid visuals
Ergonomic tilt, swivel, pivot and height adjustment capabilities
EnergyStar and EPEAT Silver certified for sustainability

Sales Enquiry

GALLERY

OVERVIEW

The ViewSonic VG2409U-2 is a 24” FHD monitor featuring USB 3.2 Hub with 1 upstream, 2 downstream ports, HDMI, DisplayPort, and DisplayPort Out for business and home use. Equipped with 65W USB-C ports, ethernet, and daisy-chain support, the VG2409U-2 serves as a complete integrated docking station for charging, audiovisual and data transfer, and network connectivity, effectively reducing cable clutter. The 100Hz variable refresh rate, Eye ProTech technology, and various ViewMode presets cater for optimal screen performance and comfortable viewing without tearing or stuttering. Expand your workspace and experience truly seamless, ergonomic multitasking on just one screen with a VESA-compatible mount at low energy consumption.

Ergonomic Workstation

Discover a monitor designed to overcome the challenges of the modern work setup

Integrated Docking Station with Daisy Chain

The docking capability of the VG2409U-2 streamlines workflows by eliminating the need for dongles and adapters. USB-C ensures seamless data, video, audio, and delivers 90W charging, complemented by a built-in ethernet port (RJ45) for stable, high-speed connectivity. The DisplayPort output can be easily daisy-chained to another monitor for a productivity-boosting workstation setup.

USB Type-C, 90W Power Charge, Audiovisual and Data Transfer

Extraordinary Wide-angle Vision

Enjoy vivid colors with consistent brightness and amazing accuracy no matter the vantage point. SuperClear® IPS monitor features ultra-wide 178-degree vertical and horizontal viewing angles that deliver the same image quality with true color accuracy and consistency from screen to print.

SuperClear® IPS

Full HD 1080p

Full HD 1920x1080 resolution creates unbelievably clear pixel-by-pixel image performance. Experience mind-blowing clarity and detail while working, gaming, or enjoying the latest show premieres.

Full HD 1080P

Smooth Visuals With 100Hz Variable Refresh Rate

With a fast 100Hz screen variable refresh rate, you can experience a truly fluid visual display. This results in improved viewing clarity, reduced screen stutter during fast-moving action scenes, and benefits work-related tasks, reducing eye strain and increasing productivity.

100Hz Variable Refresh Rate

Connection Flexibility

HDMI and DisplayPort (DP) inputs provide flexible connectivity, while DisplayPort (DP) Out enables easy daisy chaining for an expanded multi-monitor setup. Simplify your workspace, expand your connectivity options, and streamline data transfer with our monitor's integrated USB hub featuring a built-in RJ45 port for ethernet (RJ45).

Note:The USB-C port supports video, data transfer, and up to 90W power delivery; actual functionality depends on your device’s USB-C specifications. For proper operation, please ensure your device supports DisplayPort Alt Mode and USB Power Delivery (PD), and avoid using USB-C charging and DC power on the laptop at the same time.

HDMI / DisplayPort/ DisplayPort Out/ USB-B upstream / USB-A downstream / USB-C / RJ45

Complete Ergonomic Flexibility

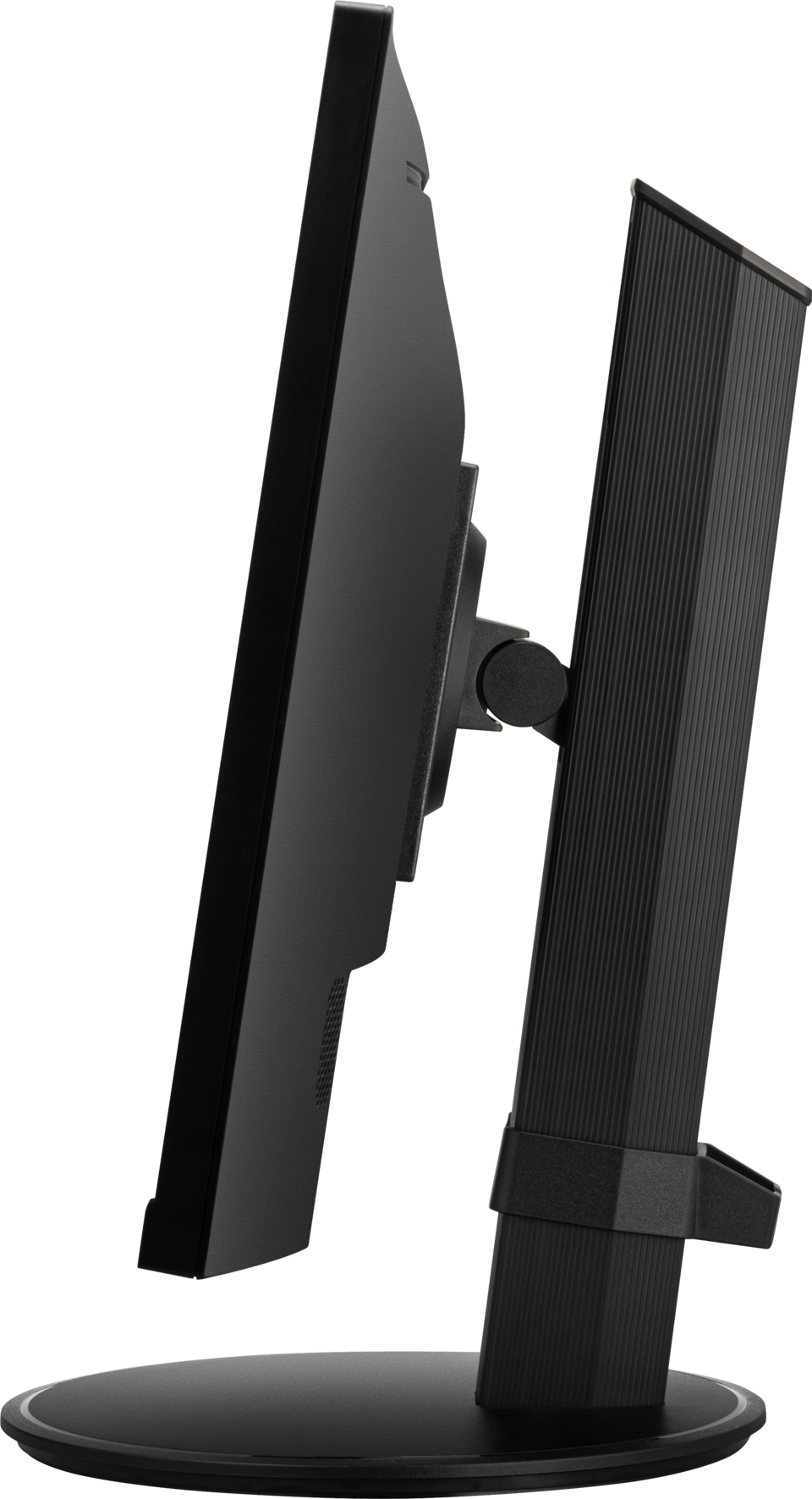

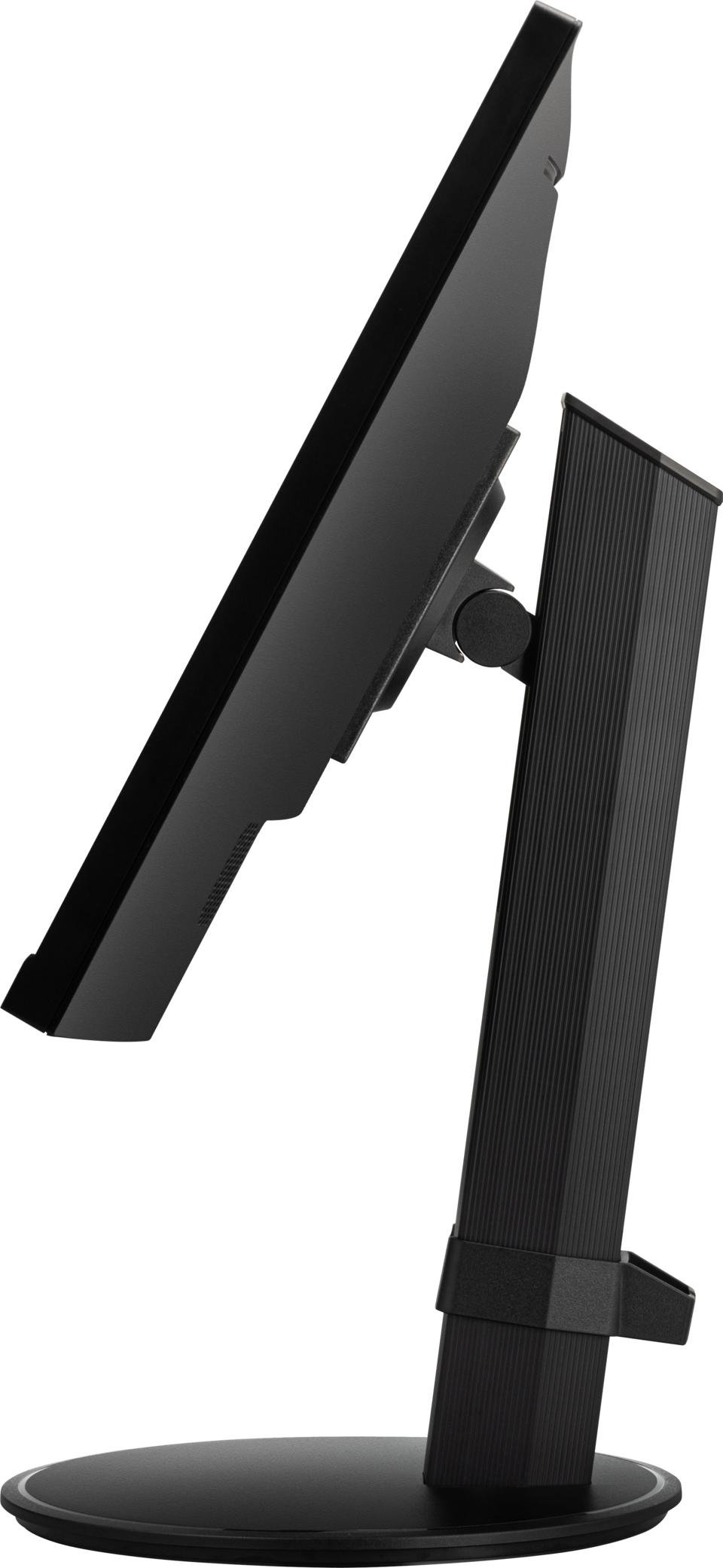

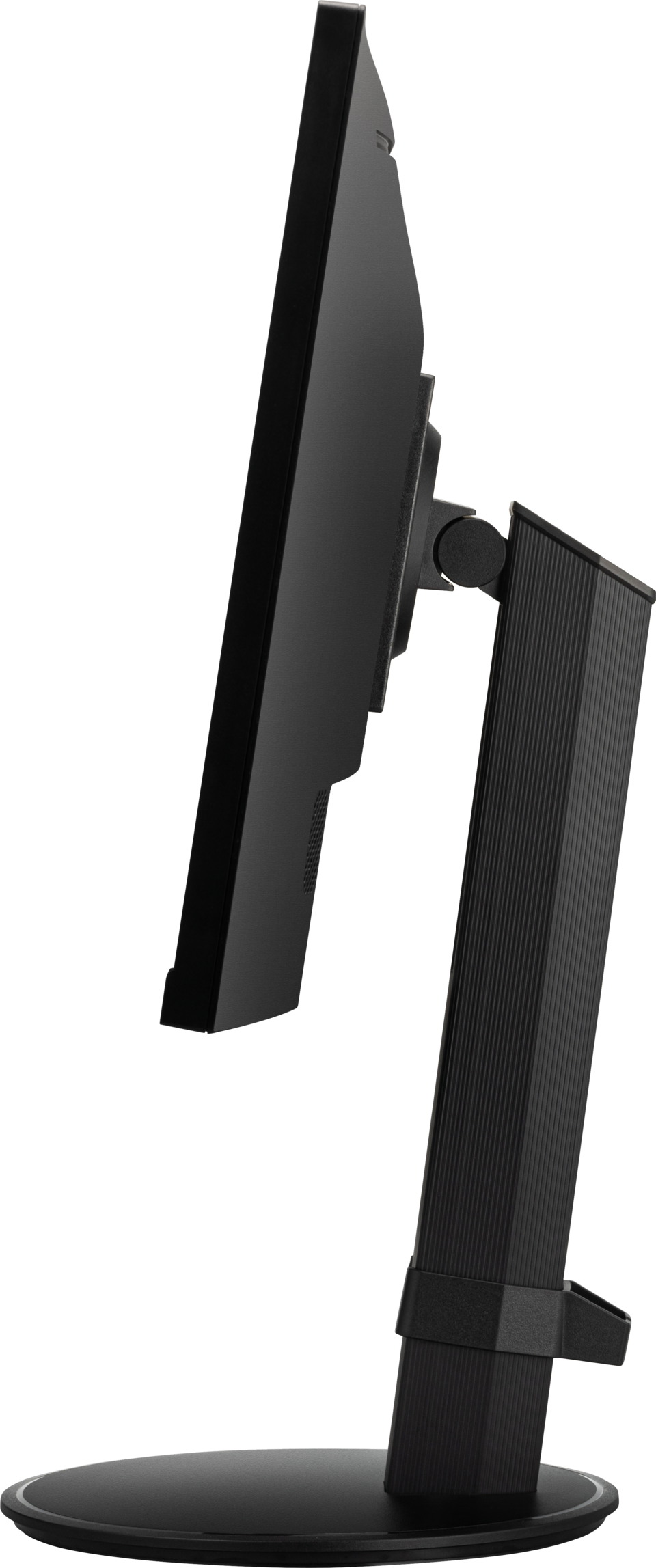

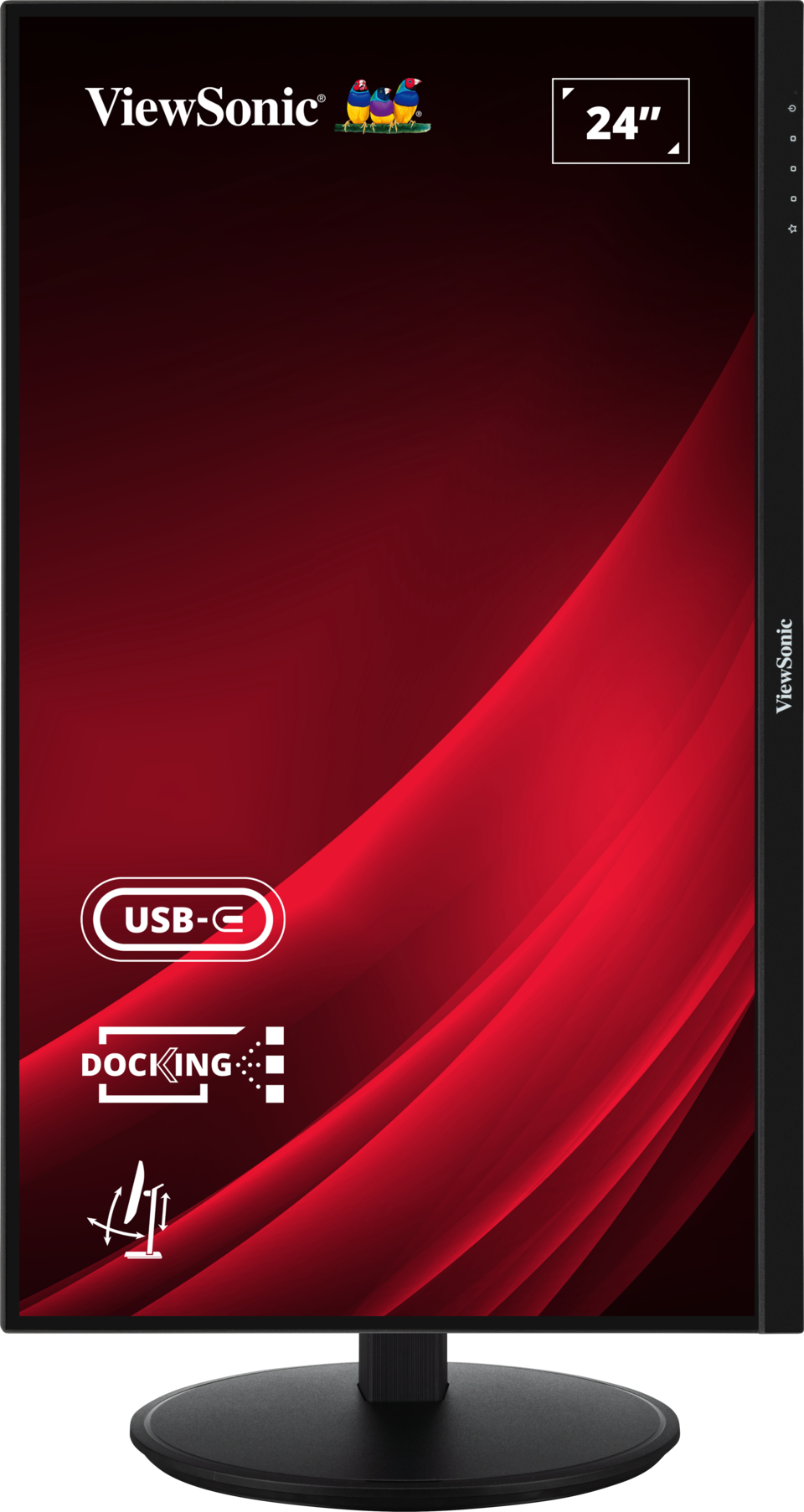

Effortlessly swivel the display up to 360° degrees, tilt up to -3.5°~28° degrees, raise up to 130 mm, and pivot up to 180° degrees for portrait viewing. The VG2409U-2 offers a full range of convenient flexibility for all tasks and workflows.

Swivel, Tilt, Pivot and Height Adjustment

Built-in Speakers

Integrated with dual 2.5-watt stereo speakers as well as incredible screen performance, this monitor provides complete multi-sensory immersion.

Eye ProTech for Comfortable Viewing

Reduce your eye strain and maintain fresh-feeling eyes with ViewSonic Eye ProTech. The Flicker-Free technology eliminates screen flickering, while the Blue Light Filter minimizes harmful blue light from extended viewing periods, ensuring comfortable screen viewing.

Flicker-Free & Blue Light Filter

Color Rendering Options

ViewSonic’s ViewMode offers “Game”, “Movie”, “Web”, “Text”, and “Mono” presets. These presets enhance gamma curve, color temperature, contrast, and brightness to deliver optimized, satisfactory viewing.

ViewMode: Game/Movie/Web/Text/Mono

Certified Environmental Sustainability

The VG2409U-2 is an ENERGY STAR-certified product that can save on energy costs while reducing greenhouse gases.
The display is also registered as an EPEAT product.
*Energy savings may vary based on actual usage and other factors.
*Certifications and safety regulations dependent on the purchase area.

EPEAT, Energy Star

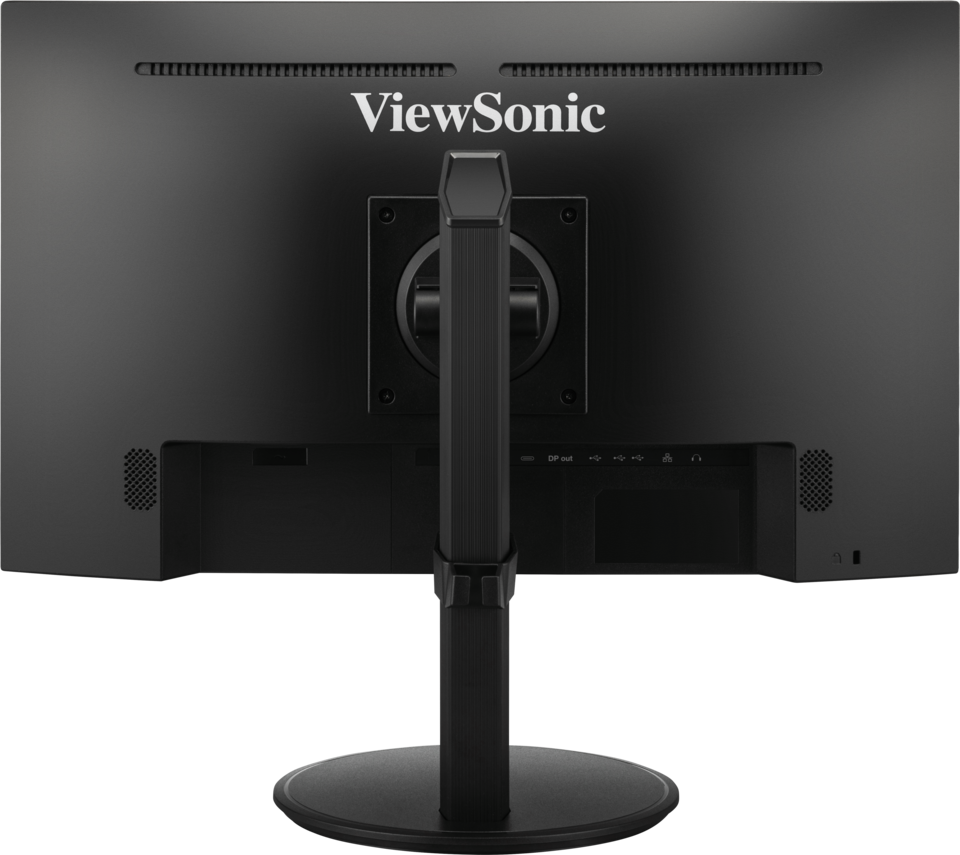

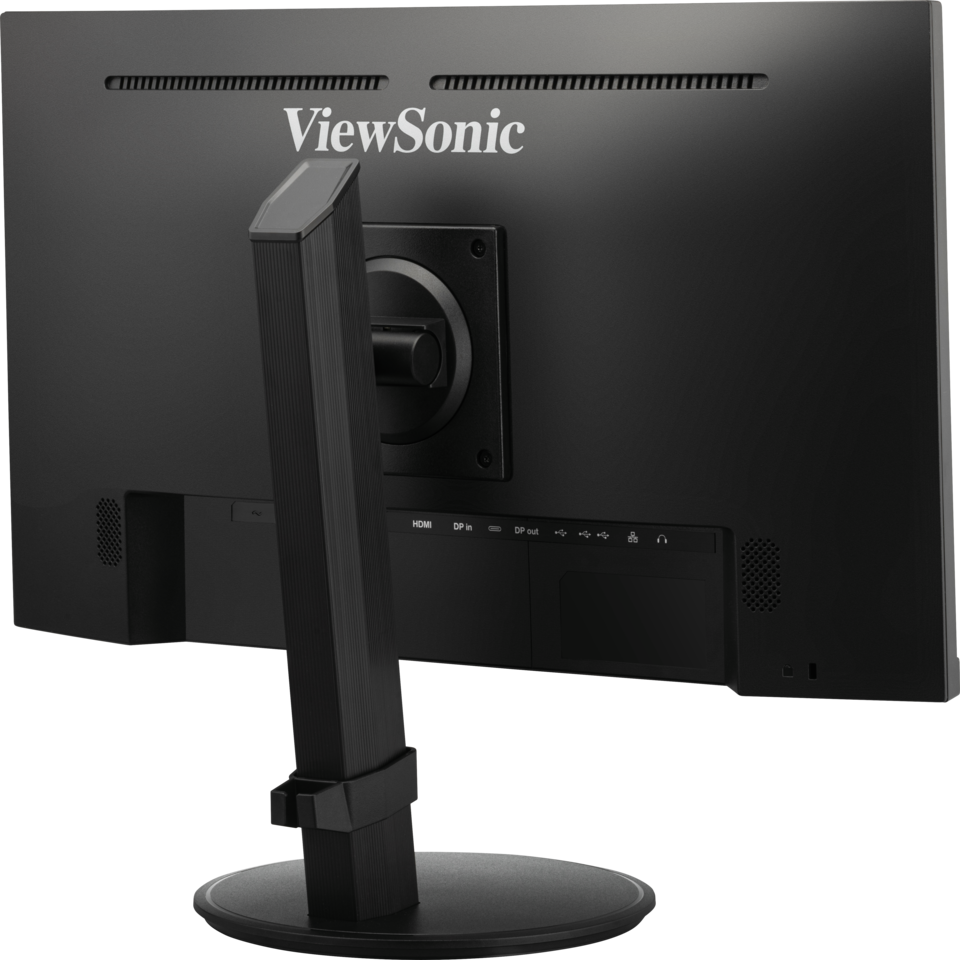

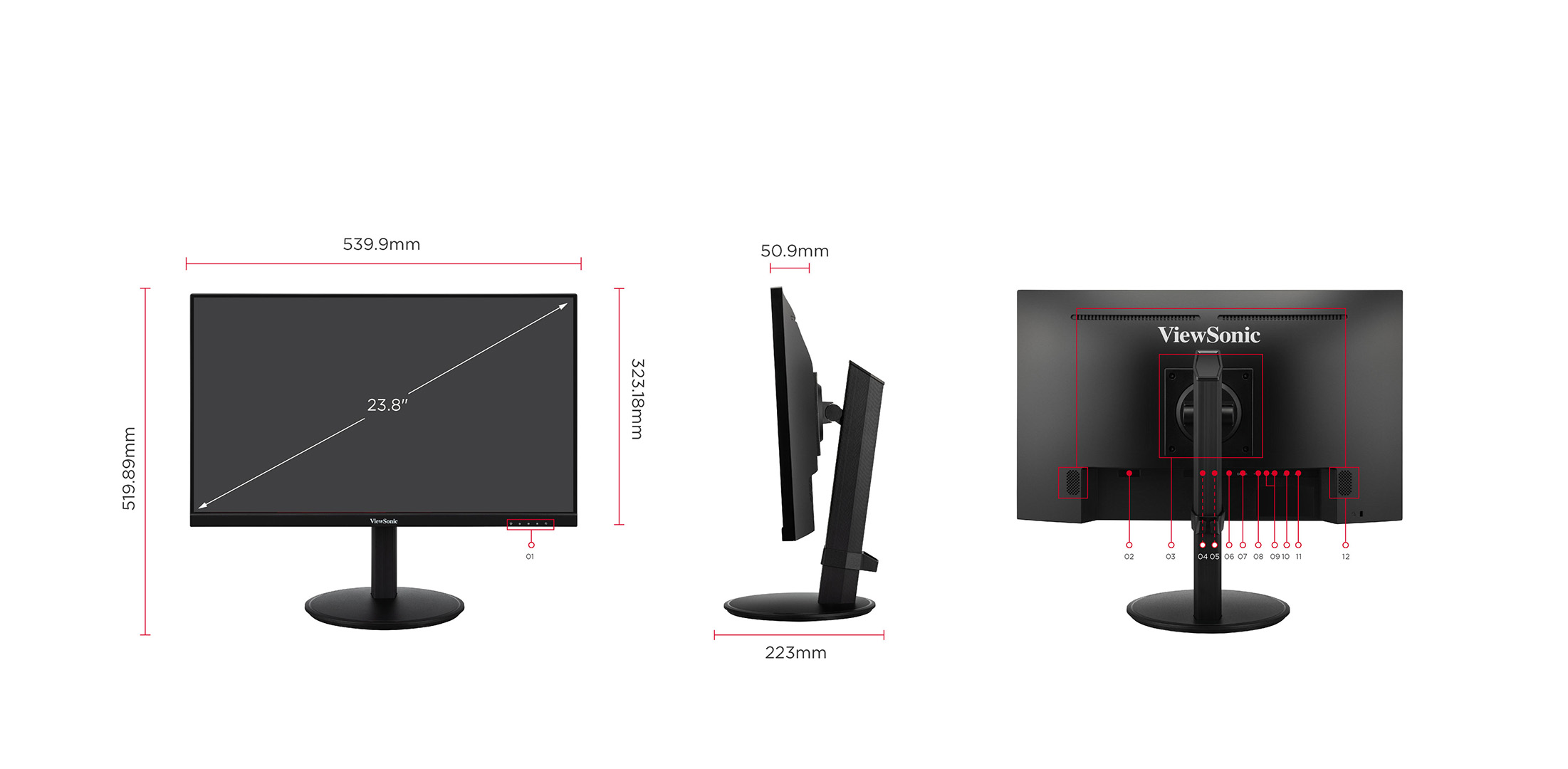

Dimension & I/O Ports

Conveniently mount the monitor to your preference by utilizing the 100mm x 100mm VESA-compatible mount design.

100mm x 100mm VESA mount

Menu Control Panel
Power In
VESA Compatible
(Wall Mount 100 x 100 mm)
HDMI
DisplayPort
USB Type-C
DisplayPort Out
USB Type-B Upstream

SPECIFICATIONS

Display
Display Size (in.): 24
Viewable Area (in.): 23.8
Panel Type: IPS Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 1,300:1 (typ)
Dynamic Contrast Ratio: 50M:1
High Dynamic Range: HDR10
Light Source: LED
Brightness: 350 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + FRC)
Aspect Ratio: 16:9
Response Time (Typical GTG): 4ms
Response Time (GTG w/OD): 4ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Glass Hardness: 3H
Curvature: Flat
Refresh Rate (Hz): 100
Variable Refresh Rate Technology: Yes
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 104% size (Typ)
Pixel Size: 0.275 mm (H) x 0.275 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 10/11 certified; macOS tested
Mac® Resolution (min): 1920x1080
Connector
USB 3.2 Type A Down Stream: 2
USB 3.2 Type B Up Stream: 1
USB 3.2 Type C Up Stream; DisplayPort Alt mode : 1 (65W power charger)
3.5mm Audio Out: 1
HDMI 1.4: 1
DisplayPort: 1
DisplayPort Out: 1
Power in: 3-pin Socket (IEC C14 / CEE22)
Ethernet LAN (RJ45): 1

Audio
Internal Speakers: 2.5Watts x2
Power
Eco Mode (Conserve): 12W
Eco Mode (optimized): 13.5W
Consumption (typical): 15.5W
Consumption (max): 19.5W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: Internal Power Supply
Additional Hardware
Kensington Lock Slot: 1
Cable Organization: Yes
Controls
Physical Controls: Key 1 (favorite), Key 2, Key 3, Key 4, Key 5 (power)
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
Wall Mount
VESA Compatible: 100 x 100 mm
Input Signal
Frequency Horizontal: 30 ~ 112KHz
Frequency Vertical: 48 ~ 100Hz
Video Input
Digital Sync: TMDS - HDMI (v1.4), Micro-Packet - DisplayPort (v1.4), Micro-Packet - Type C
Ergonomics
Height Adjust (mm): 130
Swivel: 360º
Tilt (Forward/Back): -3.5º / 28º
Pivot (Right/Left): 90º / 90º
Weight (imperial)
Net (lbs): 12.3
Net Without Stand (lbs): 7.7
Gross (lbs): 15.9
Weight (metric)
Net (kg): 5.6
Net Without Stand (kg): 3.5
Gross (kg): 7.2
Dimensions (imperial) (wxhxd)
Packaging (in.): 24.5 x 20.5 x 5.7
Physical (in.): 21.25 x 15.35~20.47 x 9.18
Physical Without Stand (in.): 21.25 x 12.72 x 2
Dimensions (metric) (wxhxd)
Packaging (mm): 622 x 520 x 144
Physical (mm): 539.7 x 389.89~519.89 x 233.29
Physical Without Stand (mm): 539.7 x 323.18 x 50.9
General
Regulations: Energy Star, EPEAT, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, BIS
PACKAGE CONTENTS: VG2409U-2 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB Type-C Cable (Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
Power Management: Energy Star standards, EPEAT
