ePoster
EP5543
Key Features
- Keep content visible in bright spaces with 700-nit brightness and anti-glare haze
- Deliver smooth 4K playback and multitasking powered by Android 14 octa-core processing
- Integrate easily into signage systems via USB-C, HDMI, and CMS compatibility
- Simplify professional installations with hidden cable routing and LAN passthrough
- Centralize remote management using ViewSonic Manager scheduling and monitoring tools
Product Description
The ViewSonic EP5543 is a commercial ePoster designed for always-on visual communication in corporate, hospitality, and higher education environments. Featuring 700-nit brightness with 25% anti-glare haze and reliable 24/7 operation, the EP5543 delivers clear, impactful messaging in brightly lit commercial spaces. An all-in-one freestanding design with a built-in Mini PC compartment, integrated AC power output, and hidden cable routing streamlines deployment without wall mounting or complex IT setup. Built on an octa-core Android 14 platform with 8GB RAM and 128GB storage, the EP5543 delivers smooth 4K multimedia playback and reliable commercial performance. Pre-installed with Revel Digital CMS and supporting additional platforms via Google Play Store, it enables centralized content management with support for JPEG, PNG, MP4, and HTML5. Ideal for corporate communications, campus announcements, and hospitality signage, the EP5543 delivers clear, always-on visual communication.

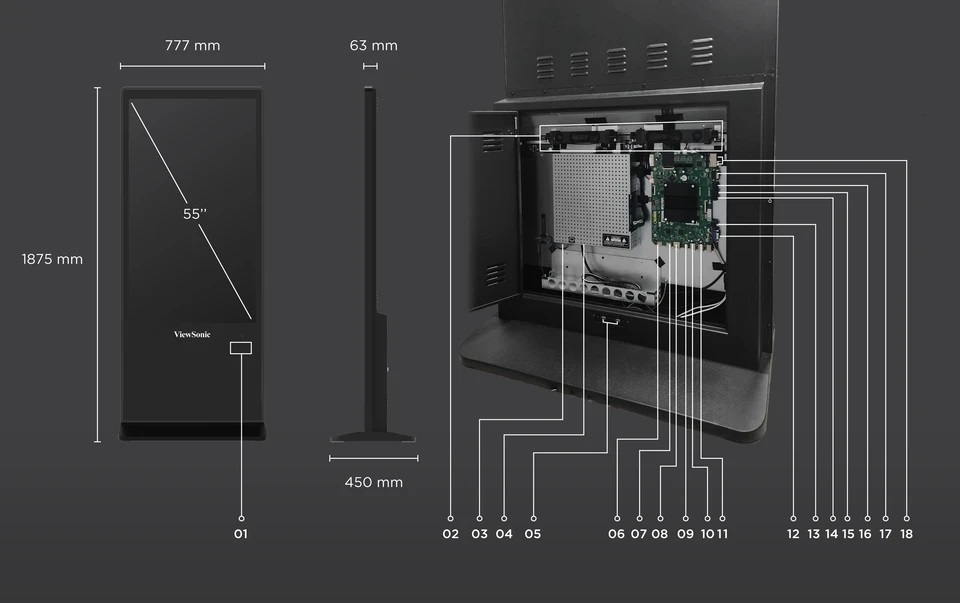

- Remote IR sensor
- Internal Speakers
- AC-IN & Power switch
- AC Out
- USBx2 (rear housing)
- HDMI-Out
- HDMI-In
- DP-In x1 & HDMI-In x1
- USB Type C
- USB Type A 3.2 Gen 1 x2
- USB Type A 2.0 x2
- VGA In
- Audio In
- Mic In
- Audio Out
- SPDIF
- RS-232
- LAN x2 (In & Out)
Visit Us
- www.viewsonic.com
-
DISPLAY
Panel Size: 55" Type/Tech: TFT LCD (ADS type, DLED backlight) Display Area (mm): 1209.6(H) x 680.4 (V) Aspect Ratio: 9:16 Native Resolution: 2160 x 3840 Colors: 1.07G (8 bit + FRC) Brightness: 700 nits (typ.) Contrast Ratio: 1200:1 (typ.) Response Time: 8 ms Viewing Angles: H= 178 , V=178 (typ). Backlight Life: 30,000 hours (typ.) Surface Treatment: Anti-Glare 3H, Haze=25% Orientation: Portrait -
INPUT
HDMI: (2.0) x 2 RGB / VGA: x1 DisplayPort: (1.2) x1 Audio: x1 (3.5mm) MIC(Microphone): x1 ( 3.5mm) RS232: x1 -
OUTPUT
HDMI: X1 Audio: x1 ( Earphone out) SPDIF: x1 -
LAN
RJ45: x2 -
USB
Type A: x4 ( 2.0x2 ; 3.0x2) -
OTHERS
Type-C x1 (USB2.0, DP1.2. PD15W) -
SPEAKERS
20Wx2 -
COMPATIBILITY
RGB PC/HDMI PC: 1920x1080@60Hz HDMI: 2160x3840 @60Hz DisplayPort: 2160x3840 @60Hz -
ANDROID VERSION
14.0 -
MULTIMEDIA
Photo: JPG, BMP, PNG
Video: MP4, MOV, MKV, DAT, MPG, MPEG, AVI, TS, WMV,RM,RMVB, FLV
Audio: MP3,WAV, AAC, AVI. MKV -
PRELOADED SOFTWARE*
Revel Digital Player
(Activation requires a separate subscription license, sold separately for Revel Digital.)Manager -
POWER
Voltage: 100~240VAC +/- 10% wide range Consumption: 61.7W (Typ.), 230W (Max.) Standby mode < 0.5W ; Off mode <0.3W -
OPERATING CONDITIONS
Temperature (º C): 0°C to 40°C Humidity: 20% ~ 80% non-condensing -
DIMENSIONS (W X H X D)
Physical (inch / mm): 30.64 x 73.82 x 17.72 inches / 778.5 x 1875 x 450 mm Packaging (inch / mm): 38.19 x 80.08 x 23.98 inches / 970 x 2034 x 609 mm -
WEIGHT
Net (lb / kg): 138.89 lbs / 63 kg Gross (lb / kg): 159.84 lbs / 72.5 kg -
REGULATIONS
cTUVus, FCC, Energy Star 8.0, CE, CB, RoHS, ErP, EEI, WEEE -
PACKAGE CONTENTS
• Power cord
• Remote control
• Bottom metal cover and screws
• Key
• Quick start guide
• Compliance statement
