Direct View LED Accessories
LD-SCB-204
Key Features
- Integrated all-in-one design simplifies setup and operation
- Discreet power box installation behind the screen enables clean, clutter-free configurations
- One-touch power control supports energy-efficient operation
Product Description

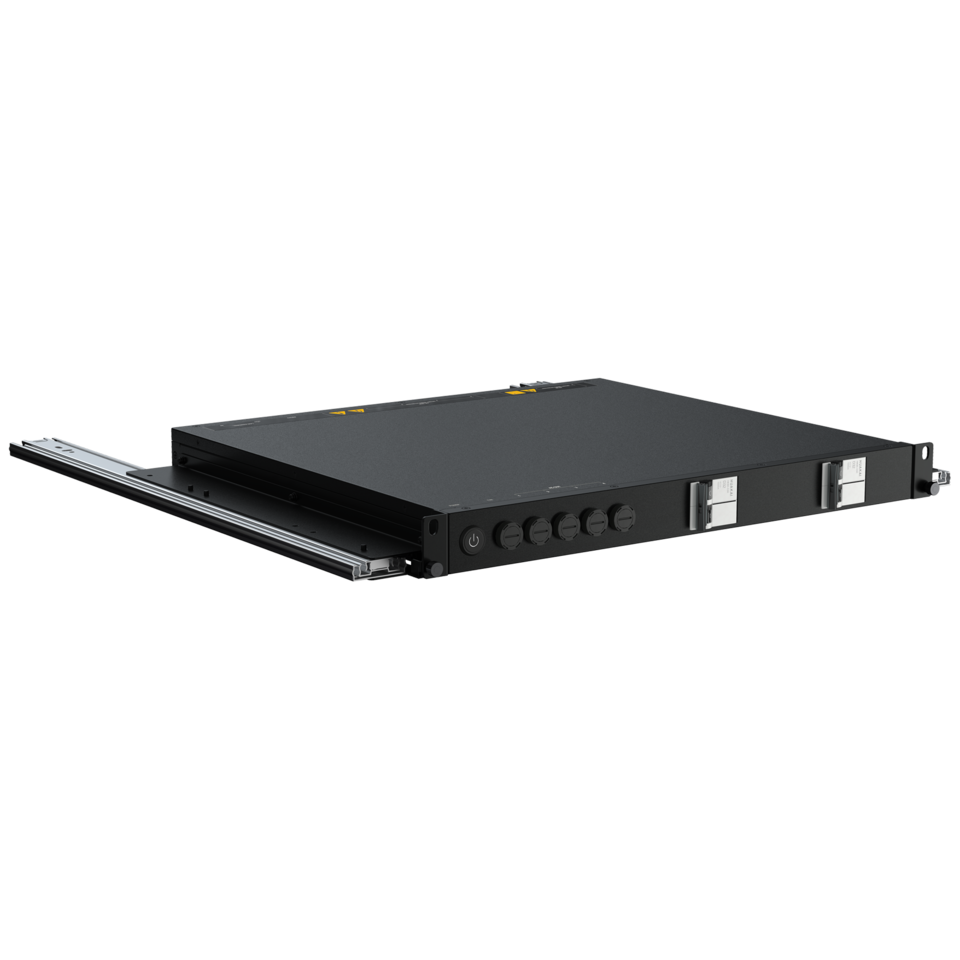

The LD-SCB-204 is an All-in-One Power Box purpose-built for ViewSonic's Customizable All-in-One LED Displays (LDC027N Models). Its discreet power system installs behind the display for a clean, professional setup with no visible cabling. One-touch power control supports energy-efficient operation, built for Pro AV environments that need scalable, low-maintenance solutions.
- Indicator Light & Power Button
- Fuse_FAN
- Fuse_AC Out x 4
- Miniature Circuit Breakers x 2
- AC In x 2
- AC Out ×4
- RS232
- LAN Control In & Out
Visit Us
- www.viewsonic.com
-
SPECIFICATION
Dimensions (WxHxD): Power module :
22.24x1.71x22.83 inches
(565x43.5x580 mm)Output Power Consumption: 13.2kW@220V
6.6 kW@110VNet Weight: Power module：
19.62 Ibs
(8.9 kg) -
INPUT
RJ45 (Internet): 1 -
CONTROL
RJ45 (LAN control): 1 RS232 (DB 9-pin female): 1 -
STANDARD ACCESSORIES
Power Cord: N/A
(Neutrik powerCON 32A connector)
