LCD Display

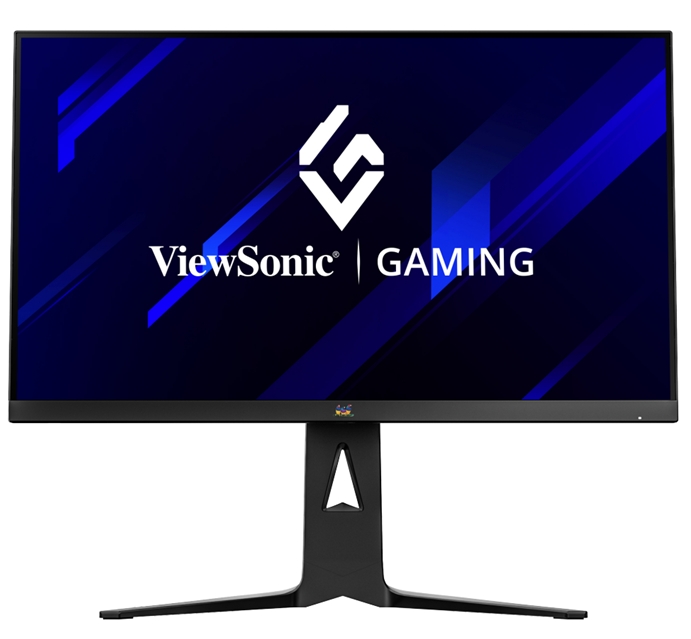

VX2766-2K-PRO-6
Key Features
Product Description
Visit Us
- www.viewsonic.com
-
LCD PANEL
Panel Type: Fast IPS Screen Size: 27 inches Viewable Area: 596.736mm (H) x 335.664mm (V) Optimal Resolution: 2560×1440 @ Native 300Hz (DP) Aspect Ratio: 16:9 Contrast Ratio: 1500:1 (Typ.) (DCR: 80000000:1) Brightness: 400cd/m² (Typ.) ; 450cd/m² (Max.) Viewing Angle: H: 178º / V: 178º (CR ≥ 10) Pixel Pitch: 0.2331mm (H) x 0.2331mm (V) Response Time: 1ms (GTG) Surface Coating: Anti-glare; 3H; Haze 25% Color Space Support: 10.7B colors; 10bit (8bit+FRC) Color Gamut: 100% sRGB / 98% DCI-P3 coverage (CIE1931) HDCP: 2.2 Special Features: HDR; Low Blue Light; Flicker-Free; ViewMode; FreeSync & G-sync Compatible; Gaming Crosshair; Multiple Color Mode presets; Cyber Cafe G-Mode; Cyber Cafe Ambient Light -
INPUT SIGNAL
Digital: HDMI; DP Frequency: HDMI 2.0: 2560*1440 @ 144Hz; DP 1.4: 2560*1440 @ 300Hz -
COMPATIBILITY
PC: Windows 10/11 tested Mac: macOS tested -
CONNECTORS
Digital: HDMI 2.1 x 2; DP 1.4 x 1 Audio: Audio out Power: Internal Power Supply -
MULTIMEDIA
Built-in Speaker: None -
ERGONOMICS
Tilt: -5°±2° ~ 20°±2° Swivel: ±45°±3° Pivot: ±90°±3° Height Adjust: 130mm -
POWER
Voltage: AC 100-240V / 50-60Hz Power Consumption: 32W (Typ) ; 39W (Max) -
OPERATING ENV.
Temperature: 0 ~ 40°C (32 ~ 104°F) Humidity: 20 ~ 90% (Non-condensing) -
STORAGE ENV.
Temperature: -20 ~ 60°C (-4 ~ 140°F) Humidity: 5 ~ 90% (Non-condensing) -
DIMENSIONS (W X H X D)
With Base: 614.1mm (W) x 450~571.6mm (H) x 243.1mm (D) Without Base: 614.1mm (W) x 365.95mm (H) x 63.87mm (D) Package Size: 863.6mm (W) x 519.4mm (H) x 174mm (D) Wall Mount: 75mm x 75mm Buttons: Joystick button + Power button -
WEIGHT
Net Weight (with base): 6.4 kg Net Weight (without base): 4.45 kg Package Weight: 8.5 kg -
REGULATORY COMPLIANCE
CCC; CEL; China RoHS -
ACCESSORIES
DP (v1.4) cable (1.8 meters) ; Power cable (1.8 meters) -
REGULATORY MODEL NUMBER
VS20287
