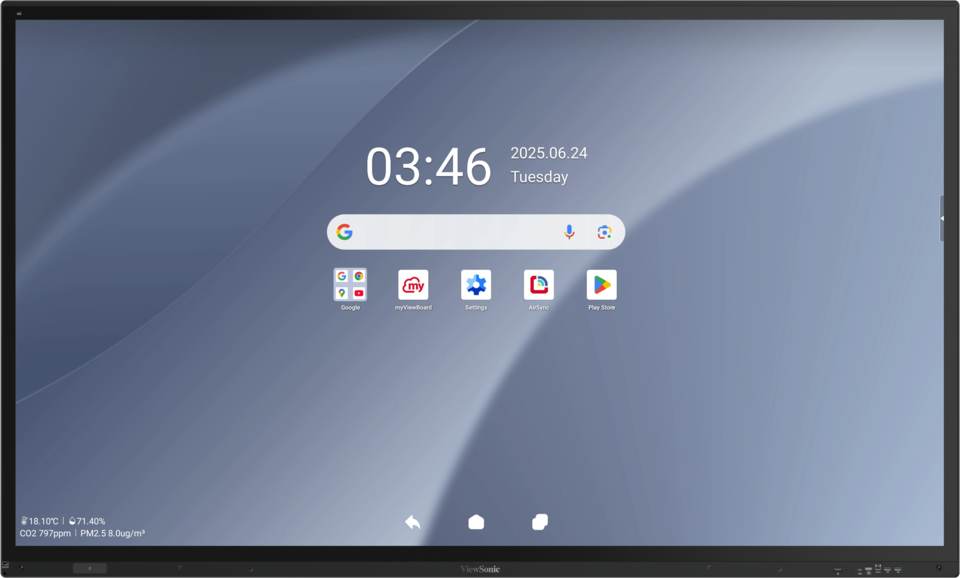

ViewBoard
IFP8663-2C
Főbb Tulajdonságok
- Ultra-precise writing with 50-point PCAP touch, palm rejection, and Write Away™ technology
- Secure, future-ready performance with upgradable Android 15 OS, EDLA certification, and octa-core processor with 32GB RAM
- Streamlined device management with ViewSonic Manager
- NFC login for fast, secure user access in shared workspaces
- Smart sensors that auto-adjust brightness, monitor ambient conditions, and activate power-saving modes
- EPEAT Gold certified delivering up to 24% greater energy efficiency than the previous generation.
Termék leírás
The ViewSonic® ViewBoard® IFP63 Series is a 4K UHD interactive flat panel designed for secure, high-performance collaboration in enterprise and higher education environments. With ultra-responsive 50-point PCAP touch, palm rejection, and Write Away™ technology, it enables seamless, pen-on-paper annotation—ideal for hybrid meetings, interactive lessons, and brainstorming sessions. Powered by Android 15 and EDLA-certified, the interactive display provides secure access to the latest apps and updates on a future-ready platform. An octa-core processor and 32GB of RAM support smooth multitasking for demanding workflows, while NFC tap-to-sign-in simplifies access in shared settings. Part of the ViewSonic Business Solutions, it includes three powerful software tools: Manager for remote device management, AirSync for wireless casting, and TeamOne for real-time collaboration. Designed with sustainability in mind, this display features integrated sensors that adjust brightness, monitor environmental conditions, and trigger energy-saving modes. It is certified EPEAT Gold and EEI Level F for efficient, environmentally responsible deployment.
- NFC
- Power
- USB-C 3.2 Gen 1
- HDMI 4
- Touch 3
- USB-A 3.2 Gen 1
- USB-A 3.2 Gen 1
- USB-C 3.2 Gen1
- VESA® Wall Mount (800x600 mm)
- OPS Slot
- Audio In
- USB-C Out
- Audio Out
- USB-A 3.2 Gen 1*2
- Micro SD
- HDMI Out
- Touch 1
- HDMI 1
- HDMI 2
- HDMI 3
- USB-C 3.2 Gen 1
- WiFi Slot
- Speaker
- Power Switch
- AC In
- SPDIF
- LAN
- DP In
- RS232
- Touch 2
- USB-A 2.0
Látogasson el hozzánk
- www.viewsonic.com
-
MEGJELENíTéS
Panel mérete: 86" Panel típus: TFT LCD module with DLED backlight, ADS Megjelenített terület (mm): 1895.04 (H) x 1065.96 (V)(85.6”diagonal) Képarány: 16:9 Felbontás: UHD 3840x2160(Pixels) Colors: 1.07G colors (8-bit+FRC) Fényerő: 450 nits (typ.) Kontrasztarány: 5000:1 Válaszidő: 8ms Betekintési szögek: H = 178, V = 178 (Typ.) Háttérvilágítás élettartama: 50,000hrs (Typ.) Felületkezelés: Pencil Hardness 9H with AG+AF+Anti-bacteria Keret: 3.8/3.8/11.3/32.5 Orientáció: Landscape -
PLATFORM
Processzor: Octa-Core CPU (A76*4 + A55*4) RAM: 32GB LPDDR Tárolás: 128GB eMMC -
ÉRINTéS
Típus/ Technika: PCAP Érintés felbontás: 32767 x 32767 Touch Point: Windows: 50 Android: 50 Palm Rejection: both passive and active pens -
INPUT
HDMI: FRONT x1
(HDMI 2.1) (HDMI support CEC)
REAR x3
(HDMI 2.1) (HDMI 1 support CEC, ARC)
(HDMI 2.1) (HDMI 2, 3 support CEC)DisplayPort: 1 (DP1.2) Audió: 1 (3.5mm phone jack, mic in) RS232: x1 SD/SDHC: MicroSD card slot x1 OPS: OPS slot x1 WiFi: WIFI slot x1 -
OUTPUT
HDMI: x1 (4K@60Hz) Audió: x1 (Earphone out) SPDIF: x1 (Optical) -
LAN
RJ45: x2
(Speed: 10/100/1000Mbps, WOL supported, ProAV vendor & ViewSonic protocol supported) -
USB
A típus: REAR x1 (USB 2.0 support OTG)
REAR x2 (USB 3.2 Gen 1)
FRONT x2 (USB 3.2 Gen 1)B típus: FRONT x1 (USB 2.0)
REAR x2 (TOUCH 1: USB 3.0; TOUCH 2: USB 2.0)C típus: FRONT x1 (DP 1.2, touch, 100M ethernet, USB 3.2 Gen 1, smart USB 2.0, PD 65W)
REAR x1 (DP 1.2, touch, 100M ethernet, USB 3.2 Gen 1, smart USB 2.0, PD 100W)
Top x1 (USB 3.2 Gen 1 + PD15W to support Camera mounting) -
HANGSZÓRÓK
20W x 2 + 20W x 1 (Subwoofer) -
MICROPHONE
Built-in 8 Array Microphone -
TOP CAMERA PLATE
Yes -
COMPATIBILITY
HDMI: 3840x2160 @ 60Hz DisplayPort: 3840x2160 @ 60Hz -
BEáGYAZOTT OPERáCIóS RENDSZER
Android 15 EDLA -
BUNDLED SOFTWARE
Alap annotációs szoftver: myViewBoard for Android Pro Annotation szoftver: myViewBoard for Windows (embedded in VPC) Pro Whiteboarding Software: TeamOne Vezeték nélküli prezentáció: AirSync Device Management: Manager ViewSonic Launcher: Yes -
KüLöNLEGES JELLEMZőK
All-in-one USB port: USB 3.2 Gen1 “SmartPort USB” to all channels Egyszerű LAN-megosztás az IFP és a slot-in eszköz között: (10/100/1000M) (USB Type-C 10/100, Android & PC 10/100/1000) Light Sensor: Yes PIR Sensor: Yes NFC Reader: Yes Pen Sensor for supporting Write Away: Yes Environmental Sensor: Temperature Sensor x1, Humidity Sensor x1, eCO2 Sensor x1, VOCs Sensor x1, PM2.5 Sensor x1 -
TELJESíTMéNY
Feszültség: 100-240VAC +/- 10% Wide Range Fogyasztás: On: 121.1W / Off: <0.5W -
ERGONOMICS
Falra szerelhető (VESA® ): 800 x 600 -
OPERATING CONDITIONS
Hőmérséklet (ºC): 0℃ ~ 40℃ Páratartalom: 20% ~ 80% RH non-condensing -
MÉRETEK (SZ X H X M)
Fizikai (inch / mm): 77.2 x 46.2 x 3.1in/ 1961.9 x 1172.5 x 79.5mm Csomagolás (inch / mm): 87 x 50.8 x 8.9in/ 2110 x 1291 x 225mm -
WEIGHT
Nettó (font / kg): 143.5lb/ 65.1kg Bruttó (font / kg): 185.6lb/ 84.2kg -
REGULATIONS
cTUVus, FCC, EPEAT, CE, CB, BSMI, NCC, RoHS DoC, WEEE, ErP, Flicker Free, Low Blue Light -
ENERGY STAR VERZIó
ES8.0 -
EEI MINőSíTéS
Level F -
CSOMAG TARTALMA
1. 3m power cord by ship area
2. Type C cable 1.8m(USB-IF certified)
3. 3m touch USB cable(USB 2.0)
4. Touch pen x 2 (VB-PEN-101-2C)
5. RS232 adapter
6. Quick Start Guide
7. Screw x 10 (camera 2+4, wall mount 4)
8. HDMI cable 3m(HDMI LA certified)
9. Remote control
10. AAA Battery x 2
11. Compliance statement -
KOMPATIBILIS SLOT-IN PC
VPC3X Series/ VPCF5-2A Series/ VPCF5 Series/ VPC-A31-O1
