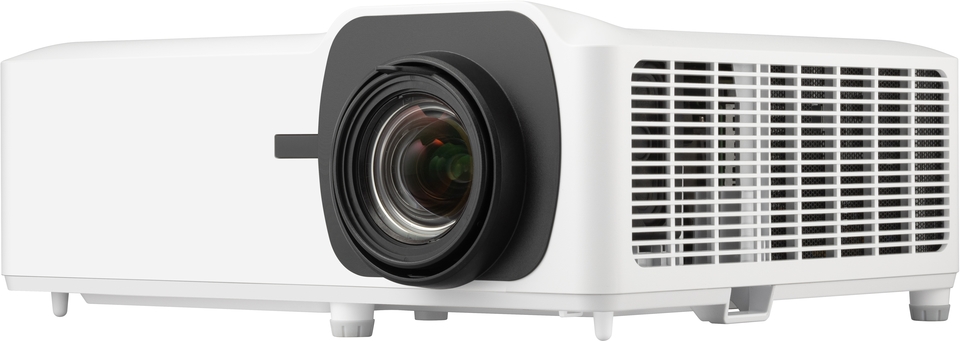

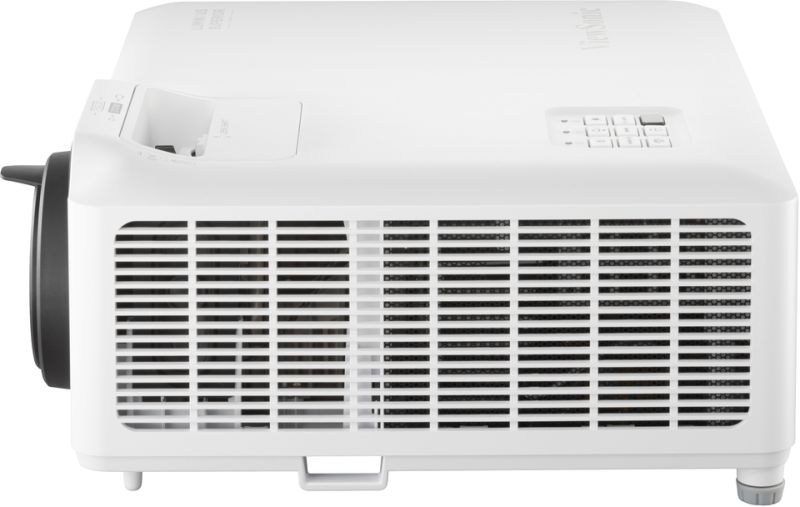

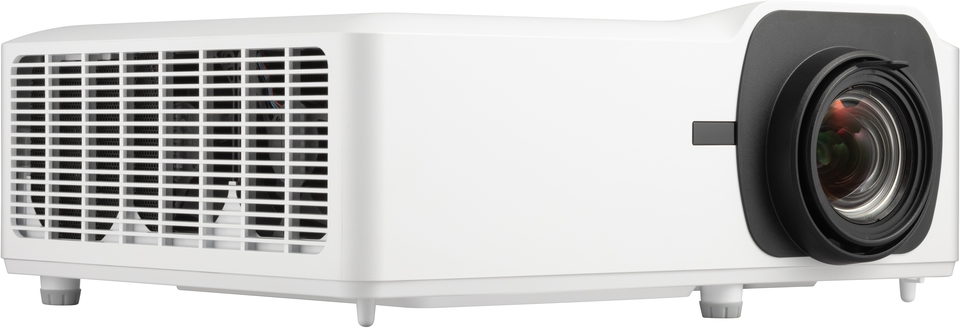

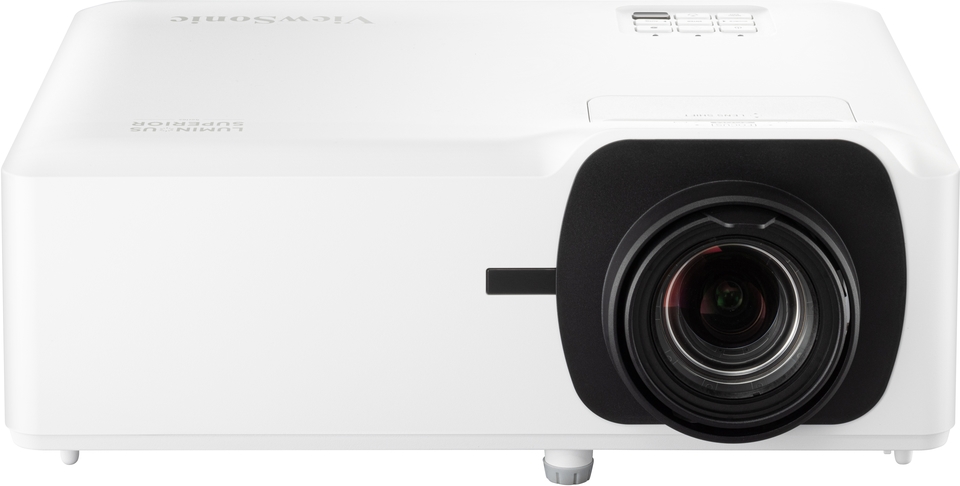

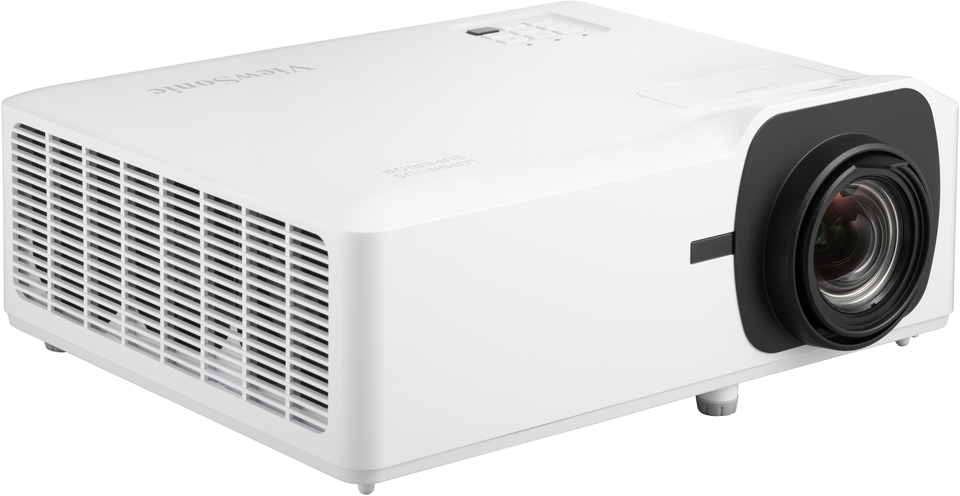

LS901HD

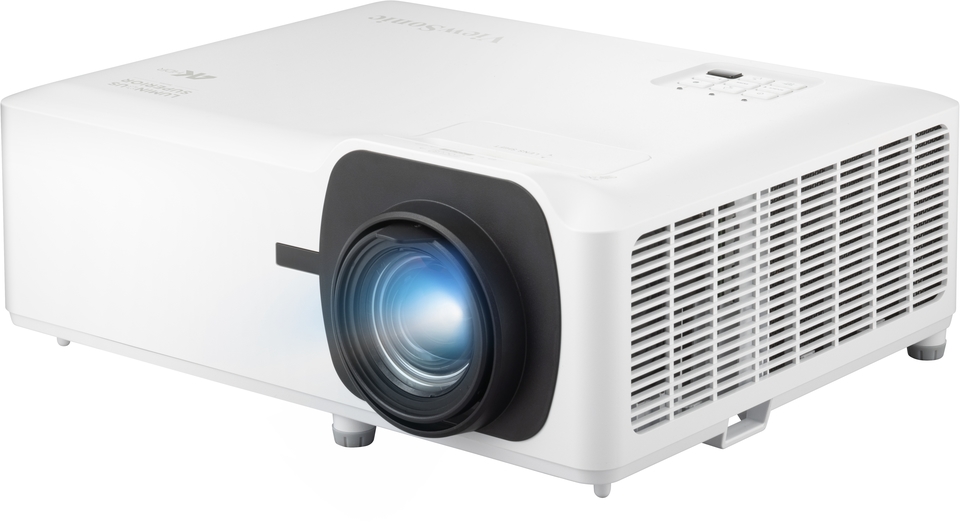

6,000 ANSI Lumens 1080p Laser Installation Projector

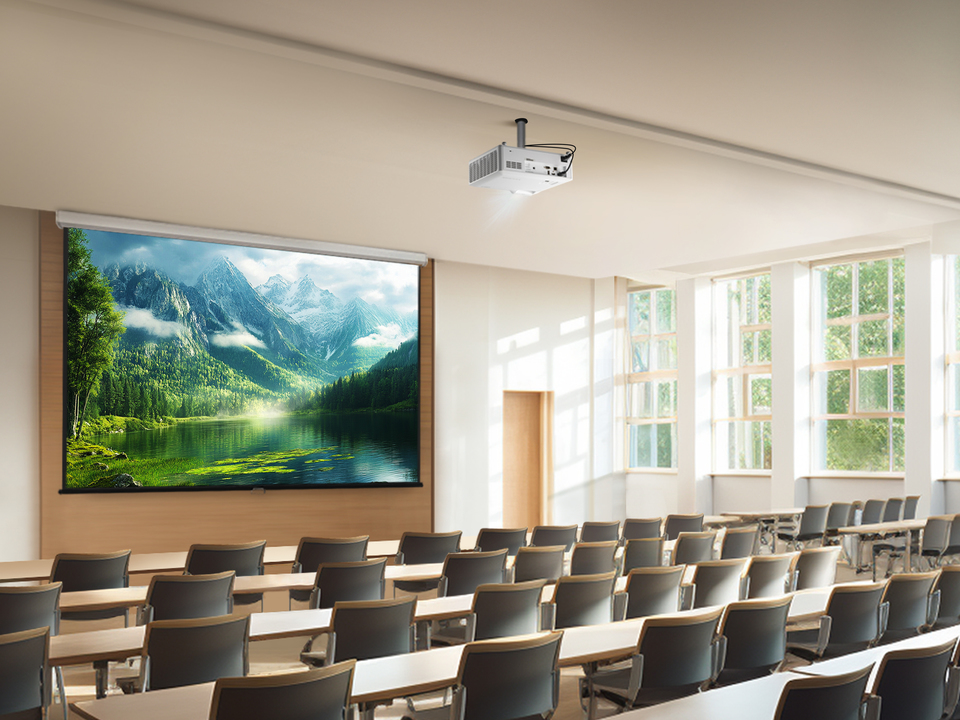

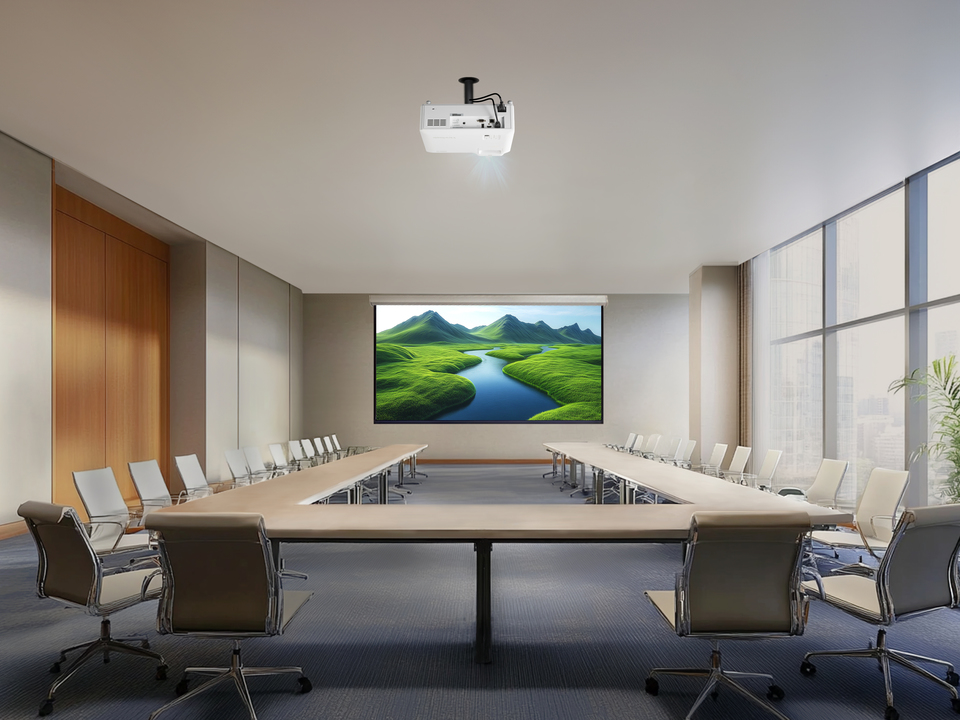

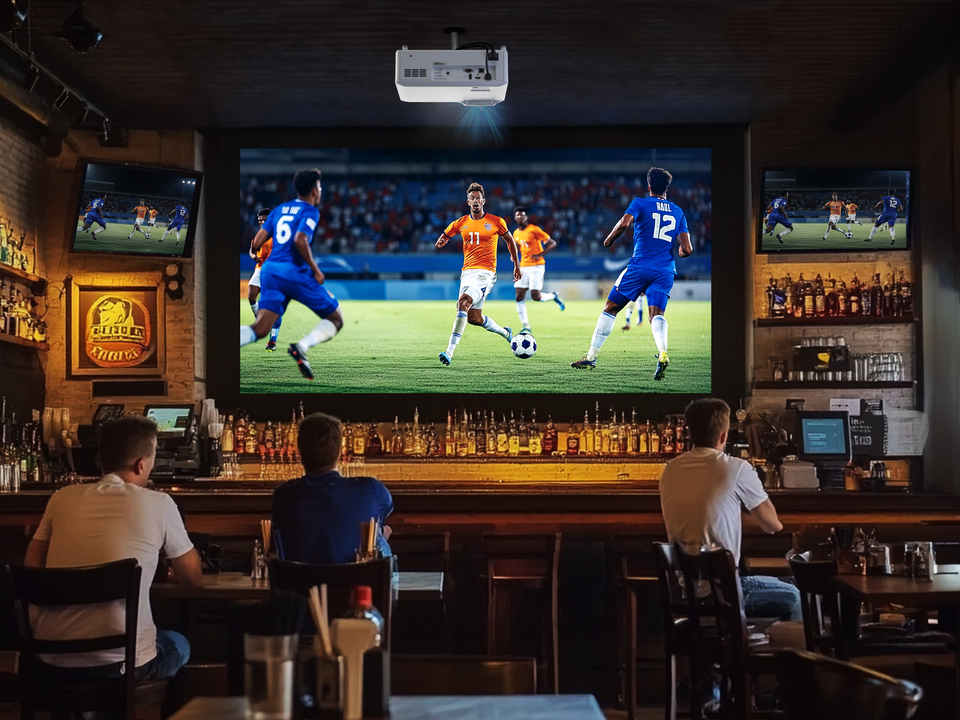

- 6,000 ANSI Lumens ensure vibrant images in large venues

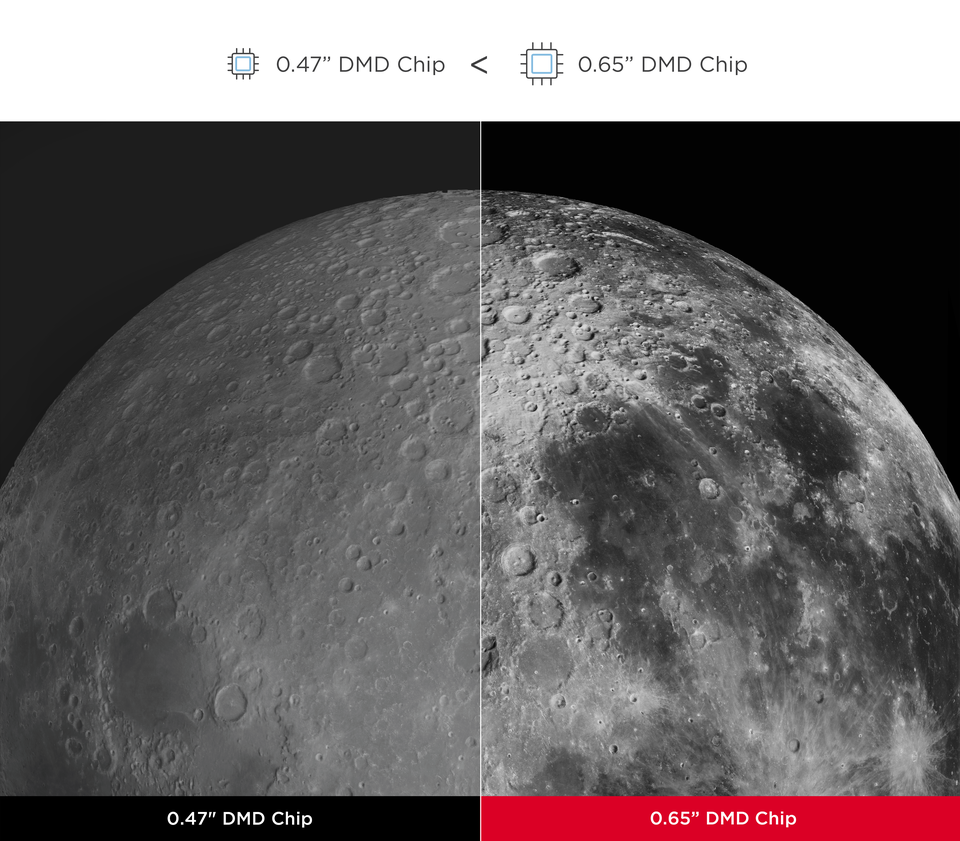

- High native contrast ratio provided by a 0.65” DMD chip and DLP technology
- 3rd generation laser phosphor technology with up to a 30,000-hour lifespan

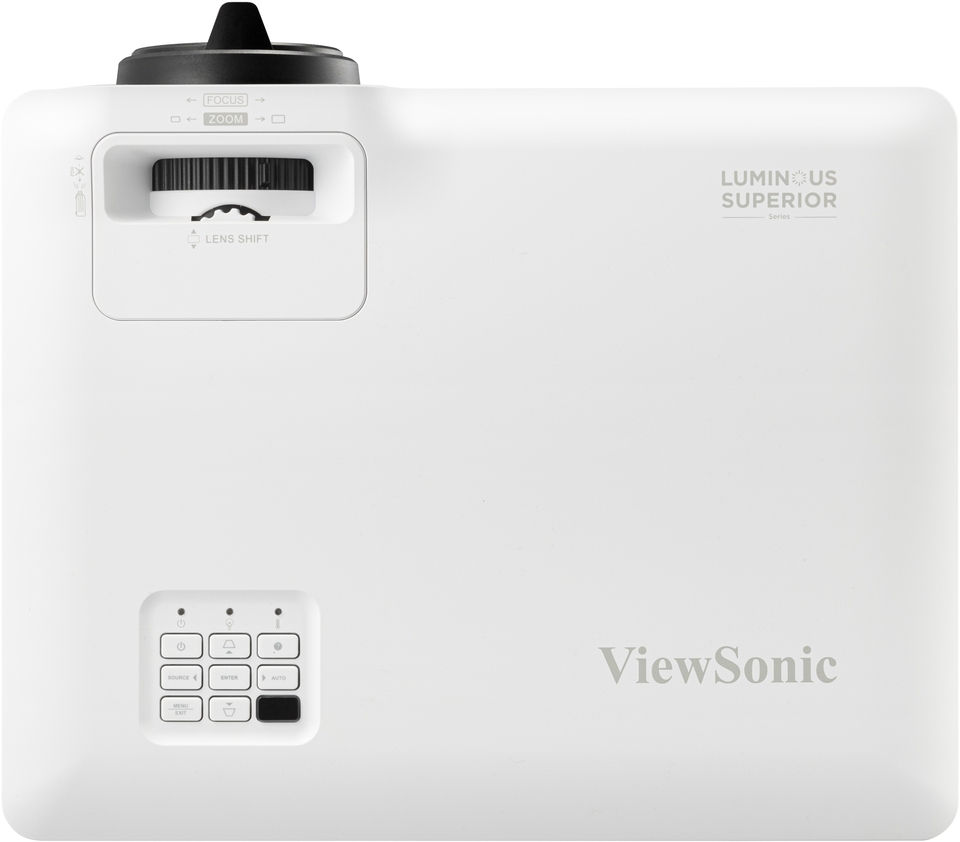

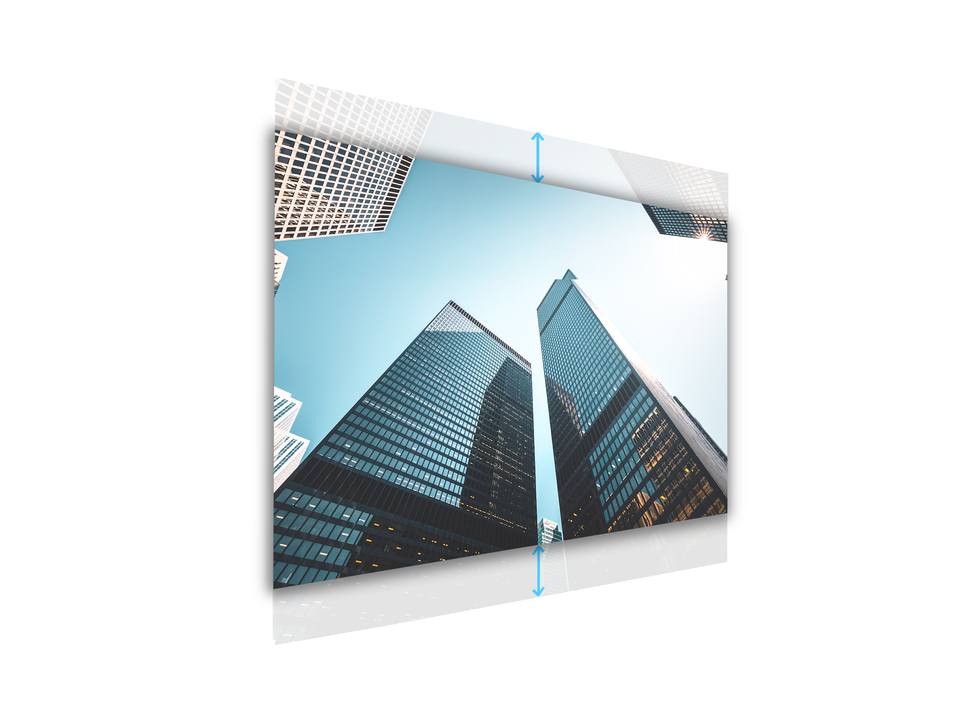

- Installation flexibility: 1.7x zoom, V lens shift, H/V keystone correction, and 360° projection

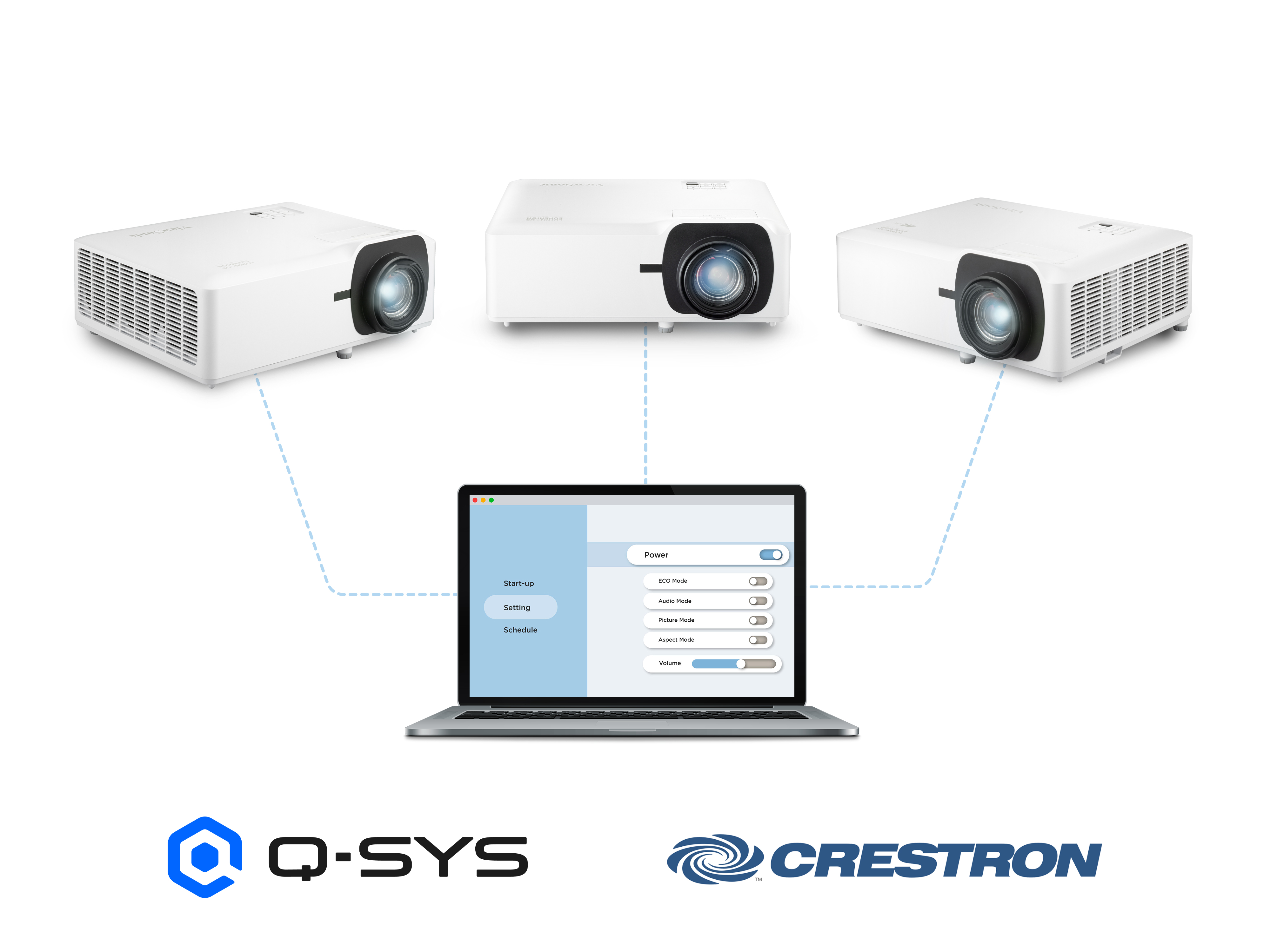

- Centralized LAN control for efficient management

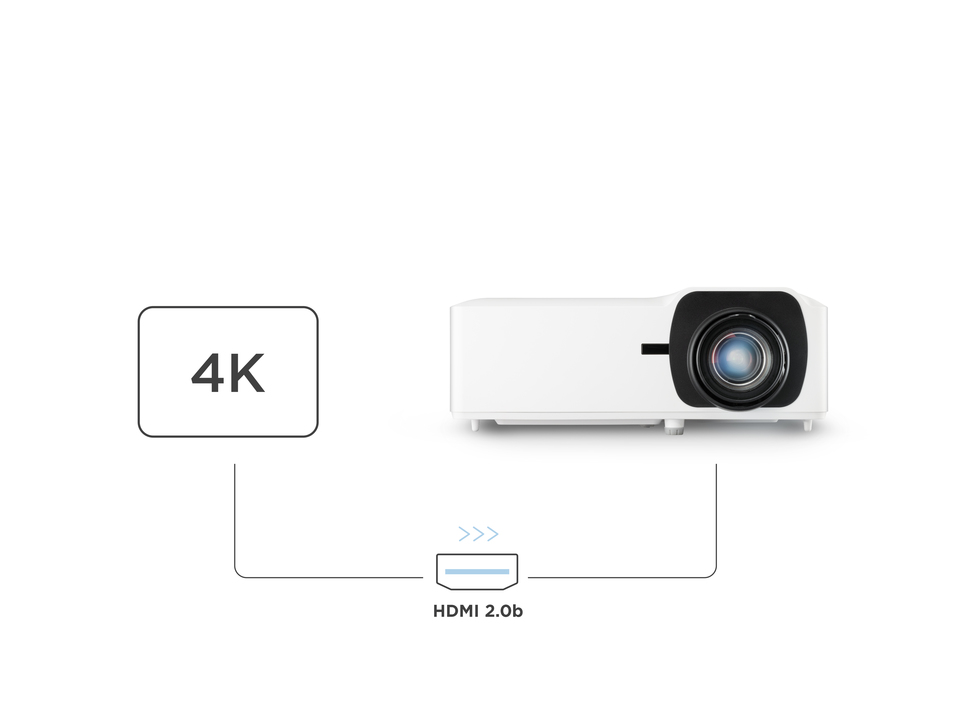

- HDMI 2.0b enables 4K HDR/HLG content playback
SPECIFICATIONS
- SpecificationProjection System: 0.65" 1080p
Native Resolution: 1920x1080
Brightness: 6000 (ANSI Lumens)
Brightness (Center Lumens): 6600
Contrast Ratio: 3000000:1
Display Color: 1.07 Billion Colors
Light Source Type: Laser Phosphor
Light Source Life (hours) with Normal Mode: 20000
Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
Lens: F=2.3-3.0, f=17.63-27.9mm
Projection Offset: 154% +/- 10%
Throw Ratio: 1.2-2.04
Optical Zoom: 1.7X
Digital Zoom: 0.8x-2.0x

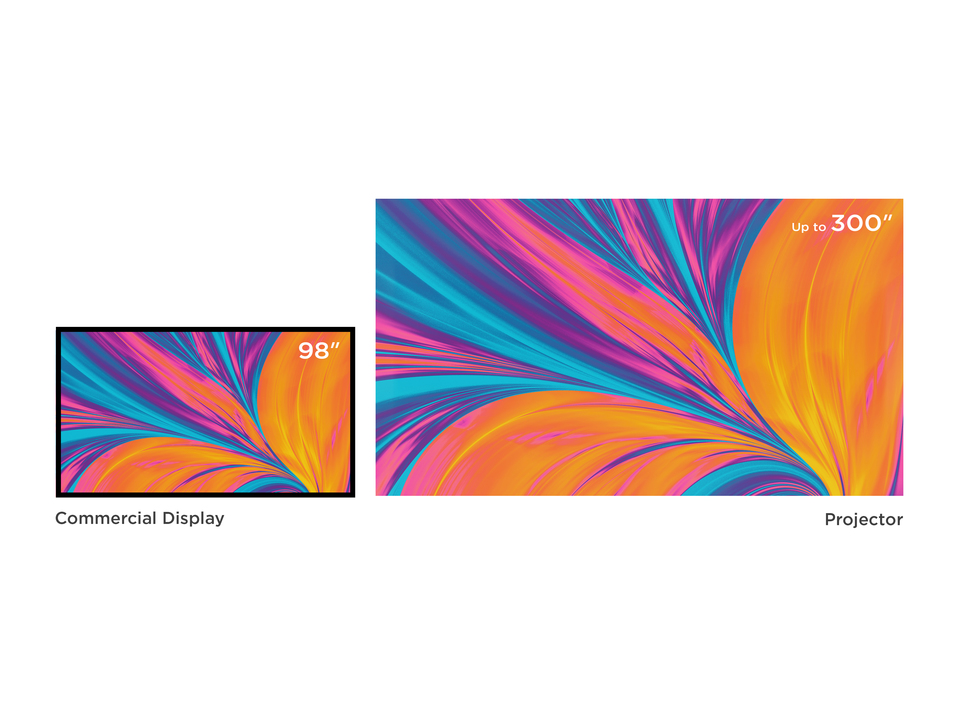

Image Size: 30"-300"
Throw Distance: 0.80-13.55m
(100”@2.66m)

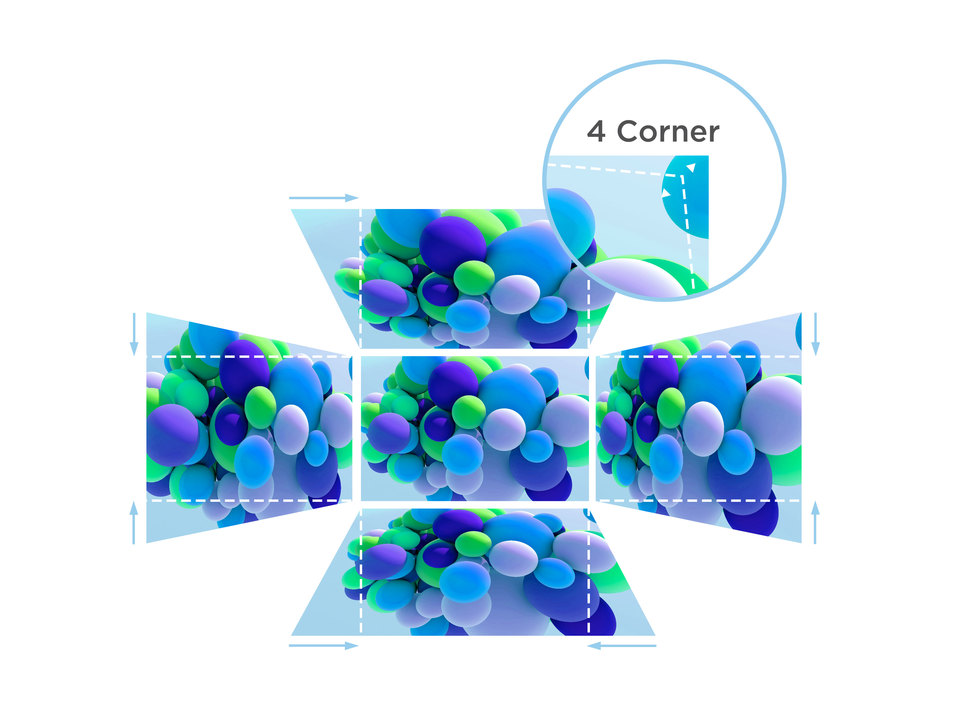

Keystone: H:+/-30° , V:+/-30°
Lens Shift V. Range: 0%, -21%
Audible Noise (Normal): 31dB
Audible Noise (Eco) : 25dB
Input Lag: 16ms
Resolution Support: VGA(640 x 480) to 4K UHD(3840 x 2160)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
Horizontal Frequency: 15K-135KHz

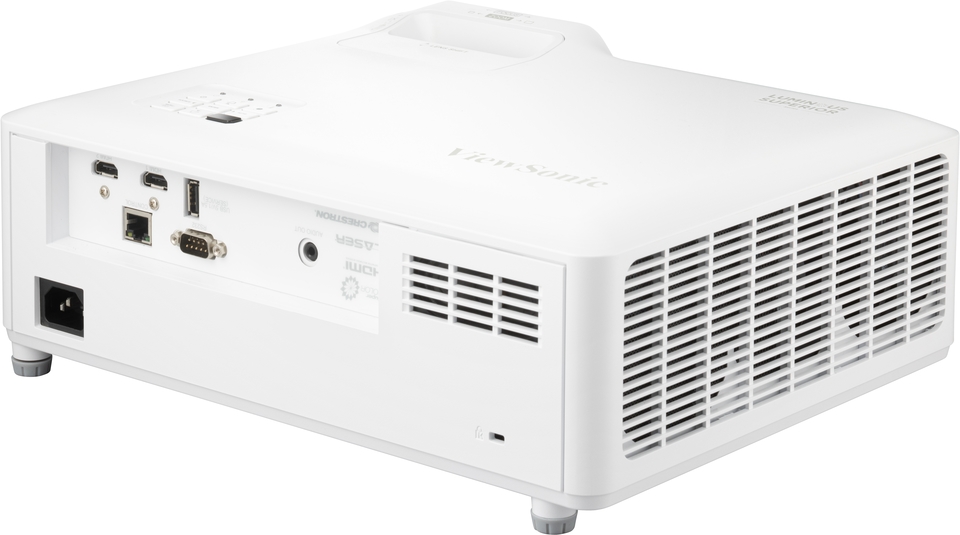

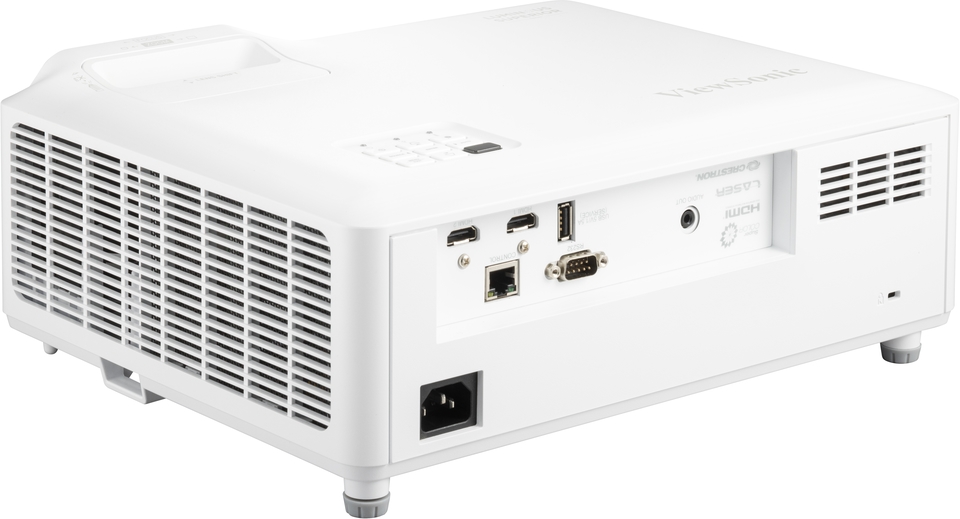

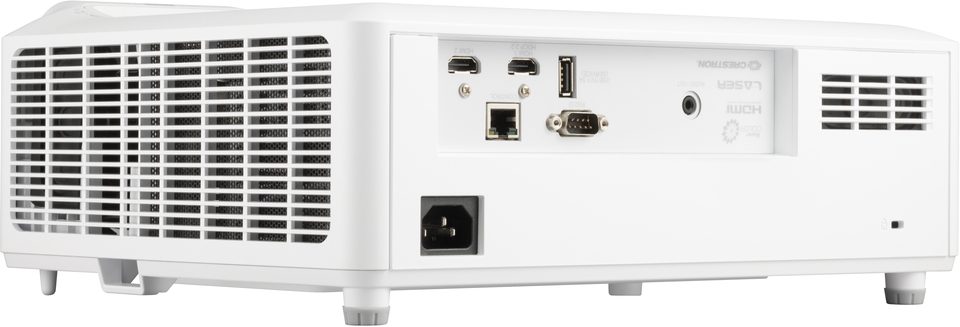

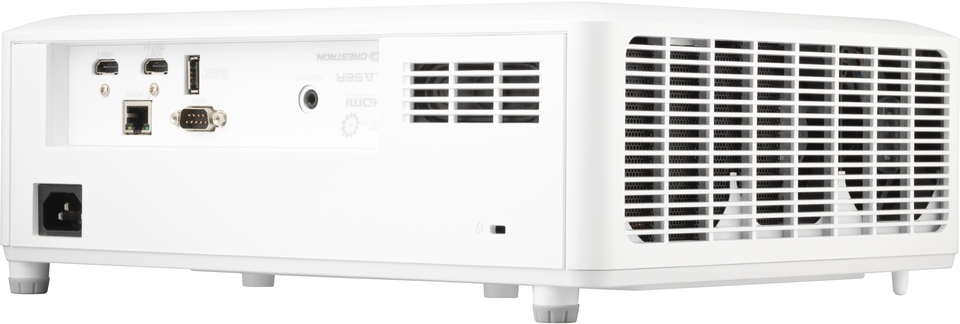

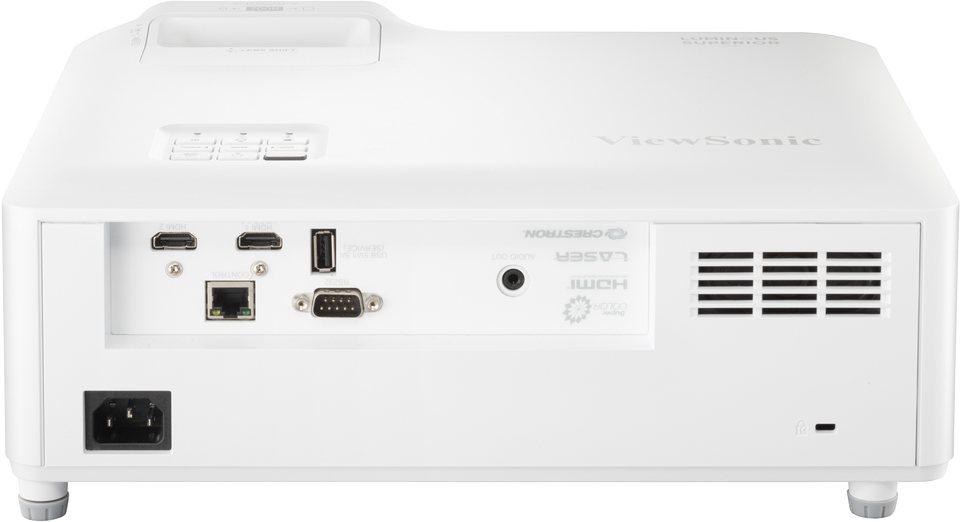

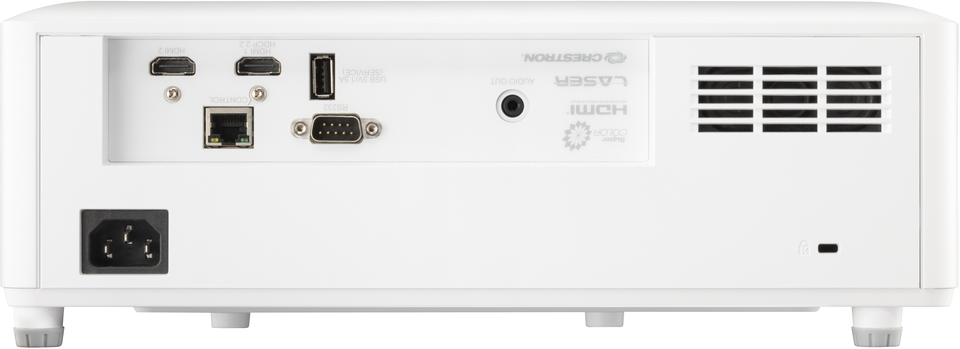

Vertical Scan Rate: 23-120Hz - InputHDMI: 2
(HDMI 2.0, HDCP 2.2
HDMI 1.4, HDCP 1.4) - OutputAudio-out (3.5mm): 1
Speaker: 15W x2

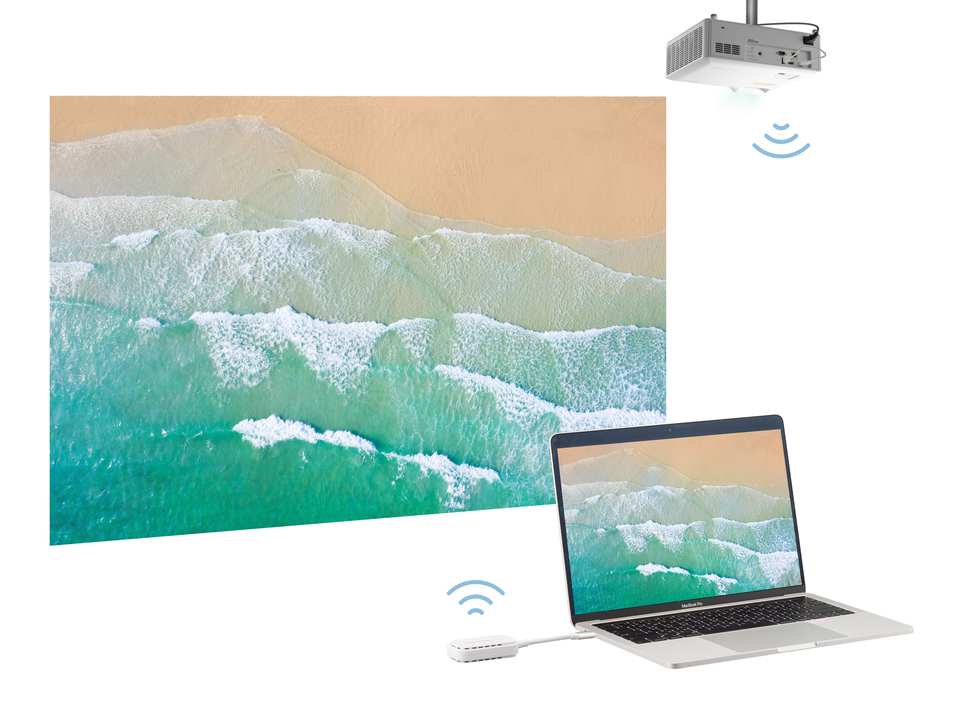

USB Type A (Power): 1 (5V/1.5A)
- ControlRS232 (DB 9-pin male): 1
RJ45 (LAN control): 1
USB Type A (Services): 1
(share with USB A Output) - OthersPower Supply Voltage: 100-240V+/- 10%, 50/60Hz
(AC in)
Power Consumption: Normal: 245W
Standby: <0.5W
Operating Temperature: 0~40℃
Carton: Brown
Net Weight: 4.77kg (10.52 lbs)
Gross Weight: 6.7kg (14.77 lbs)

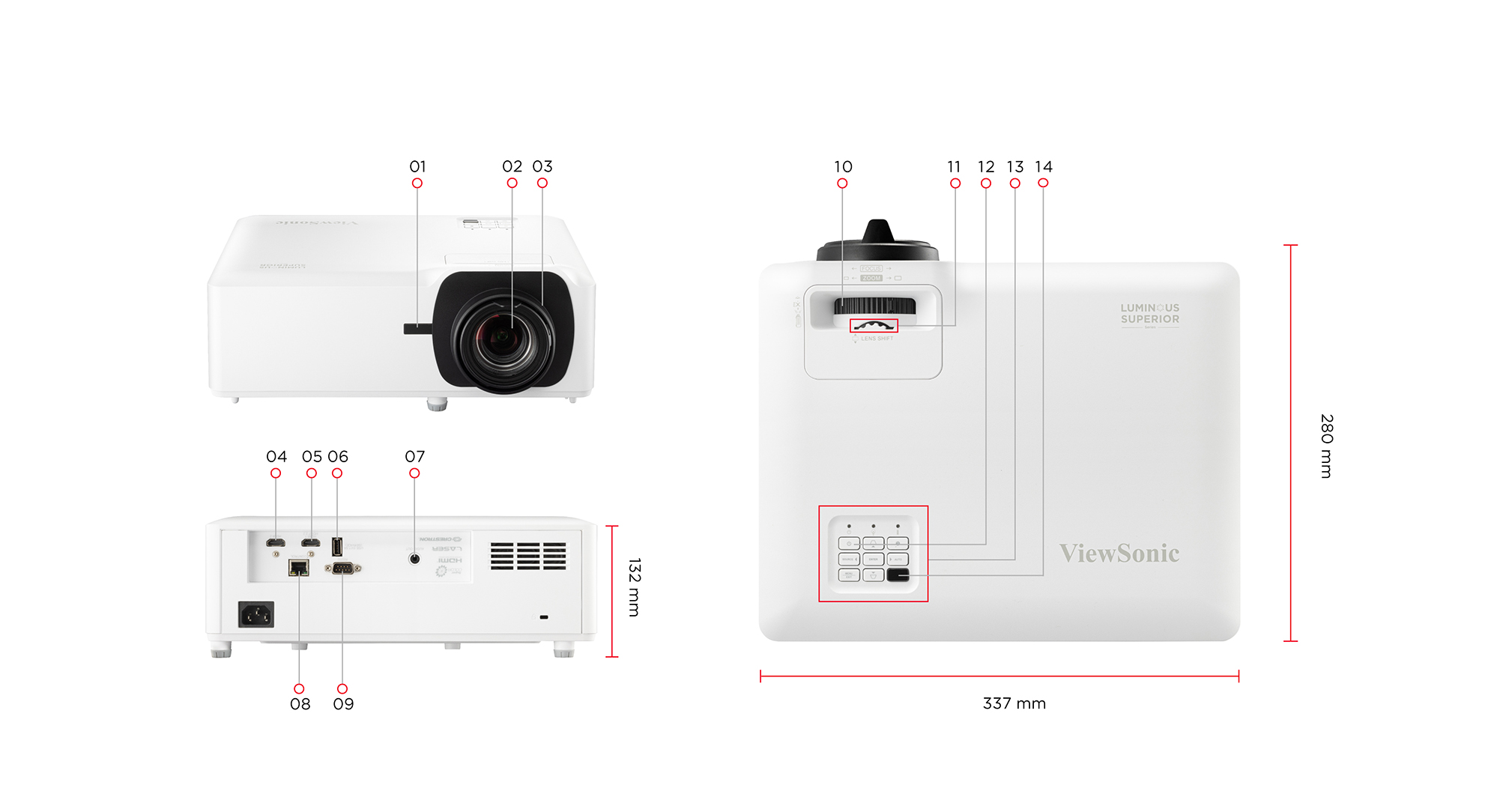

Dimensions (WxDxH) with Adjustment Foot: 337x280x132mm (13.3x11x5.2 in)
Packing Dimensions: 496x387x195mm (19.5x15.2x7.7 in)
OSD Language: English, French, German, Spanish, Italian, Portuguese, Dutch, Swedish, Finnish, Greek, Norwegian/Danish, Polish, Russian, Simplified_Chinese, Traditional_Chinese, Korean, Arabic, Japanese, Thai, Hungarian, Czechoslovak, Turkish, Farsi. Vietnamese, Indonesian, Romanian, Slovakian, total 27 languages
User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages - Standard Accessory Power Cord: 1

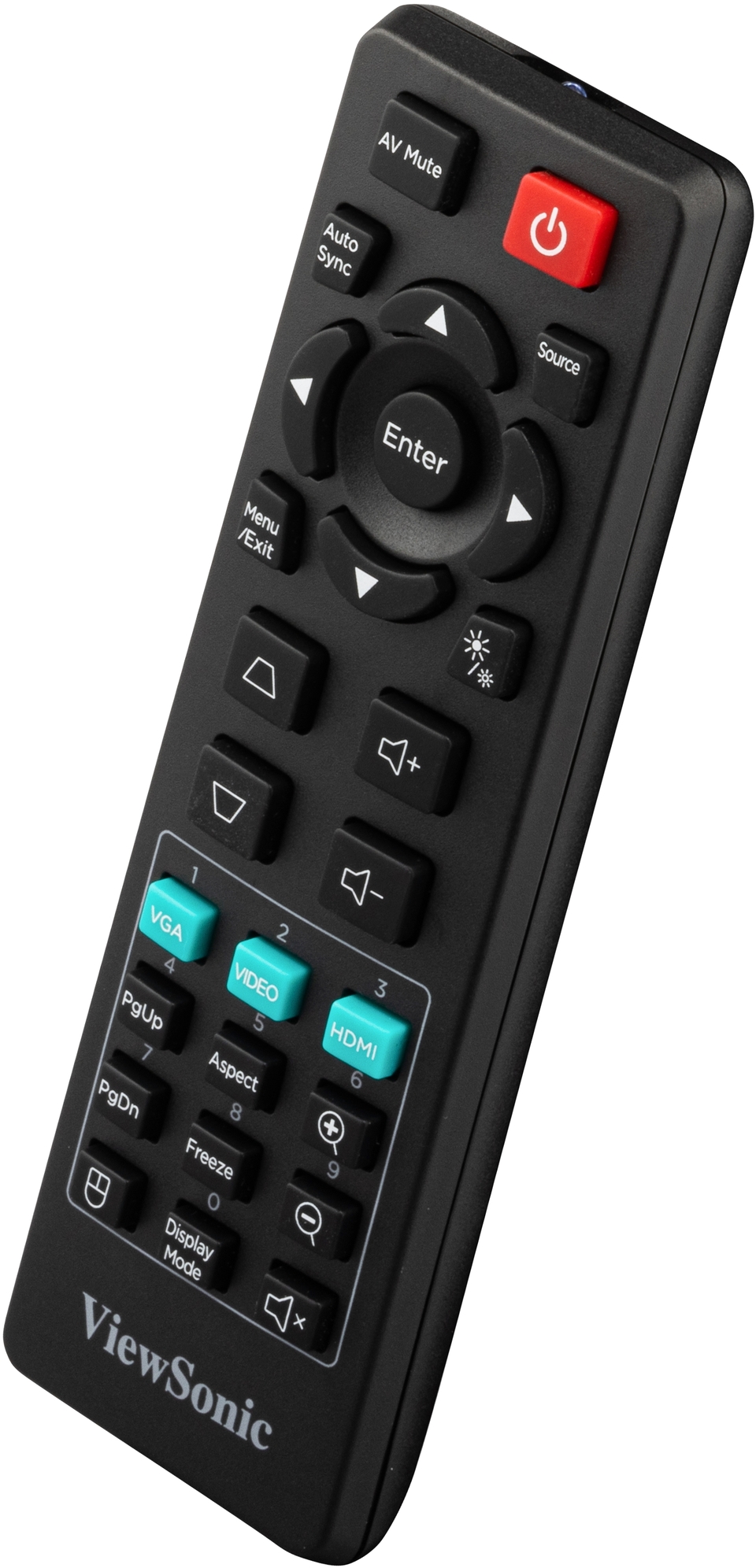

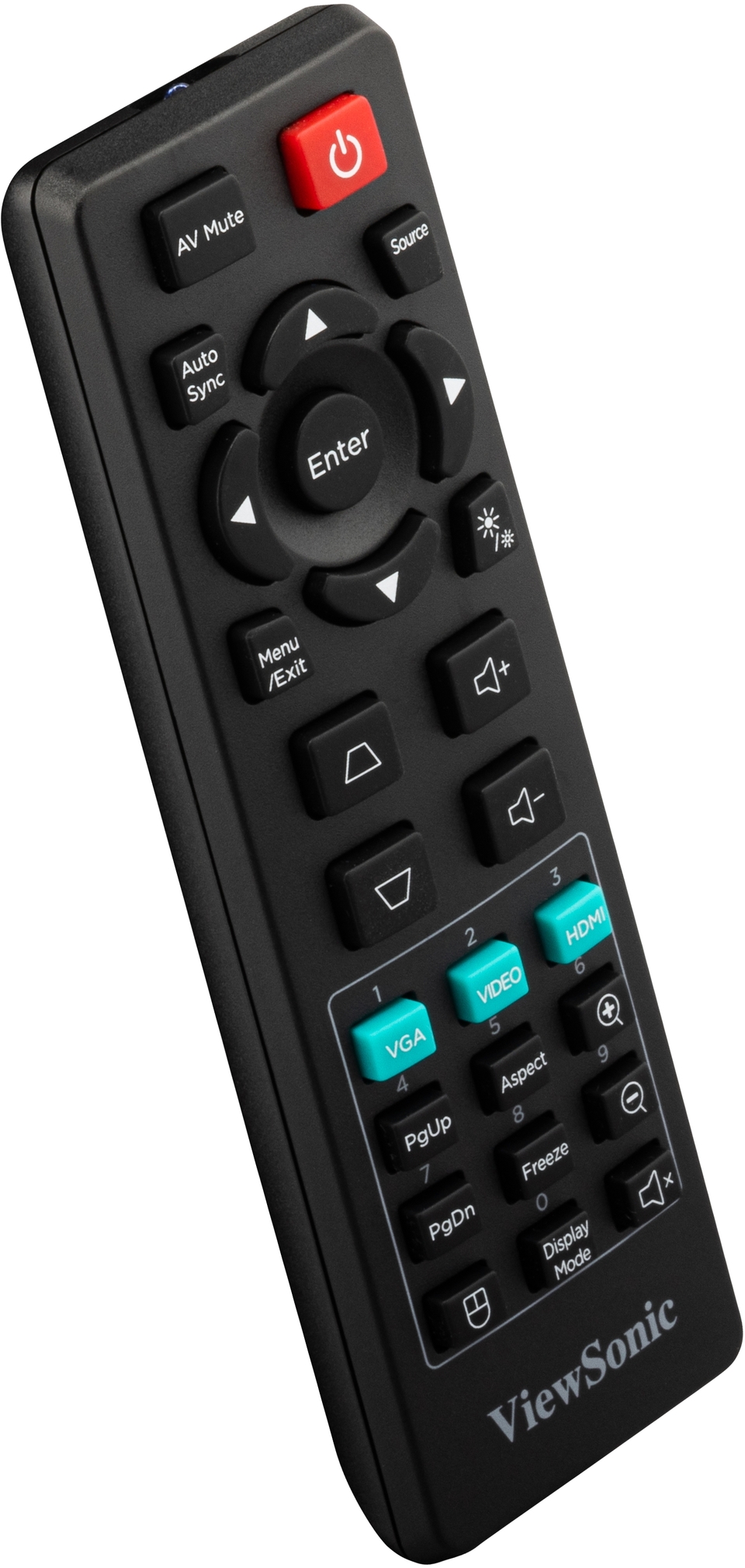

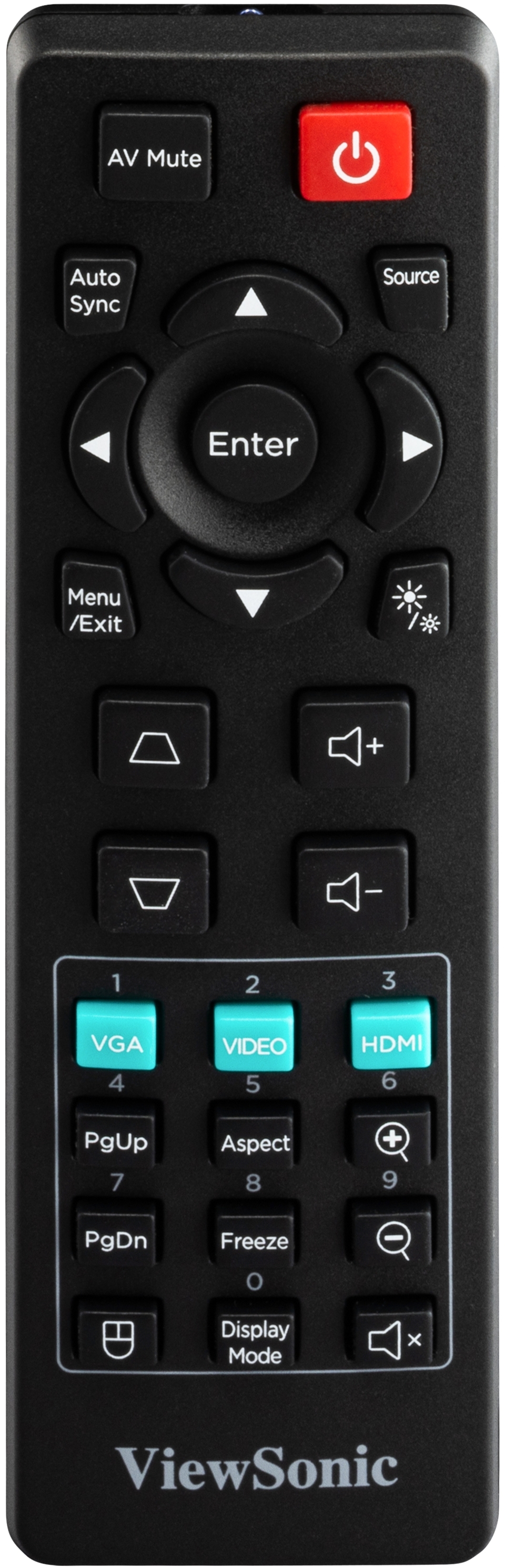

Remote Control: 1
QSG: Yes
Warranty Card: Yes (CN Only) - Optional AccessoryWall/Ceiling Mount: PJ-WMK-007
