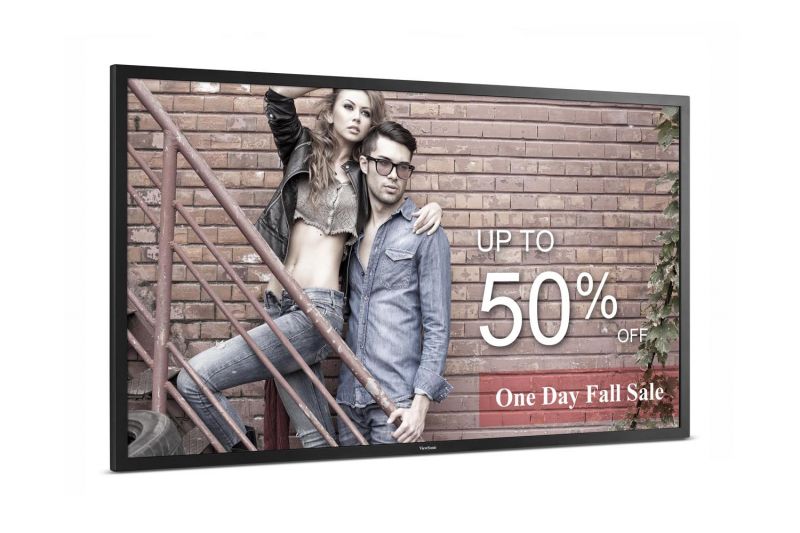

CDE5500-L

오디오: x1 Shared RCA audio (L+R)
SPDIF: x1
RS232: x1
IR 패스스루: x1

RJ45: x1 (support DLNA/DMR)

A형: x1 (Play-n-Play, F/W update)

7W x 2

RGB PC/HDMI PC: Refer to timing table
CVBS: 480i
YPbPr: 480i, 480p,720p,1080i,1080p
HDMI: 480i, 480p,720p,1080i,1080p
DVI: 480i, 480p,720p,1080i,1080p

Physical- Top OSD: PICTURE: POWER, MUTE, INPUT, VOL -/+, UP, DOWN, MENU
Picture style, Restore style, Backlight, Contrast, Brightness, Colour, Sharpness, Advanced,
Game or Computer, Format and edges
SOUND: Sound style, Restore style, Bass, Treble, Audio out, Advanced
GENERAL SETTINGS: Menu language, Monitor id, Eco mode, Auto search, Clock, USB scheduling, Sleep timer,
Auto switch off, Control settings, Factory settings
NETWORK SETTINGS: View network settings, Network configuration, Static IP configuration, Digital Media Render, Network name
Multimedia: PICTURE: BMP, JPG, JPEG, PNG
VIDEO: MP4, AVI, MKV, DAT, VOB, MPG, MPEG, TS
AUDIO: MP3, MAV

전압: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
소비.: 109W (typ), 128W (max)
< 0.5 W ("Off")

Wall Mount (VESA® ): 400 x 400

Temperature (º C): 0°C to 40°C
습도: 20% ~ 80% @40°C non-condensing

물리적(인치/mm): 49.8x30.3x12.9 / 1264.7x771.2 x329.6 (w/ Stand)
49.8x28.9x1.6 / 1264.7 x 735.5 x 42.8 (w/o Stand)
포장(inch/mm): 54.3x34.4x6.1 / 1381 x 874 x 157 (w/o Stand)

순(lb/kg): 46.64 / 21.2 (w/o stand);
50.16 / 22.8 (with Stand)
총중량(파운드/kg): 56.54 / 25.7

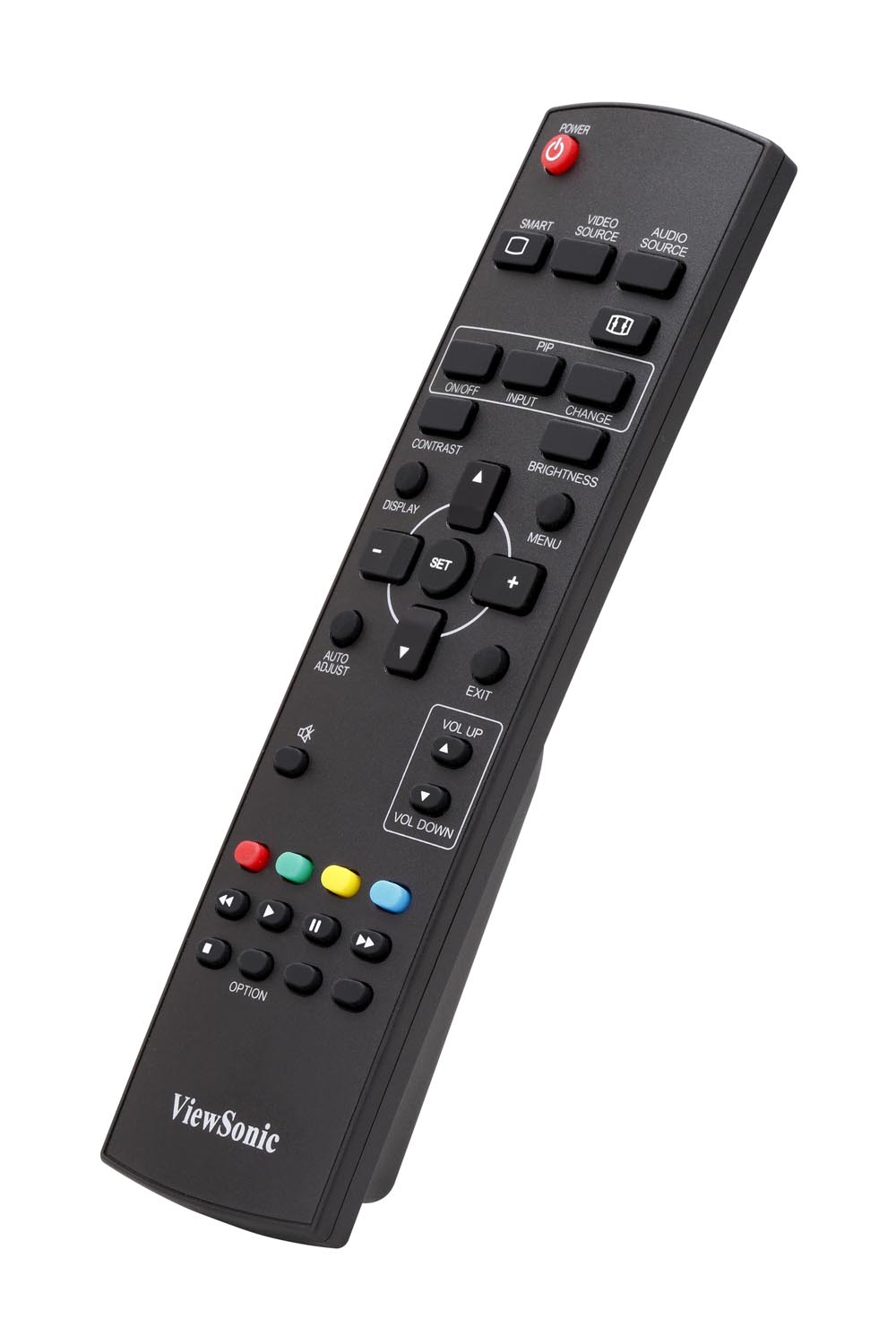

1. CDE5500-L display 2. Remote Control with batteries 3. User manual CD wizard 4. Quick Start Guide 5. Power Cable 6. VGA cable 7. RS232 cable

*Actual content may differ from market to market
