뷰소닉 상업용 디스플레이 CDE6552-TL

CDE6552-TL

All-in-One Smart Whiteboard Design, Ideal for the Classroom or Boardroom

갤러리

스펙

LCD Panel
패널 크기: 64.5"
Backlighting: E-LED
기본 해상도: 1920x1080
밝기: 400 nits
대비 비율: 4,000:1
Display Orientation: Landscape
Service Life: > 30,000hr
Touch Surface
Touch Type: Infrared
Tempered Glass: 7H, AG Coding
터치 해상도: 32,767 x 32,767
Simultaneous Touch Points: 6 (Default)
Touch Connection: USB

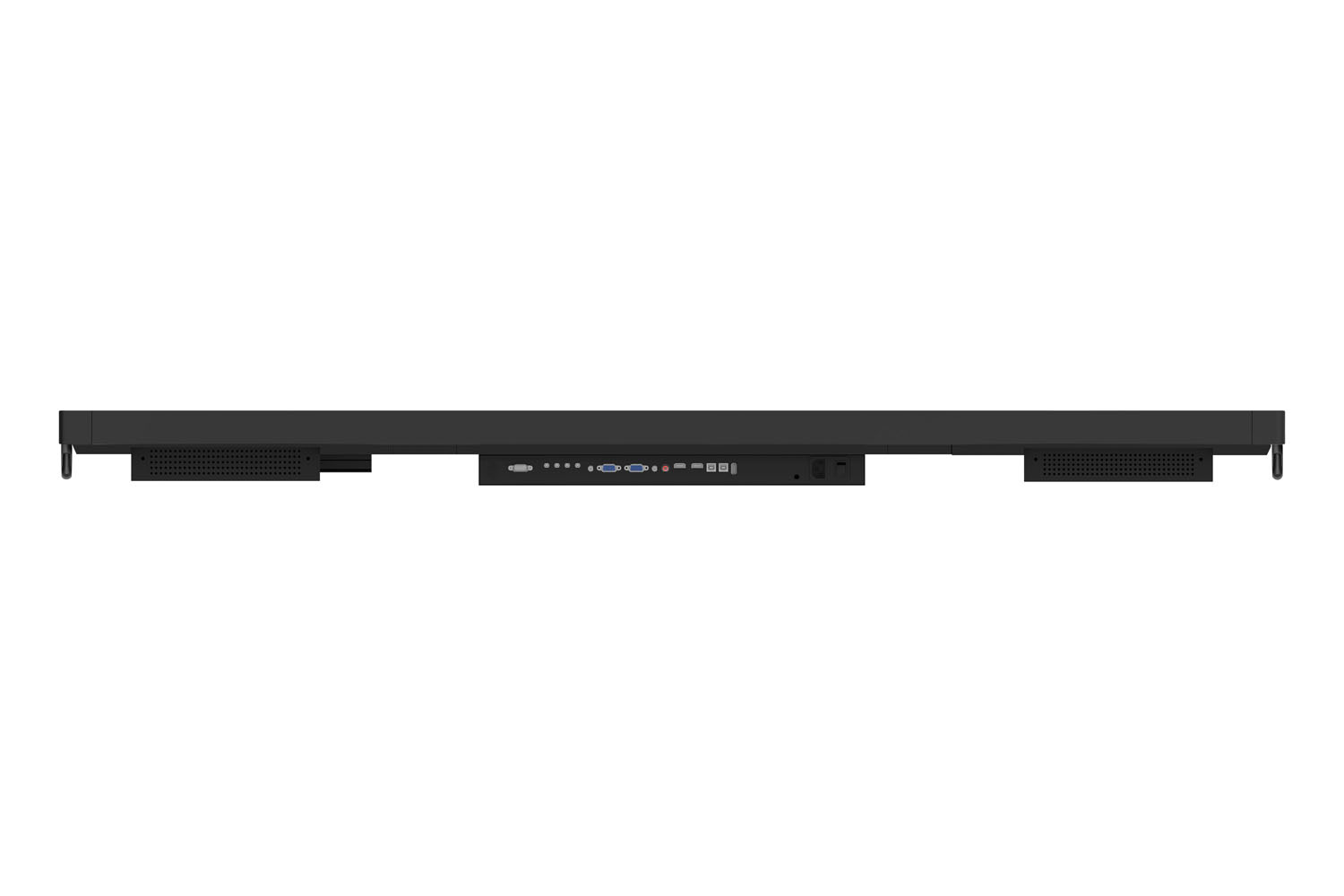

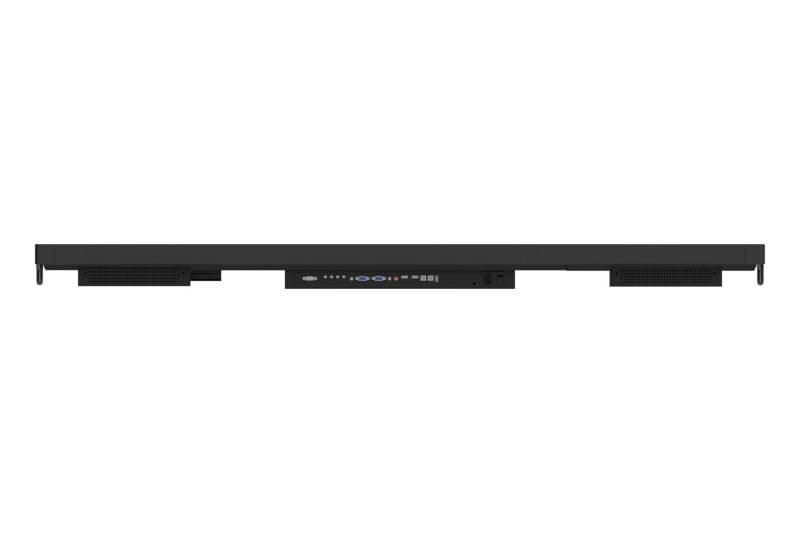

I/O Connection
Video/Audio Input: HDMI x 2 , VGA x 2, PC audio x 2, Mic in x 1, YPbPr x 1, CVBS x 1
Video Output: CVBS
통제: RS232 In
Others I/O: 1 x A type USB (for F/W upgrade); 2 x B type USB (for touch), 1 x SPDIF out

POWER
Rated Voltage: 100V-240V AC, 50/60HZ
Power On Mode: < 250W (typ)
Power-Saving Mode (stand-by): < 0.5W (typ)
Power Off Mode: < 0.5W (typ)
소비.: 150 max
MECHANICAL
Bezel Width (T/B/L/R, mm): 50/50/50/50
Net Dimensions (W x H x D): 1544x937x95 mm
Gross Dimensions (W x H x D): 1650x1067x253 mm
Speaker Output: 15W x 2
그물: 66kg
Gross Weight: 75kg
VESA Mount: 600 x 400 (M8)
Package Contents

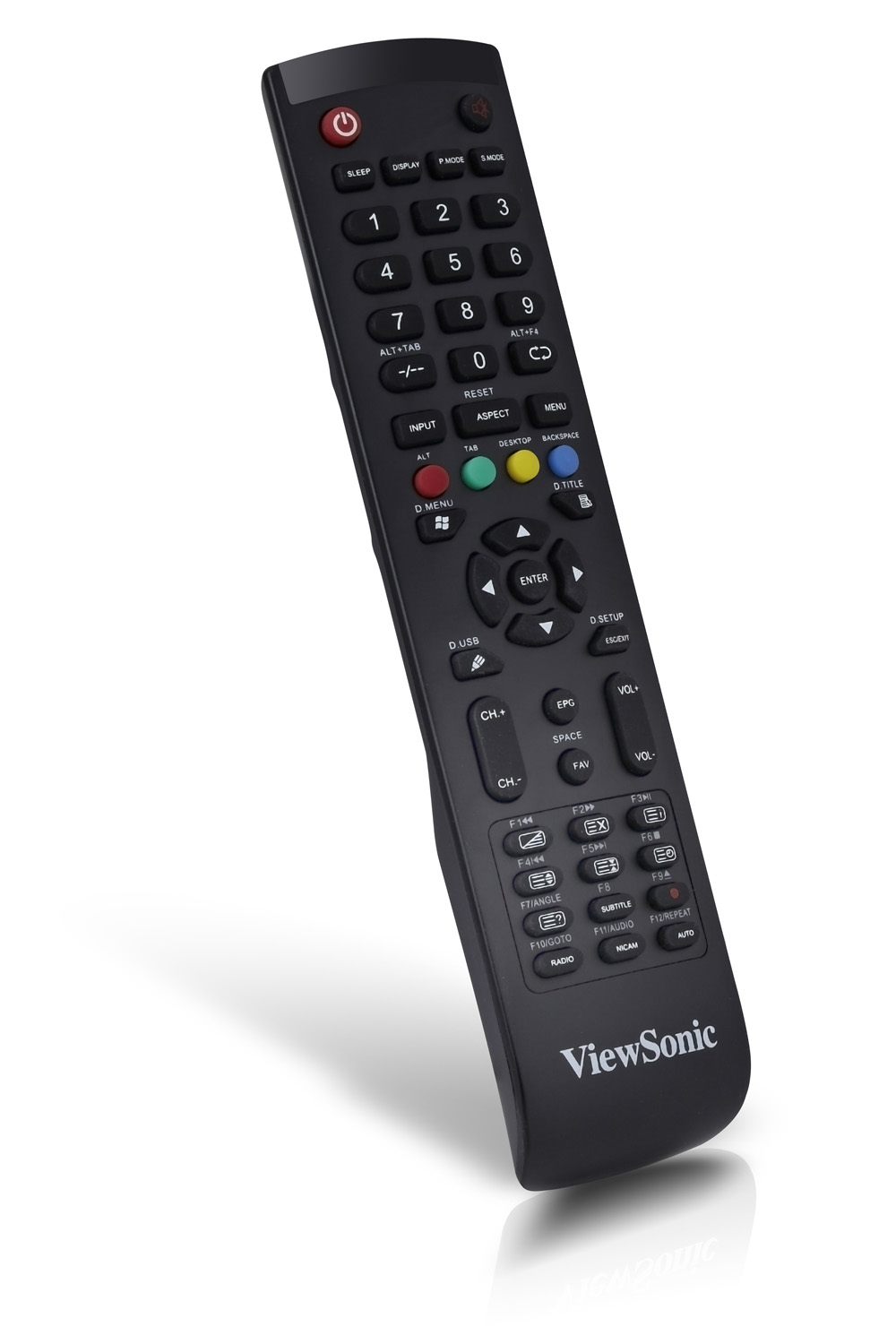

CDE6552-TL display, power cable, VGA cable, audio cable, USB cable, remote control with batteries, stylus (x3), ViewSonic Wizard CD (with user guide)

지원 & 다운로드

데이터 시트

CDE6552-TL 데이터 시트

유저 가이드

ViewBoard_2.1 User Guide (Deutsch)ViewBoard_2.1 User Guide (English)ViewBoard_2.1 User Guide (Español )ViewBoard_2.1 User Guide (Français)ViewBoard_2.1 User Guide (简体中文)ViewBoard_2.1 User Guide (繁體中文)

Driver & Software

ViewBoardSetup_2.1 vController
