CDE8451-TL

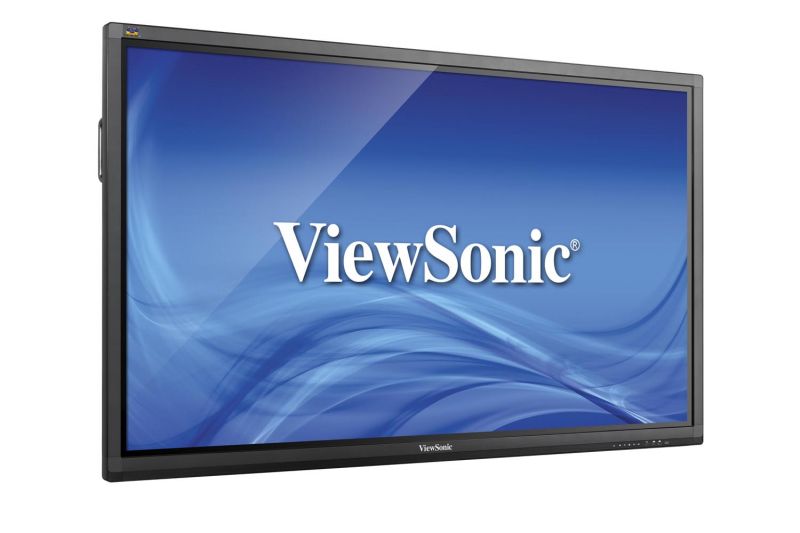

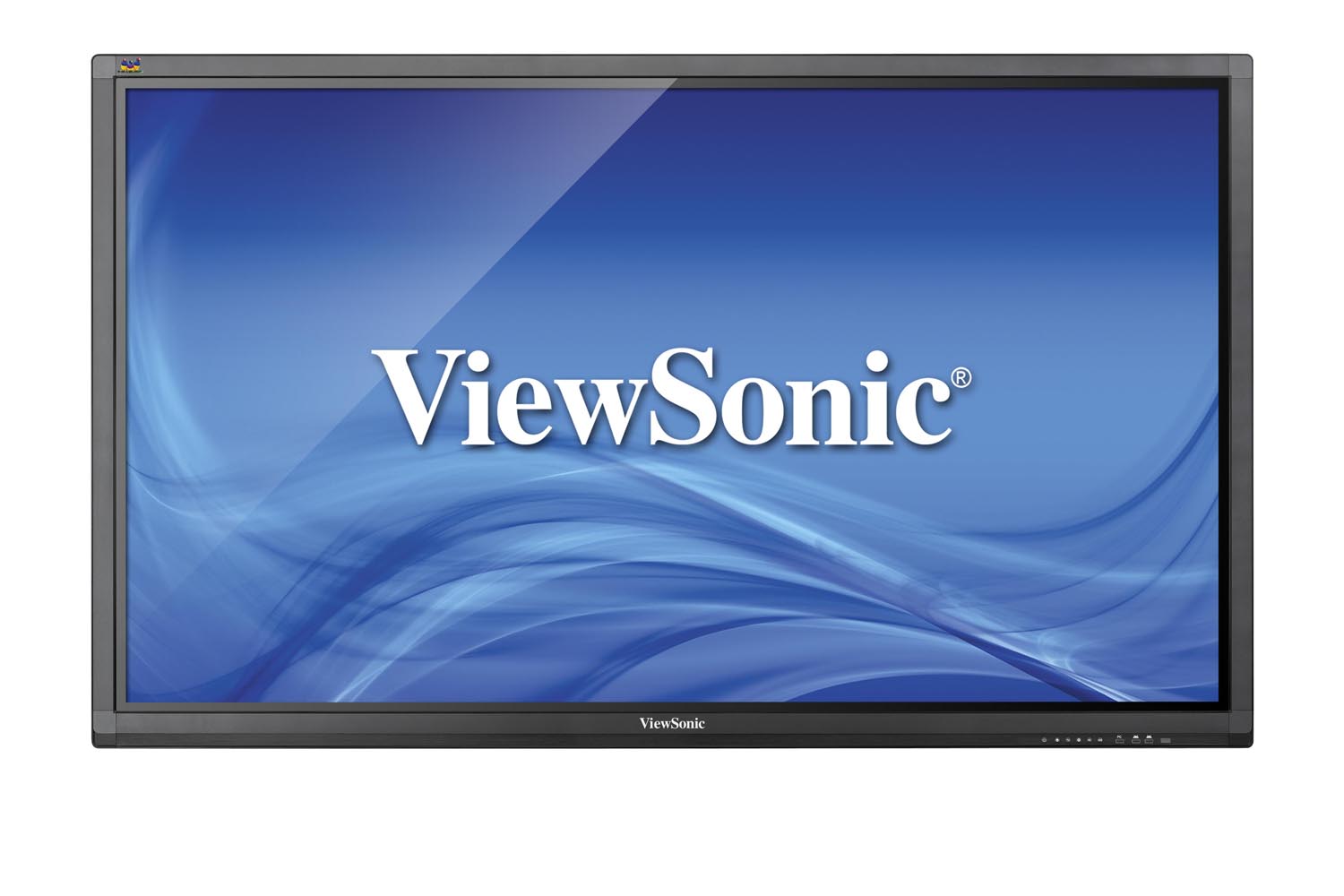

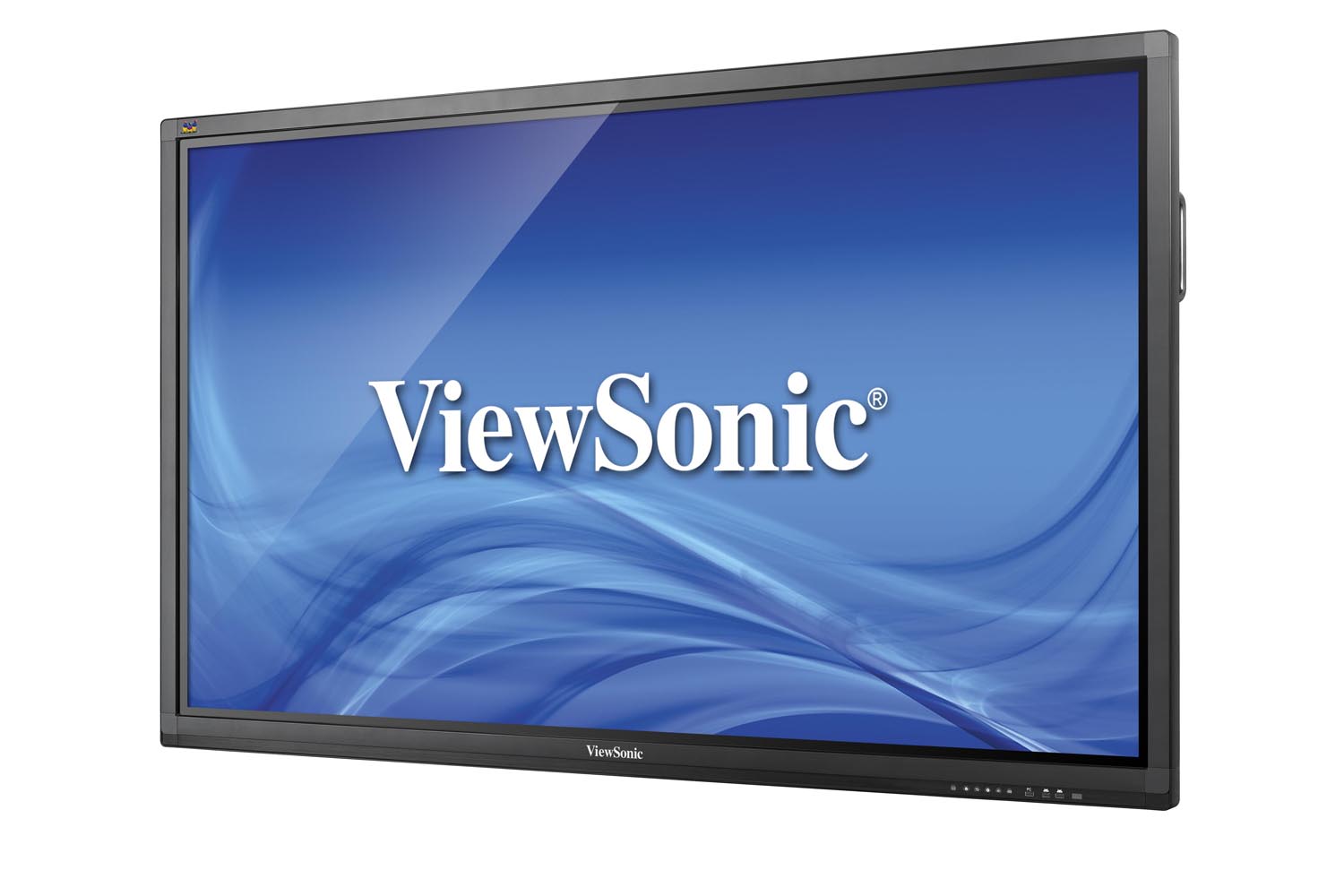

84” 10-Point Multi-Touch Commercial Display

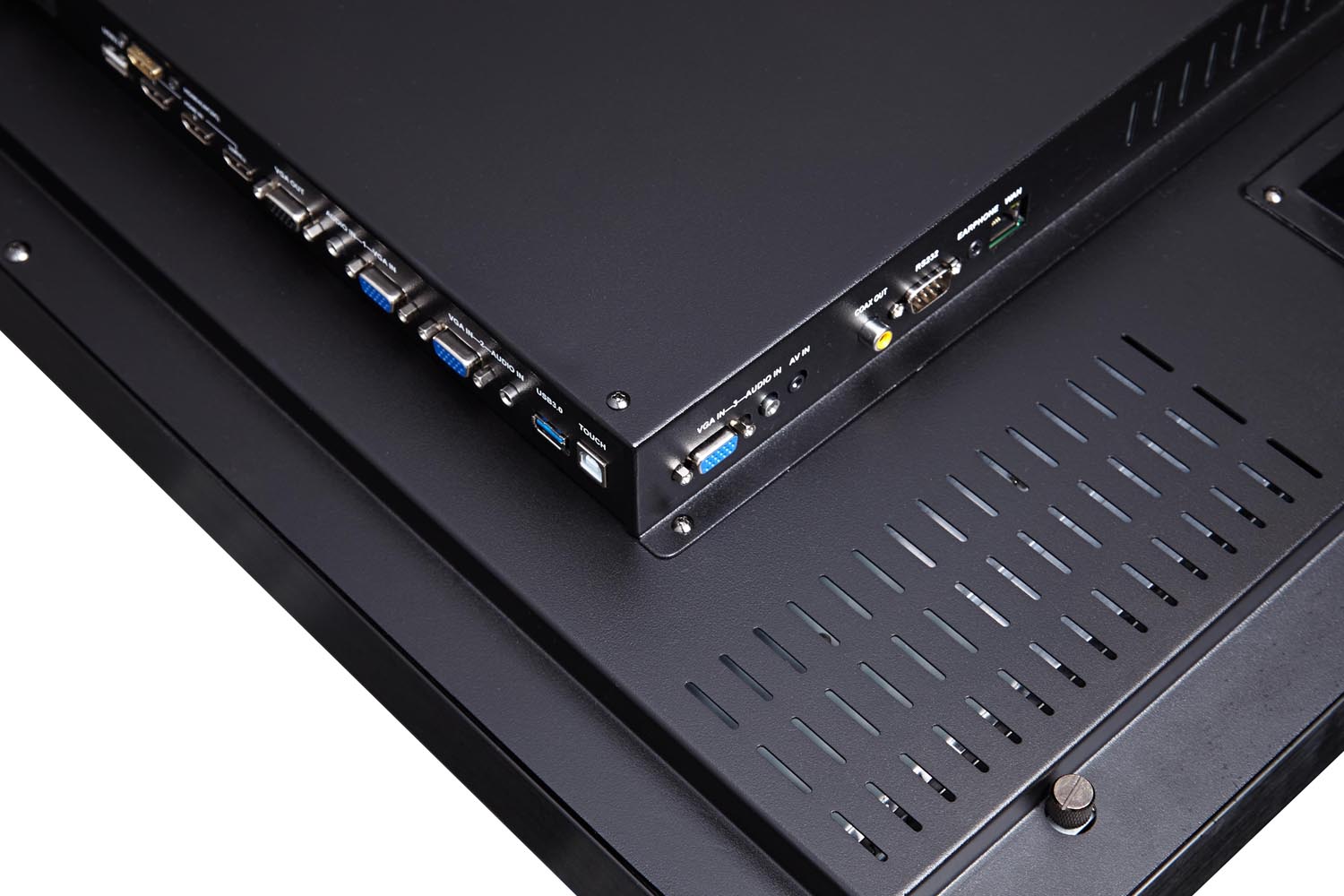

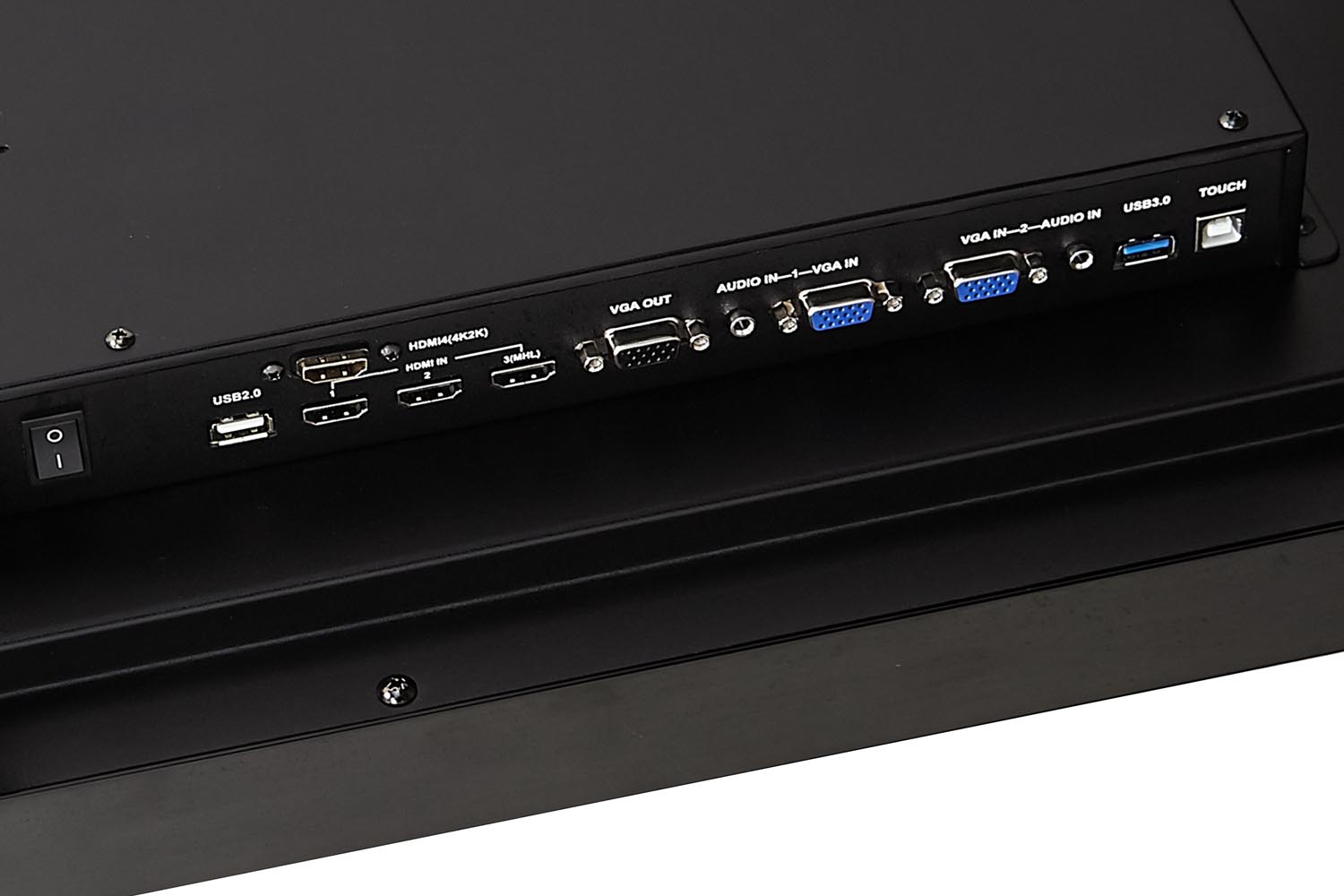

OUTPUT
RGB / VGA: x1
오디오: x1 Earphone Out
SPDIF: x1
LAN
RJ45: x1
USB
A형: x3 (2.0), x1 (3.0)
B형: x1, for touch
스피커
10Wx2
COMPATIBILITY
RGB PC/HDMI PC: Refer to timing table
CVBS: 480i,
HDMI: 480i, 480p,720p,1080i,1080p
CONTROLS
Physical- Top OSD: INPUT:Power, Home, Return, Setting, VOL-, VOL+
PC, Embd Player, AV, VGA1, VGA2, VGA3, HDMI1, HDMI2, HDMI3, HDMI4
LIGHT:1~10
VOLUME:0~100
VGA:H Position, V Position, Phase, Clock, Zoom, Auto Adjust, Writing Mode
PICTURE:Brightness, Contrast, Hue, Sharpness, Color Temp, Zoom, Writing Mode
소프트웨어 번들
ViewBoard Lite, ViewBoard 2.0
힘
전압: 100-240VAC +/- 10% 50/60Hz Wide Range
소비.: 550W (typ)
< 0.5 W ("Off")
ERGONOMICS

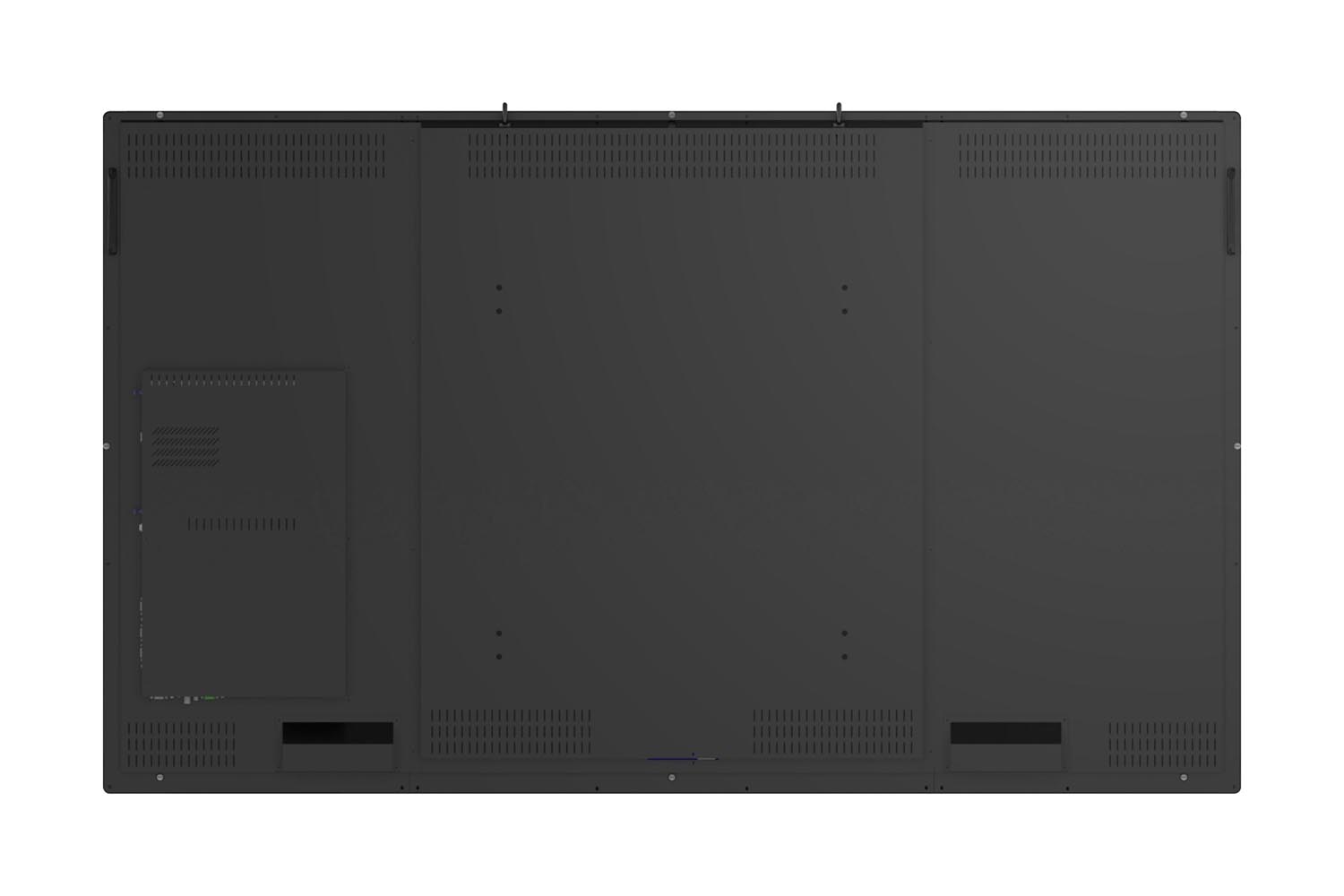

Wall Mount (VESA® ): 600 x 600
OPERATING CONDITIONS
Temperature (º C): 0°C to 40°C
습도: 20% ~ 80% non-condensing
DIMENSIONS
(W x H x D)
물리적(인치/mm): 77.9x46.7x3.7 / 1978x1187x95
포장(inch/mm): 85.4x53.9x12.6 / 2170x1370x320
WEIGHT
순(lb/kg): 255.74 / 116
총중량(파운드/kg): 321.87 / 146
패키지 내용물

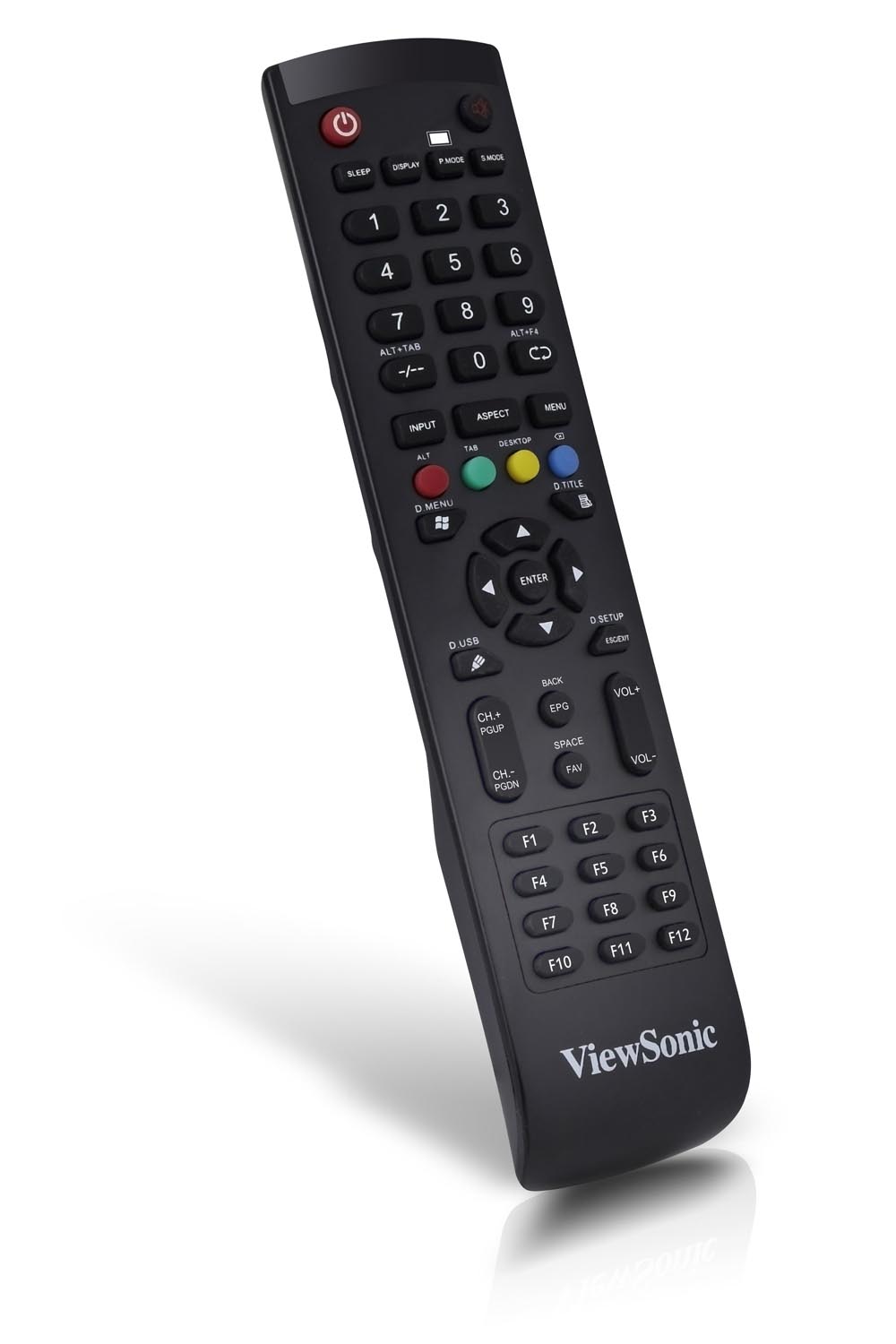

1. CDE8451-TL display 2. power cable 3. VGA cable 4. audio cable 5. USB cable 6. remote control with batteries 7. stylus (x3) 8. ViewSonic Wizard CD (with user guide)
