CDP3235

Perfect Solution for 24/7 Operation

LCD
유형: 32" (31.5" viewable) color TFT active matrix, wide LCD
Display Area: 27.5" horizontal x 15.4" vertical; 31.5" diagonal
Optimum Resolution: 1366x768, 530mm dot pitch
대비 비율: 3000:1 (typ)
보기 각도: 178º horizontal, 178º vertical
응답 시간: 6.5 ms
광원: Long life, 50,000 hrs. (typ)
밝기: 450 cd/m2 (typ)
가로 세로 비율: 16:9
Panel Surface: Anti-glare, hard coating (3H)
INPUT
비디오 입력: HDMI, DVI, component, VGA, S-Video, composite
Control Input/Output: RS-232/RJ45
AUDIO
Speakers: Internal 10-watt (x2)

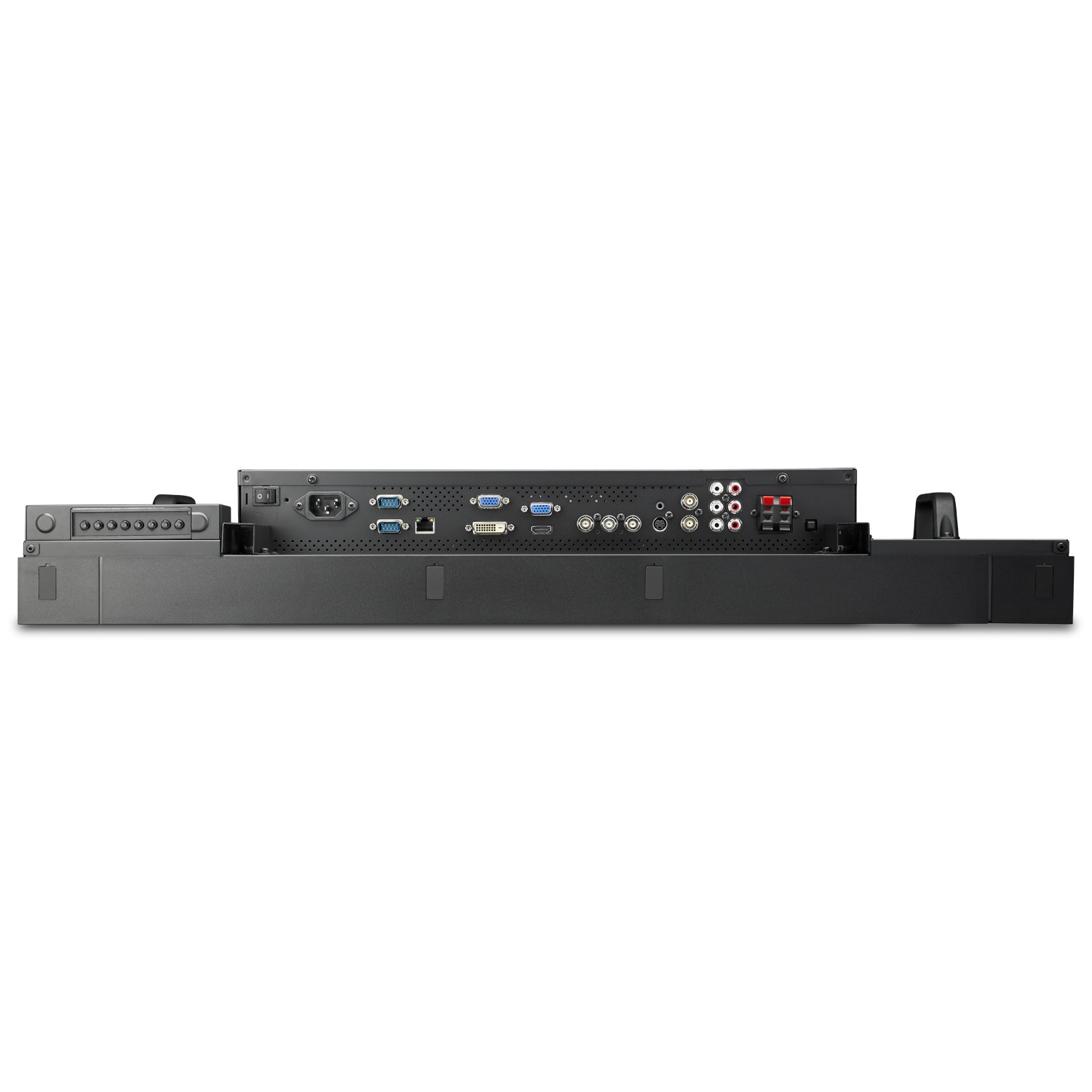

CONNECTOR
Analog: 9-pin mini D-sub (VGA)
Digital: HDMI, DVI
힘: 3-pin plug
POWER
전압: AC 100–240V (universal), 50–60Hz
소비.: 140W (typ)
CONTROLS
입력: VGA, DVI, HDMI, YPbPr
Picture: Picture mode, contrast, brightness, color temperature, temperature adjust, sharpness
오디오: Volume, mute, audio source
OSD: Languages, OSD H. position, OSD V. position, OSD timer
Panel: Power, Exit, +, –, Menu/Enter
VGA Setting: Auto adjustment, clock, phase, sharpness, H. position, V. position
Special: Aspect ratio, over scan, power save, image retention, auto adjustment, monitor ID, reset
Diagnostic: Thermal, back light, ambient, 5V detect, 12 detect
OPERATING CONDITIONS
습도: 10–80% (non-condensing)
Temperature(landscape): 32–104ºF (0–40ºC)
Temperature(Portrait): 32–95ºF (0–35ºC)
DIMENSIONS (WxHxD)
Physical Without Stand: 30.4 x 23.0 x 4.6 in. / 772.6 x 584 x 116.1 mm
Physical With Stand: 30.4 x 24.5 x 9.4 in. / 772.6 x 621 x 238.8 mm
WEIGHT
징그러워요: 40.8 lb. / 18.5 kg
Net Without Stand: 32.2 lb. / 15 kg
Net With Stand: 33.1 lb. / 14.6 kg

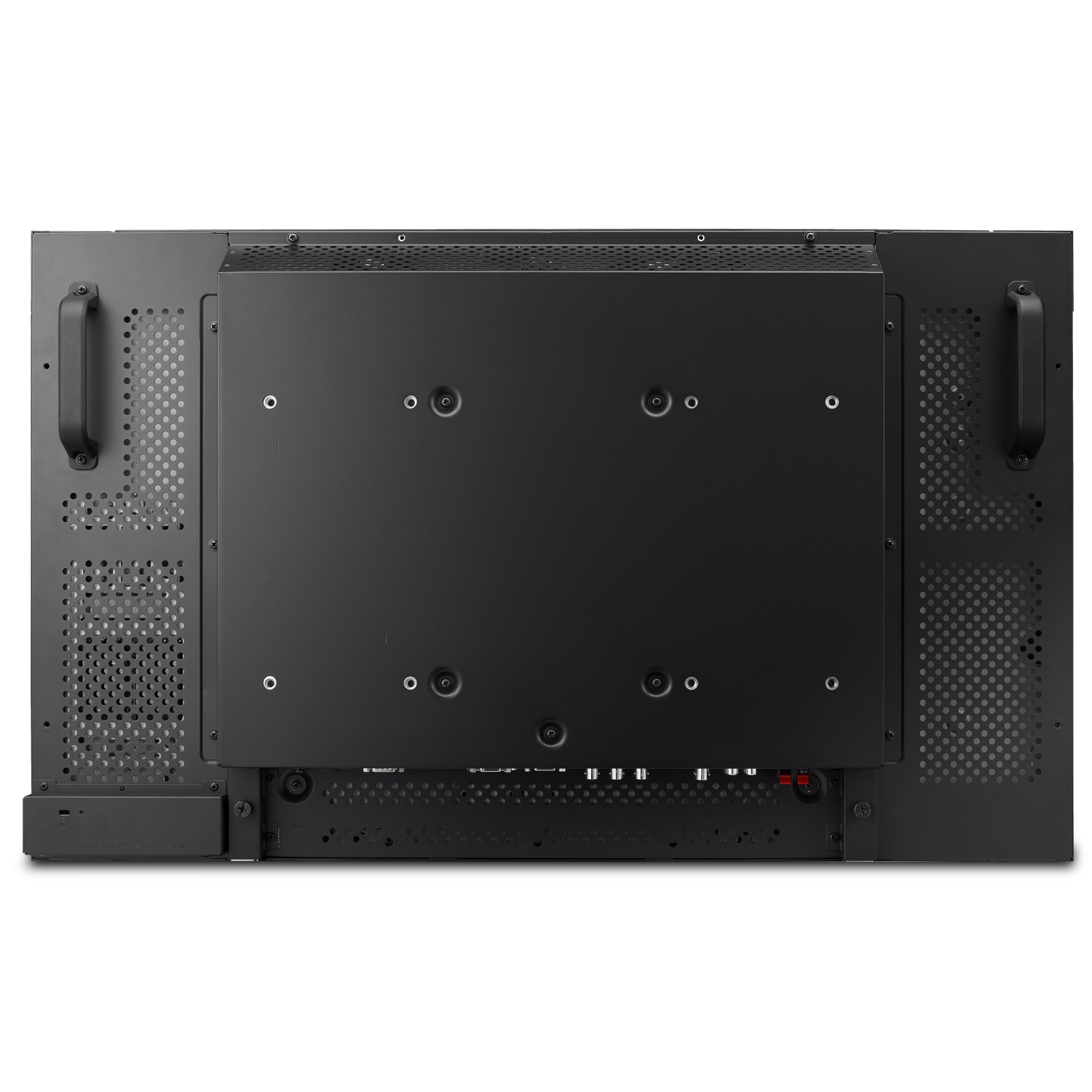

벽 마운트
VESA® 400mm x 200mm, 200mm x 200mm
재활용/폐기
The lamp in this product contains mercury. Please dispose of in accordance with local, state or federal laws.
PACKAGE CONTENTS
CDP3235 LCD Display, power cable, remote control with batteries, User Guide, Quick Start Guide
