뷰소닉 ePoster EP1031R

EP1031R

10.1" Multimedia Digital Poster

갤러리

스펙

표시
패널 크기: 10.1"
Type/Tech: TFT LCD Module with LED Backlight
표시면적(mm): 219.6(H) x 131.76(H)
가로 세로 비율: 16:9
기본 해상도: 800 x 480
Colors: 16.7M
밝기: 300 nits (typ.)
대비 비율: 500:1 Typ.
응답 시간: 30ms
보기 각도: H = 130, V = 110 typ.
표면 처리: AG coating
오리엔테이션: Landscape / Portrait
보관소
on-board flash: 4GB

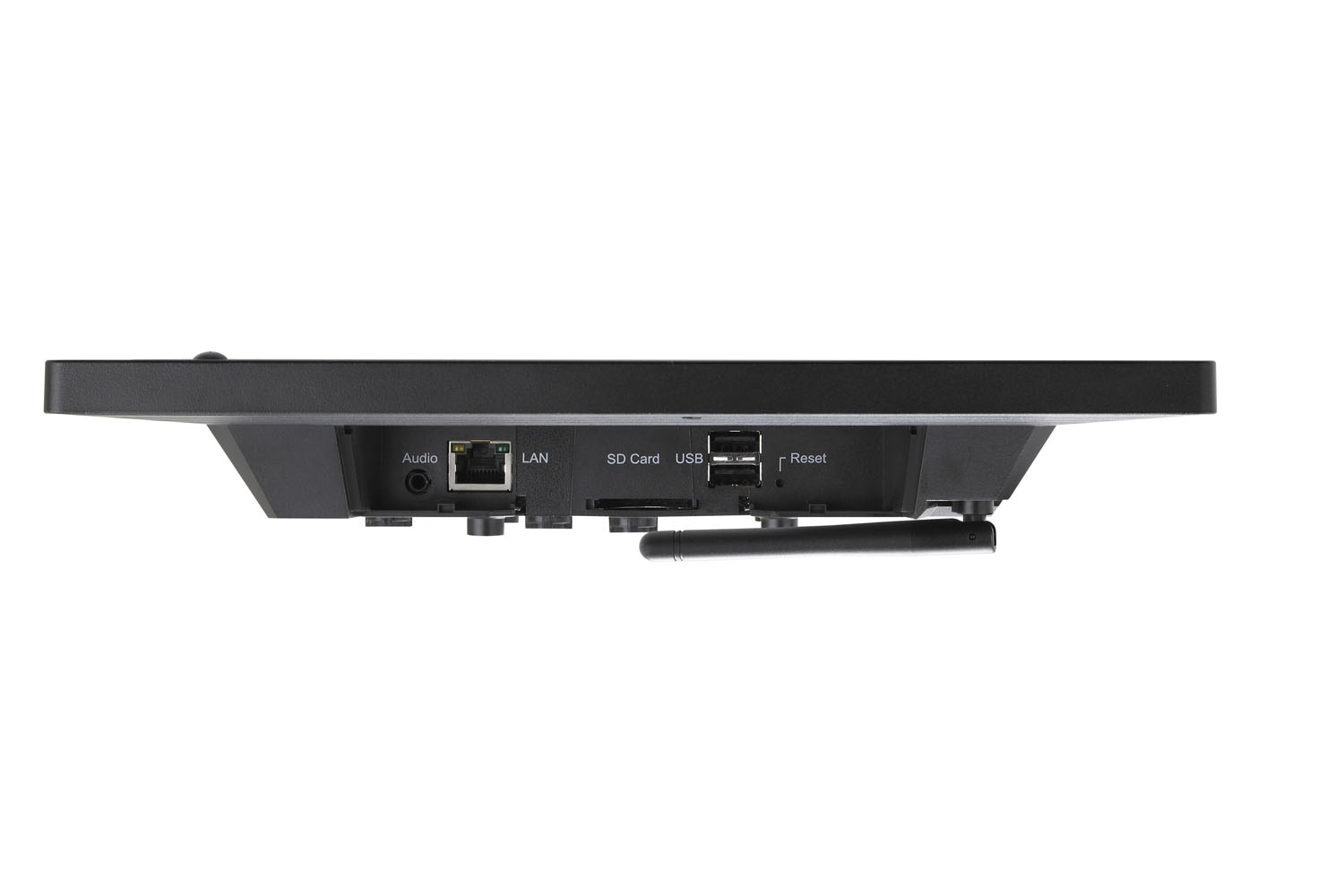

INPUT
SD/SDHC: x1, (for expand storage)
OUTPUT
HDMI: x1
오디오: x1 Earphone Out
LAN
RJ45: x1
USB
A형: x2, (for content loading, F/W upgrade, Key board, Mouse)
B형: x1, (for F/W troubleshooting)
스피커
2W x 2
COMPATIBILITY
HDMI: 720p@50/60, 1080i@50/60, 1080p@50/60
CONTROLS
Physical- Top OSD: x6 Touch buttons
Multimedia: MPEG-1, MPEG-2, MPEG-4, VC-1/WMV9, JPEG, PNG, MPEG L2 audio, MP3, W3C HTML5, W3C SMIL 3.0 instructions
소프트웨어 번들
Signage Manager Express
힘
전압: 100-240VAC +/- 10% 50/60Hz Wide Range
소비.: 12W (max.)
< 0.5 W ("Off")
ERGONOMICS
Wall Mount (VESA® ): 75 x 75
OPERATING CONDITIONS
Temperature (º C): 0°C to 40°C
습도: 5% ~ 85% non-condensing
DIMENSIONS
(W x H x D)
물리적(인치/mm): 10.94 x 7.32 x 1.57 / 278 x 186 x 40
포장(inch/mm): 12.60 x 10.04 x 3.54 / 320 x 255 x 90
WEIGHT
순(lb/kg): 1.72 / 0.78
총중량(파운드/kg): 3.42 / 1.55
패키지 내용물
1. EP1031R ePoster 2. AC Adapter 3. Ethernet Cable 4. Standard 3.5mm to RCA AC cable 5. Display stand and screws 6. Hardware Quick Start Guide76. Software Quick Start Guide 8. Documentation CD
