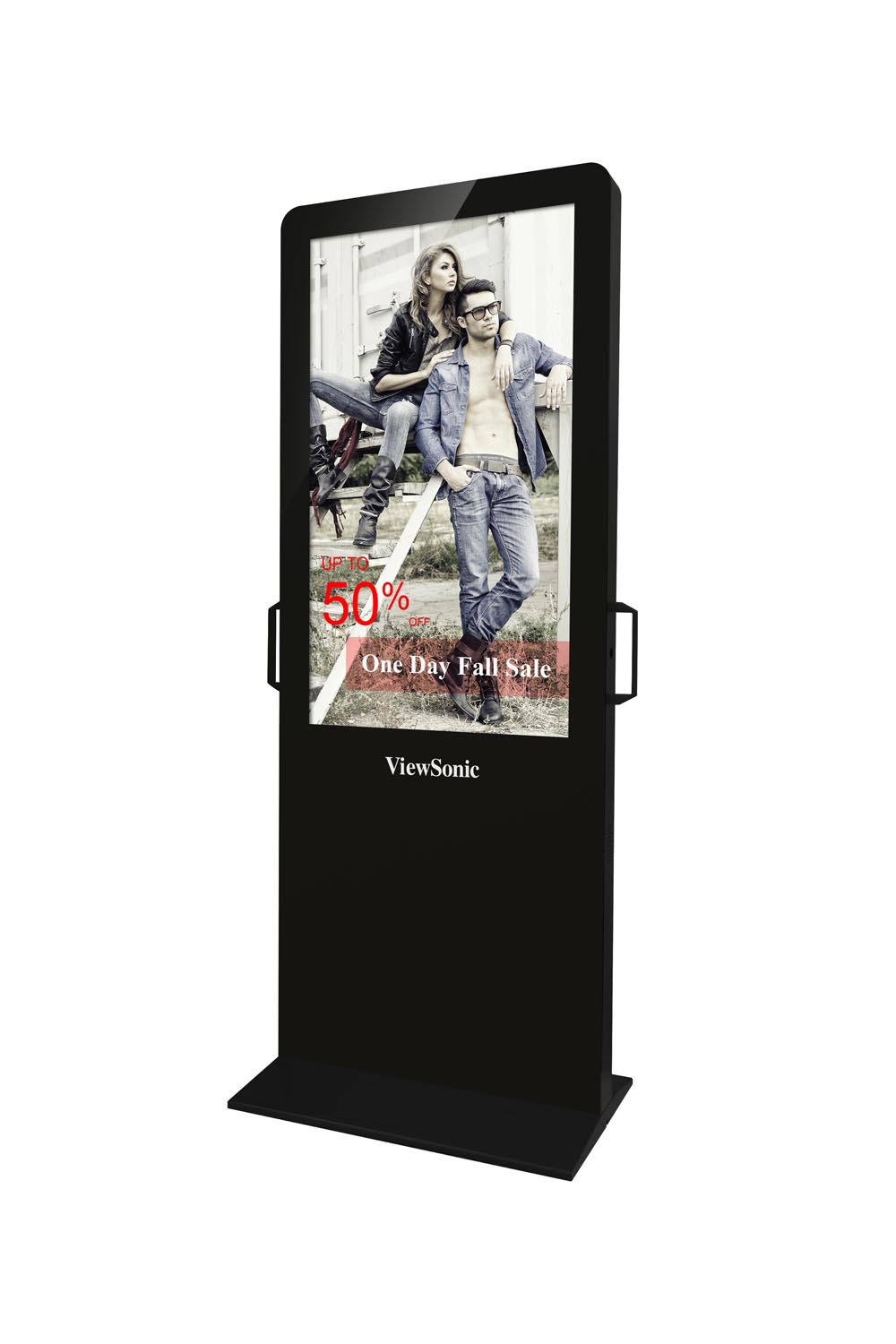

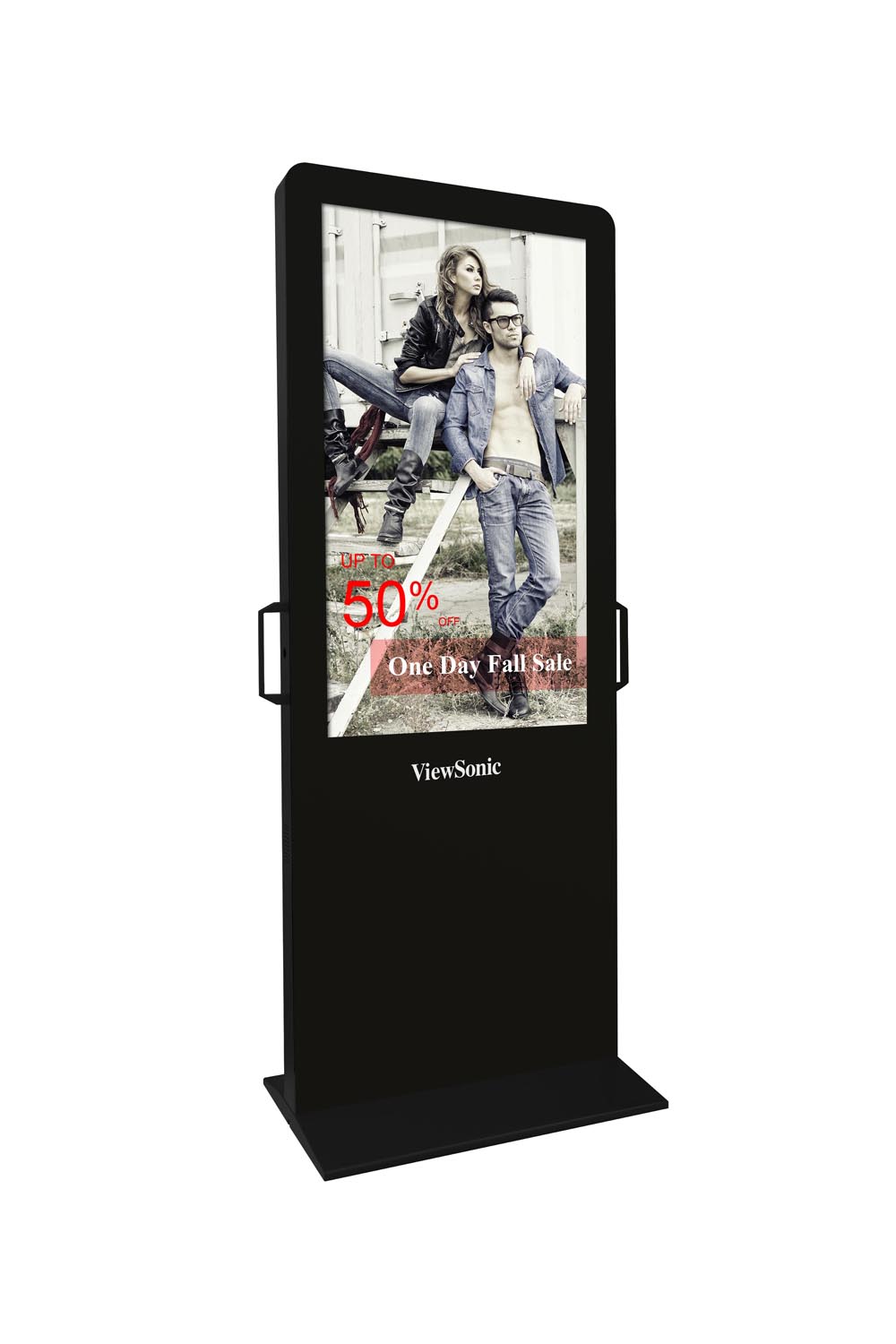

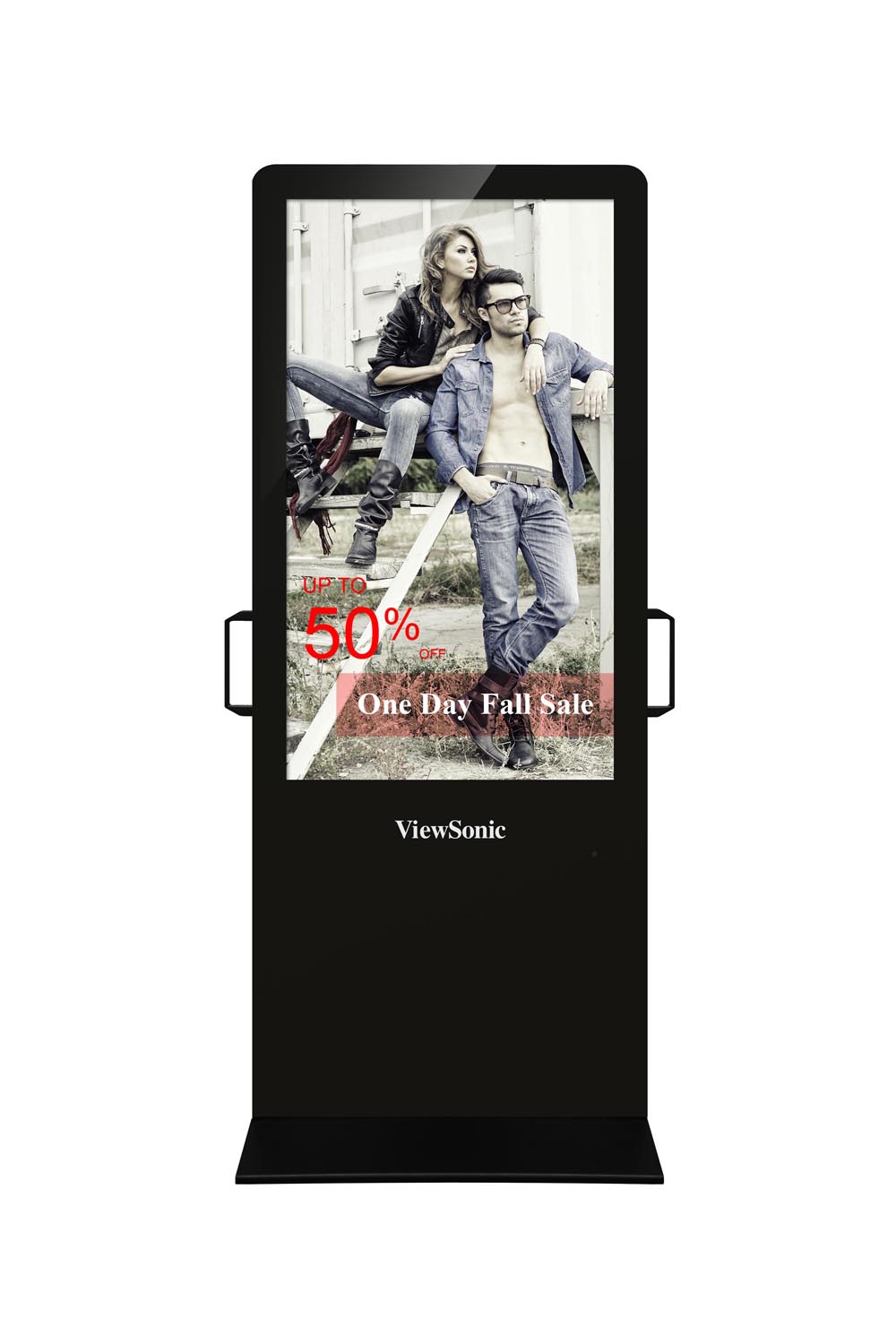

EP5012-L

HDMI: x1
RGB / VGA: x1
오디오: x1 PC audio(3.5 mm)

RJ45: x1

A형: x2

6W x 2

RGB PC/HDMI PC: Refer to timing table
HDMI: Refer to timing table

Physical- Top OSD: SYSTEM SETTINGS: OSD Language, Screen Mode, Screen Resolution, Clock Display, USB, Scrolling Text, Sync Settings, Reset
SYSTEM CONTROL: Work Mode, Storage Priority
NETWORK SETTING: Server Settings, Get IP Type, Machine ID, MAC Address
DATE AND TIME: Date, Time, Startup Sync Time Setting, Dayligh Saving Time, Time Zone, Sync Time Now
ON/OFF TIMER: Timer Mode, Control Mode
SPECIAL SETTINGS: Volume, Source
FILE MANAGEMENT: Format
SOURCE: OSD Language, Reset.
IMAGE: Brightness, Contrast, Saturation, Color Temp., Auto Adjust, H Position, V Position, Phase, Clock
Multimedia: JPG, BMP, PNG, MPG, AVI, WMV, MOV, MP3, GIF, JPEG, MKV, FLV, RM, RMVB, TS, TP

ePoster Manager Express Plus

전압: 100-240VAC +/- 10% 50/60Hz Wide Range
소비.: "ON": Typ. : 110+- 1W
“Power Saving”: VGA: 12+-1 W; HDMI: 12+-1 W
"Off"(Suspend): 10+-1W

Temperature (º C): 0°C to 50°C
습도: 20% ~ 90% non-condensing

물리적(인치/mm): 29.72x72.83x17.72 / 755x1850x450
포장(inch/mm): 35.35x79.45x22.52 / 897.5x2018x572

순(lb/kg): 188.72 / 85.6
총중량(파운드/kg): 212.97 / 96.6

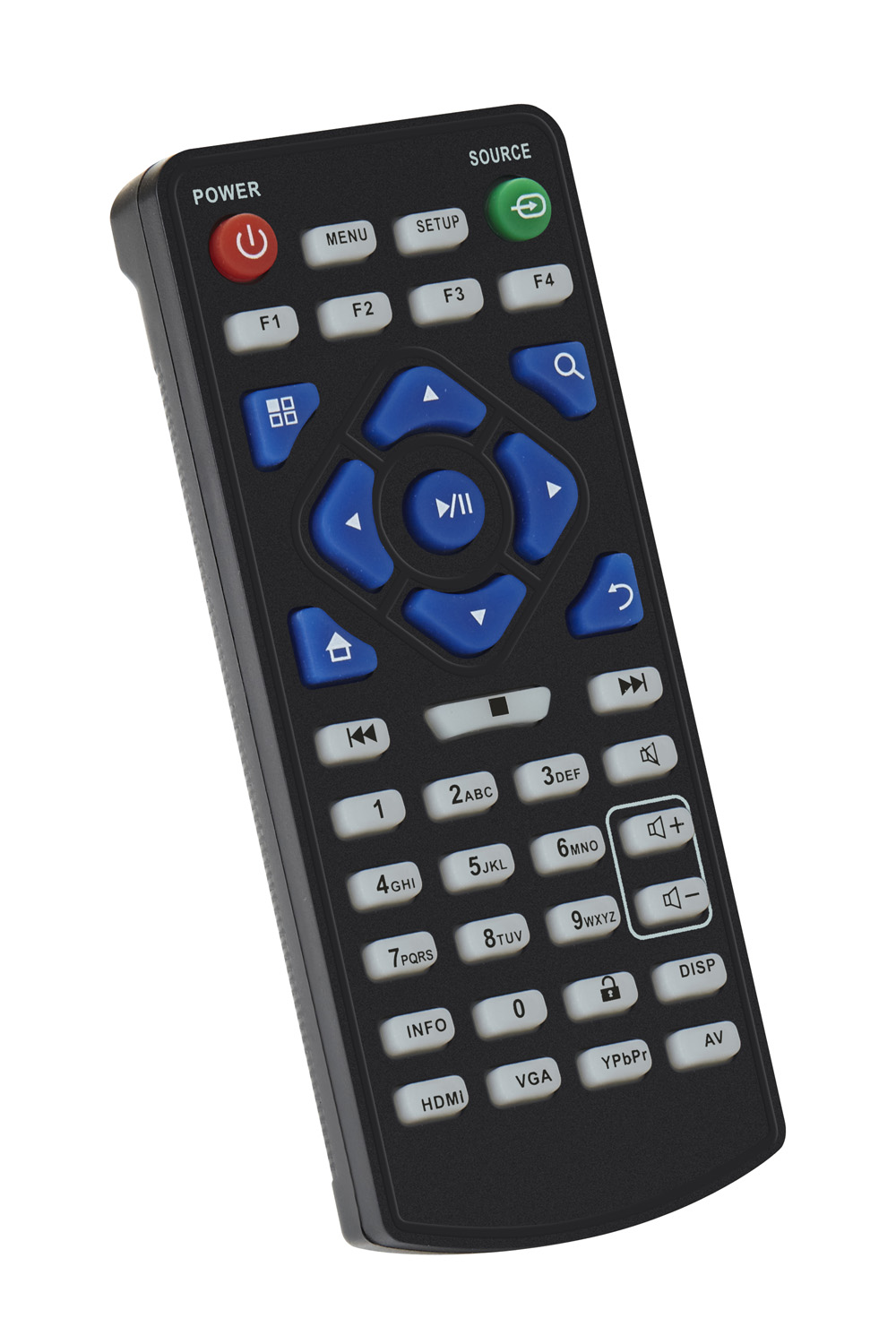

1. EP5012-L eposter 2. Power Core 3. Y power cable 4. Remote control with battery 5. Quick Start Guide 6. User Guide CD 7. Key 8. Hexagon wrench(to remove handles) 9. Black labels(to cover holes after removing handles)
*Actual content may differ from market to market
