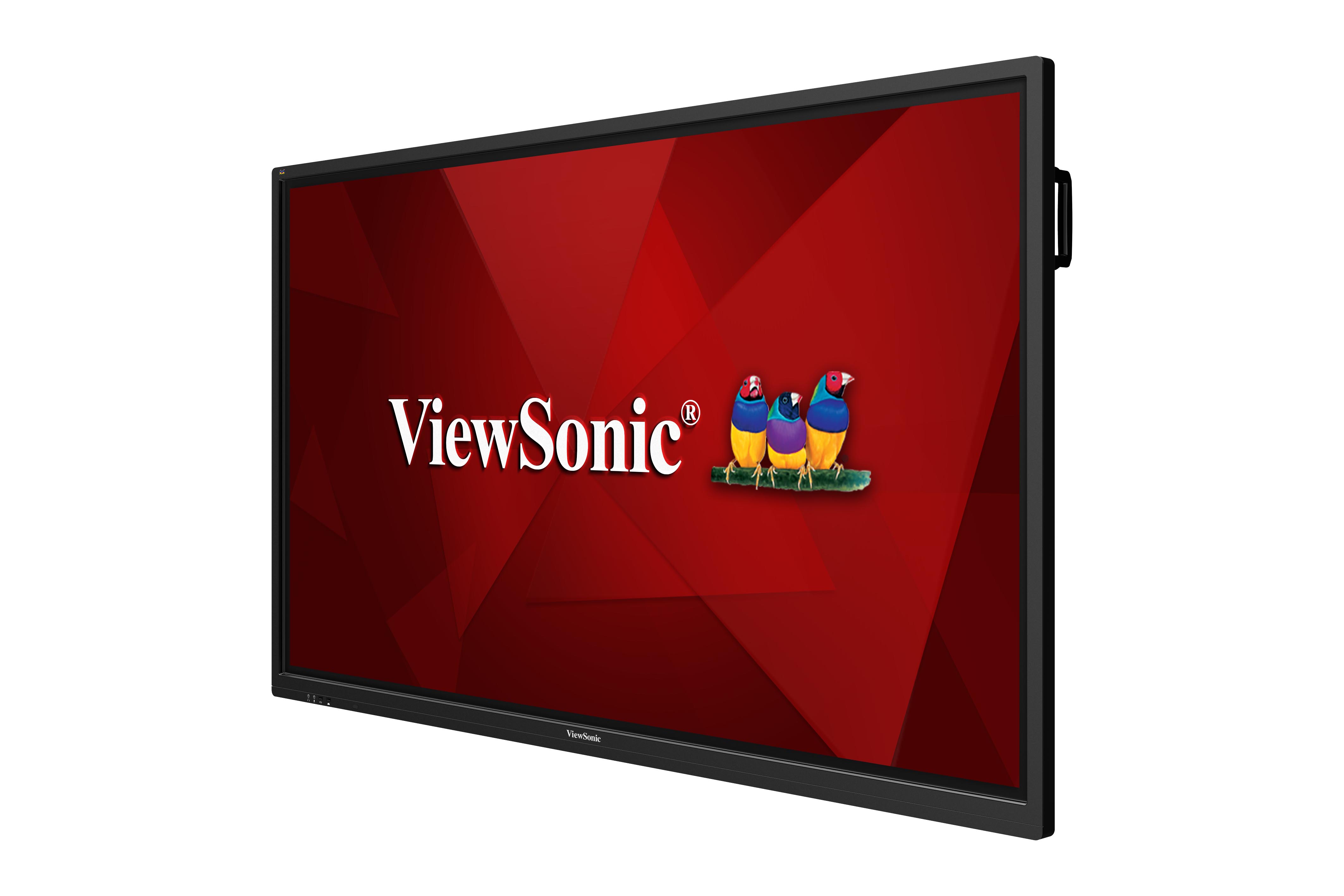

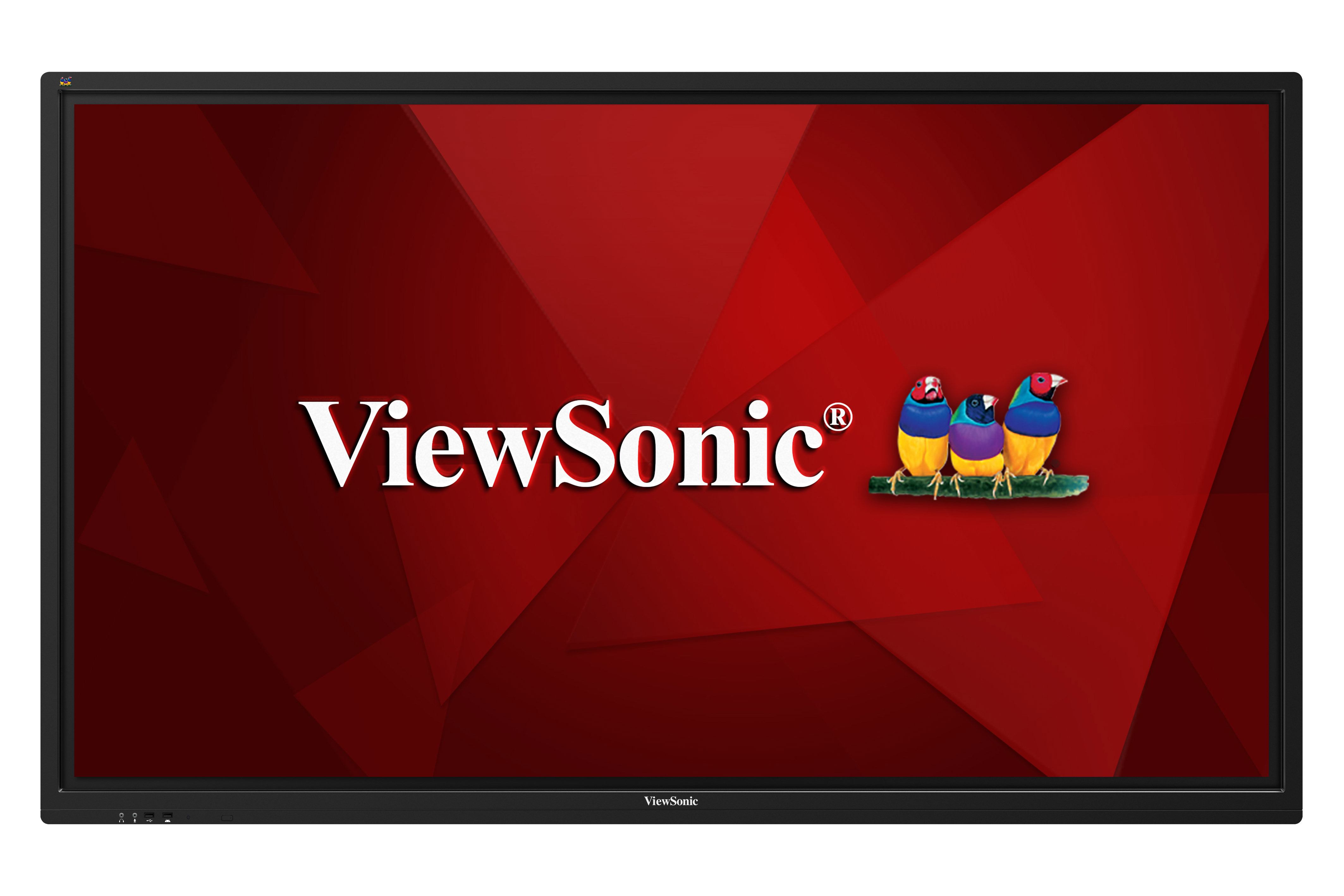

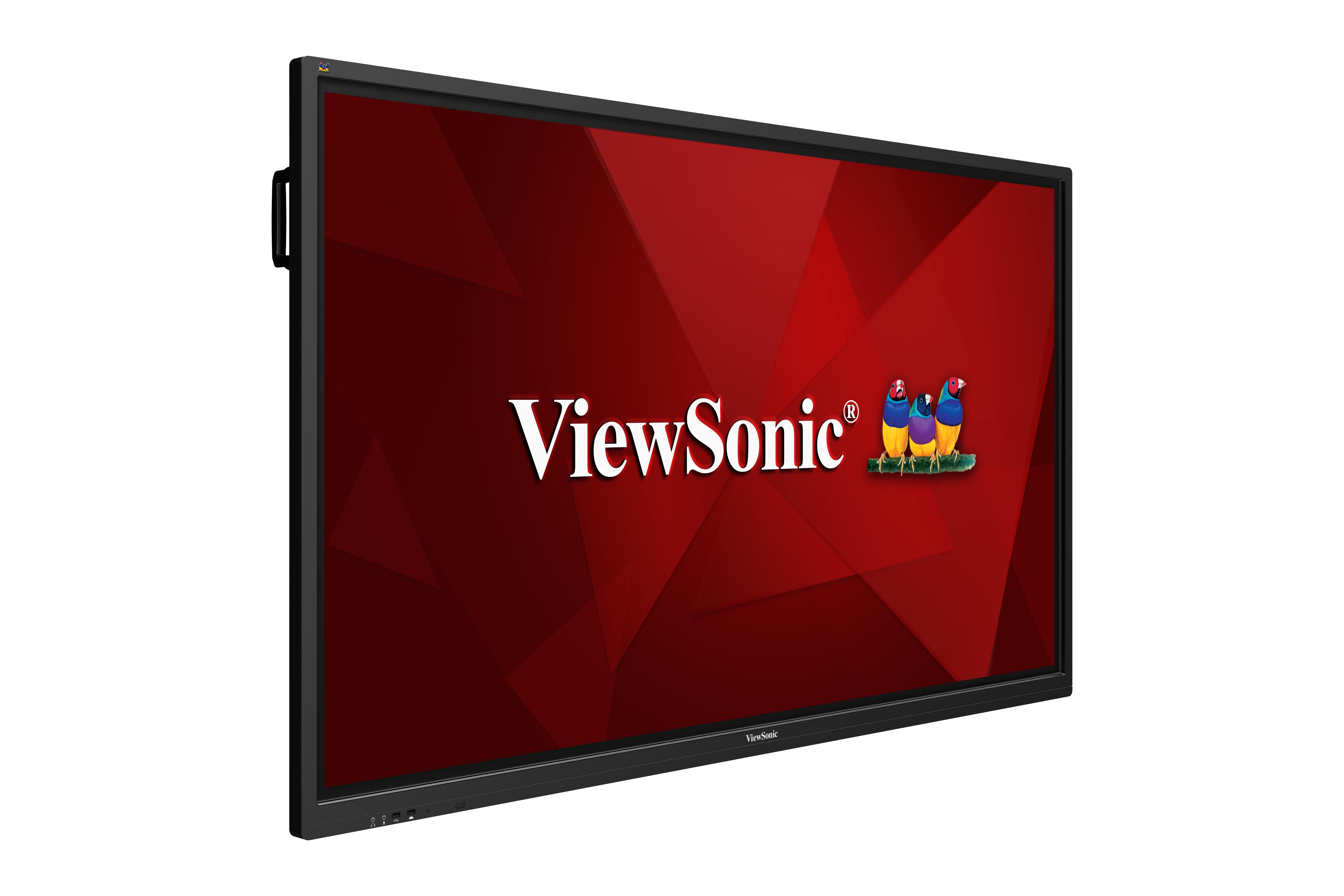

IFP7500

75" 4K Interactive Flat Panel

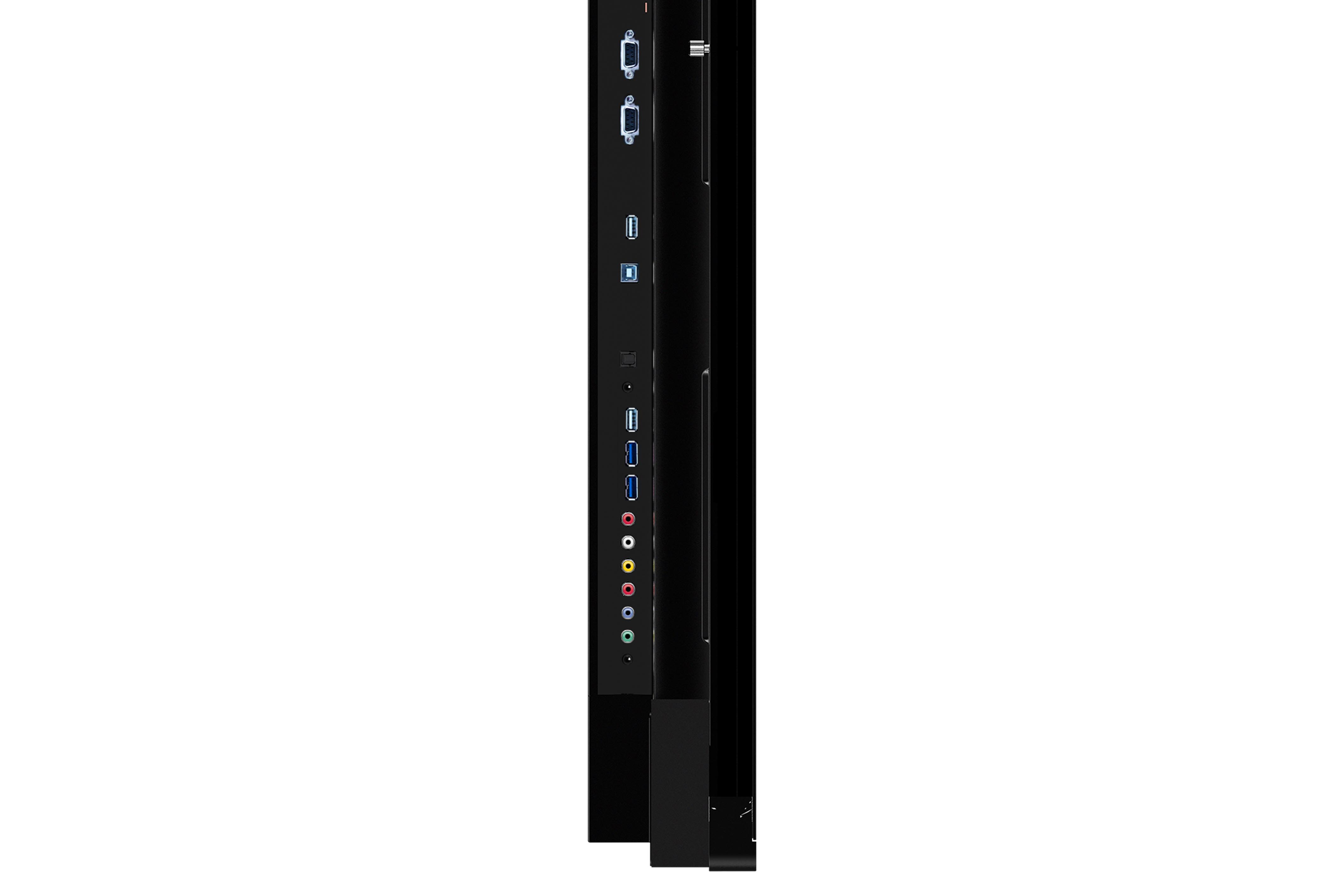

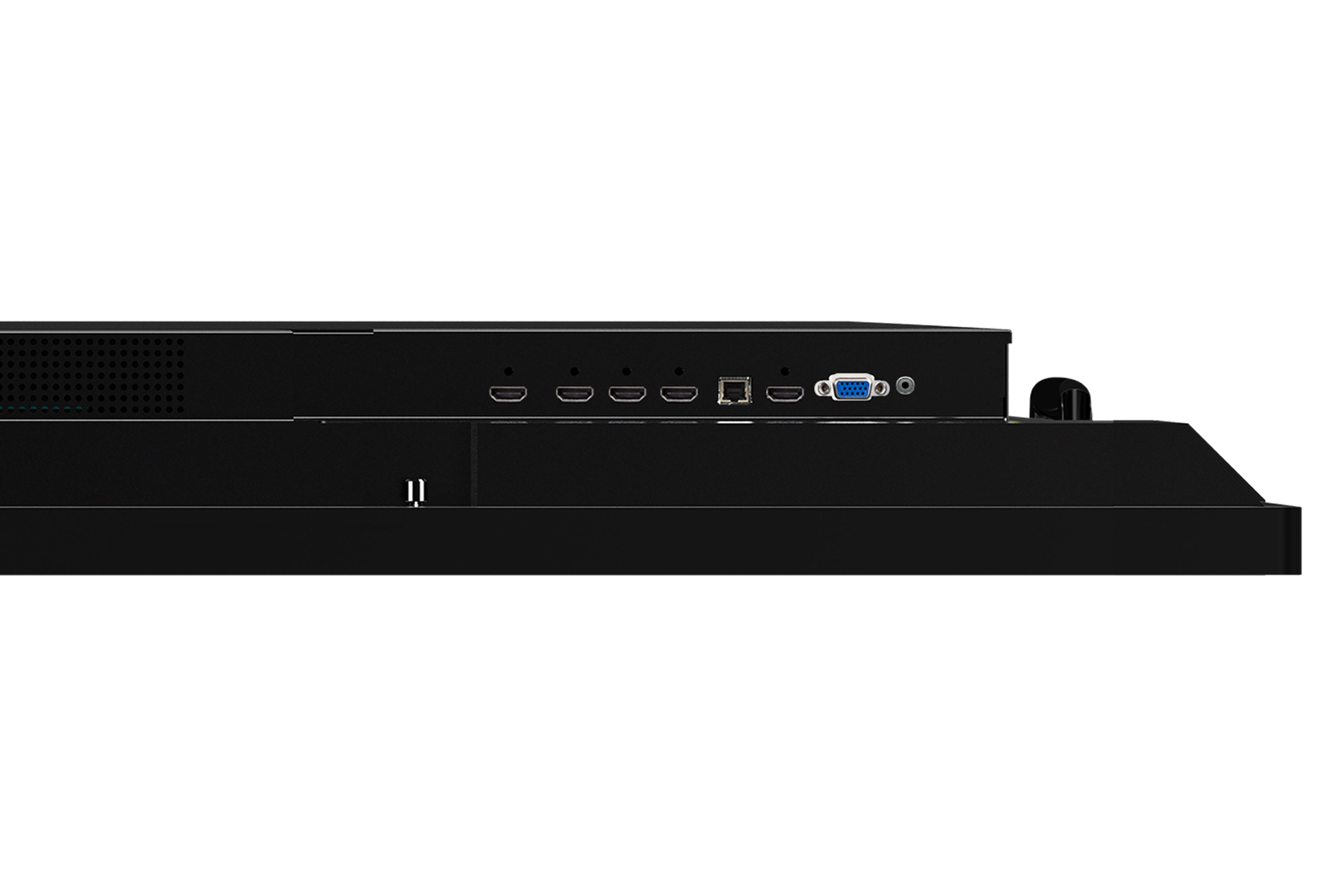

OUTPUT
HDMI: x 1 (for one of HDMI1/2/3)
Audio (Earphone out): x 2 (front x1, side x1)
CVBS (AV): x 1
SPDIF: x 1
RS232: x 1
LAN
RJ45: x 1
USB
2.0 Type A: x 3 (front x1, side x1, top x1)
3.0 Type A: x 2
2.0 A type (Dedicated for OPS PC): x 2 (front x1, side x1)
2.0 Type B (For Touch): x 1
스피커
20W x 2
BUILT-IN PC
프로세서: ARM Cortex A53 Quad Core 1.5G Hz CPU
Graphic: ARM Mali-450MP4
기억: 2GB DDR3
보관소: 16GB eMMC
Networking: 10/100M auto-identification and DHCP
COMPATIBILITY
VGA: Refer to timing table
HDMI: 480i, 480p,720p, 1080p, up to 2160p
CVBS: 480i
CONTROLS
Physical- Top OSD: Input, Up, Down, Right(VOL+), Left(VOL-), Menu, Power
POWER
전압: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
소비.: 333.4 W
ERGONOMICS
벽면 장착(VESA® ): 600 x 400mm; Screw: M8 x 20mm
OPERATING CONDITIONS
온도(θ C): 32°F to 104°F (0°C to 40°C)
습도: 10% ~ 90% non-condensing
치수(가로 x 세로 x 세로)
Physical w/o Stand (mm / inch): 1736.8 x 1035.3 x 108.2 mm / 68.38 x 40.76 x 4.26 inch
Packaging (mm / inch): 1990 x 1165 x 320 mm / 78.35 x 45.87 x 12.60 inch
WEIGHT
Net (kg / lb): 60.64kg / 133.69lbs
Gross (kg / lb): 80.4kg / 177.25lbs
What's in the box?
VGA cable(5 meters)/Power cable(3 meters) x 4/Remote control/USB cable(5 meters)/Audio cable(5 meters)/AV cable/Touching pen x 3/User manual CD wizard/Quick Start Guide/RS232 adapter/Clamp x 5/Plate/Screw x 2
