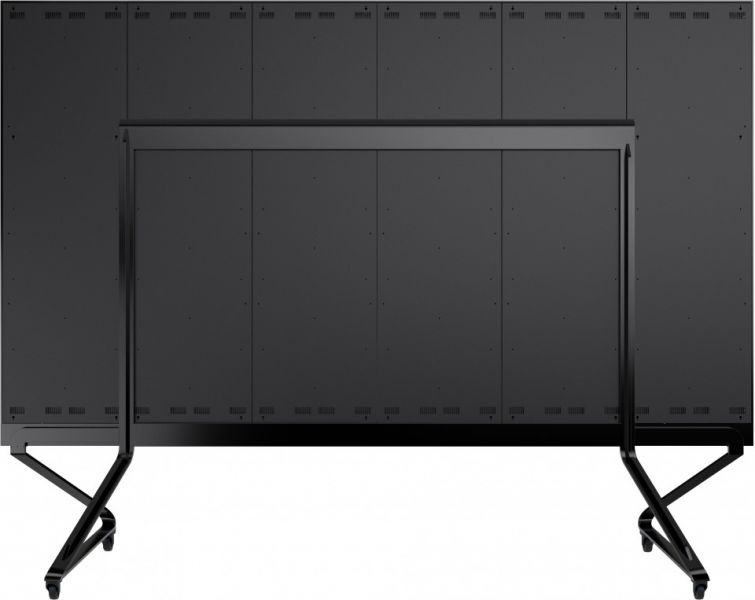

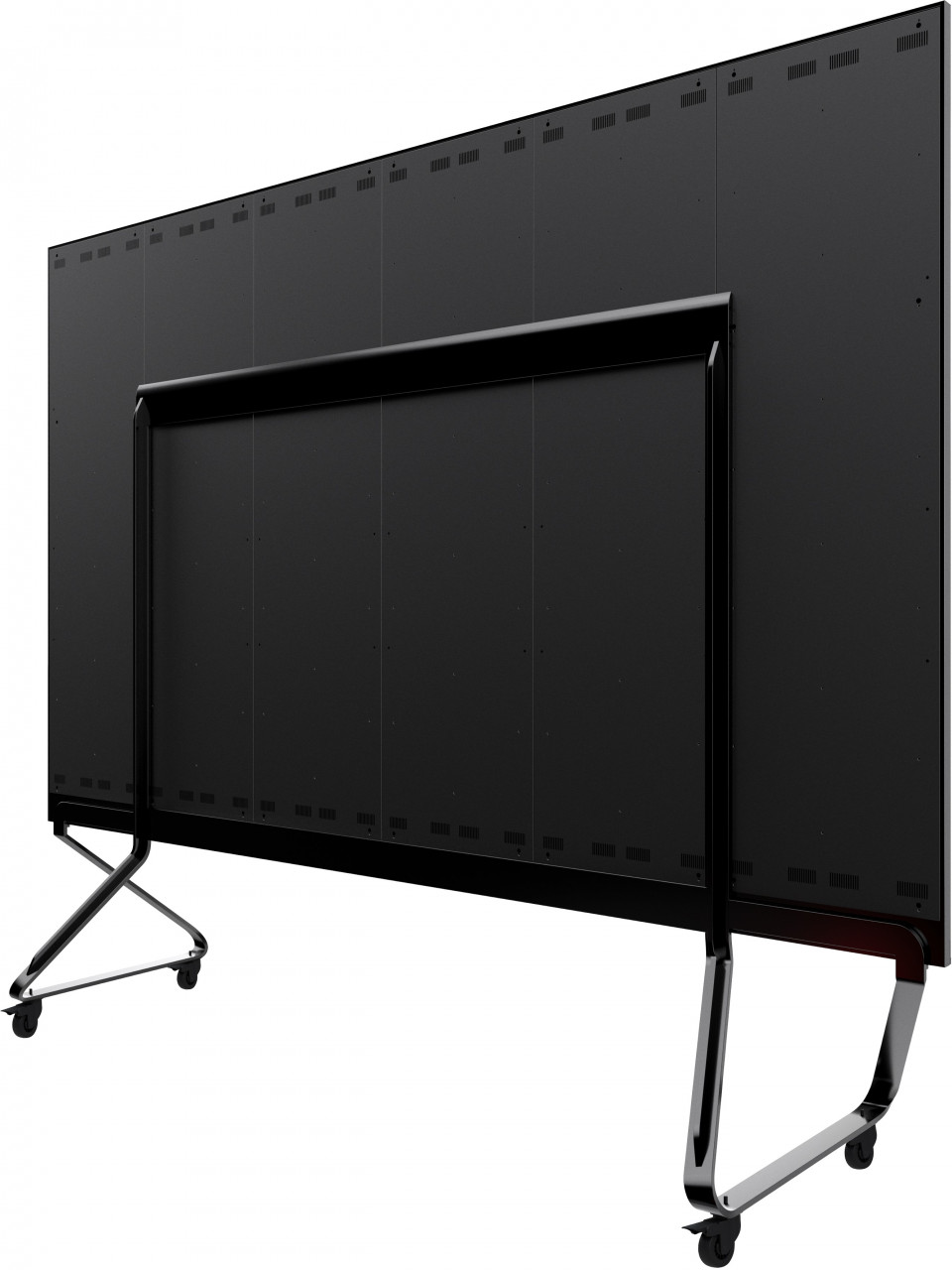

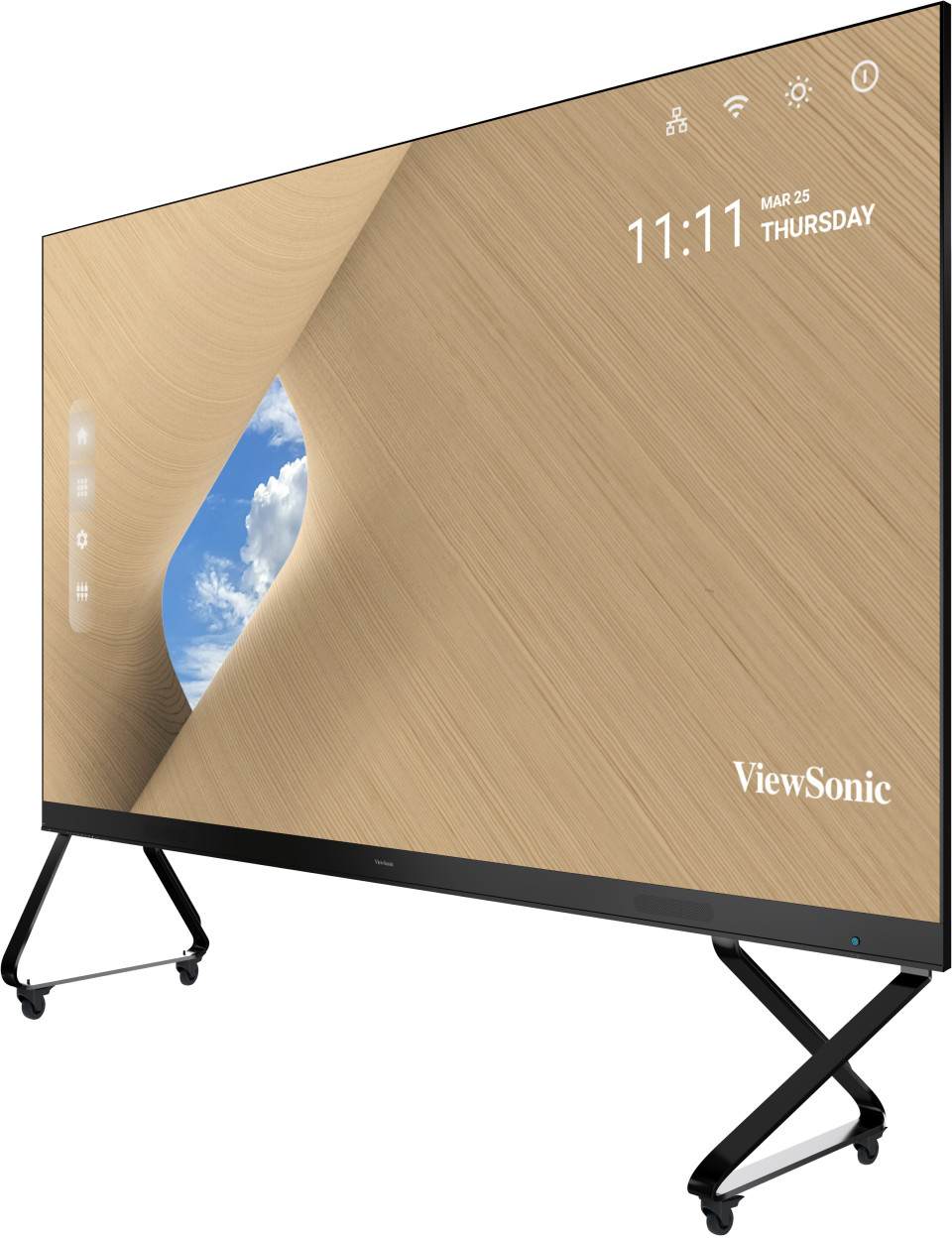

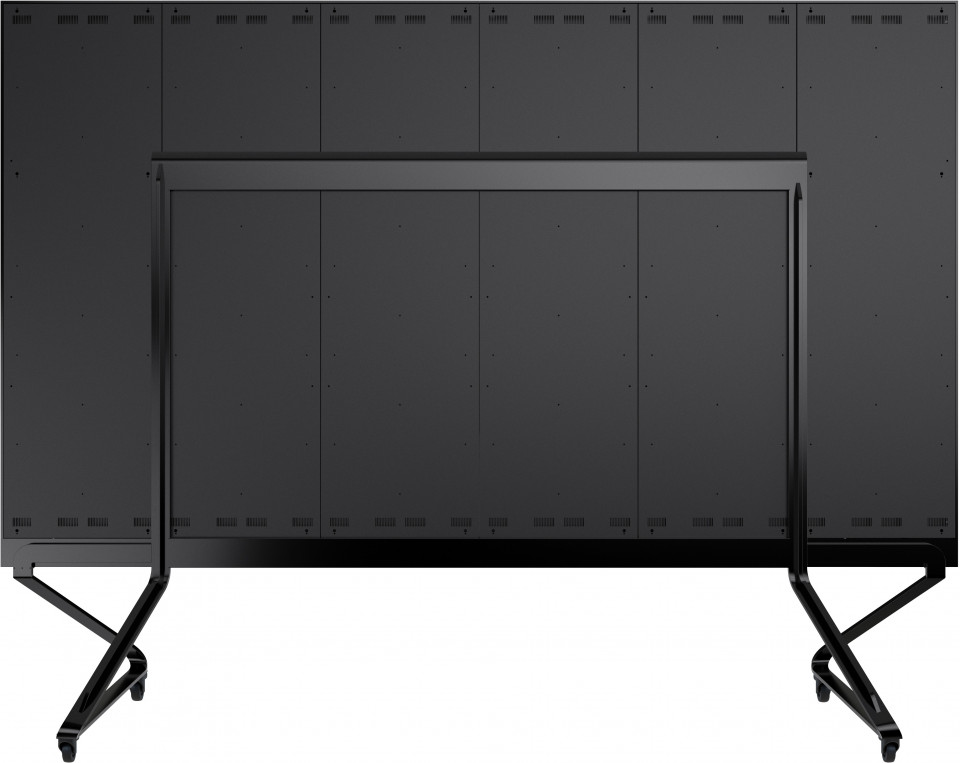

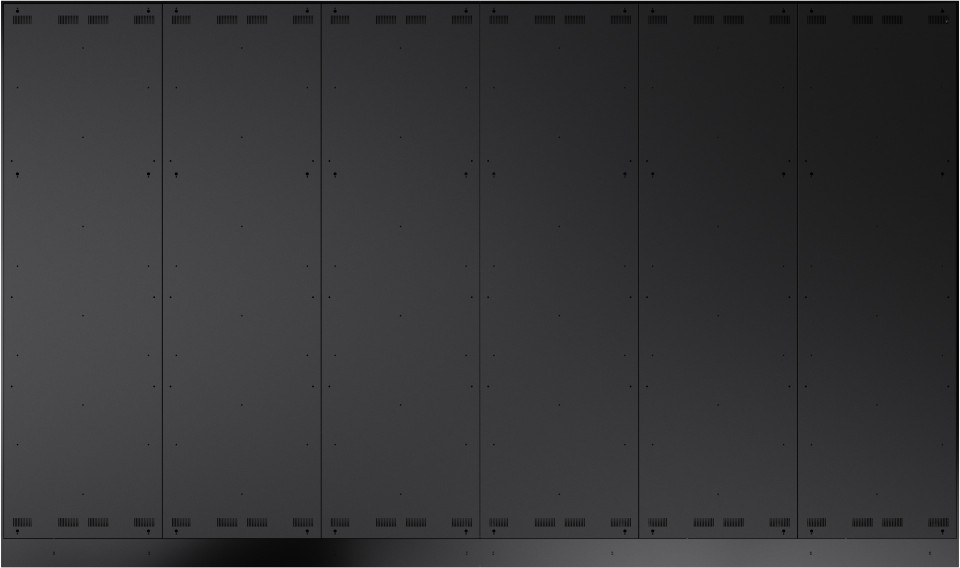

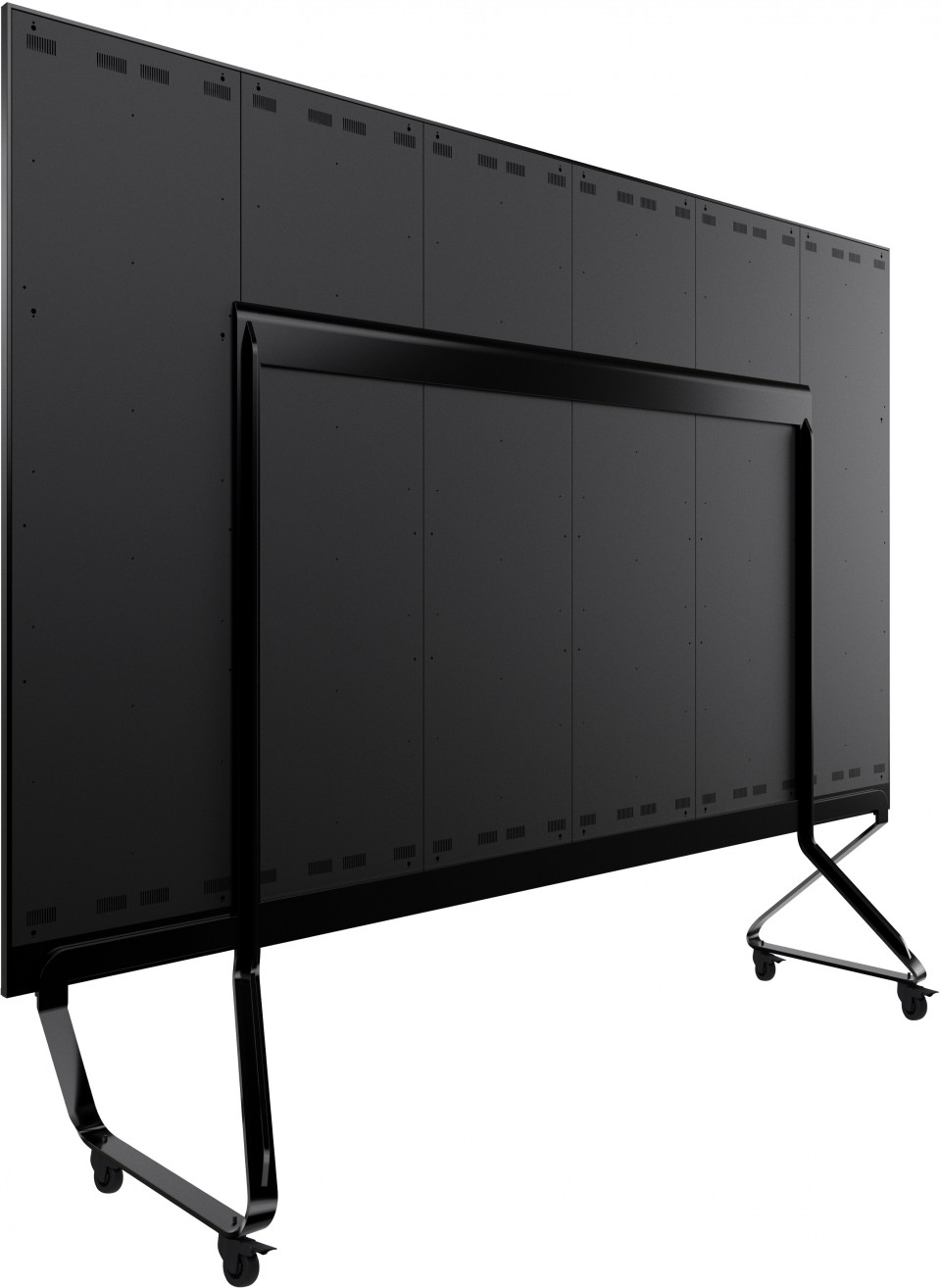

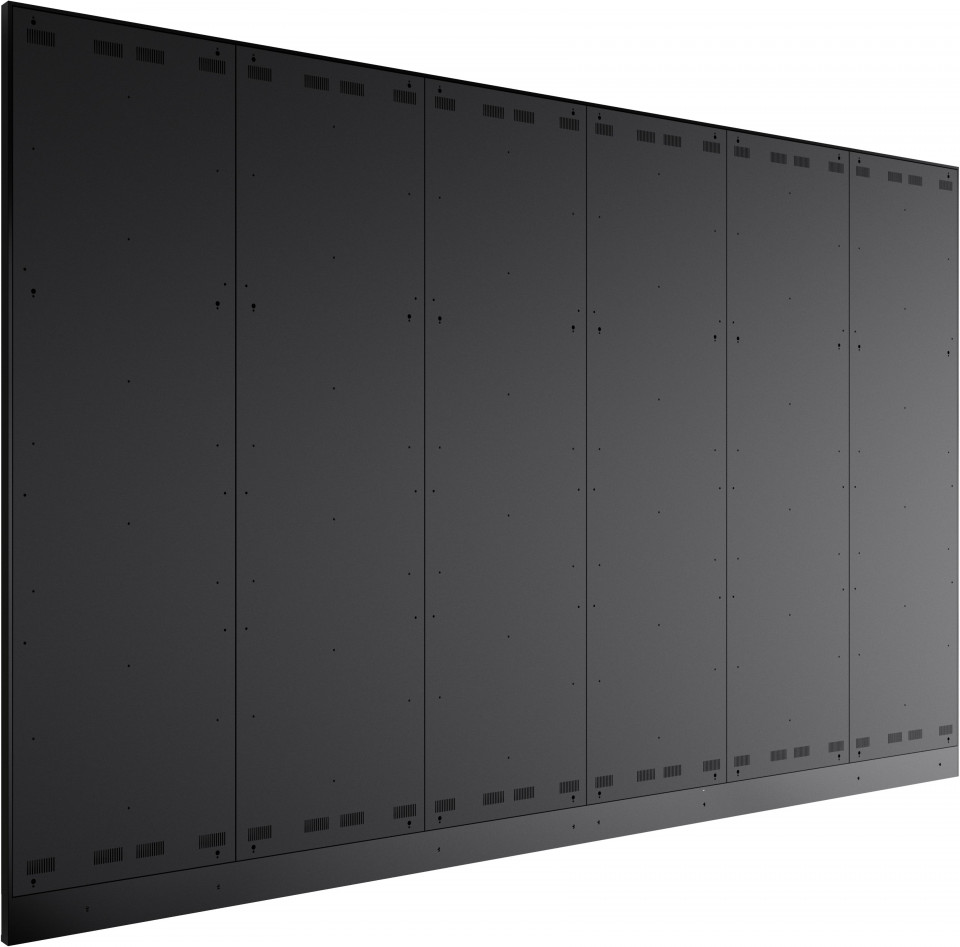

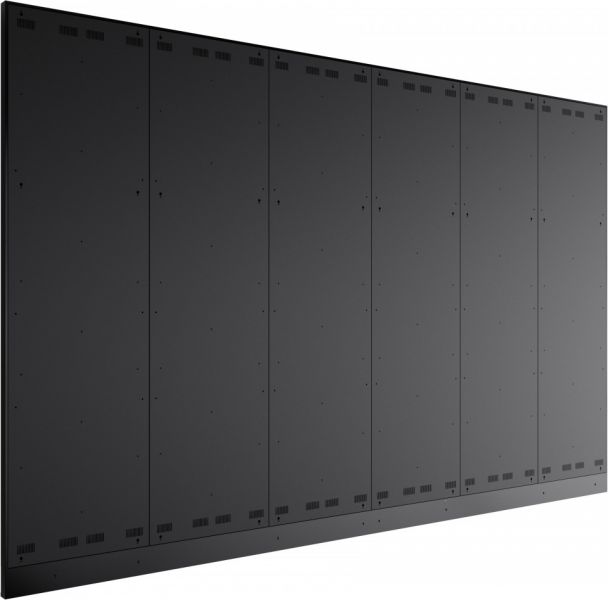

LD163-181

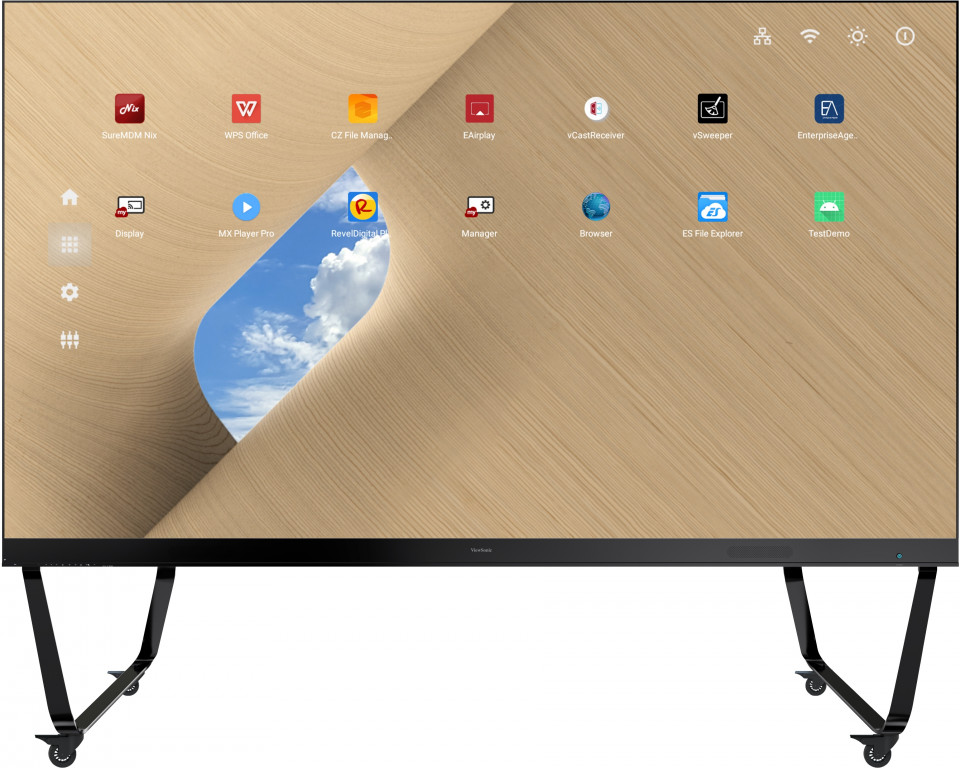

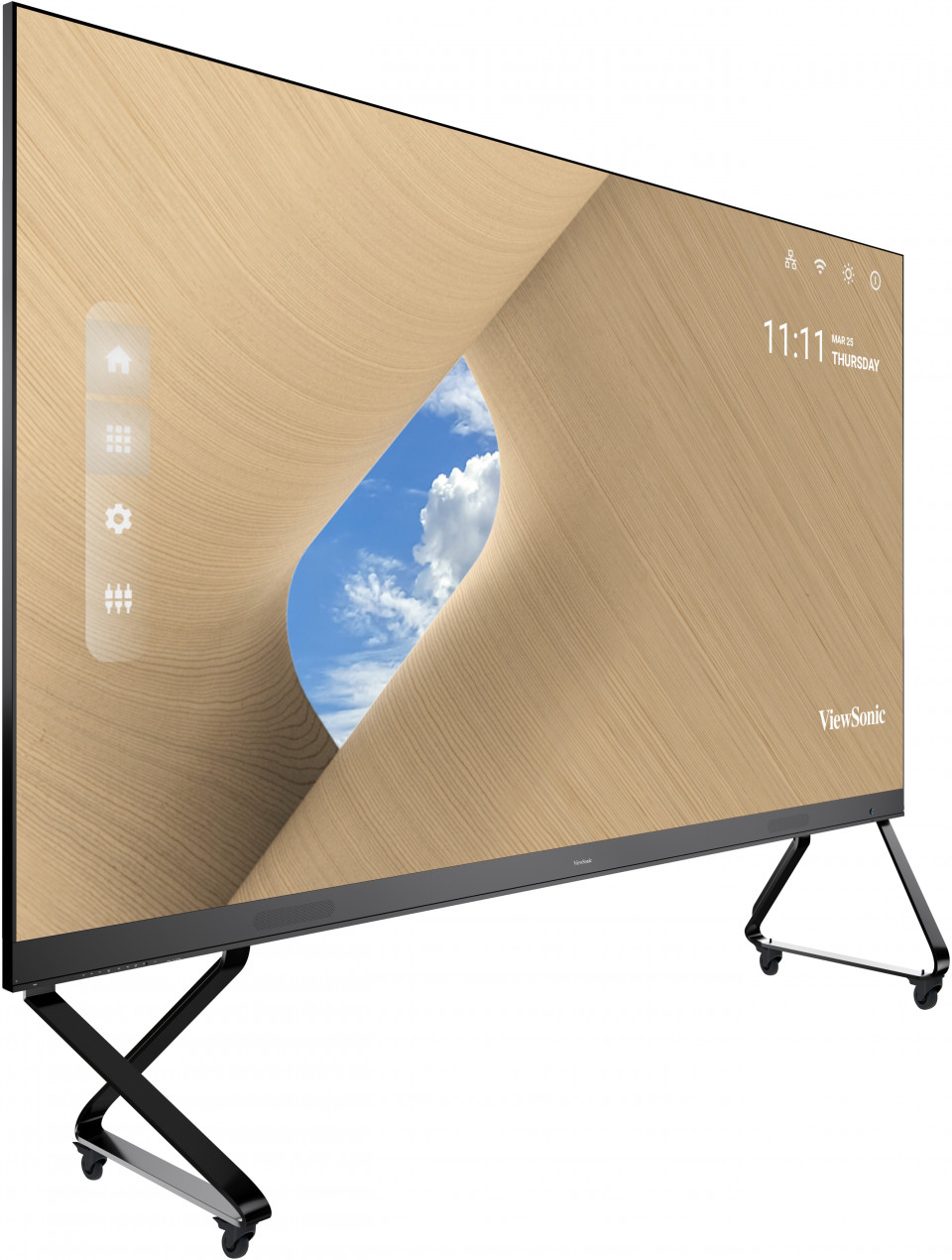

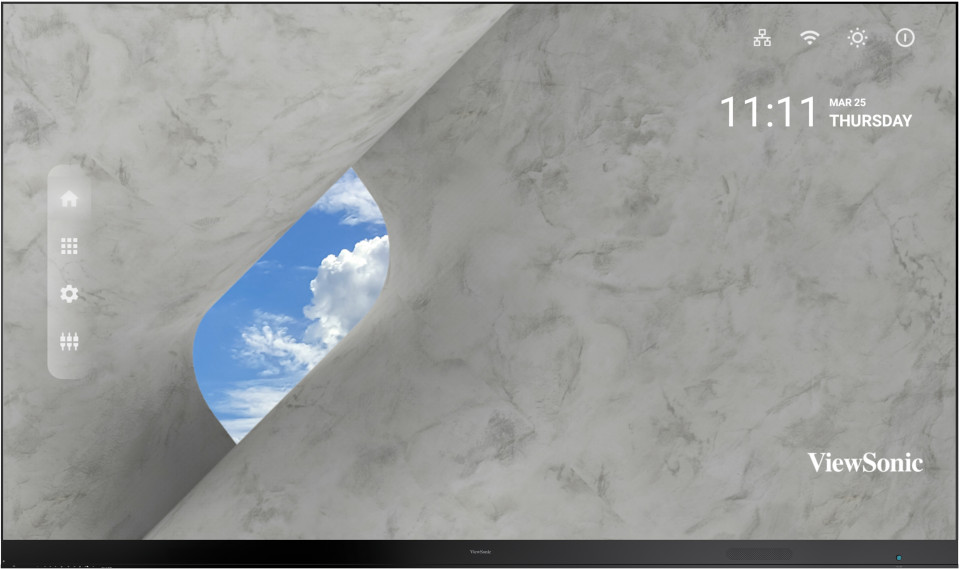

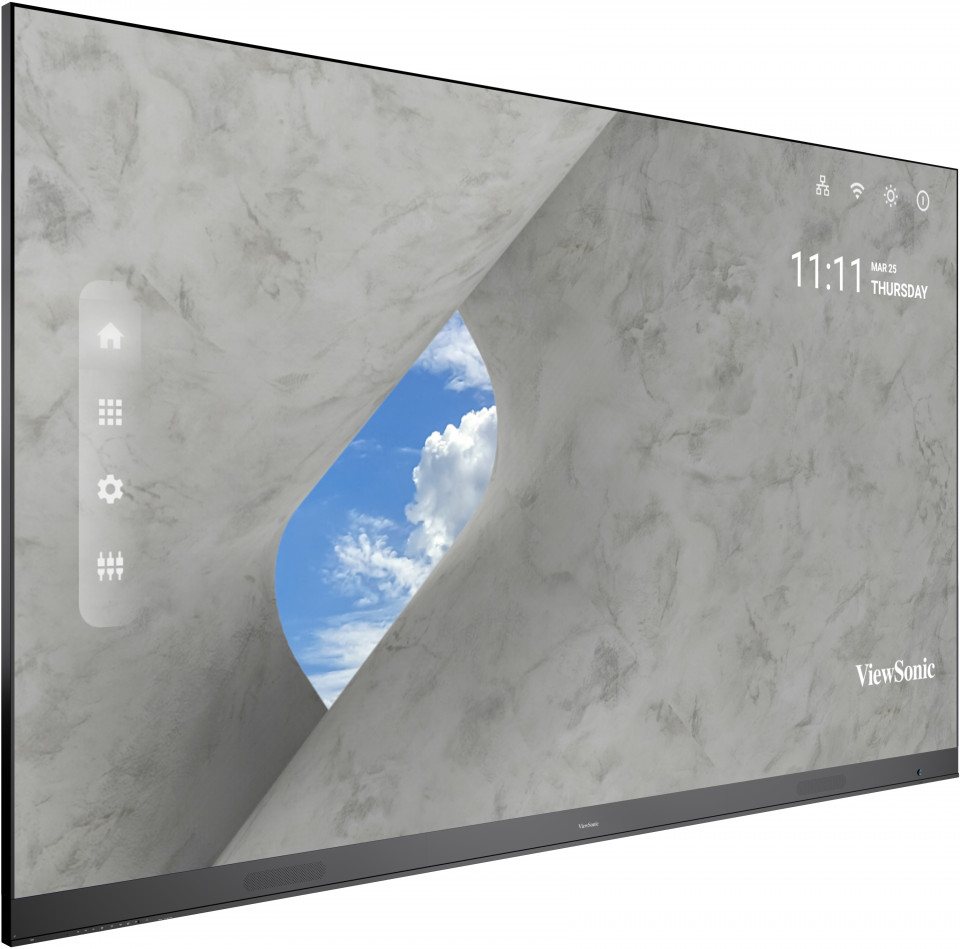

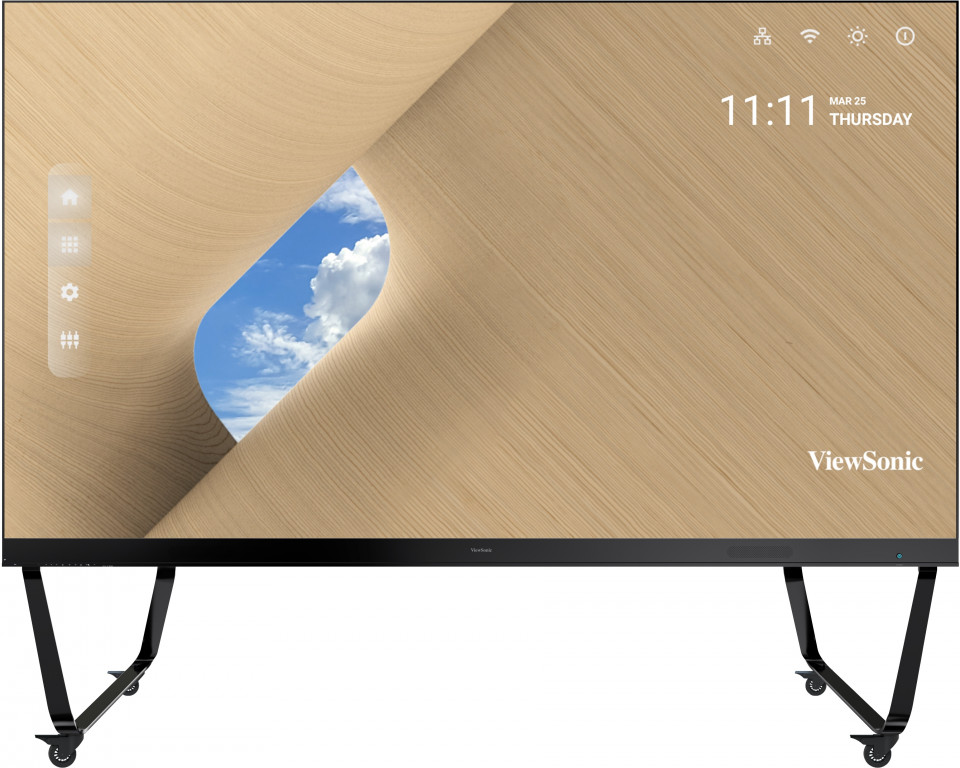

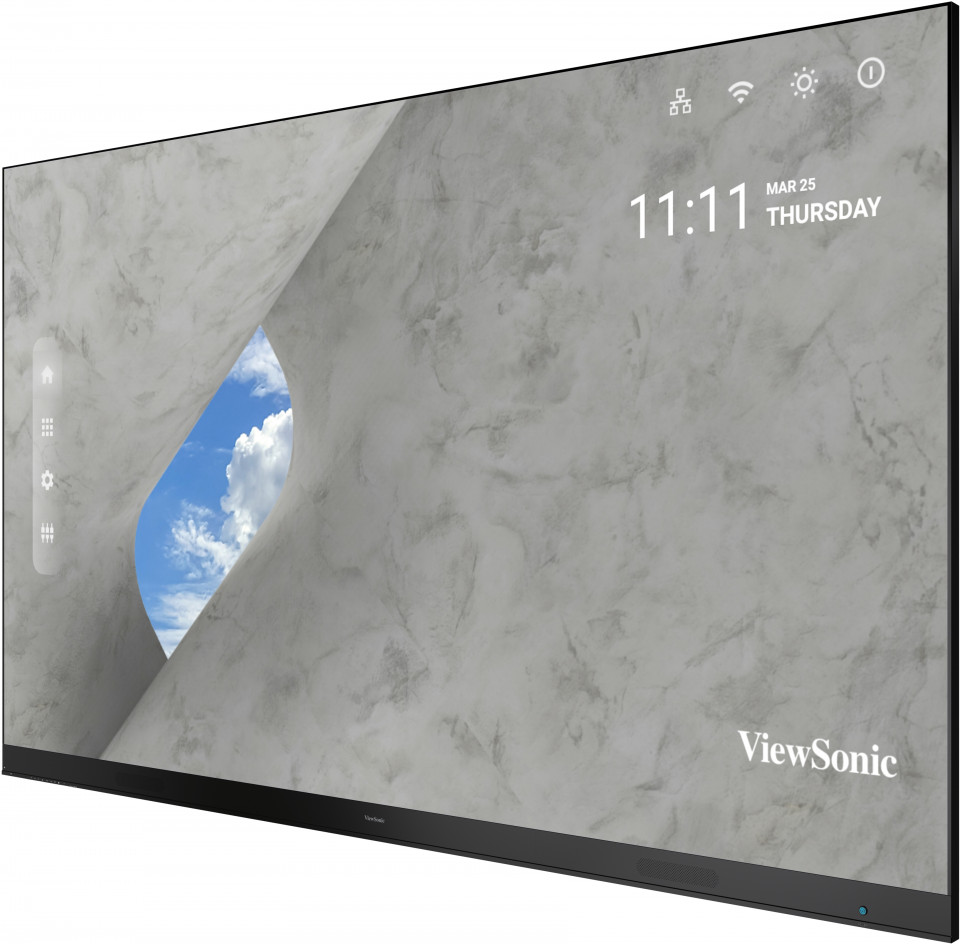

163” All-in-One Direct View LED Display

  • Impressively large, yet seamless view
  • All-in-One design without complicated setup
  • Easy delivery, installation, and maintenance
  • Engaging front-facing presentation solution
  • Flexible wireless content sharing solution

스펙


  • 사양
    Screen Size: 163''
    표시면적(mm): 2400 (H) x 1350(V)
    기본 해상도: 1920x1080
    Panel Technology: Direct view LED
    Bonding Wire: Gold
    Pixel Pitch (mm): 1.25
    Refresh Rate: up to 4440Hz
    Brightness (max.): 500 nits (8 levels adjustable)
    Contrast Ratio (typ.): 6000:1
    오리엔테이션: Landscape
    Viewing Angles (typ.): H = 160, V = 160
    LED Lifetime (typ.): 100,000 Hours
    로컬 스토리지: Total 32GB (26GB available storage)
    해상도 지원: HDMI(640 x 480) to 1080p(1920 x 1080)
    HDTV 호환성: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    수평 주파수: 31K-94kHz
    수직 검색 속도: 56-85Hz

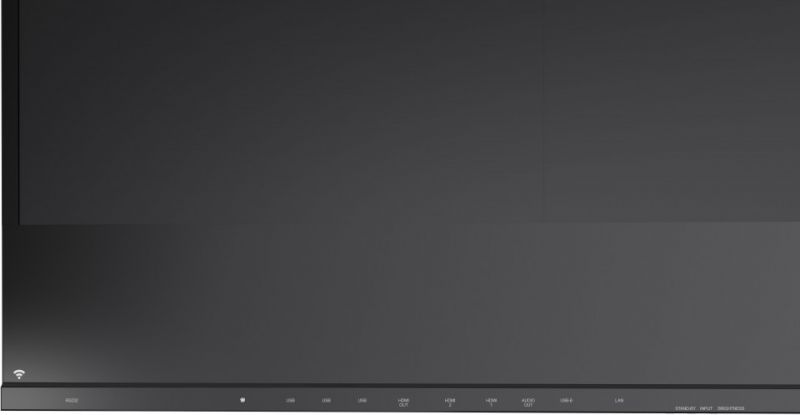

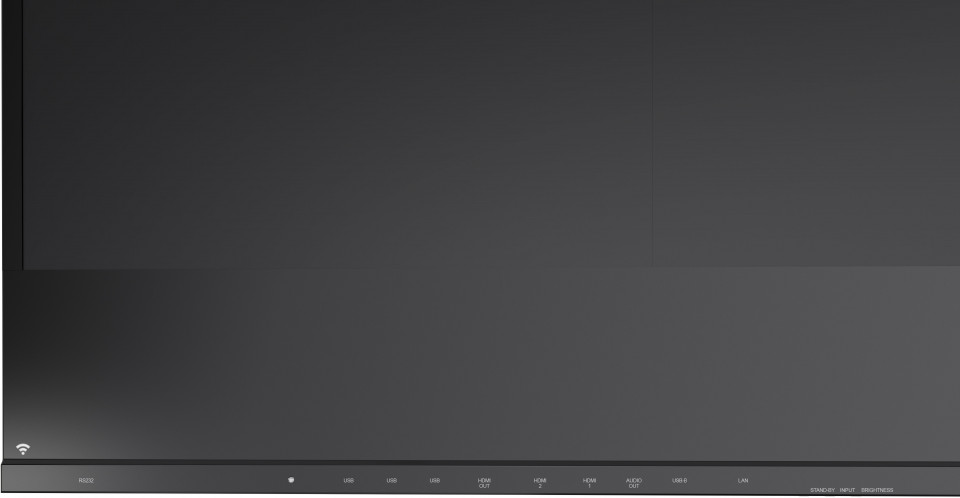

  • 입력
    HDMI: x2(HDMI 1.4, HDCP 1.4)
    USB 타입 A: x3(USB3.0 x1, USB2.0 x2)
    RJ45 Input (Internet): x1
    Wi-Fi Input: 2.4G/5G Hz
  • 산출량
    HDMI out: x1(HDMI 1.4, HDCP 1.4)
    스피커: 5W*2
    오디오 출력(3.5mm): x1
    USB 타입 A(전원): Shared with USB input(5V/1A x1, 5V/0.5A x2)
