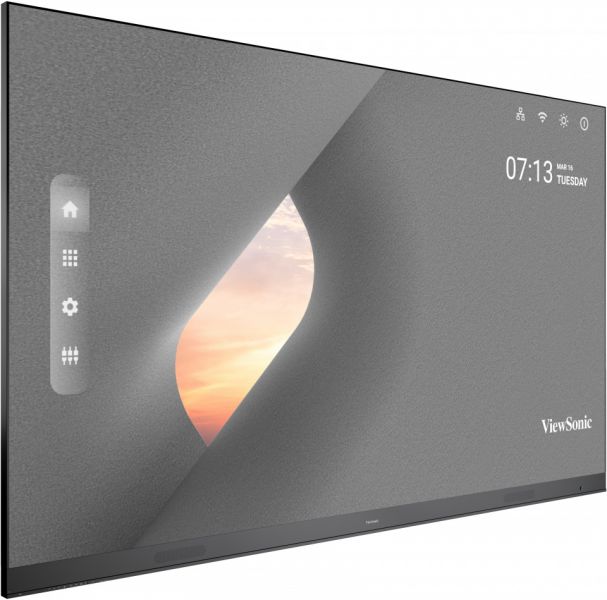

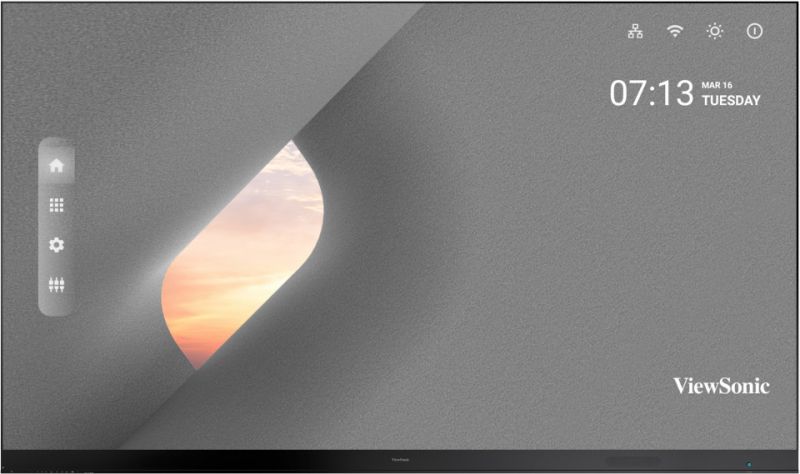

뷰소닉 Direct View LED LDM135-151

LDM135-151

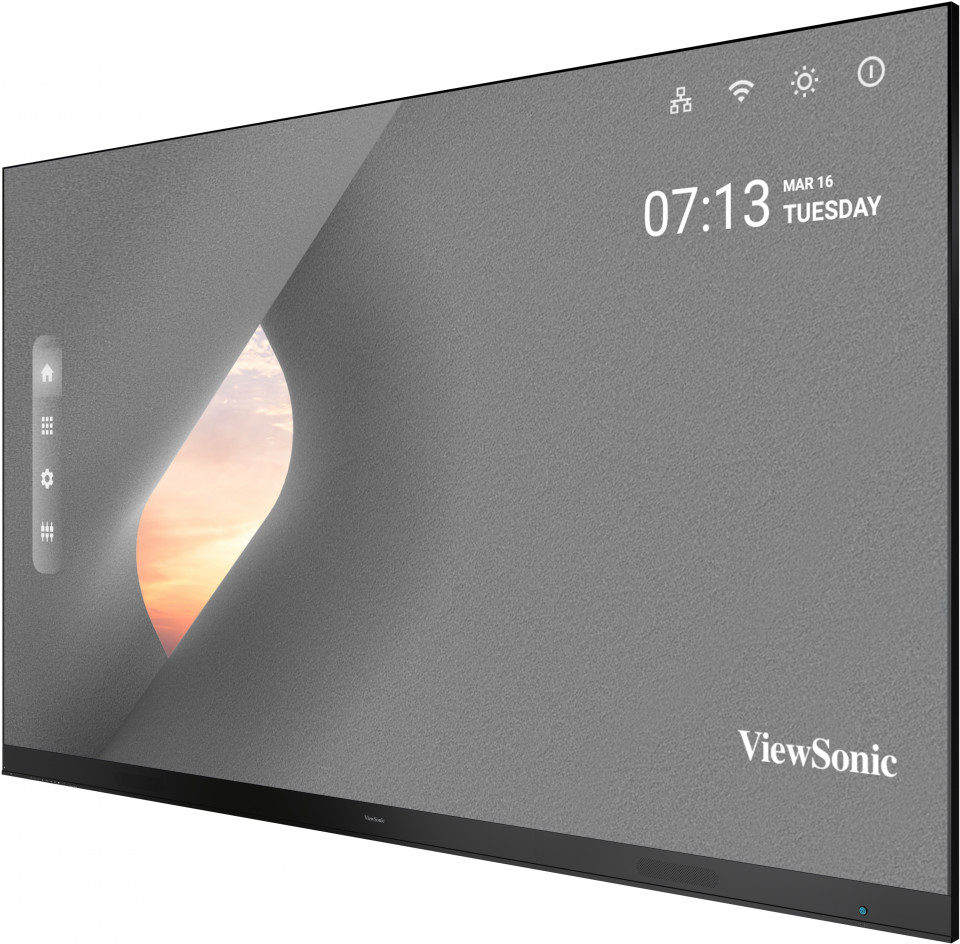

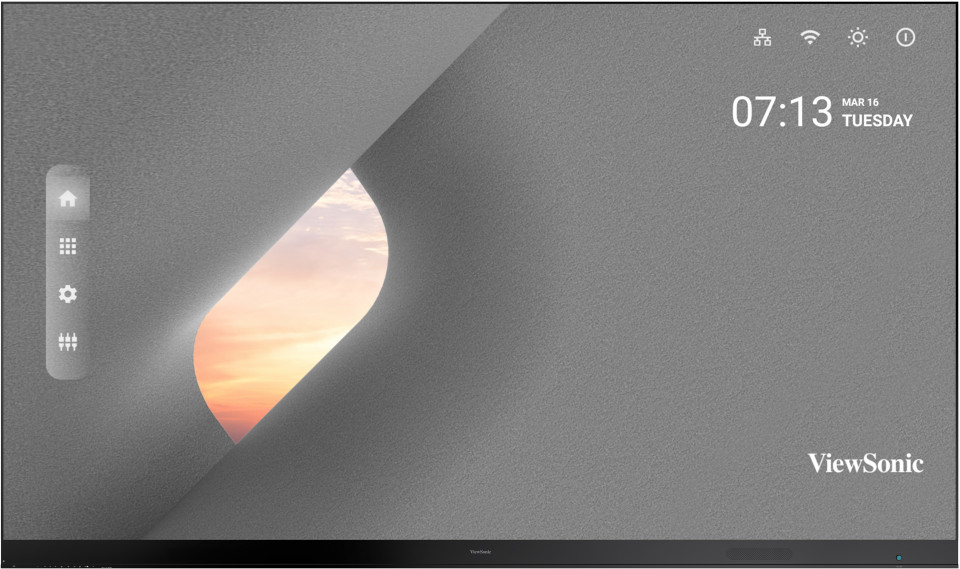

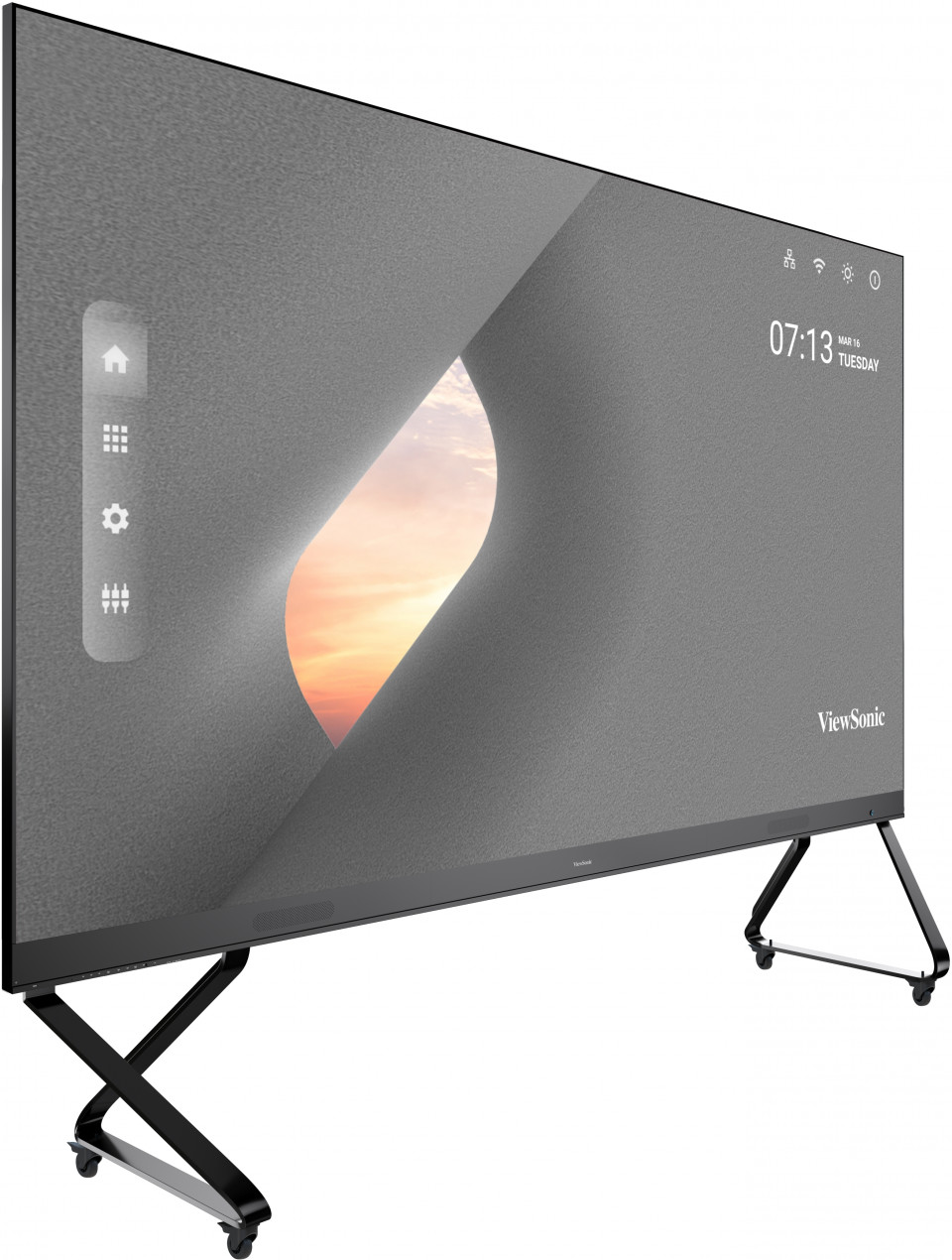

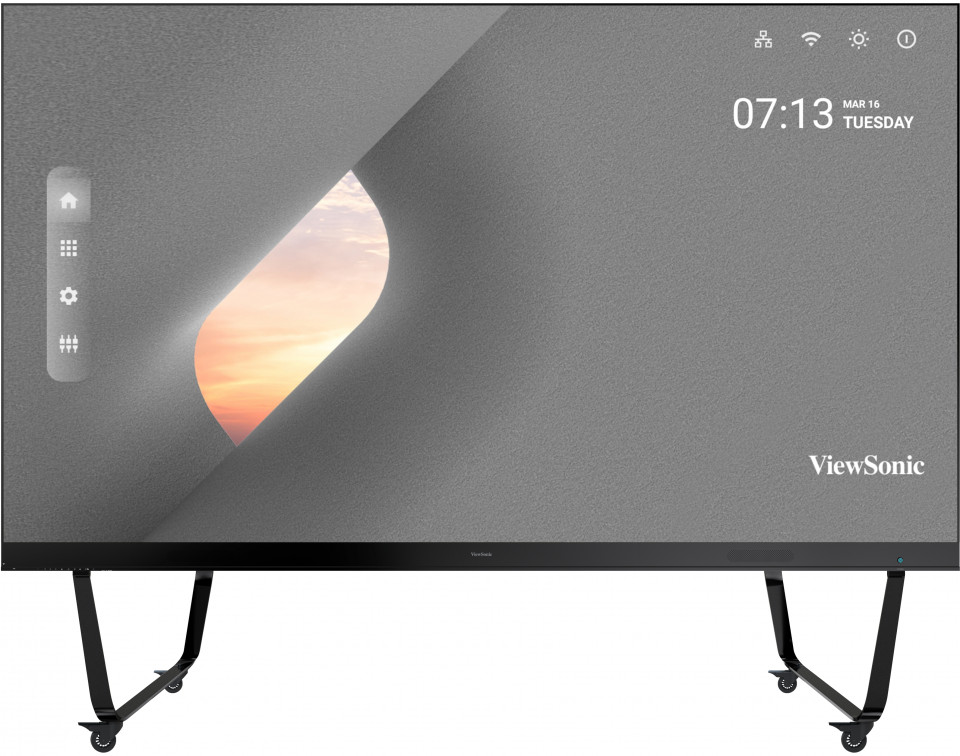

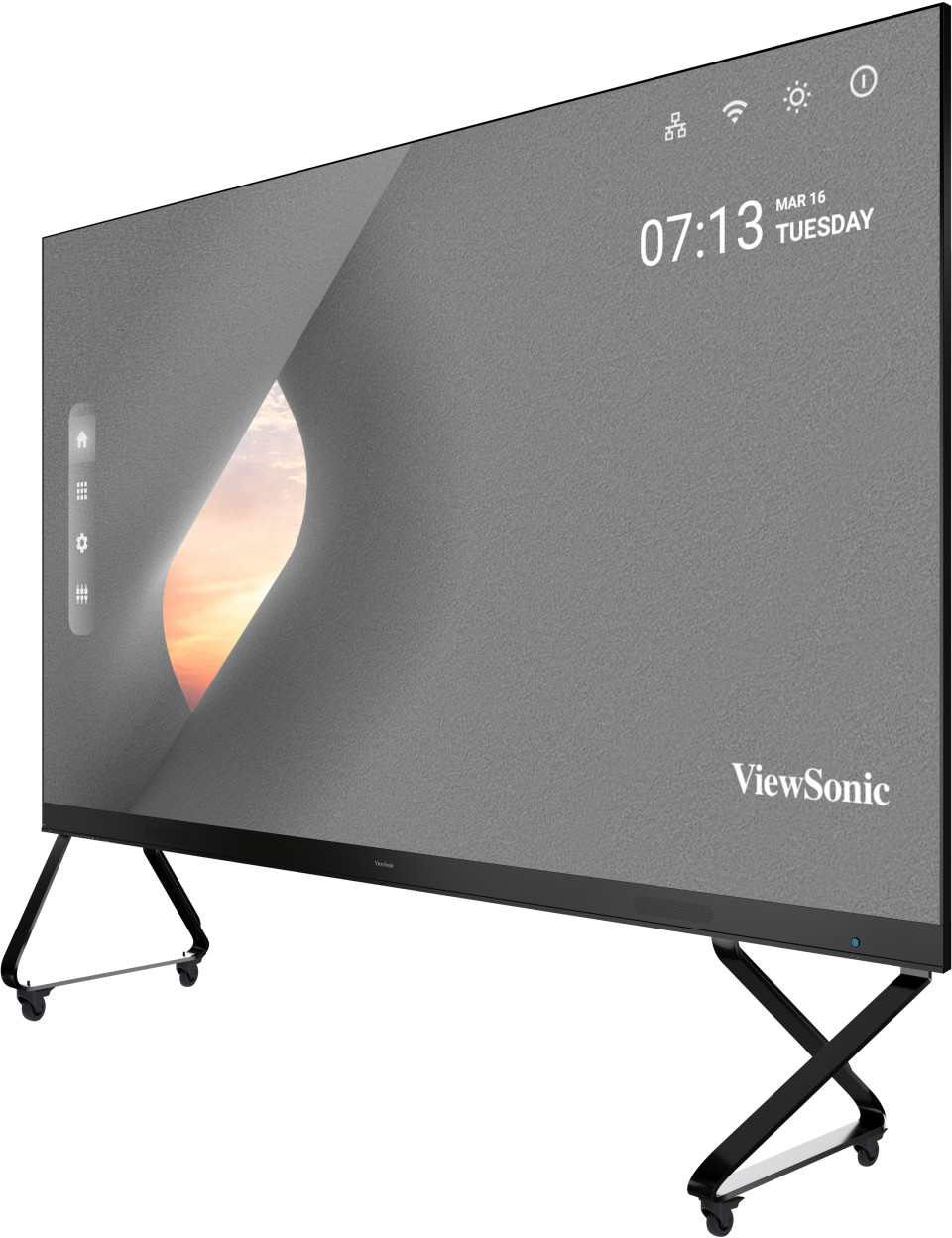

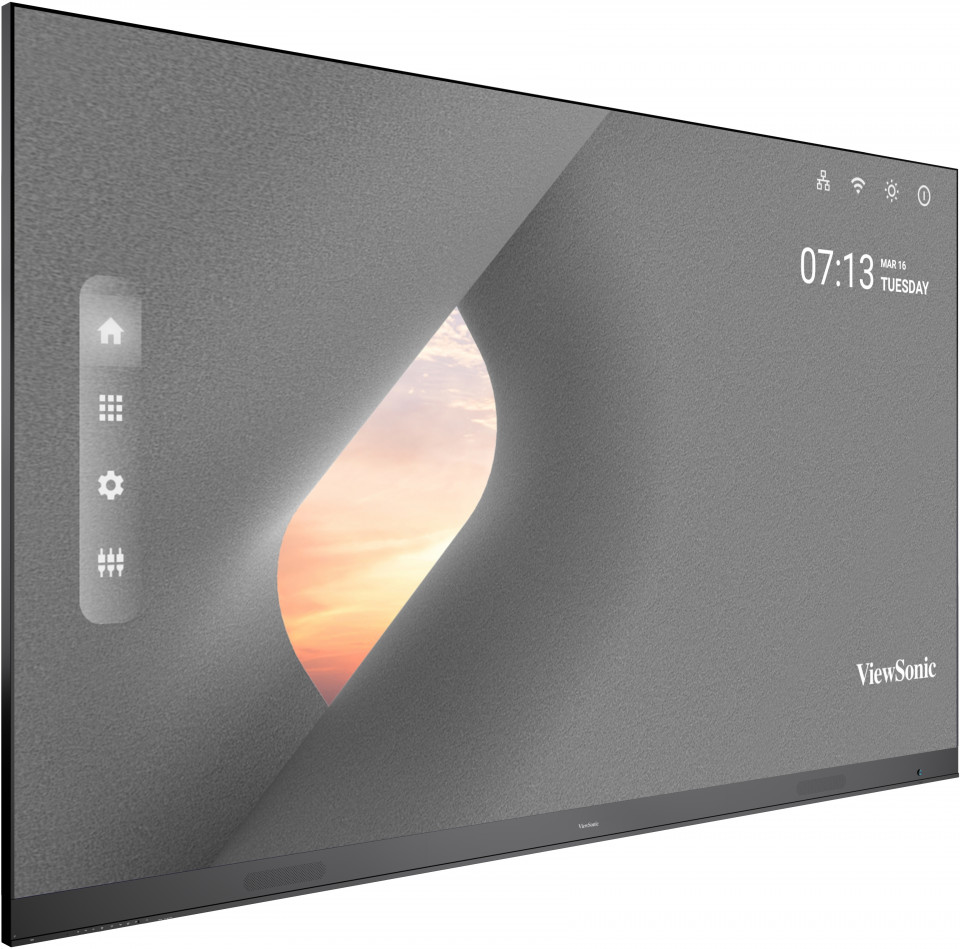

135” All-in-One Direct View LED Display

Impressively large, yet seamless view
All-in-One design without complicated setup
Easy delivery, installation, and maintenance

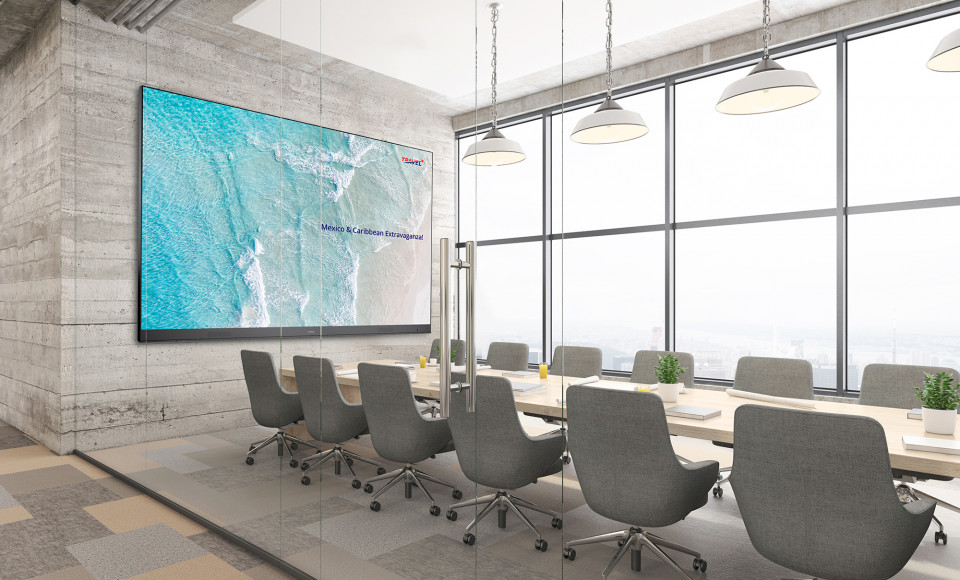

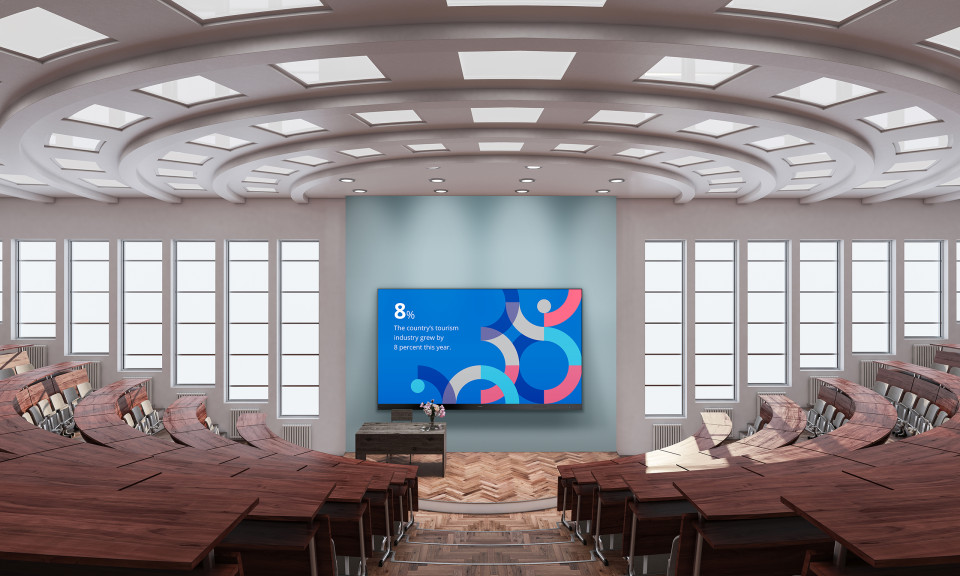

Engaging front-facing presentation solution
Flexible wireless content sharing solution

스펙

사양
Screen Size: 135"
표시면적(mm): 3000 (H) x 1687.5(V)
기본 해상도: 1920x1080
Panel Technology: Direct view LED
Bonding Wire: Copper
Pixel Pitch (mm): 1.56
Refresh Rate: 3840Hz
Brightness (max.): 600 nits (8 levels adjustable)
Contrast Ratio (typ.): 6000:1
오리엔테이션: Landscape
Viewing Angles (typ.): H = 160, V = 160
LED Lifetime (typ.): 100,000 Hours
로컬 스토리지: Total 32GB (26GB available storage)
해상도 지원: HDMI(640 x 480) to 1080p(1920 x 1080)
HDTV 호환성: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
수평 주파수: 31K-94kHz
수직 검색 속도: 56-85Hz
입력
HDMI: x2(HDMI 1.4, HDCP 1.4)
USB 타입 A: x3(USB3.0 x1, USB2.0 x2)
RJ45 Input (Internet): x1
Wi-Fi Input: 2.4G/5G Hz
산출량
HDMI out: x1(HDMI 1.4, HDCP 1.4)
스피커: 5W*2
오디오 출력(3.5mm): x1
USB 타입 A(전원): Shared with USB input(5V/1A x1, 5V/0.5A x2)

통제
RJ45 (LAN control): x1(shared with internet)
USB Type A (Services): x1(shared with USB A input)
USB Type B (Debug): x1
RS232 (DB 9-pin female): x1
IR Receiver: x1
다른이들
전원 공급 전압: 100-120V/30A ~ 50/60Hz or 220-240V/15A ~ 50Hz(vary by country)
전력 소비: 2030W (typ), 2900W (max)< 0.5W (Sleep), < 0W (Off)
작동 온도: 0~40℃

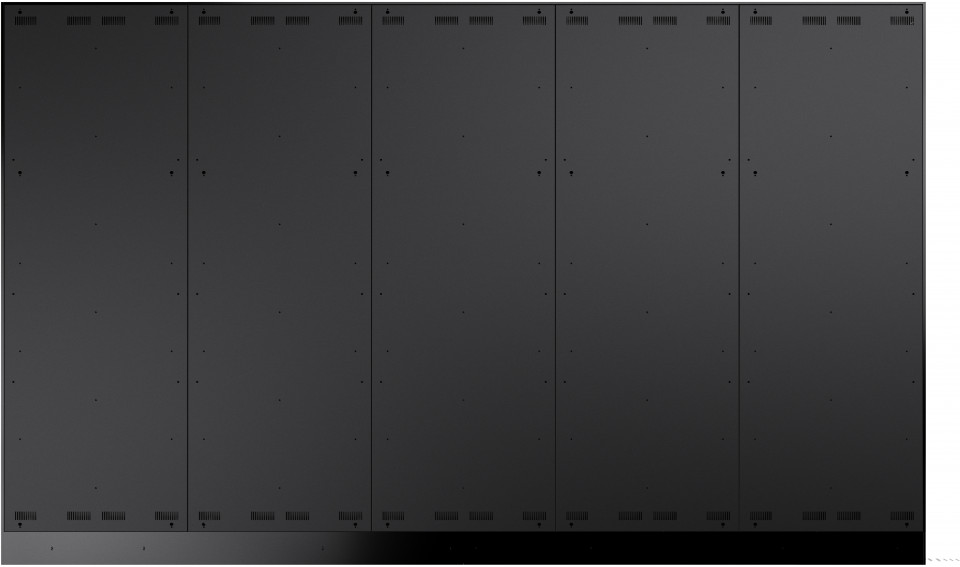

LED Module Quantity: 100
Ingress Protection Rating: IP30
순 중량: 298 lbs(135kg)
Gross Weight: 529 lbs(240kg)
Screen Dimensions (WxHxD): 118.9x71.1x1.4 inches(3020.95 x 1805.95 x 35mm)
Screen Dimensions (WxHxD) with wall mount: 118.9x71.1x2.2 inches(3020.95 x 1805.95 x 56mm)
Packing Dimensions: 70.9x33.5x29.3 inches(1800x850x745mm)
Standard Accessories
전원 코드: x1
USB Cable (A-B): x1
원격 제어: x1
QSG: x1
벽 마운트: x1
Spare Parts: LED PCB Unit x2
Maintenance Tool: LD-MK-001 x1
Optional Accessories
Maintenance Tool: LD-MK-001

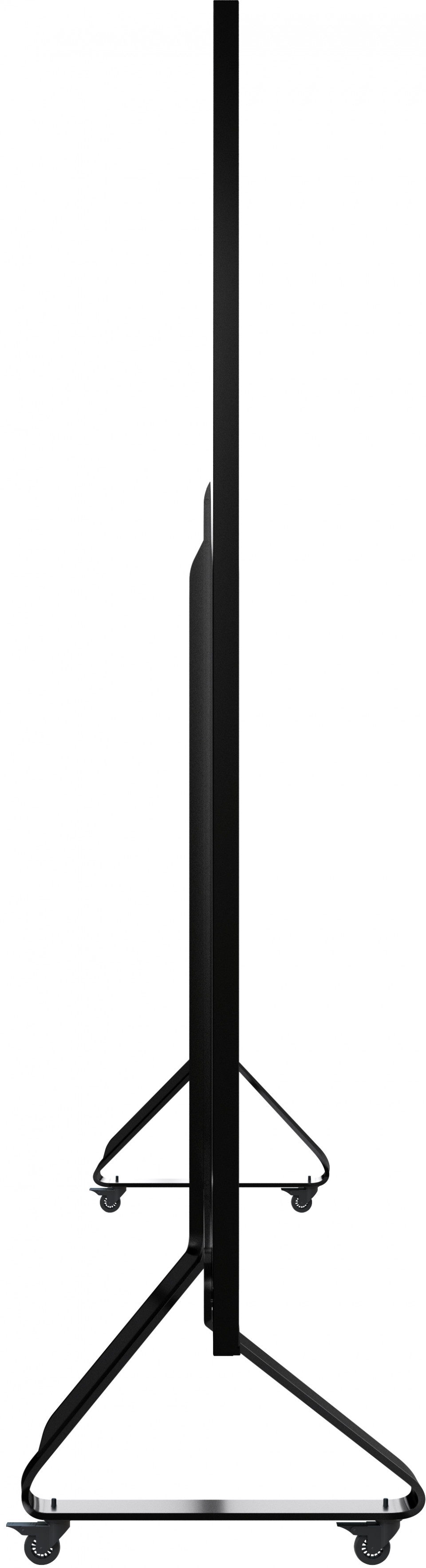

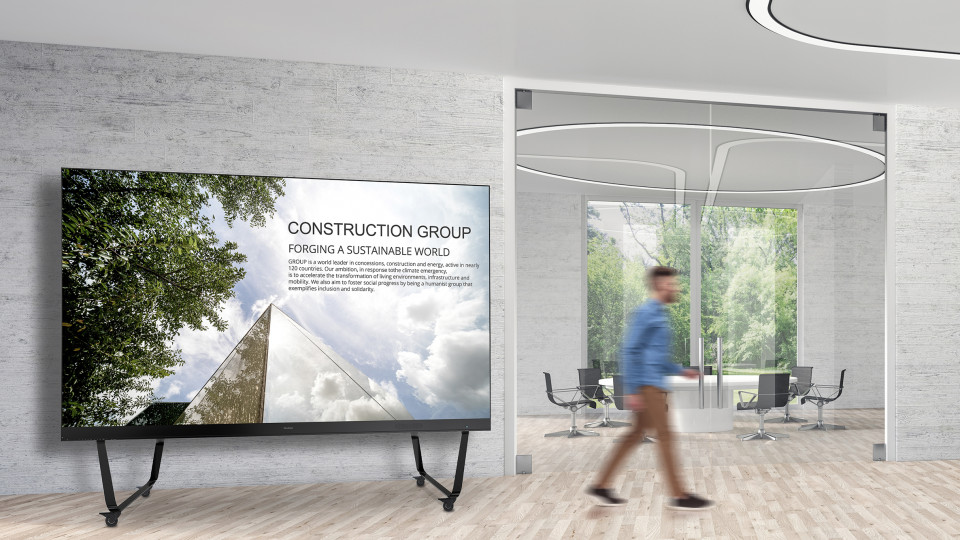

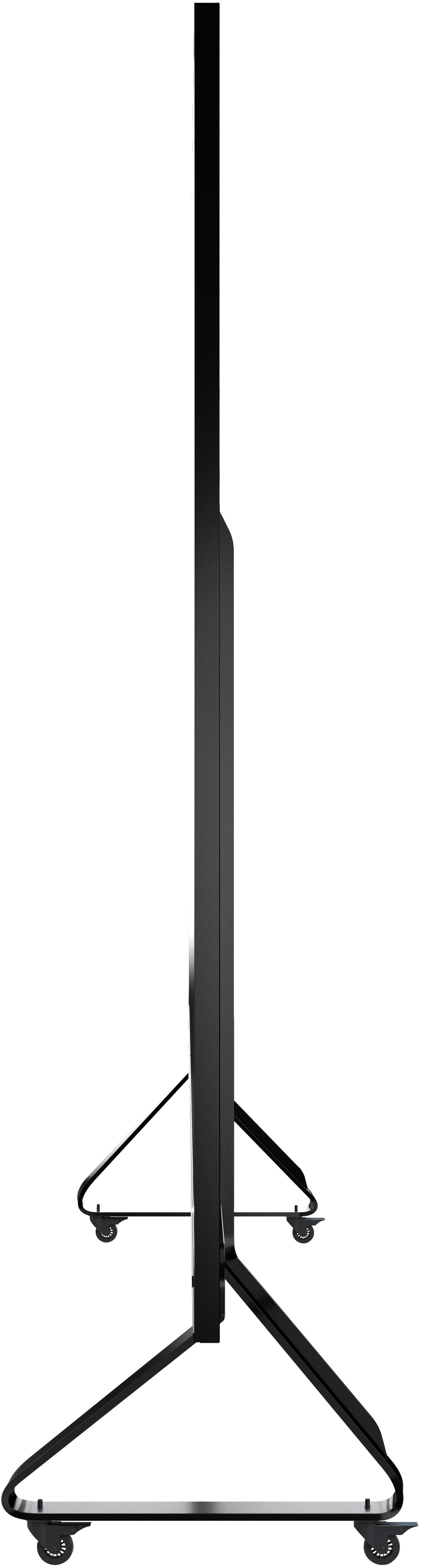

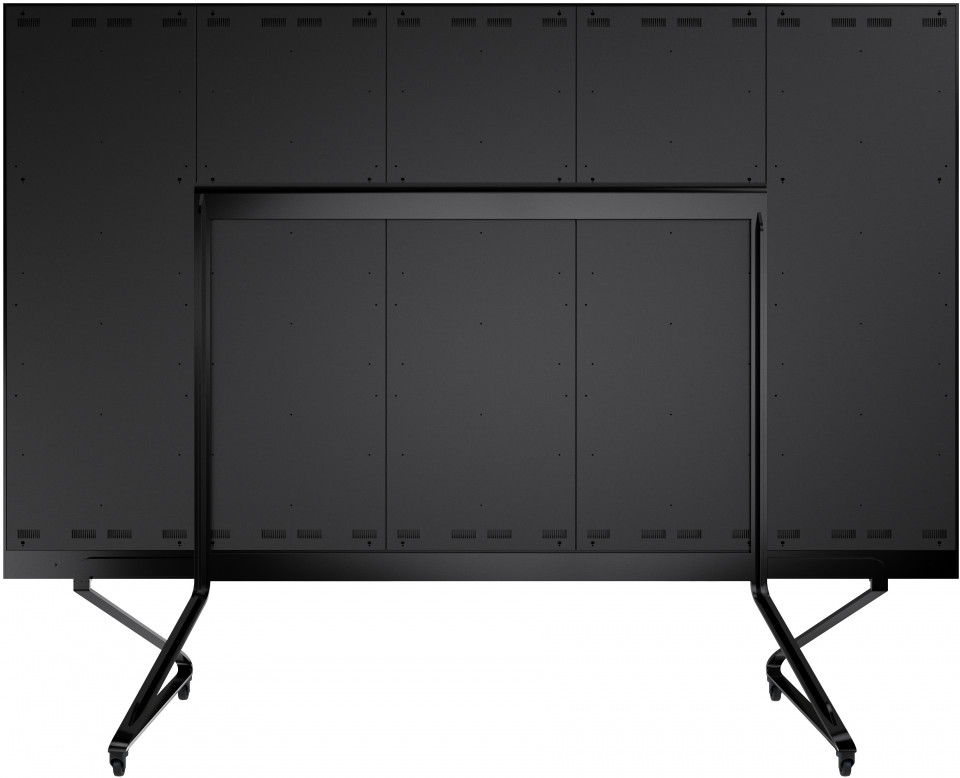

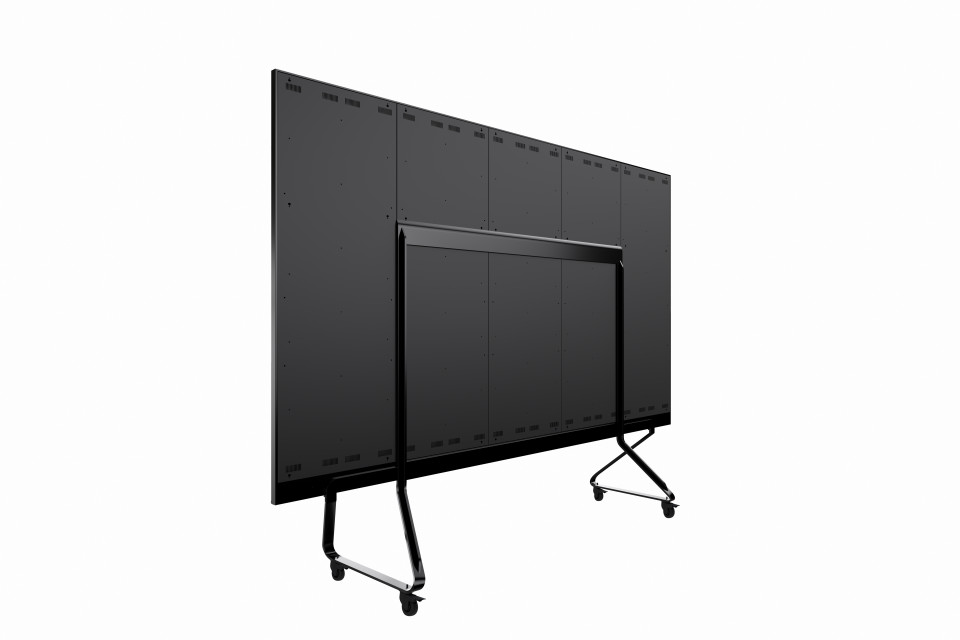

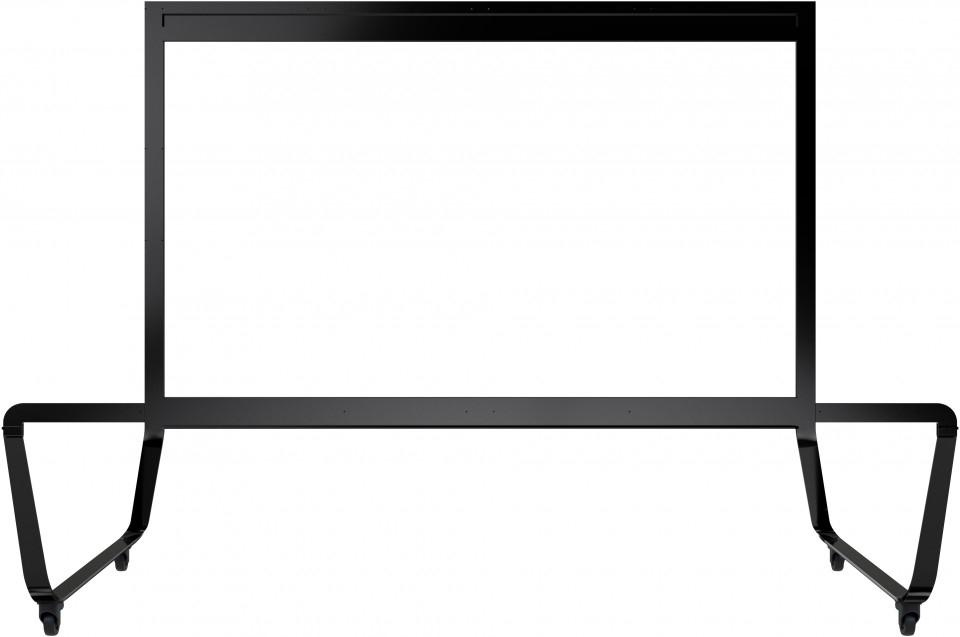

Floor Stand: LD-STND-001
Motorized Trolley: LD-STND-101
ViewBoard Cast Button(USB-C): VB-WPS-001
ViewBoard Cast Button(USB-A+HDMI): VB-WPS-003
