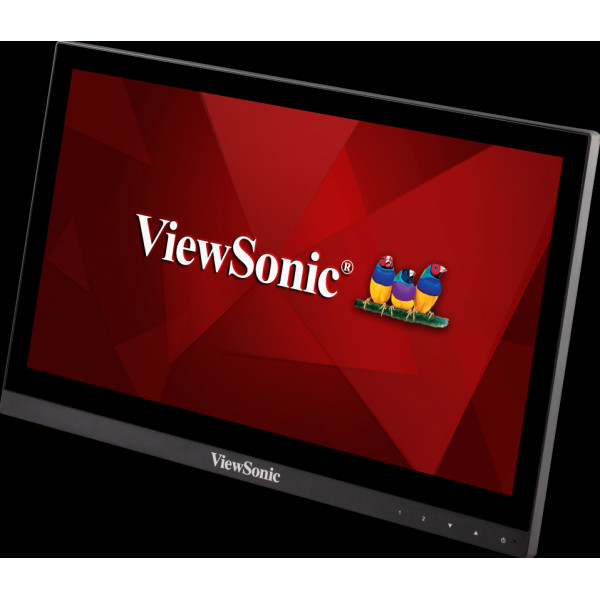

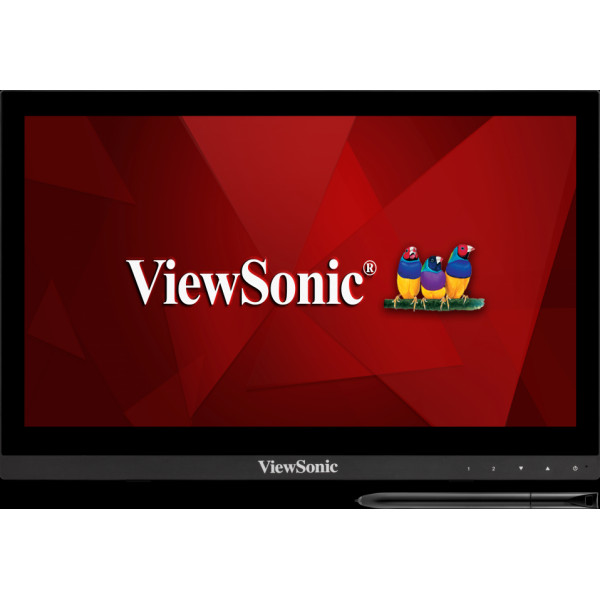

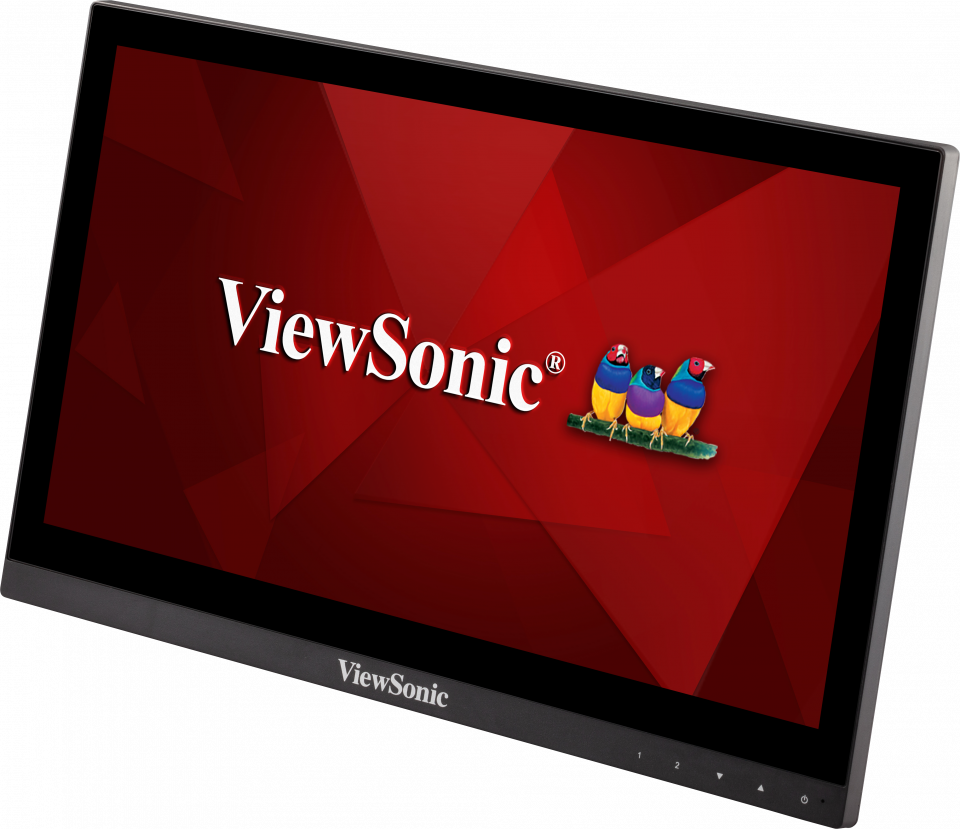

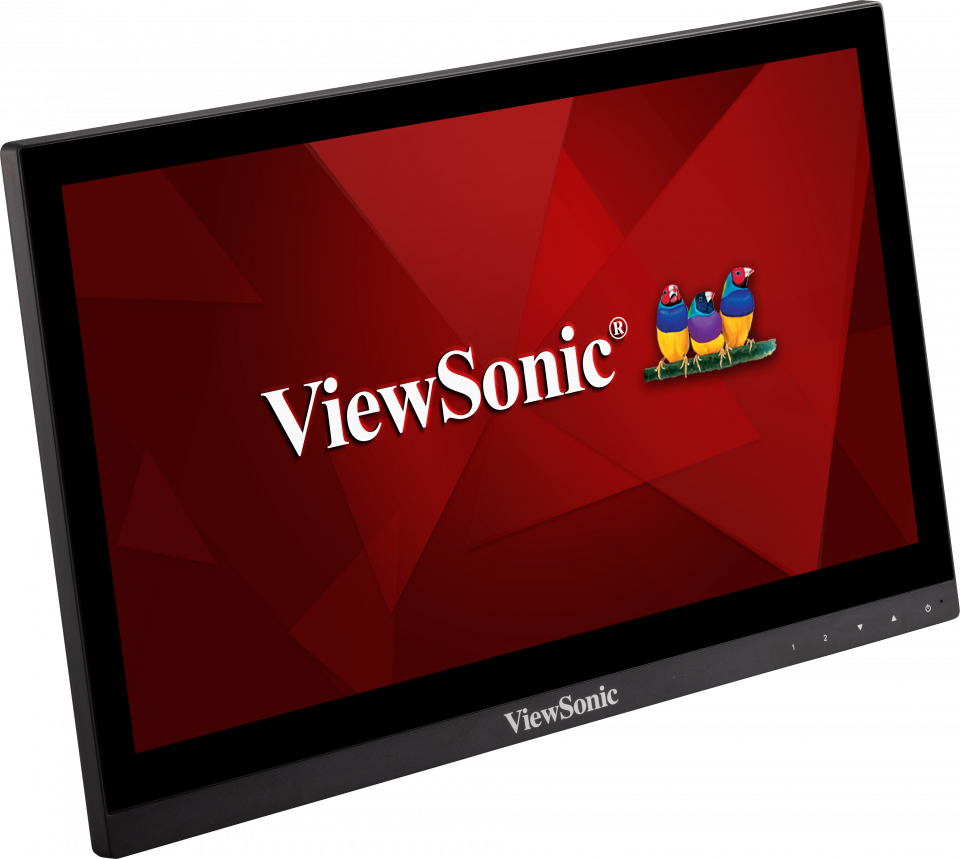

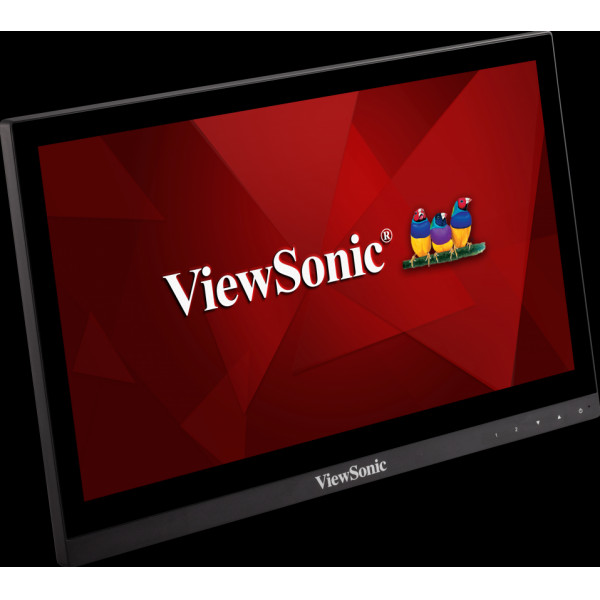

뷰소닉 펜 디스플레이 PD1631

PD1631

Ideal for full-size document viewing and writing in e-document workflow

Implemented antimicrobial technology on pen and housing
High Performance and e-Signature precision with 2048 pen pressure
Ergonomic design, VESA-compliance, and Kensington lock security
Windows® compatible and support e-Signature software
8H glass with anti-scratch, anti-glare, and anti-fingerprint

갤러리

스펙

LCD PANEL
Display Area : 344.16 x 193.59 mm (15.6" TFT LCD)
Optimum Resolution: FHD 1920 x 1080 pixels
밝기: 190 cd/m2
대비 비율: 1000:1
Backlight: LED Light-bar
보기 각도: H:178° / V:178°
Panel Surface: Anti-glare, Hard coating (8H)

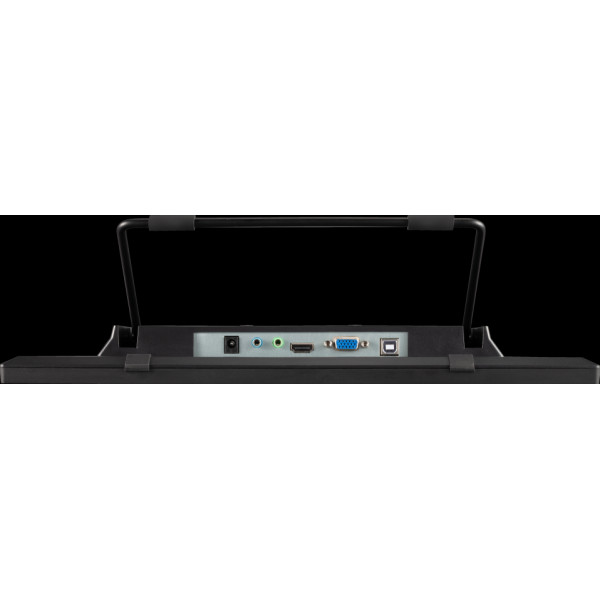

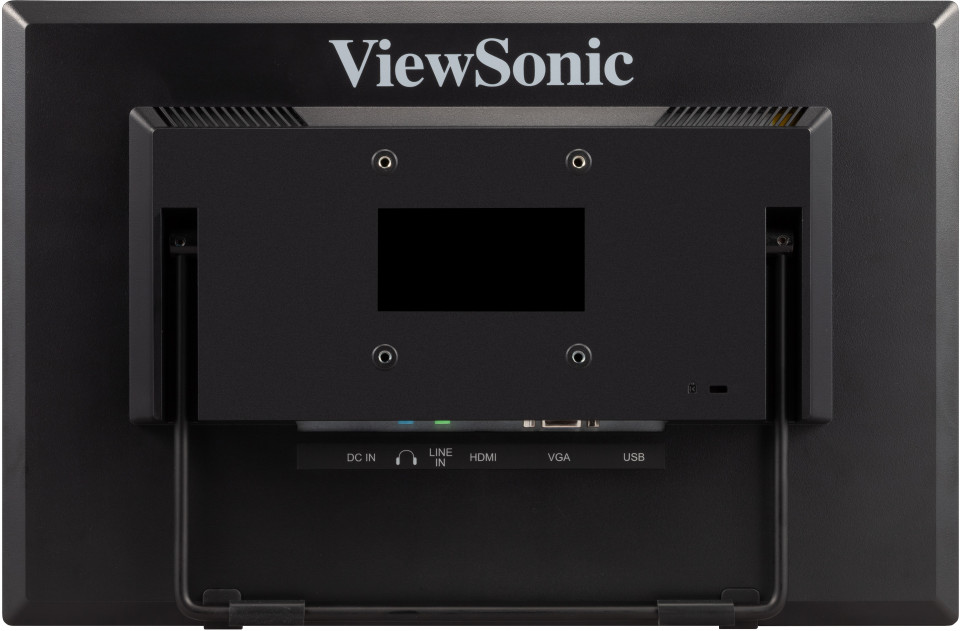

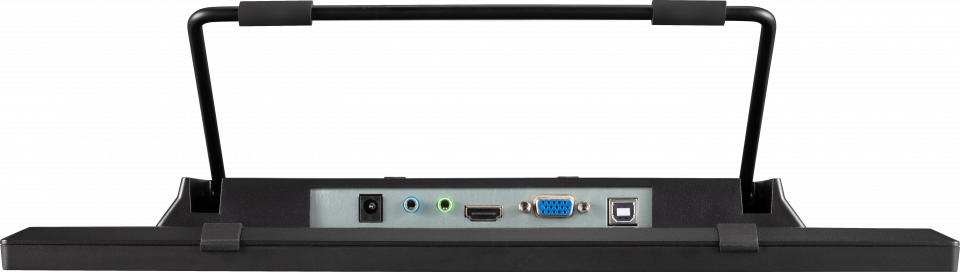

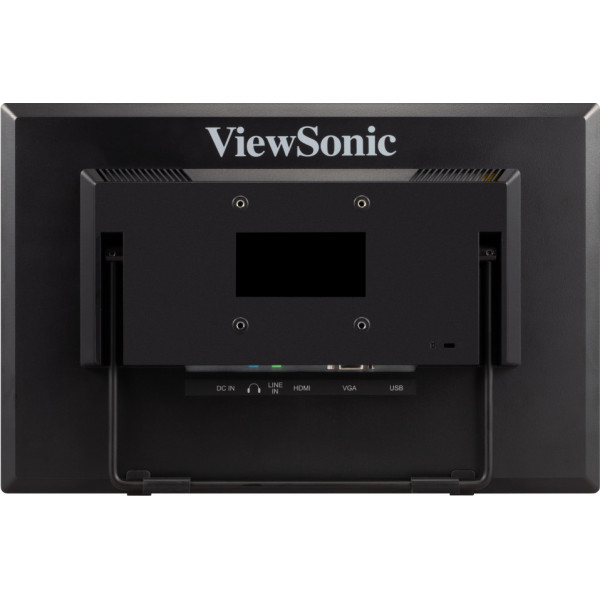

CONNECTOR
HDMI: HDMI (1.4) x 1
Video: HDMI(1.4), VGA
오디오: Earphone x 1, SPK 1W x 2
USB: USB2.0 (B) x 1
힘: Adapter : 12V/3A
TOUCH
Accuracy: +/- 1.0 mm (center)

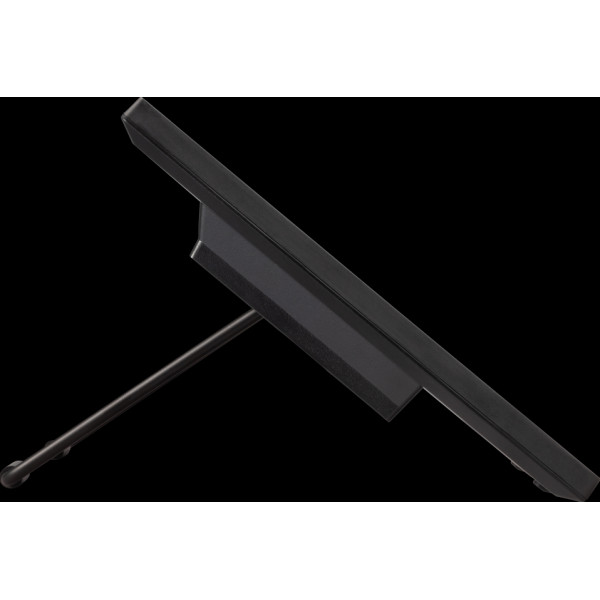

ERGONOMICS

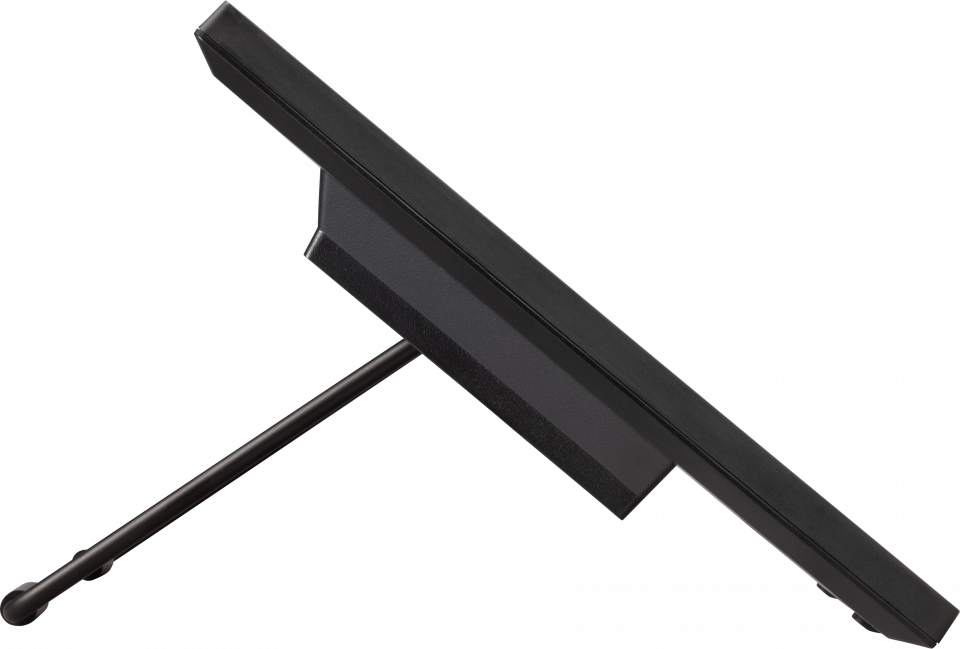

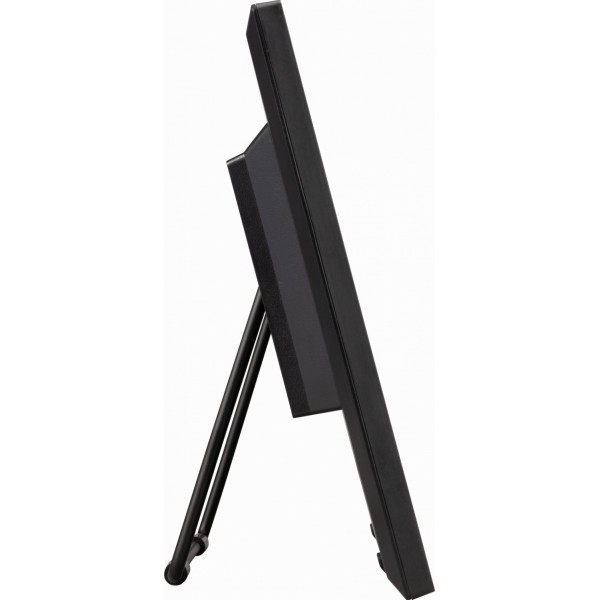

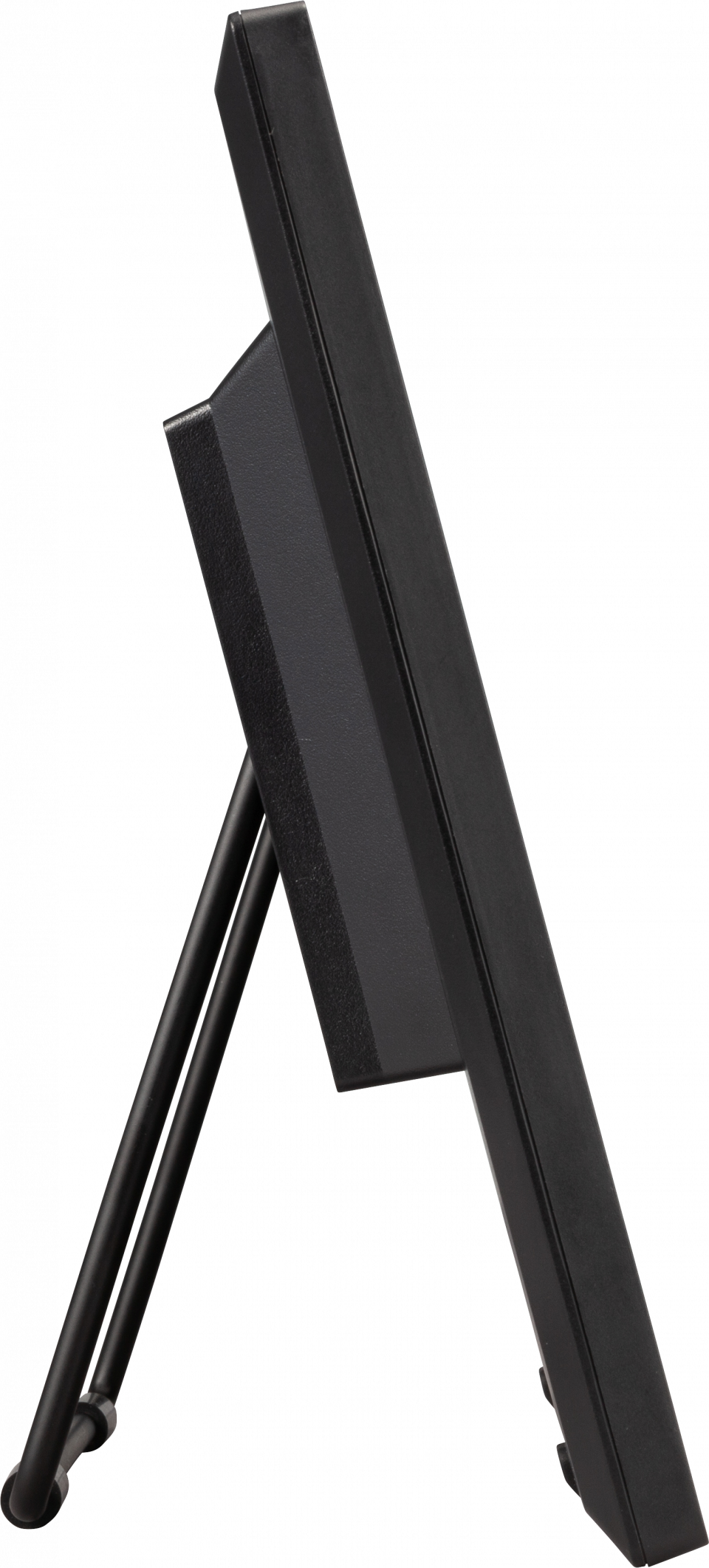

틸트: 0°/ 42°- 80°
COMPATIBILITY
PC: Windows 10, 11, and later
(Win 7, Linux Ubuntu, Chrome OS by request)
POWER
전압: AC 100 – 240 V
소비.: 5.70W (Typ.) / 6.30W (Max.)
OPERATING CONDITIONS
Temperature (º F / º C): 0℃ to 50℃
습도: 20%-80%(Max), Non-condensation
DIMENSIONS W x H x D (inch/mm)
Physical (in / mm): 379.2 x 248.6 x 39.1 mm
Box (in / mm): 453.0 x 389.0 x 86.0 mm
WEIGHT
순(lb/kg): 1.72 kg
총중량(파운드/kg): 2.79 kg
WARRANTY
1 Year
WHAT'S IN THE BOX
1. PD1631 Pen display x 1
2. HDMI cable x 1
3. USB cable x 1
4. EMP-001 Pen x 1
5. Pen nib x 3
6. Pen tether x 1
7. Nib removal tool x 1
8. Power cord x 1
9. AC/DC Power adapter x 1
10. Quick start guide x 1
