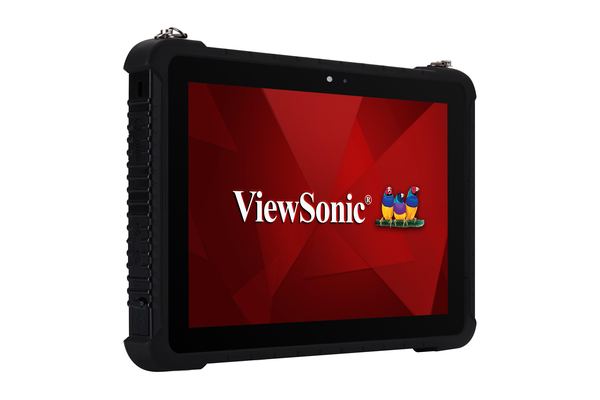

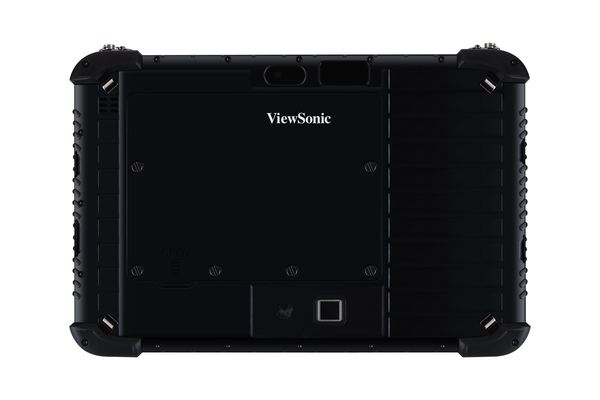

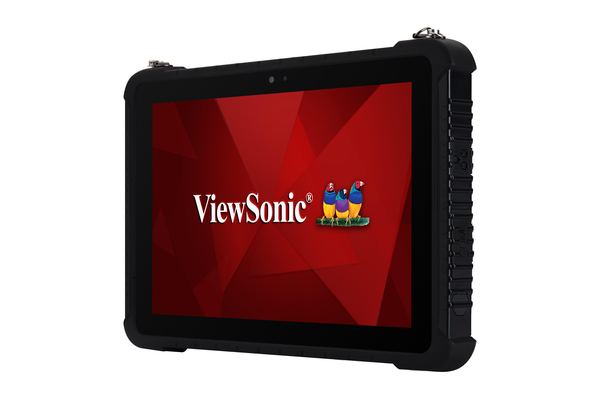

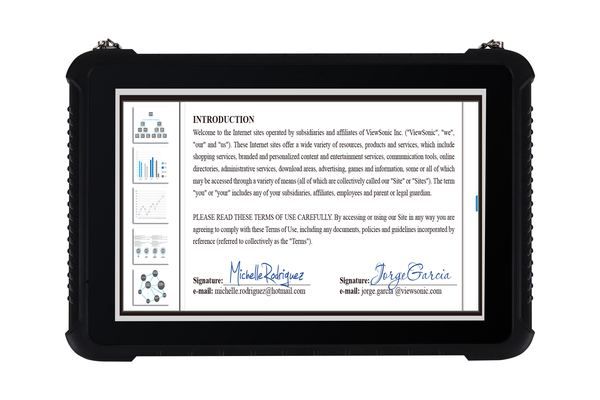

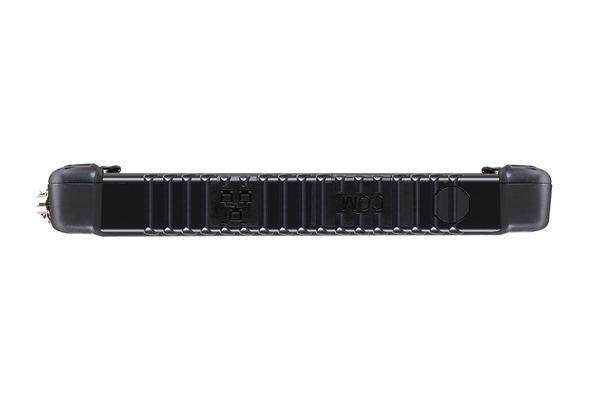

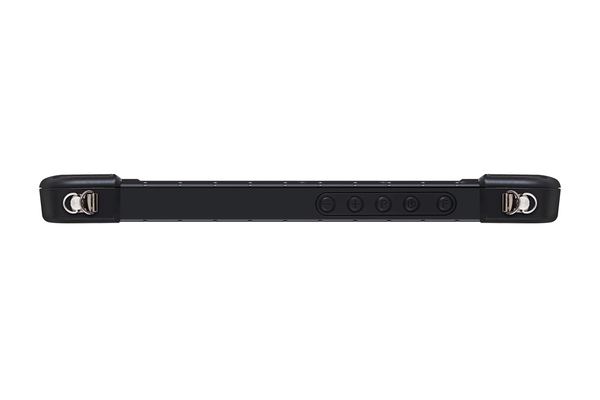

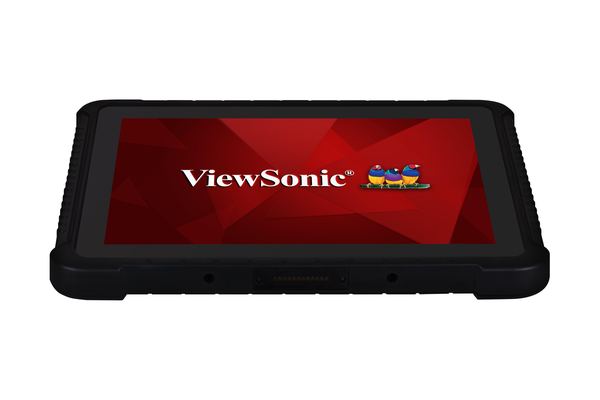

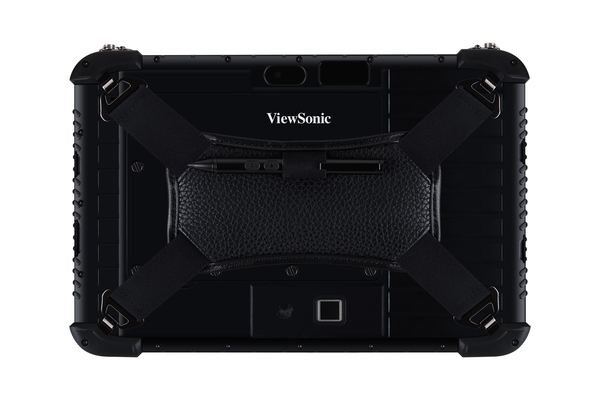

뷰소닉 펜 디스플레이 PT1091

PT1091

10.1” Fully Rugged Windows Tablet with Writing Features

갤러리

스펙

LCD PANEL
Display Area: 10.1” 16:10 IPS
결의안: 1280*800
Brightness(cd/m2): 280 cd/m2
CONNECTOR
Digital: HDMI 1.4a Type C x1
Audio Out: ∮3.5mm standard earphone jack x1
Audio In: DC 5V 3A ∮3.5mm Power connector x1
TOUCH
Touch solution: 10-Point Capacitive Touch, Fingerprint, Active Capavitive Pen
Pen Pressure (levels): 1024 levels
Report Rate (point/sec): 13

COMPATIBILITY
PC: Windows 10
POWER
전압: 3.7V
소비.: Battery can last up to 8 hrs (At 50% volume, 200 nits, playing 1080p video)
OPERATING CONDITIONS
Temperature ( º C): -10 °C to 50 °C
습도: 95% Non-Condensing
DIMENSIONS W x H x D (inch/mm)
Physical (cm): 28 x 18.7 x 2.2
Box (cm): 31 x 23 x 9
WEIGHT
순(kg: Tablet w/o battery: 1.014kg
Battery: 0.25kg
그로스(kg): 2kg
패키지 내용물
1. PT1091 Pen Tablet*1
2. USB Cable to Micro USB Cable
3. Pen*1
4. Power adapter
5. User Guide *1 (e-file)
6. Quick Start Guide *1
7. Warranty Card*1(VSCN only)*1

*Actual content may differ from market to market
