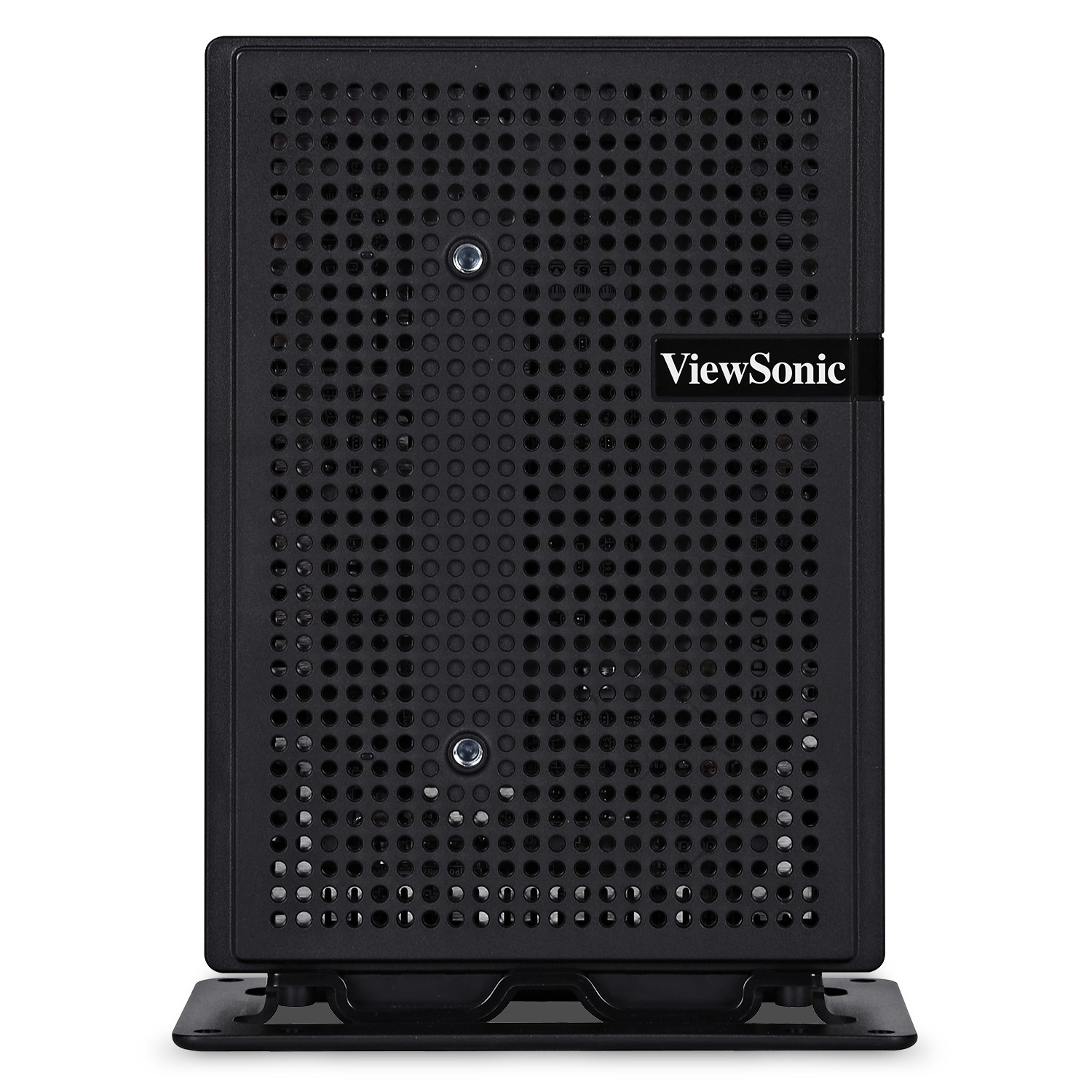

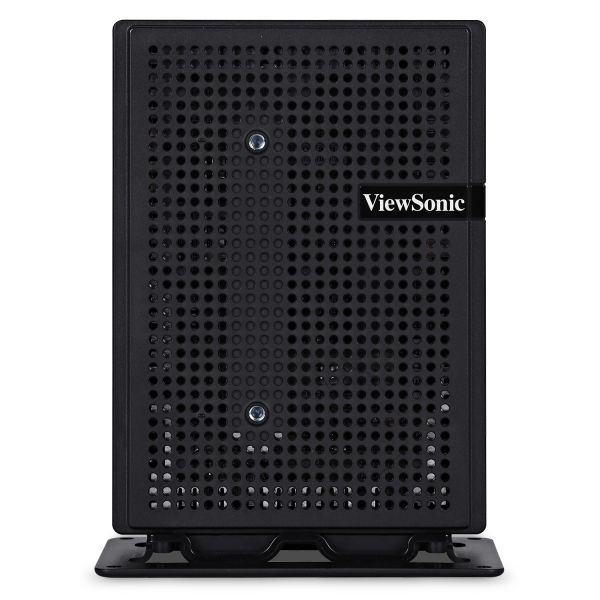

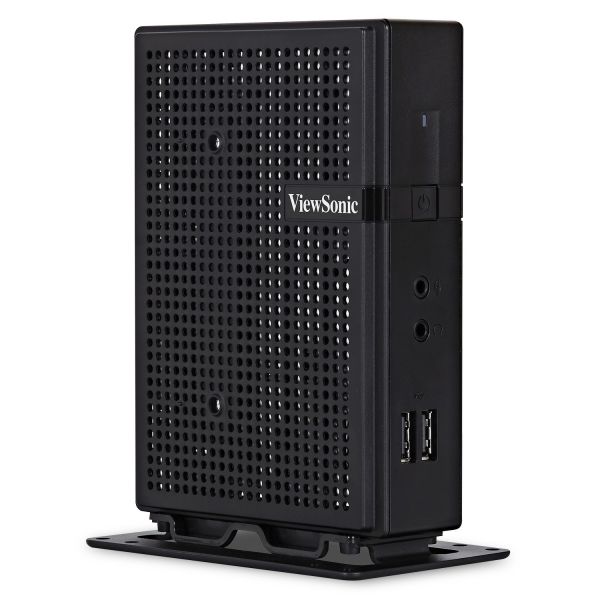

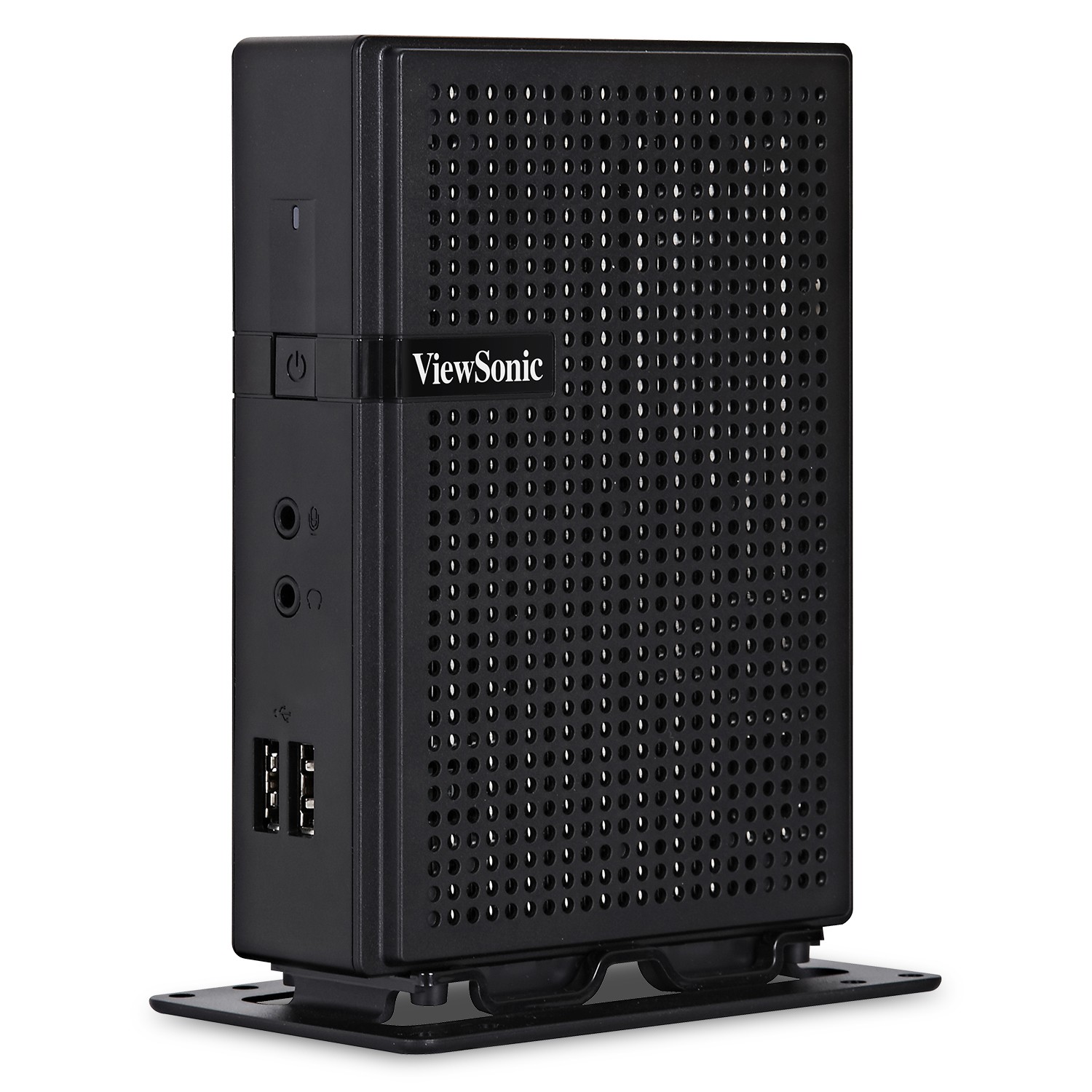

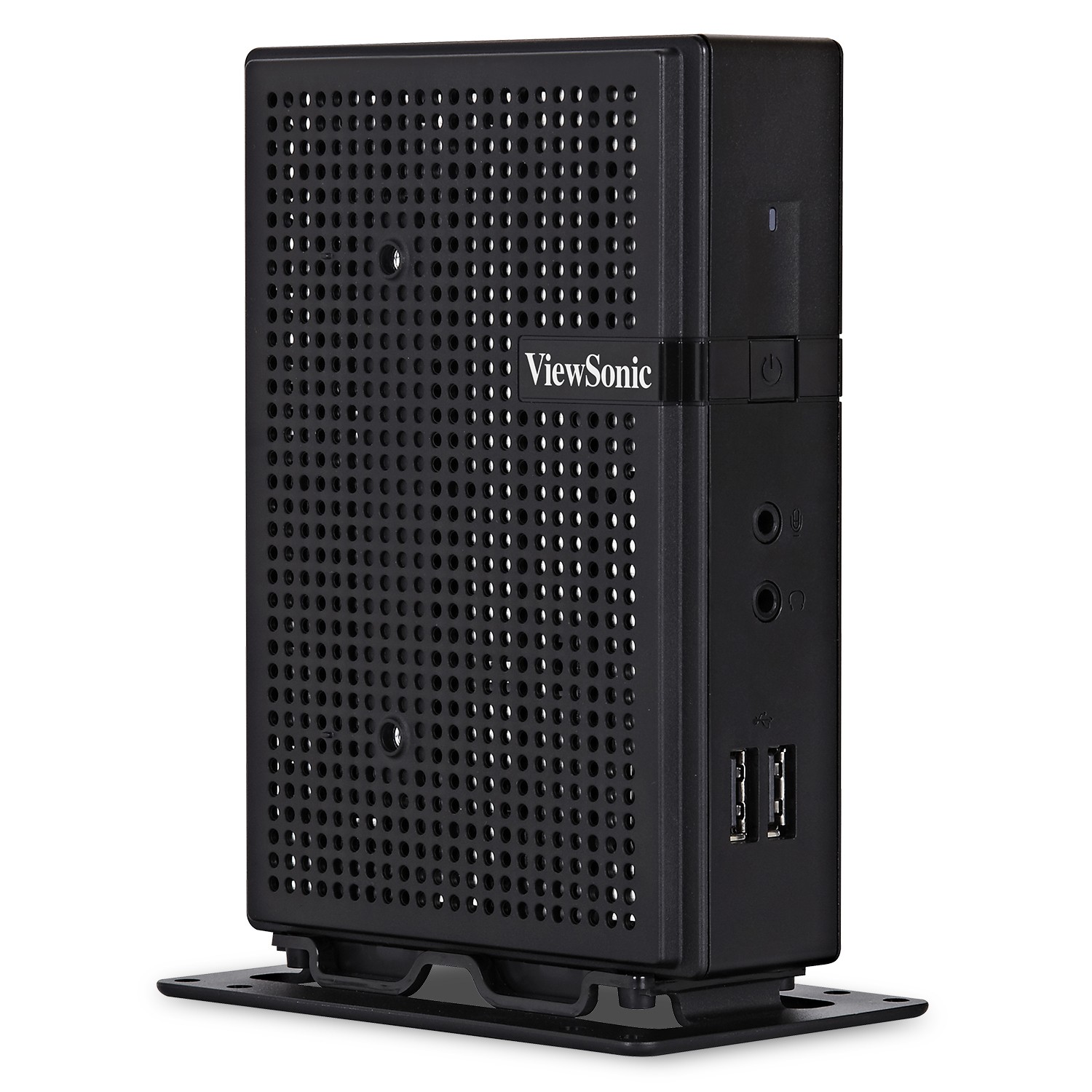

뷰소닉 신 클라이언트 SC-T35

SC-T35

Endless Possibilities. Flexible Thin Client.

갤러리

스펙

GENERAL
Regulations: FCC, ENERGY STAR® , EPEAT Silver, WEEE, RoHS compliant, REACH compliant
재활용/폐기: Please dispose of in accordance with local, state or federal laws.
패키지 내용물: SC-T35 Thin Client, power cord, power adapter, DVI-I to VGA adapter, Stand/VESA mounting bracket, Quick Start Guide, ViewSonic Wizard CD

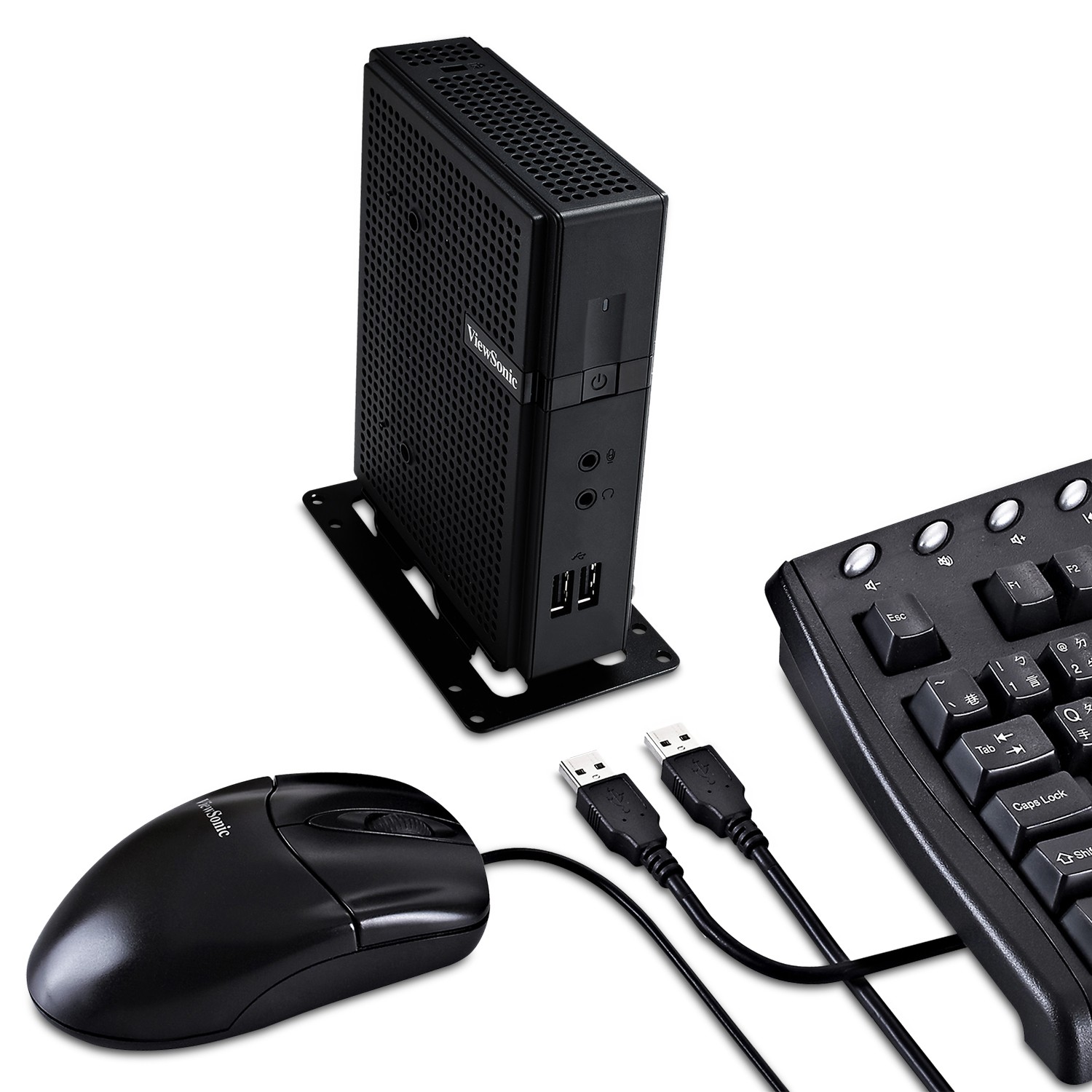

Optional Accessories (sold separately): Optional wireless USB adapter (WPD-100), USB Keyboard & Mouse (VMP10B_KM1US05)
CORE
CPU Processor Type: TI DM8148 ARM
CPU Processor Speed: 1.0 GHz
GRAPHICS
Graphic Chipset: None
결의안: 1920x1080 (1920x1200 supported with Pixel Clock <165Mhz)

MEMORY
System: DDR3 1GB @ 800MHz
보관소: 512MB Flash
SOFTWARE
운영 체제: Linux
Management: ViewSonic Device Manager / ViewSonic Client Setup
Protocols: Citrix ICA/HDX 12.2.3, VMware View 5.01, Microsoft RDP7.1 with RemoteFX
Network Standard: Gigabit Ethernet ,DHCP, SSL, PPPoE, Wake on LAN
COMMUNICATION
Ethernet LAN: 10/100/1000 MB
Wireless LAN: 802.11 b/g/n with optional wireless USB adapter (WPD-100)

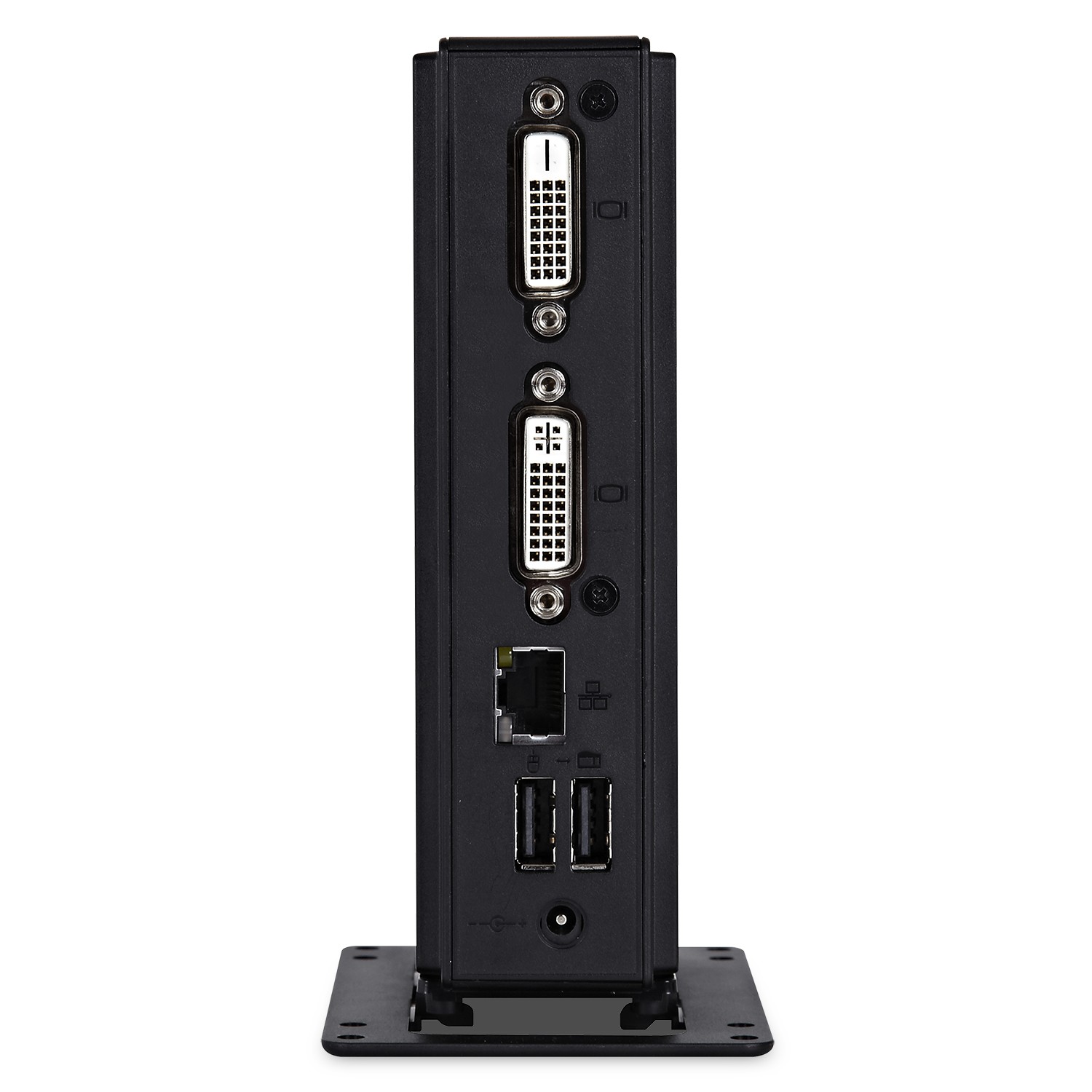

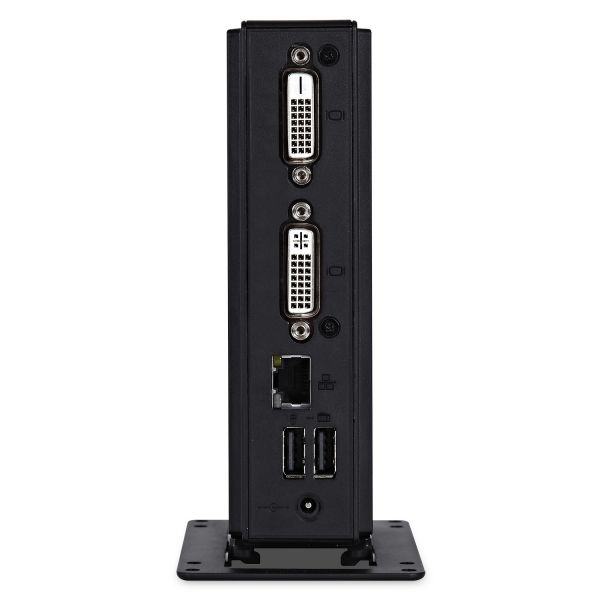

CONNECTOR

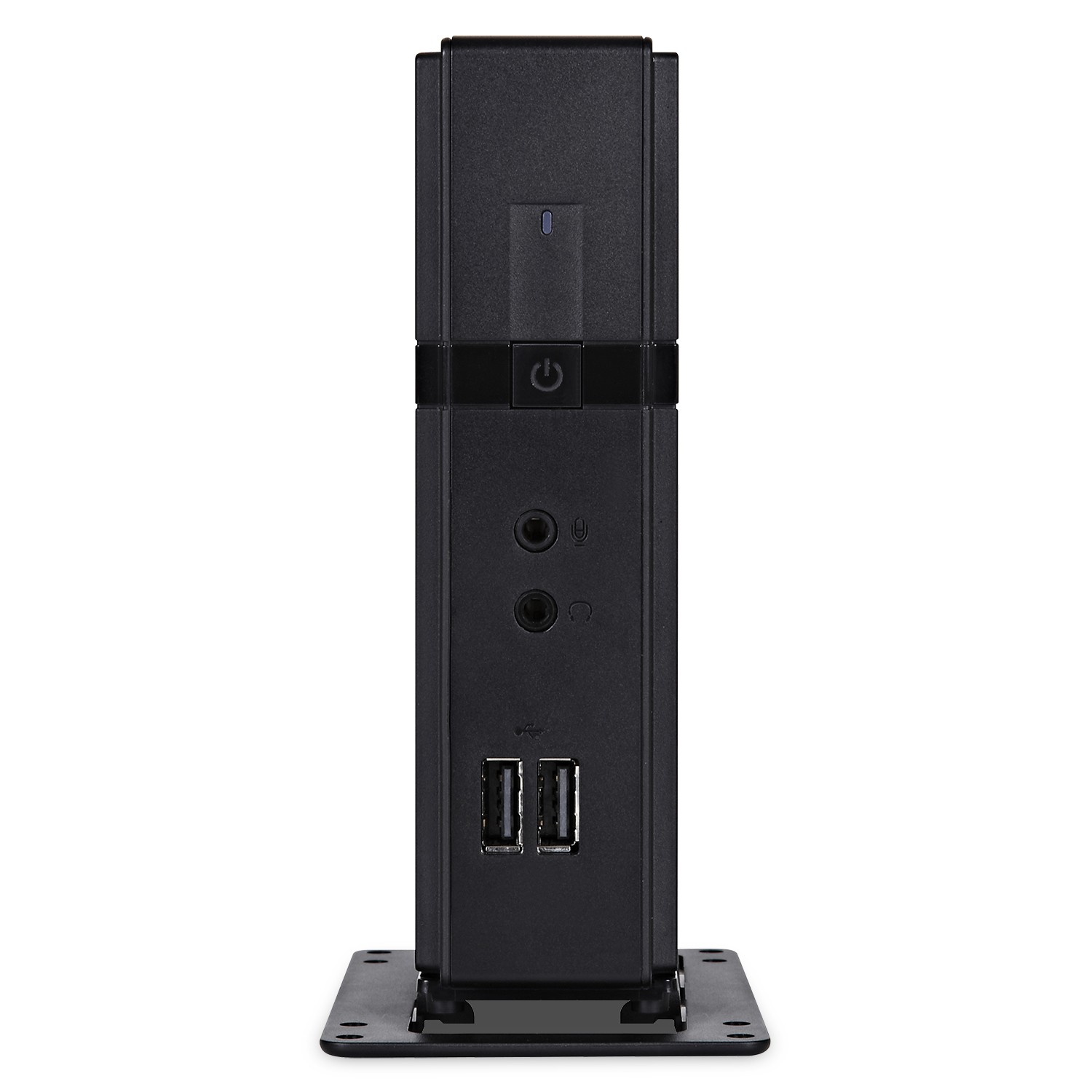

USB: USB 2.0 (x2 front, x2 rear)
Video Out: DVI-D (x1), DVI-I (x1)
LAN: RJ45 (x1)
Microphone In: 3.5mm mini jack (x1)
Headphone : 3.5mm mini jack (x1)
힘: DC In
POWER
전압: 5V DC; 3A, 15W
소비.: 8W (typ)
OPERATING CONDITIONS
온도: 32–104ºF (0–40ºC)
습도: 10–90% (non-condensing)
DIMENSIONS (WxHxD)

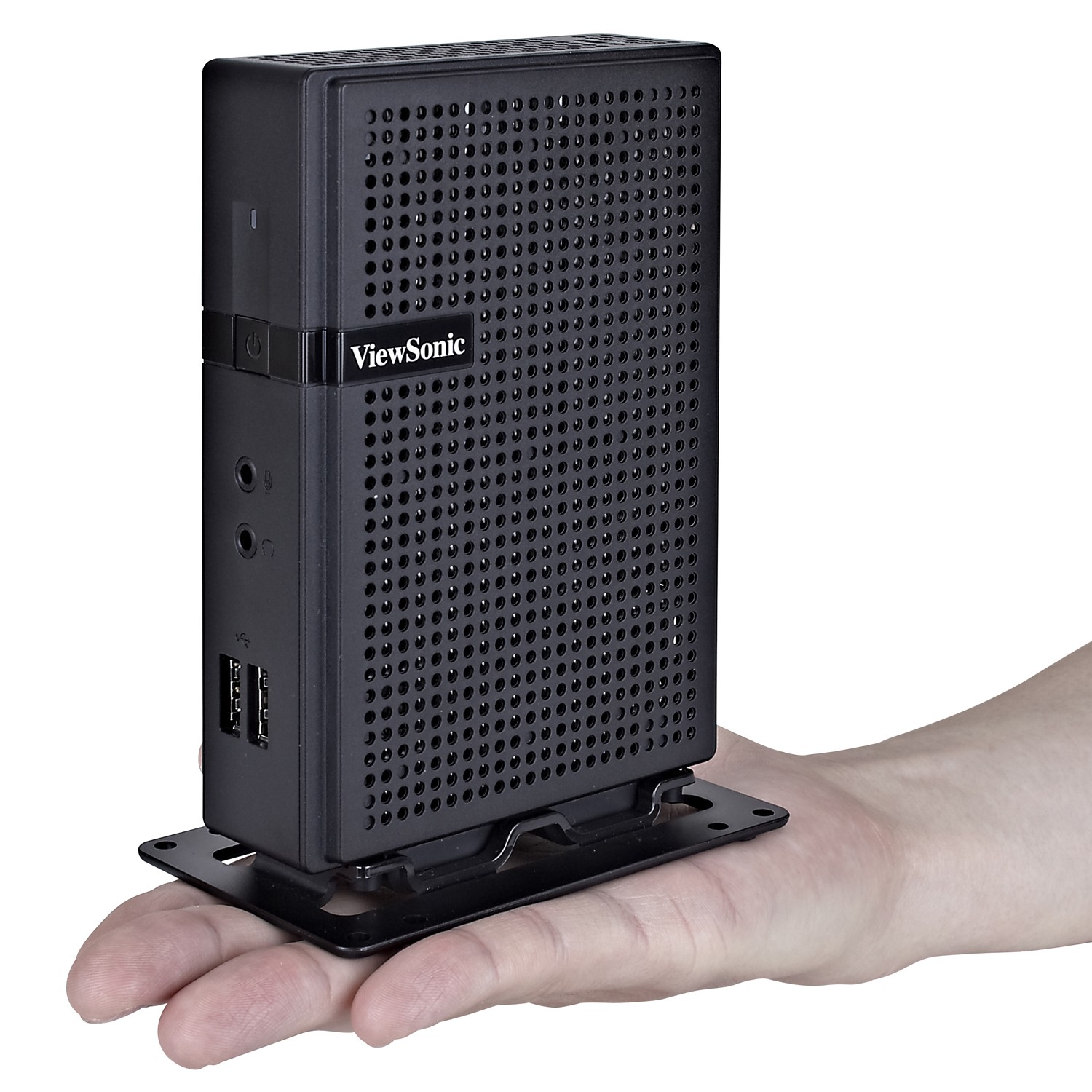

Physical with Stand: 1.6 x 5.6 x 4.1 in. / 39.5 x143 x 103 mm
Packaging: 7.9 x 5.0 x 6.2 in. / 200 x 128 x 157 mm
WEIGHT
그물: 1.0 lb. / 0.5 kg
징그러워요: 2.2 lb. / 1.0 kg

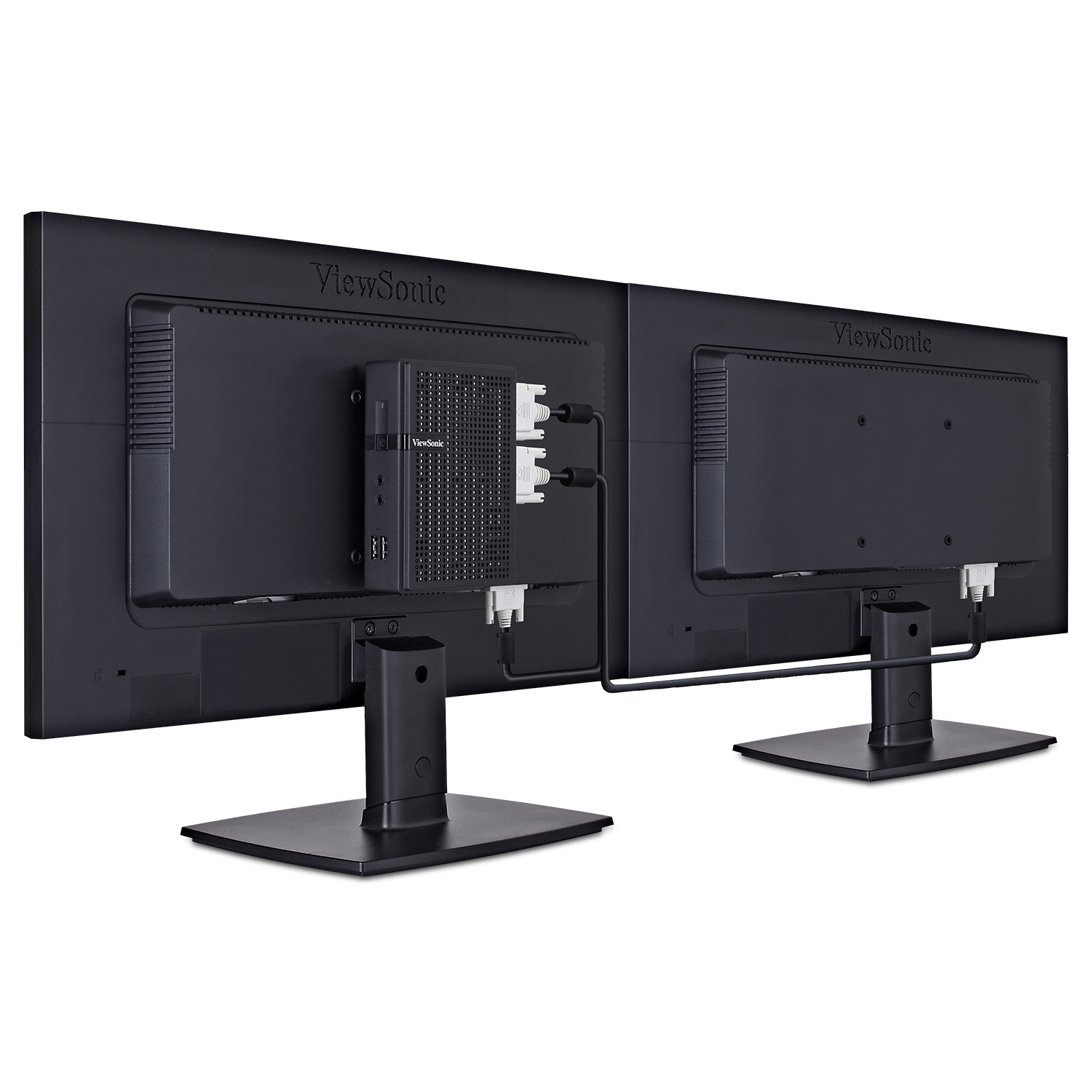

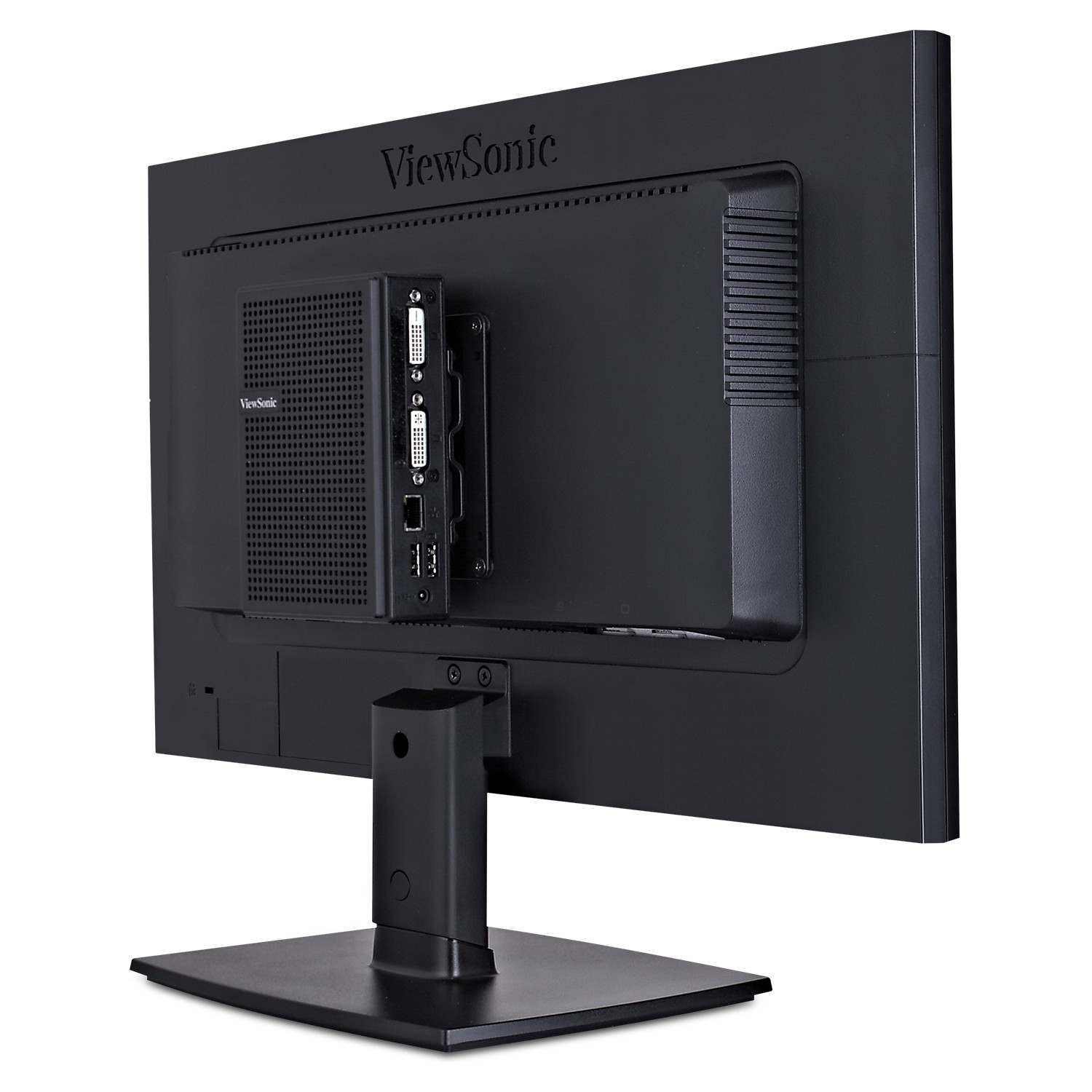

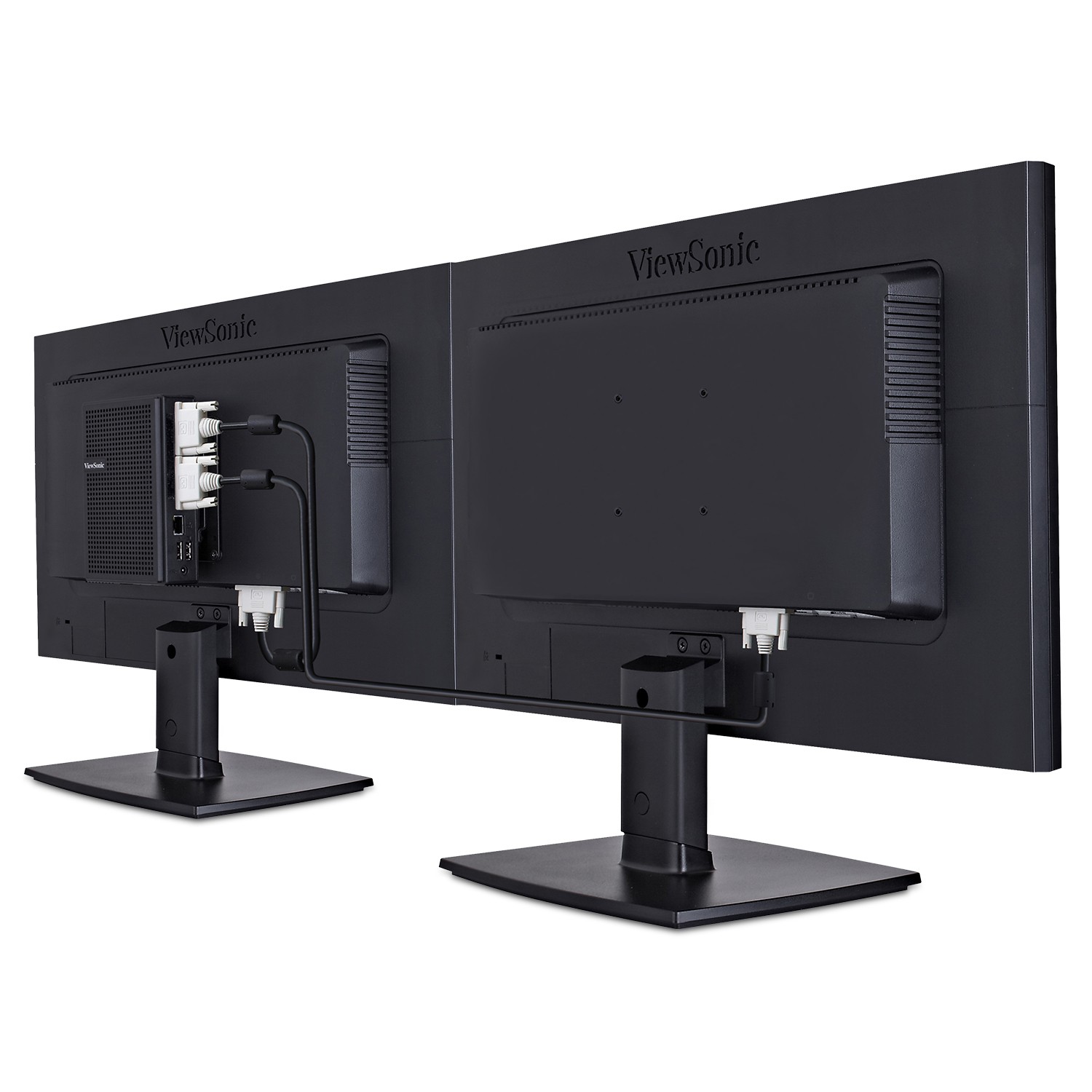

WALL MOUNT
VESA: 100mm x 100mm

지원 & 다운로드

데이터 시트

SC-T35 데이터 시트

유저 가이드

SC-T35 User Guide (English)SC-T35 User Guide (Español )SC-T35 User Guide (Français)ViewSonic Device Manager(Deutsch)ViewSonic Device Manager(English)ViewSonic Device Manager(Español )ViewSonic Device Manager(Français)

Driver & Software

ViewSonic Device Manager Software_2.08.036
