뷰소닉 신 클라이언트 SD-T225

SD-T225

Thin Client 21.5” LED display for more flexible virtual desktops

갤러리

스펙

SYSTEM
CPU Processor : TI DM8148, Cortex A8
운영 체제: Linux
System Memory : DDR3 1GB (256MBx4)
Storage Memory : eMMC, 4GB
DISPLAY
유형: 21.5" Colour active matrix TFT LCD
Optimum Resolution: 1920 x 1080 (WUXGA)
밝기: 250 cd/m2 (Typ)
Contrast Ratio : 1000 :1 (Typ.) 700:1(min)
보기 각도: 170 Deg H and 160 Deg V (Typ.)
응답 시간: Tr+Tf: 5ms(Typ.) / 10ms (Max.)
Backlight: WLED
백라이트 라이프: 30000 Hrs (Min)
Touch Panel: Anti-Glare type, Hard-coating (3H)

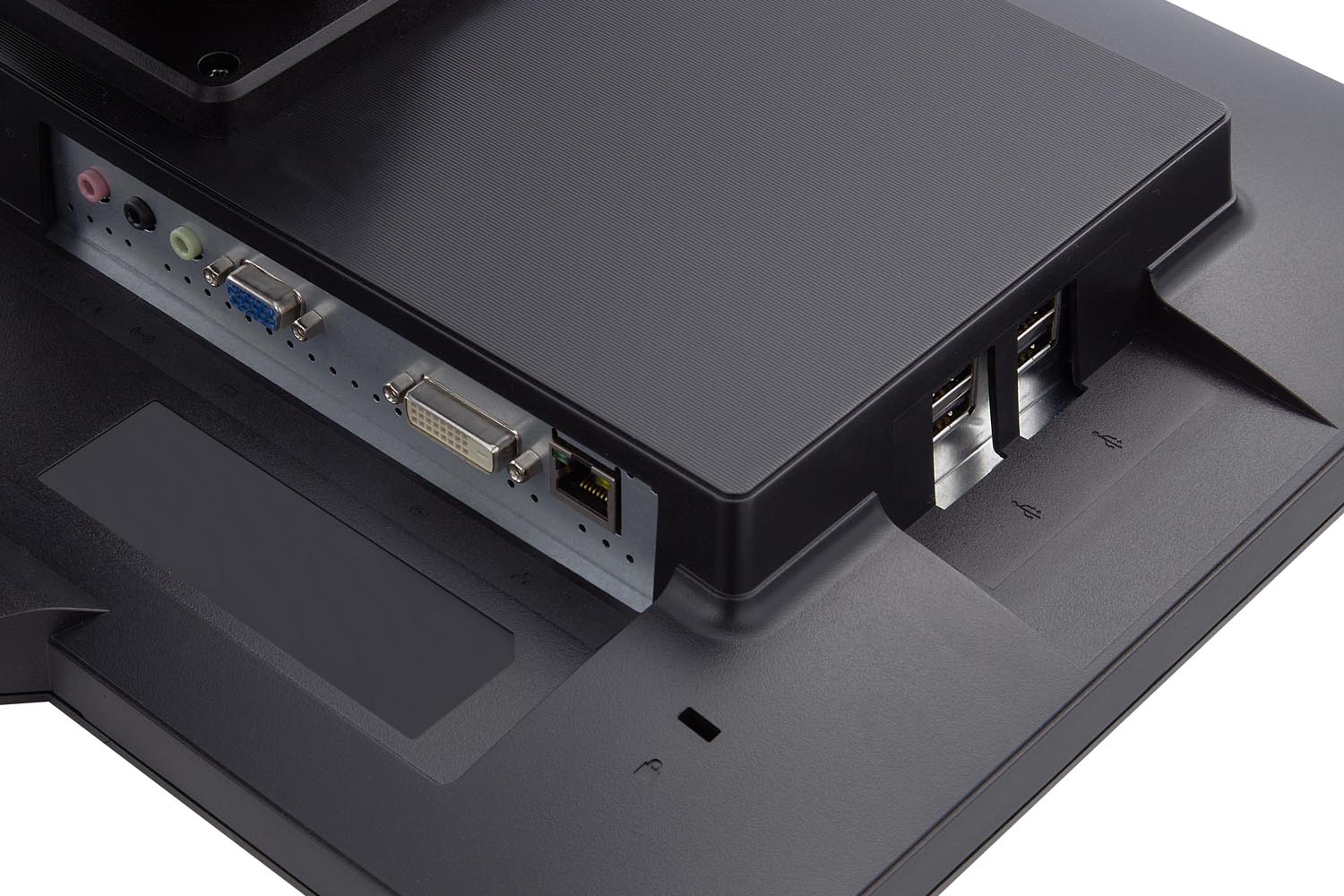

INPUT/OUTPUT
USB : USB 2.0 x4
LAN/Ethernet: RJ45
Video: DVI-D output x1; RGB x1
오디오: Microphone in x1; Microphone out x1
Power : DC In x1
Speakers : 2W x2

COMPATIBILITY
PC : PC Compatibles (from VGA up to 1920 x 1080 Non Interlaced)
Mac®: Power Mac (up to 1920 x 1080 )
POWER
전압: AC: 90~240V; 50/60Hz; 3.42A, 65W
Consumption : 25.5 W (typ)
ERGONOMICS
Tilt : 21°- ~ 25° / 0° ~ -5°
OPERATING CONDITIONS
Temperature (º F / º C): 32°~95°F / 0°~35°C
습도: 15 % ~ 90%, Non-Condensation
DIMENSIONS (W x H x D)
물리적(인치/mm): 20.17” (W) x 14..46” (H) x8.01” (D) / 512.4(W)x367.4(H)x204.3(D)mm
포장(inch/mm): 22.48 ” (W) x 15.35” (H) x 6.73” (D) / 571 mm (W) x 390 mm (H) 171 mm (D)

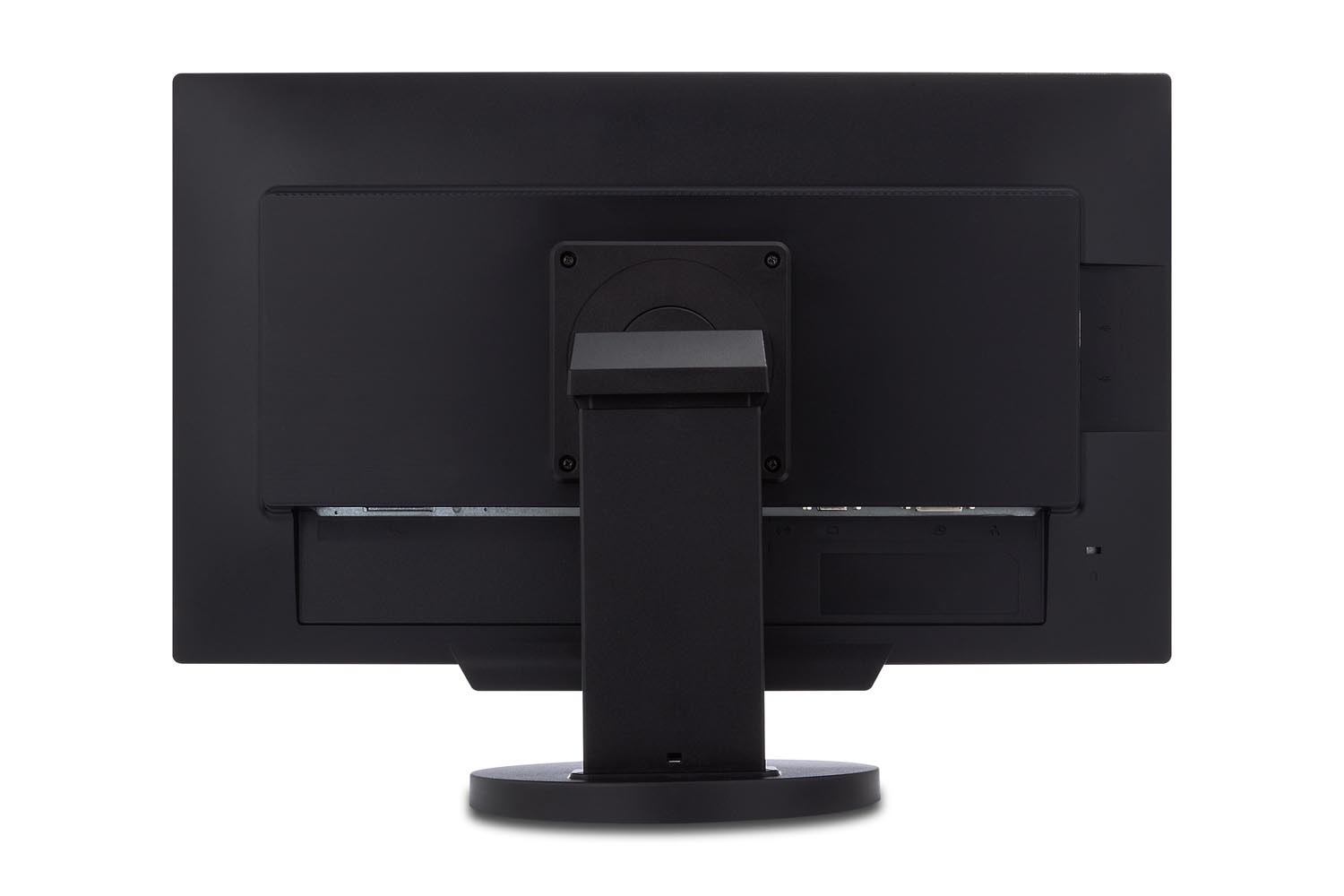

WALL MOUNT
VESA® : 100x100mm
RECYCLE / DISPOSAL
Please dispose of in accordance with local, state or federal laws
WHAT'S IN THE BOX
1. Thin Client Monitor*1
2. Power cord*1
3. Quick Star Guide *1
4. CD Wizard*1
5. Compliance information*1
6. VGA cable*1
*Actual content may differ from market to market
