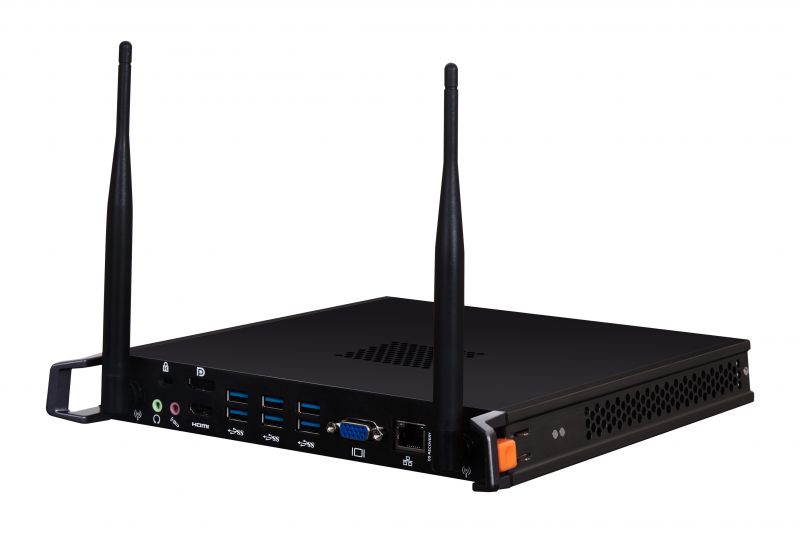

뷰소닉 Slot in PC VPC10-WP

VPC10-WP

Windows Slot-in PC for ViewBoard® IFP8650/7550/6550/5550

갤러리

스펙

System
CPU: Intel® Core™ i5-6400
기억: DDR4 8GB (expendable to 16GB)
그래픽스: Intel HD Graphics 530
보관소: 2.5" 128GB SATA3 SSD (expendable to 256G)
Network: Wireless 802.11 abgn-AC (2.4GHz/5GHz)
Bluetooth 4.0
Gigabit LAN ethernet
OS: Windows 10 Pro 64 bit support
INPUT
MIC(마이크): x 1
OUTPUT
HDMI: x 1
RGB / VGA: x 1
디스플레이 포트: x 1
Audio (Earphone out): x 1

LAN
RJ45: x 1
USB
3.0 Type A: x 6
소프트웨어
Windows 10 Pro 64 bit*, ViewBoard 2.1
*Region need to purchase and activate the Window 10 license locally
힘
전압: AC 110-240V 50/60Hz 1A
소비.: 95W
OPERATING CONDITIONS
온도(θ C): 32°F to 113°F (0°C to 45°C)
습도: 10% ~ 90% non-condensing
DIMENSIONS(W x H x D)
Physical w/o Stand (mm / inch): 246 x 265 x 32 mm / 9.7 x 10.4 x 1.25 inch
WEIGHT
Net (kg / lb): 1.9kg / 4.2lbs
Gross (kg / lb): 2.4 kg / 5.29 lbs
