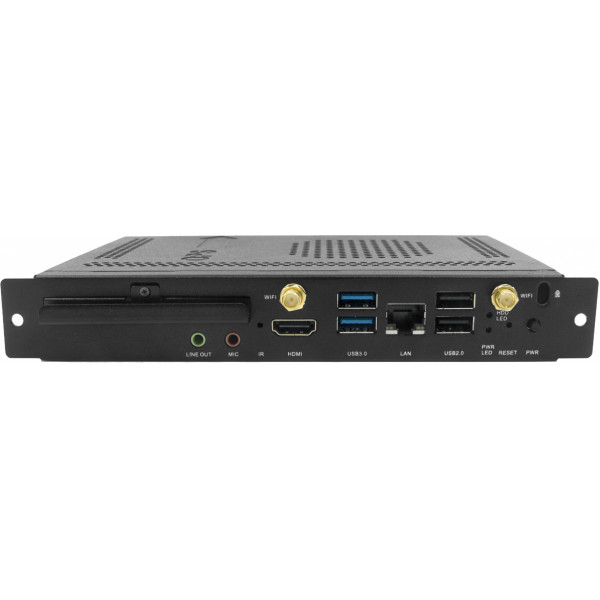

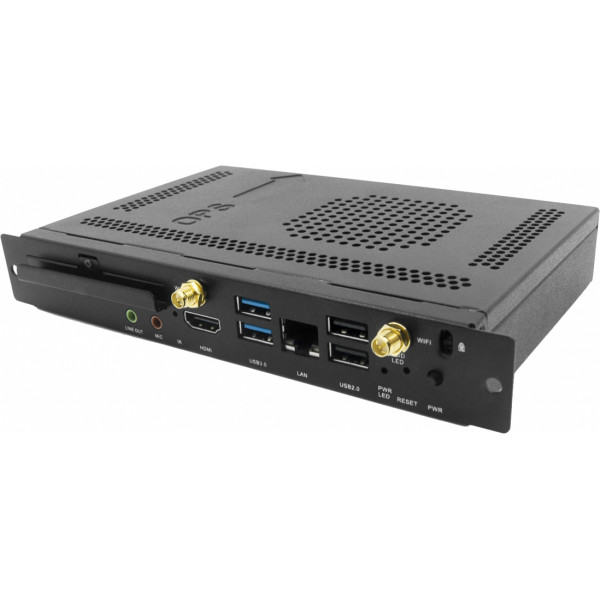

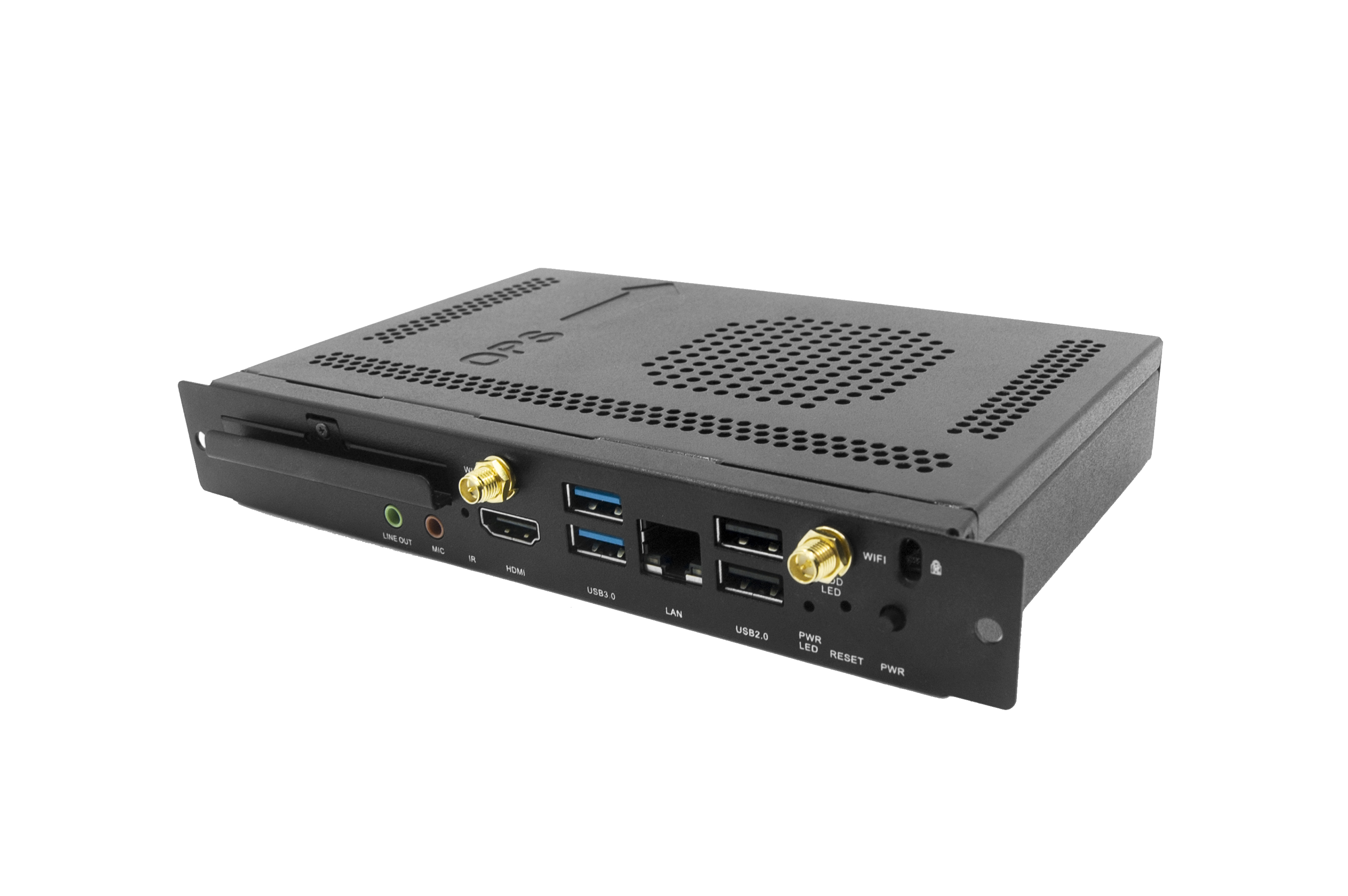

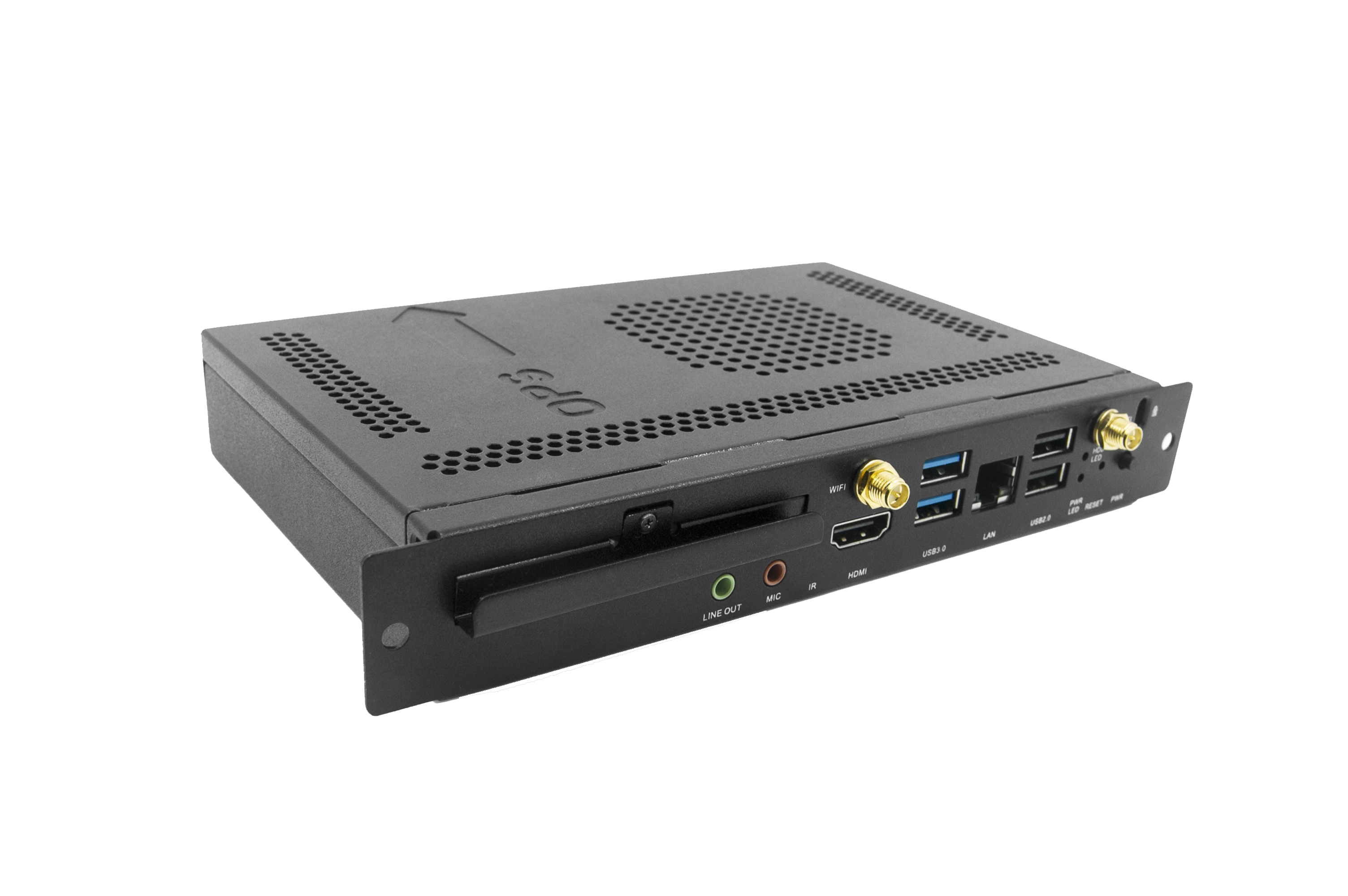

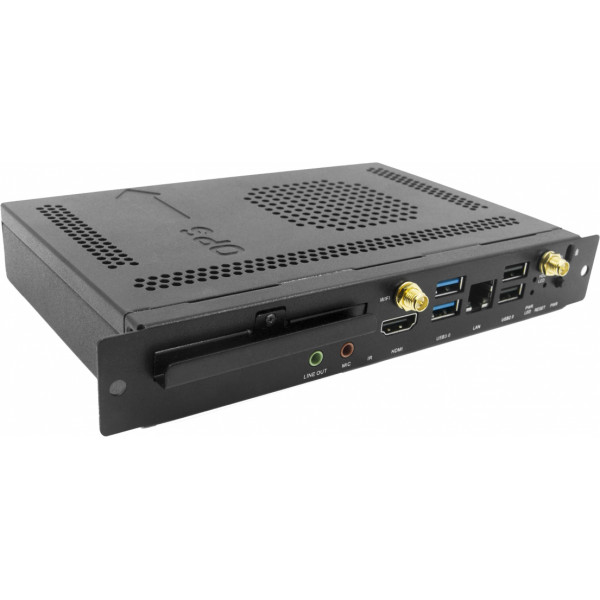

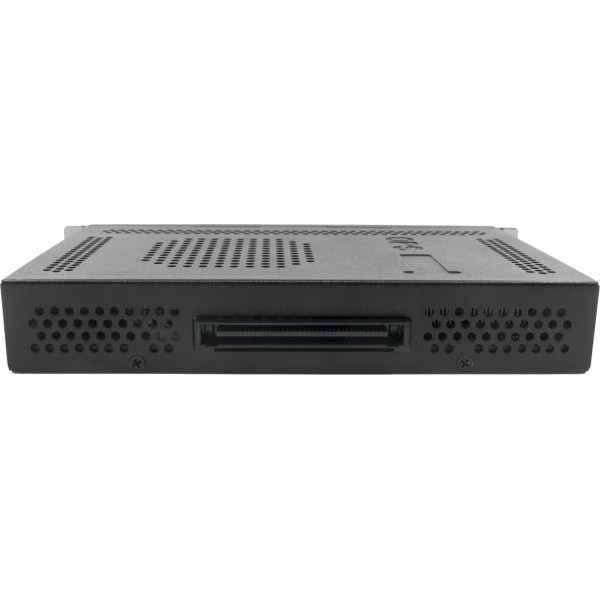

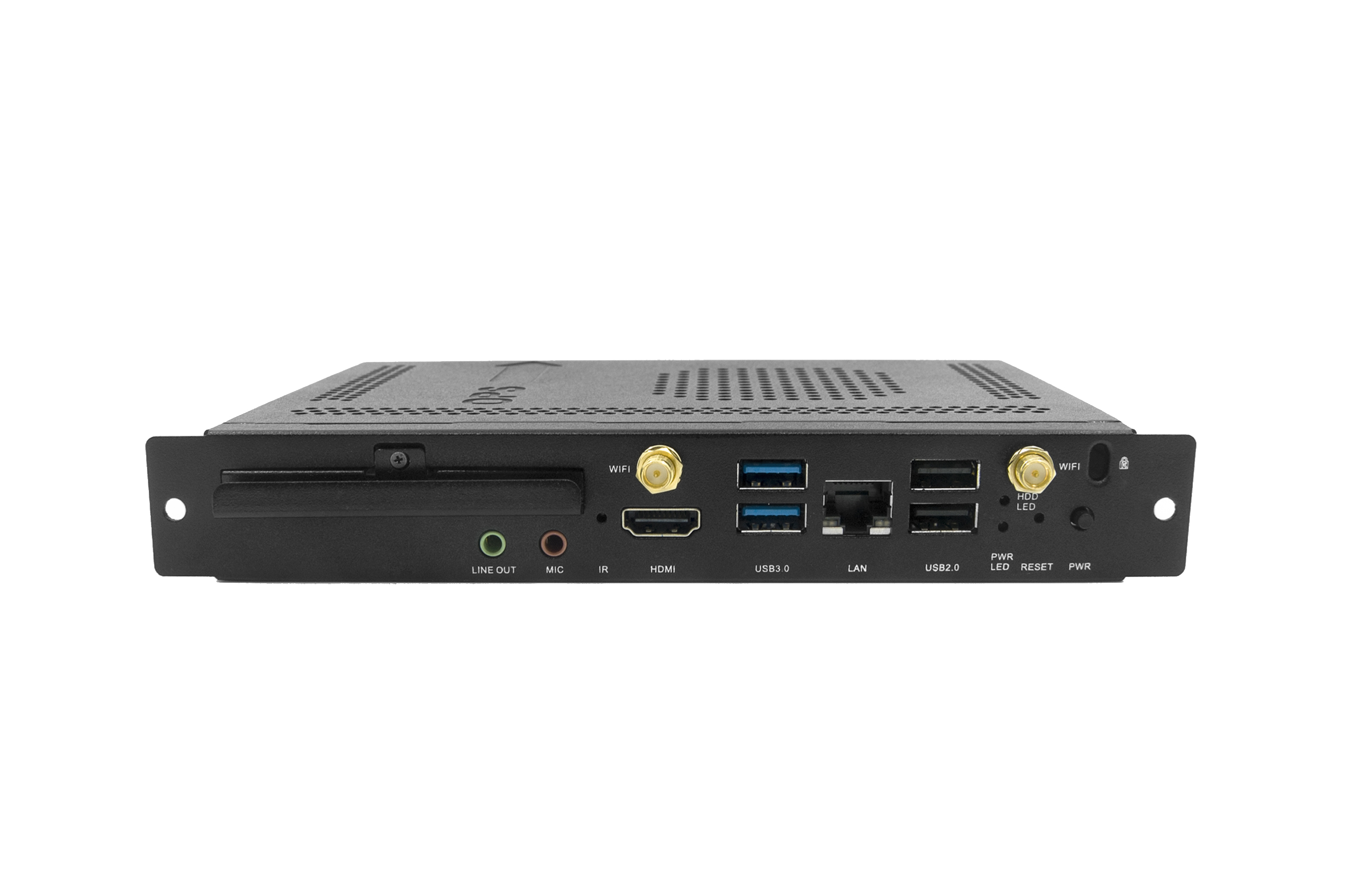

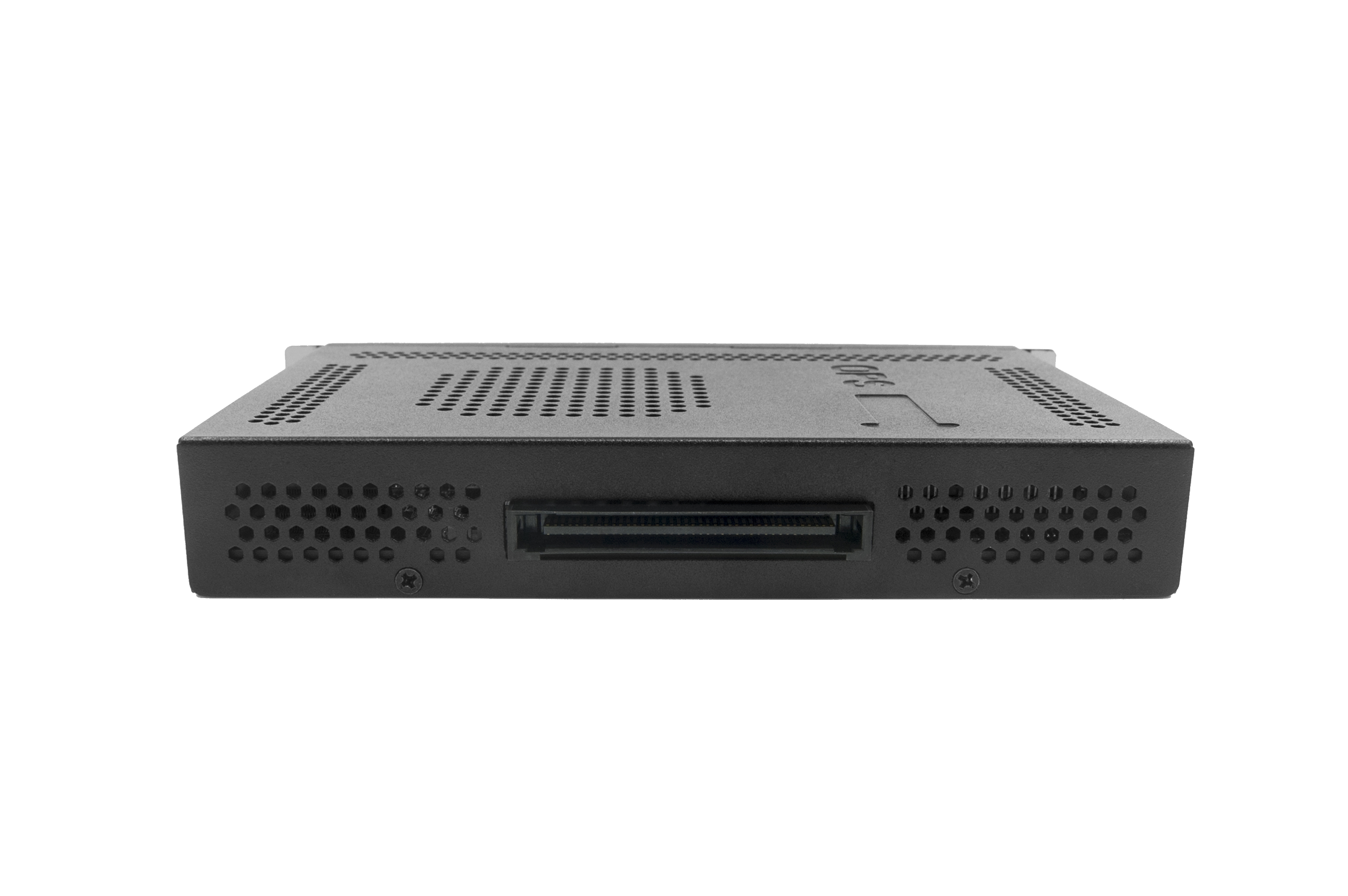

VPC12-WPO-8

Slot-in PC for the ViewBoard® interactive displays

Intel Core i3-7100U processor with TPM function
Intel HD graphics 620
Total Available Graphics Memory: 64GB
Max Resolution up to 4096x2304@60Hz

구매 문의

갤러리

개요

The ViewSonic® VPC12-WPO-8 slot-in PC is the ideal integrated solution for the ViewBoard® interactive displays. With dual-band Wi-Fi and Bluetooth, a powerful Intel® Core™ i3-7100U processor, 4GB (up to 16GB) DDR4 SO-DIMM memory, and 128GB (up to 512GB) SSD storage, the VPC12-WPO-8 contains the computing power needed to operate CPU intensive applications.

스펙

코어
CPU: Intel® Core i3-7100U with TPM function
그래픽스: Intel® HD Graphics 620
Total Available Graphics Memory: 64GB
Max Resolution up to 4096x2304@60Hz
기억
유형: DDR4 SO-DIMM
용량.: 4GB (up to 16GB)
소프트웨어
운영 체제: Free Dos

보관소
치수: 2.5"
용량.: 128GB SSD (up to 512GB)
인터페이스: SATA3 6GB/sec
INPUT
MIC(마이크): x1
OPS: Yes
OUTPUT
HDMI: x1 (max. resolution 4096x2160@24Hz)
오디오: x1 (Line Out)
LAN
RJ45: x1 (Integrated 10/100/1000M Adaption)
무선 / 블루투스
무선 / 블루투스: Intel® Dual Band Wireless-AC 8260
802.11 a/b/g/n/ac (2.4GHz/5GHz) / BT4.2 ; BLE
USB
A형: USB3.0x2, USB2.0x2
지원 미디어 형식
비디오 포맷: Container: ASF, WMA, WMV, WM, ASX, WAX, WVX , WMX, WPL, WMD, AVI, MPG, MPEG, M1V, MP2, MP3, MPA, MPE, M3U
이미지 형식: Container: JPG, JPEG, JPE, JFIF, BMP, , DIB, PNG, GIF, TIF, TIFF
오디오 코덱: Container: MID, MIDI, RMI, AIF, AIFC, AIFF, WAV, CDA
힘
전압: DC 12/19V
소비.: 60W
OPERATING CONDITIONS
온도(θ C): -5°C to 45°C
습도: 10% ~ 90% non-condensing
치수(가로 x 세로 x 세로)
물리적(인치/mm): 7.1 x 4.7x 1.2 in/180 x 119 x 30mm
포장(inch/mm): 10.0 x 7.7 x3.1 in/254 x 196 x 77 mm
WEIGHT
순(lb/kg): 1.85lb/0.84kg
총중량(파운드/kg): 2.31lb/1.05kg
REGULATIONS
REGULATIONS: FCC, cTUVus
패키지 내용물
패키지 내용물: 1. VPC12-WPO
2. QSG
