주요 기능
  • The first Android 16 interactive display features EDLA certification and a powerful octa-core CPU.
  • Light and motion sensors optimize brightness, improving energy efficiency and panel lifespan.
  • 64-point touch with palm rejection and Write Away offer precise, instant annotation.
  • Integrated ViewSonic Education Software empowers seamless classroom experiences.
  • Built-in 2.1-channel speakers with subwoofer and 8-microphone array deliver rich audio.

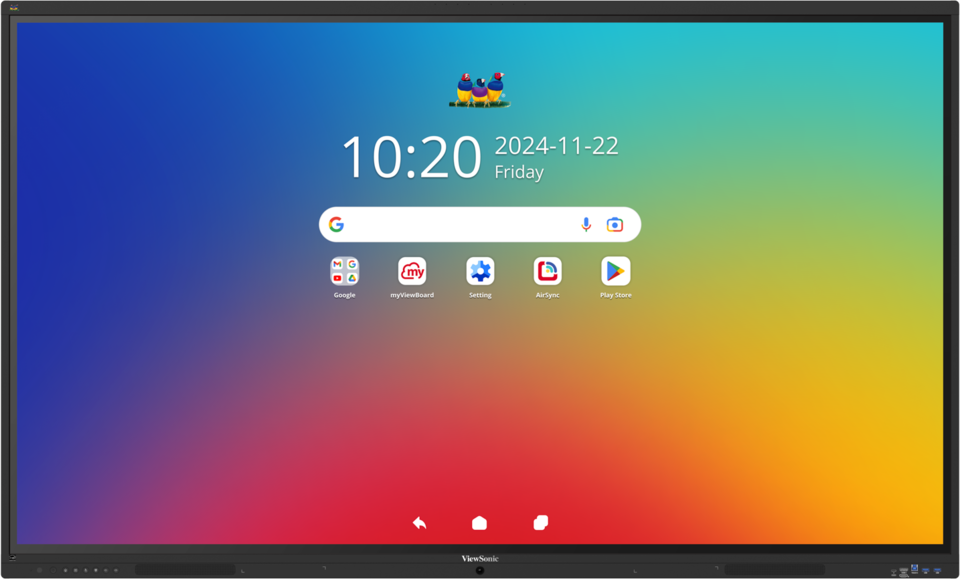

ViewBoard IFP7541-1-1C
제품 설명
Bring powerful performance and effortless interactivity to any classroom with the ViewBoard® IFP41-1 Series, available in 55", 65", 75", 86", and 98" models. Built-in ambient light and PIR motion sensors allow for automatic screen brightness adjustment to support sustainability, while 64-point touch technology and instant annotation with Write Away offer smooth, responsive collaboration. Dual USB-C ports provide seamless connectivity with up to 100W power delivery, enabling convenient single-cable charging and data transfer. As an EDLA-certified interactive display with Android 16, it ensures regular security updates and reliable access to the latest Google Play Store apps. Integration with ViewSonic Education Software enhances functionality with whiteboarding, wireless casting, and device management solutions, creating a smart, secure, and connected teaching experience.

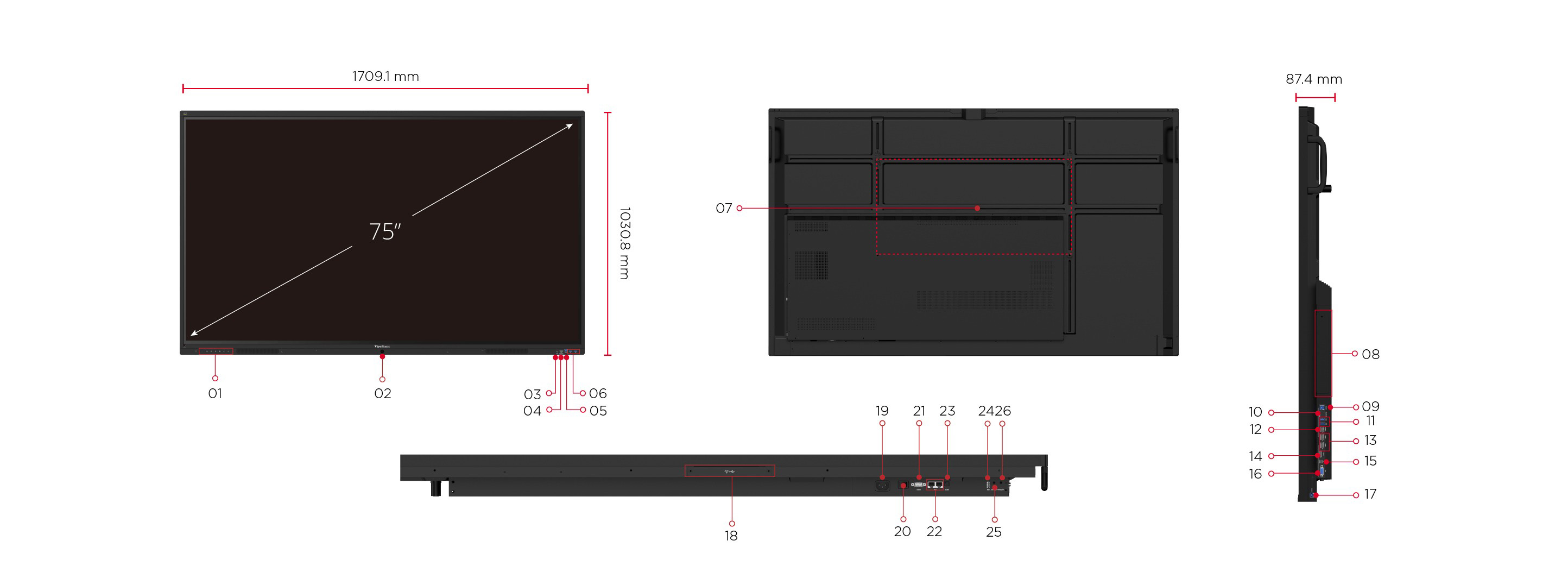

  1. Control Menu
  2. Motion Sensor
  3. USB Type-C
  4. HDMI
  5. Touch 3
  6. USB 3.2 Gen 1 x 2
  7. VESA® Wall Mount 800 x 400 mm
  8. OPS Slot
  9. Touch 1
  10. Micro SD
  11. USB 3.2 Gen 1 x 2
  12. HDMI Out
  13. HDMI x 2
  14. DP In
  15. USB Type-C
  16. VGA
  17. Touch 2
  18. WiFi Slot
  19. AC In
  20. Power Switch
  21. RS232
  22. LAN x 2
  23. SPDIF
  24. USB 2.0
  25. Audio Out
  26. Audio In
방문
  • www.viewsonic.com
  • 표시
    패널 크기: 75"
    패널 유형: TFT LCD Module with DLED Backlight
    표시면적(mm): 1650.24mm(H) x 928.26mm(V)(74.6" diagonal)
    가로 세로 비율: 16:9
    결의안: UHD 3840x2160
    Colors: 1.07B colors
    밝기: 350 nits (typ.)
    대비 비율: 5000:1 (max. with DCR enabled)
    응답 시간: 6.5ms
    보기 각도: H = 178°, V = 178° typ.
    백라이트 라이프: 50,000 hours
    표면 처리: Hardness:9H, Anti-glare coating
    오리엔테이션: Landscape
  • 플랫폼
    프로세서: Octa-Core CPU
    RAM: 8GB
    보관소: 128GB
  • TOUCH
    유형/기술: Ultra Fine Touch Techology (IR Recognition)
    터치 해상도: 32767×32767
    터치 포인트: Up to 64 points of touch
    Palm Rejection: Yes
  • INPUT
    HDMI: x3 (Frontx1:HDMI2.1 with CEC ; Rearx2: [(HDMI2.1 with CEC, ARC)x1+(HDMI2.1 with CEC)x1]
    RGB / VGA: x1
    디스플레이 포트: x1
    오디오: x1
    RS232: x1
    SD/SDHC: TF Card Slot(Micro SD)
    OPS: x1 PC Slot
  • OUTPUT
    HDMI: x1 (HDMI 2.1 4K@60Hz)
    오디오: x1 (Line out)
    SPDIF: x1 (Optical)
  • LAN
    RJ45: x2
  • USB
    A형: x5 (Front x 2 and Rear x 2 with USB3.2 Gen 1, all support SmartPort USB ; Rear x 1 with USB 2.0 for system update)
    B형: ×3 (Front ×1, Rear ×2 with USB 3.2 Gen 1 connectors, Touch 1 with 3.2 data and Touch 2/3 with 2.0 data)
    C형: x2 (Frontx1 with USB3.2 Gen 1, DP1.2, Ethernet 100M, PD 100W; Rearx1 with USB3.2 Gen 1, DP1.2, Ethernet 100M, PD 15W)
  • 스피커
    20W x 2 Front soundbar + 15W x 1 subwoofer
  • MICROPHONE
    Built-in 8-array microphone
  • 임베디드 OS
    EDLA-Certified with Android 16
  • BUNDLED SOFTWARE
    기본 주석 소프트웨어: myViewBoard for Android
    프로 주석 소프트웨어: myViewBoard for Windows (embedded in VPC)
    Wireless Presentation: AirSync
    Device Management: Manager
    ViewSonic 런처: Yes
  • 특수 기능
    All-in-one USB port: USB 3.2 Gen 1 “SmartPort USB” to all channels
    IFP와 슬롯 인 장치 간의 간단한 LAN 공유: 10/100/1000M (USB Type-C 10/100, Android & PC 10/100/1000)
    Light Sensor: Yes
    PIR Sensor: Yes
  • 힘
    전압: 100-240V AC +/- 10% Wide Range
    소비.: On: 92.44 W ; Ｏff:< 0.5 W
  • ERGONOMICS
    벽면 장착(VESA® ): 800 x 400
  • OPERATING CONDITIONS
    온도(θ C): 0°C to 40°C
    습도: 20% ~ 80% RH non-condensing
  • 치수(가로 X 세로 X 세로)
    물리적(인치/mm): 67.21 x 40.58 x 3.44 in / 1709.1 x 1030.8 x 87.4 mm
    포장(inch/mm): 72.95 x 45.35 x 6.93 in / 1853 x 1152 x 176 mm
  • WEIGHT
    순(lb/kg): 101.2 lb / 45.9 kg
    총중량(파운드/kg): 128.09lb / 58.1 kg
  • REGULATIONS
    cTUVus, EPEAT Silver, BSMI, TGM, LBL, FF, REACH , WEEE, FCC_ICES003, ES8.0, CE_EMC, CB, EAC, UKr,ErP-EEL
  • 에너지 스타 버전
    8.0
  • EEI 등급
    D
  • 패키지 내용물
    1. Power Cord x1 3 meters,

    by ship area (VSA: US / VSE: UK, EU / VSI: UK, AU / VSCN: CN)

    2. USB Type-C cable x1 1.8 meters , USB-IF certified

    3. USB Touch cable x1 3 meters

    4. Touch pen (Passive pen) x 2

    5. Quick Start Guide (With Compliance statement )

    6. Screw x 4 ( wall mount 4)

    7. HDMI cable x1 3meters,

     (HDMI LA certified)

    8. Remote controller x1

    9. AAA battery x2
