LCD 디스플레이

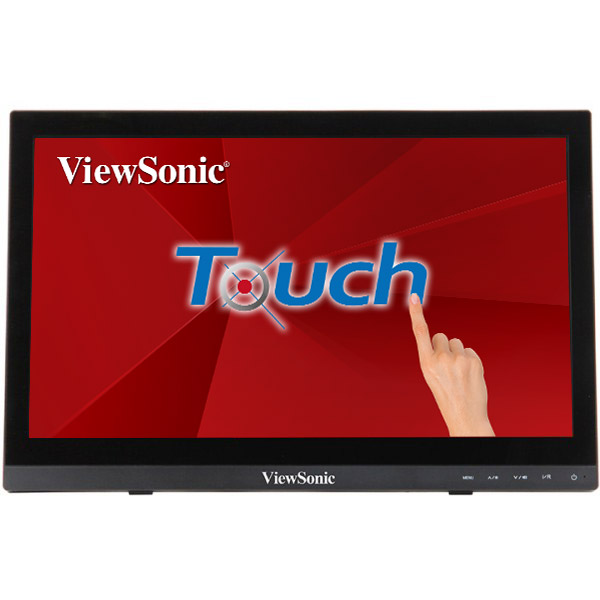

TD1630-2
주요 기능
제품 설명
방문
- www.viewsonic.com
-
DISPLAY
Monitor Size: 15.6”W (15.6” Viewable) Panel Technology: TN Type, a-si TFT Active Matrix LCD 결의안: HD 1366 x 768 Display Area: 344.23mm (H) x 193.54mm (V) 가로 세로 비율: 16:09 밝기: 220 cd/m2 (Typ) 동적 대비 비율: 10,000,000:1 Viewing Angle: 90 degrees / 60 degrees (Typ) 응답 시간: Tr+Tf :12ms Backlight: 1 LED light bar 백라이트 라이프: 1,5000 Hrs (Min) 색: 262k colors (6-bit) 색역: 45% of NTSC (Typ) Panel Surface: Anti-Glare type, Hard-coating (3H), Haze 25% Pixel Pitch: 0.252mm (H) x 0.252mm (V) -
INPUT SIGNAL
Frequency: Fh = 30 ~ 61KHz ; Fv = 56 ~ 75Hz Sync: Separate Sync,TMDS -
COMPATIBILITY
PC: Windows 10/8/7 tested Mac®: Power Mac tested Linux: Linux kernal 4.x/3.x -
CONNECTOR
Digital: VGA -15 x 1
HDMI x 1 (v1.4 compatible) -
스피커
1W x 2 -
POWER
힘: External Power Board:
5.5 x 2.1 x 10.0 mm DC connector
for HONOR ADS-25FSG-19 19025GPCN;
5.5 x 2.0 x 10.0 mm DC connector
for Mass Power NBS24J190131HC전압: AC 100-240V (Universal); 50/60Hz 소비.: 8W Optimize: 6.8W Conserve: 5.2W -
ERGONOMICS
틸트: 15 ~ 50 degrees -
SPECIAL FEATURES
DDC/2B, DDC/CI, HDCP, 14 OSD Languages -
WALL MOUNT
VESA®: 75 x 75 mm -
OPERATING CONDITIONS
Temperature (º F / º C): 20% to 85% (no condensation) 습도: 20% to 85% (no condensation) -
DIMENSIONS (W X H X D) (MM)
Physical with stand (mm): 379.24mm (W) x 247.12mm (H) x 37.15mm (D) 포장(mm): 453mm (W) x 389mm (H) x 86mm (D) -
WEIGHT
Net without stand (kg): 1.32kg (2.91lbs) 그로스(kg): 2.5kg (5.51lbs) -
WARRANTY
*Warranty offered may differ from market to market -
패키지 내용물
LCD Display
AC/DC Adaper
Power Cable (1.8m)
VGA Cable (1.8m)
USB Cable (1.8m)
Audio Cable(1.8m)
Quick Start Guide
Warranty Card
*Actual content may differ from market to marketLCD Display
AC/DC Adaper
Power Cable (1.8m)
VGA Cable (1.8m)
USB Cable (1.8m)
Audio Cable(1.8m)
Quick Start Guide
Warranty Card
*Actual content may differ from market to market
