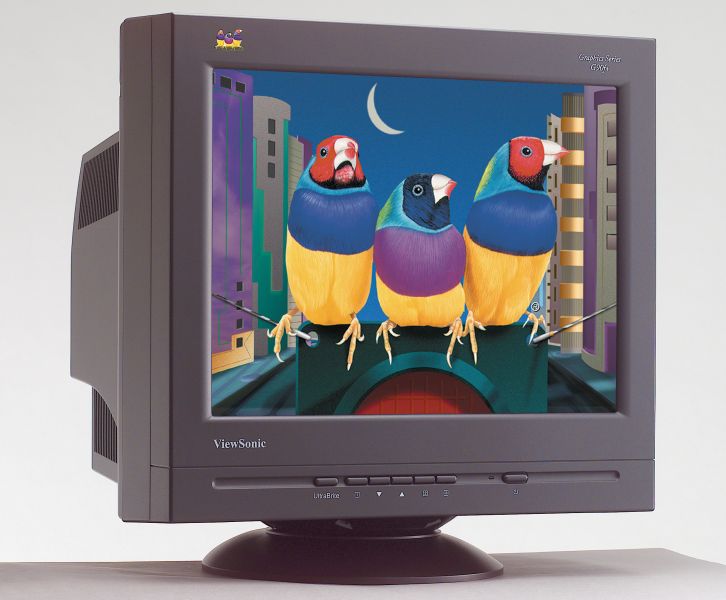

G90fB

48 cm / 19" CRT MONITOR WITH PERFECTFLAT®

PHOTOS

CRITIQUES

“"ViewSonic's 19-inch G90fb CRT still manages to trump thinner rivals."”

“In this listing of the best hardware as picked by Smart Computing's hardware experts, ViewSonic's VP920b and G90fB are both listed under the "Monitors/Displays" category.”

“"ViewSonic's 19-inch G90fb CRT still manages to trump thinner rivals."”

“In this listing of the best hardware as picked by Smart Computing's hardware experts, ViewSonic's VP920b and G90fB are both listed under the "Monitors/Displays" category.”

“"ViewSonic's 19-inch G90fb CRT still manages to trump thinner rivals."”

“In this listing of the best hardware as picked by Smart Computing's hardware experts, ViewSonic's VP920b and G90fB are both listed under the "Monitors/Displays" category.”

“"ViewSonic's 19-inch G90fb CRT still manages to trump thinner rivals."”

“In this listing of the best hardware as picked by Smart Computing's hardware experts, ViewSonic's VP920b and G90fB are both listed under the "Monitors/Displays" category.”

“"ViewSonic's 19-inch G90fb CRT still manages to trump thinner rivals."”

“In this listing of the best hardware as picked by Smart Computing's hardware experts, ViewSonic's VP920b and G90fB are both listed under the "Monitors/Displays" category.”

SPÉCIFICATIONS

COLORS
Black
COMPATIBILITÉ
Ordinateur: PC and compatible (from VGA up to 1920 x 1440)
Mac®: Power Mac™ G3/G4
Autres: Most Workstations
Dimensions (mm)
Physique (mm): 445 x 424 x 465

Signal d'entrée
Fréquence: Fh: 30 – 97kHz
Fv: 50 – 160Hz
Vidéo: RGB analogue (0.7 Vp-p, 75 ohms)
Sync: H/V separated (TTL)
CONNECTEURS
Alimentation: 3-pin plug (IEC320)
Signal: 15-pin mini D-sub
Alimentation
Tension: AC 90 – 264V, 50/60Hz (± 2Hz) (auto switch)
Consommation: 70W (typ.), < 2W in power save mode
COMMANDES
OSD: Contrast, brightness, zoom, H/V position, H/V size, pincushion, pin balance, trapezoid, parallelogram, top/bottom hook, tilt, V moiré reduction, ViewMatch® colour (9300k, 6500k, 5000k, user RGB), degauss, OSD position, language, ViewMeter (mode information), memory recall, OSD lock
Physique: Power on/off, menu [1], up, down, select [2], recall
CONDITIONS D'EXPLOITATION
Température: 0°C to 40°C
Humidité: 5% to 95% (non condensation)
Poids
Net: 18kg
Entrée vidéo
Bande passante: 240MHz (typ.)
GESTION ALIMENTATION
Meets TCO'03 and Energy Star™-standards
CRT
Type: 48cm / 19" (18" viewable) CRT, 90° deflection, PerfectFlat®
Pas de masque: 0.20mm horizontal x 0.13mm vertical, 0.25mm diagonal
Phosphor: Pigment coated P22 (Cadmium free)
Surface vitrée: Tint (TM ~ 53.6%), ARAG® screen treatment
SIGNAL VIDEO
Vidéo: RGB analogue (0.7 Vp-p, 75 ohms)
Sync: H/V separated (TTL)
Fréquence : Fh: 30 – 97kHz
Fv: 50 – 160Hz
PLUG & PLAY
DDC1, DDC2B
Mauvaise convergence
0.25mm (max.) at centre

0.35mm (max.) at corner
MODES PROGRAMMABLES
Par défaut: 12
Utilisateur: 10
Zone d'affichage
Réglage par défaut: 352mm (H) x 264mm (V) (typ.)
Balayage maximum: Maximum Scan 360mm (H) x 270mm (V)
(depending on signal timing used)
