الميزات الرئيسية
  • USB multimedia player
  • vController software
  • Hospitality mode
  • Supports HDMI CEC pass-through
  • Flicker-free and Blue Light Filter eye-care technologies

CDE4302
المنتج وصف

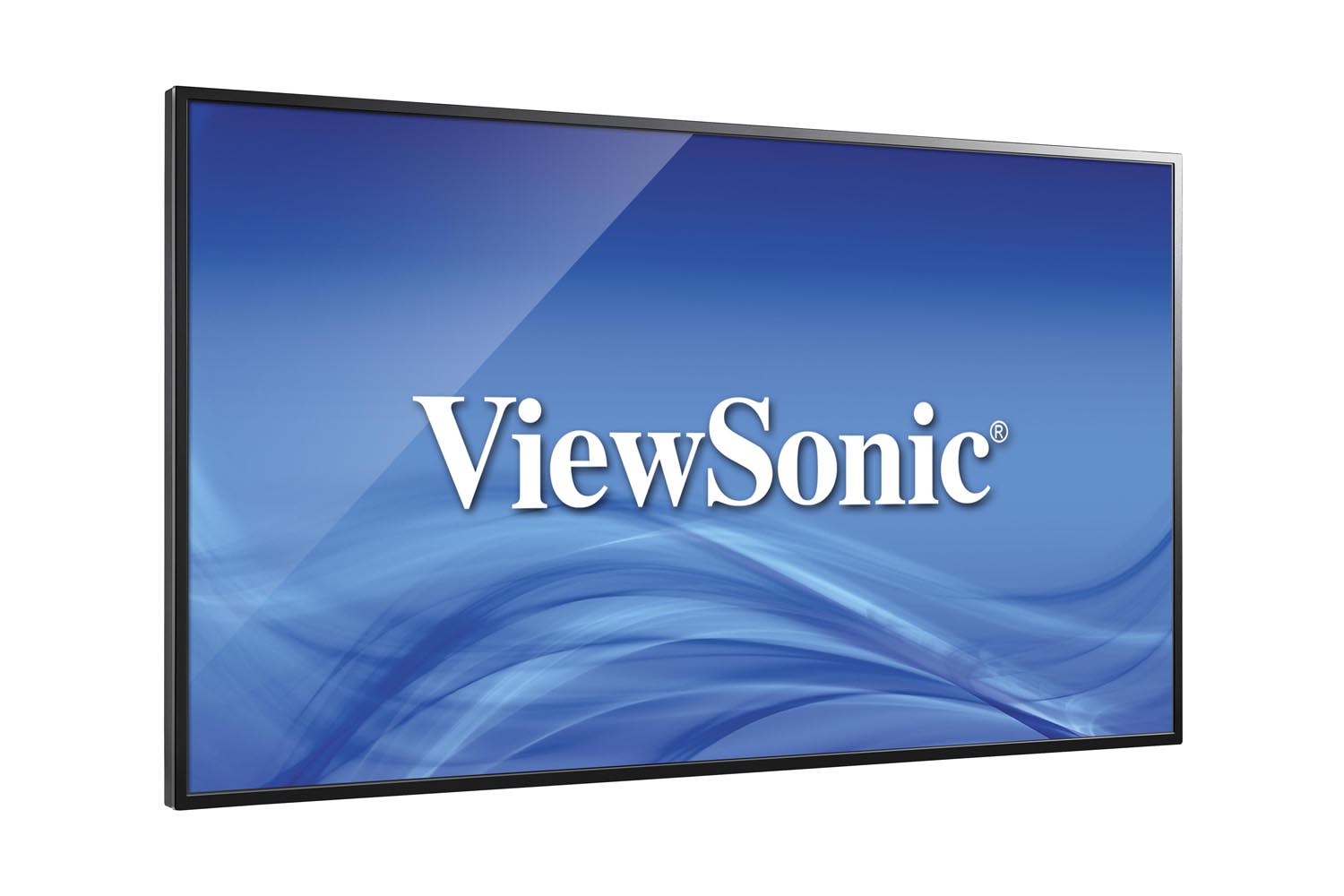

The ViewSonic CDE4302 is a 43" Full HD presenation display, offering the combination of cost-efficiency and ease of installation for corporate, retail and hospitality environments. Integrated with an embedded media player, the CDE4302 is able to easily playback high definition messaging via USB port. Versatile connectivity options also include 2 HDMI ports, VGA, RS232 and SPDIF. With Full HD resolution, 350-nit brightness, and wide viewing angles, the slim-bezel CDE4302 delivers sharp and vivid images to ensure crisp pictures and smooth content playback. HDMI CEC pass-through support provides one-touch-play, with additional features for multiple connected devices such as HD set-top-boxes, media players, and Blu-ray™ players. An RS232 port with IR pass-through provides automated control for hospitality installation. Creating a more comfortable viewing experience, the display is equipped with Flicker-Free and Blue Light Filter technologies. In addition, free-bundled vController software offers easy maintenance and intuitive interfaces for remote management via a PC server or laptop.
تفضل بزيارة لنا
  • www.viewsonic.com
  • DISPLAY
    حجم اللوحة: 43"
    النوع/ التقنية: TFT LCD Module. with LED Backlight
    منطقة العرض (مم): 940.9(H) x 529.25 (V) (43" diagonal)
    الابعاد المتزنة: 16:9
    الدقة الأصلية: 1920x1080
    الألوان: 16.7M
    السطوع: 350 nits (typ.)
    نسبة التباين: 3000:1 (typ.)
    زمن الاستجابة: 6.5 ms
    زوايا النظر: H = 178, V = 178 (typ.)
    عمر الإضاءة الخلفية: 30,000 Hours (typ.)
    معالجة السطح: Hard coating (3H)
    الاتجاه: Landscape / Portrait
  • الإدخال
    HDMI: x2
    RGB / VGA: x1
    الصوت: x1 PC audio(3.5mm)
    RS232: x1
  • الإخراج
    الصوت: x1 (Earphone Out)
    SPDIF: x1
    تمرير الأشعة تحت الحمراء (IR): x1
  • USB
    Type A: x1
  • مكبرات الصوت
    10W x2
  • التوافق
    RGB PC/HDMI PC: 480i, 480p,720p,1080i,1080p
    HDMI: 480i, 480p,720p,1080i,1080p
  • CONTROLS
    Physical- Top OSD: PICTURE: POWER, MUTE, INPUT, VOL -/+, UP, DOWN, MENU Auto Picture, Brightness, Contrast, Color, Adanced settings, Reset picture setting
    SOUND: Auto sound, Equalizer, Balance, Reset sound settings
    CLOCK: Sleep timer, Date/Time.
    FREATURES: Language, PC settings, Button lock, Remote lock, Monitor ID, Current software info, Reset AV & features
    USB MENU: Photo, Music, Movie
    الوسائط المتعددة: PICTURE: BMP, JPG, JPEG, PNG
    VIDEO: MP4, AVI, MKV, DAT, VOB, MPG, MPEG, TS
    AUDIO: MP3
  • الطاقة
    الجهد: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz
    الاستهلاك: 105W (typ), 125W (max), < 0.5 W ("Off")
  • التصميم المريح
    Wall Mount (VESA® ): 200x200mm / 400x400mm
  • ظروف التشغيل
    درجة الحرارة: 0°C to 40°C
    الرطوبة: 20%~80% @40℃ non-condensing
  • المقاسات (العرض × الارتفاع × العمق)
    الأبعاد الفعلية (بوصة / مم): 38.12 x 23.59 x 12.98 / 968.2 x 599.1 x 329.6 (w/ Stand)38.12 x 22.02 x 2.36 / 968.2 x 559.4 x 59.9 (w/o Stand)
    العبوة (بوصة / مم): 42.13 x 27.40 x 6.26 / 1070 x 696 x159 (w/o Stand)
  • الوزن
    الوزن الصافي (رطل / كجم): 19.18 / 8.70 (w/o stand); 23.30 / 10.57 (with Stand)
    الوزن الإجمالي (رطل / كجم): 26.90 / 12.20
  • اللوائح التنظيمية
    CE, CB, ErP, WEEE, C-tick, cTUVus, FCC, Energy Star 6.0, Mexico Energy
  • محتويات العبوة
    1. CDE4302 presenation display 2. Remote Control with batteries 3. User manual CD wizard 4. Quick Start Guide 5. Power Cables 6. VGA cable 7. RS232 cable
