الميزات الرئيسية
  • Slim even bezel and chassis
  • USB playback photos, music & video
  • Easy Multi-Screen Setups
  • Remote configuration management
  • Multiple HDMI devices control

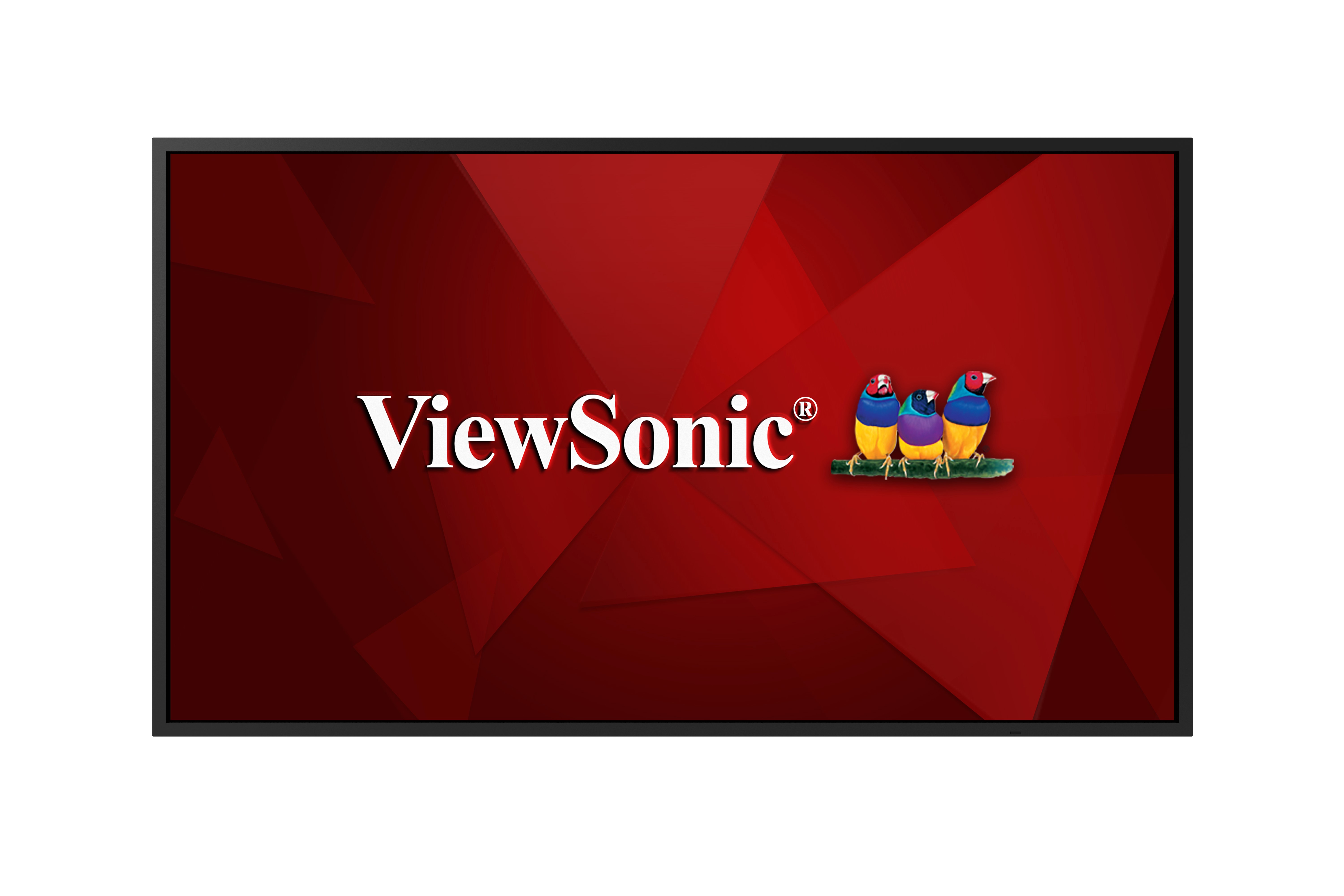

CDE4320
المنتج وصف
The ViewSonic® CDE4320 is a 43’’ presenation display with a slim even bezel, offering the combination of cost-efficiency and ease of installation for corporate, retail and hospitality environments. Integrated with an embedded media player, the CDE4320 is able to easily playback high definition messaging via USB port. Versatile connectivity options include 2 HDMI-IN ports, RS232 input, SPDIF output etc. The slim-bezel CDE4320 delivers sharp and vivid images to ensure crisp pictures and smooth content playback.
تفضل بزيارة لنا
  • www.viewsonic.com
  • الشاشة
    حجم اللوحة: 43"
    النوع/ التقنية: TFT LCD Module. IPS type, DLED backlight
    منطقة العرض (مم): 41.184 (H) x 529.416 (V) (42.51” diagonal)
    الدقة الأصلية: 16:09
    الابعاد المتزنة: 3840 x 2160
    الألوان: 1.07B colors
    السطوع: 350 nits (typ.)
    نسبة التباين: 1100:1 Typ.
    زمن الاستجابة: 6 ms
    زوايا النظر: H = 178, V = 178 typ.
    عمر الإضاءة الخلفية: 40,000 Hours Typ
    معالجة السطح: Anti-Glare, 2H, Haze 3%
    الحافة: Slim
    الاتجاه: Landscape
  • الإدخال
    HDMI: x2
    DVI: x1
    الصوت: x1 (3.5mm)
    RS-232: x1
    تمرير الأشعة تحت الحمراء (IR): x1
  • الإخراج
    الصوت: x1 (RCA)
    SPDIF: x1 (Fiber)
    تمرير الأشعة تحت الحمراء (IR): x1
  • LAN
    RJ45: x1
  • USB
    Type A: 2.0 Type A : x2 (USB Playback)
  • مكبرات الصوت
    مكبرات الصوت: 10Wx2
  • التوافق
    RGB PC/HDMI PC: Up to 1920x1080@60Hz. Refer to timing table
    HDMI: 480i, 480p,720p,1080i,1080p, 4K2K@60Hz
    DVI: 480i, 480p,720p,1080i,1080p
    نسخة أندرويد: Android 8.0
  • الطاقة
    الجهد: 100-240 VAC +/- 10% Wide Range
    الاستهلاك: Normal 70 W, Max 85 W
  • التصميم المريح
    التثبيت على الحائط (VESA®): 400x200 mm
  • ظروف التشغيل
    درجة الحرارة (º م): 0 to 40°C
    الرطوبة: 20% ~ 80% non-condensing
  • المقاسات (العرض × الارتفاع × العمق)
    الأبعاد الفعلية (بوصة / مم): 38.19 x 21.98 x 3.33 in/969.9 x 558.3 x 84.6 mm
    العبوة (بوصة / مم): 42.13 x 26.10 x 6.02 in/1070 x 663 x 153 mm
  • الوزن
    الوزن الصافي (رطل / كجم): 10.5 kg / 23.1 lbs (w/o stand); 11.1 kg / 24.47 lbs (with Stand)
    الوزن الإجمالي (رطل / كجم): 13.5 kg / 29.76 lbs
  • اللوائح التنظيمية
    اللوائح التنظيمية: cULus, FCC, Energy Star, TUV Mexico, Mexico Energy, CE, CB, RoHS, ErP, REACH, EEL, WEEE
  • محتويات العبوة
    محتويات العبوة: 1. CDE4320 presenation display
    2. Remote Control with batteries
    4. Quick Start Guide
    5. Power Cables (1.8mm)
    6. HDMI cable (1.8mm)
    7. RS232 cable (1.8m)
