الشاشة التجارية
CDE6510
الميزات الرئيسية
- Embedded Android SOC supports Andriod apps
- Computing expansion PC slot for Intel OPS
- USB multimedia player
- vController software
- Supports HDMI CEC pass-through
المنتج وصف

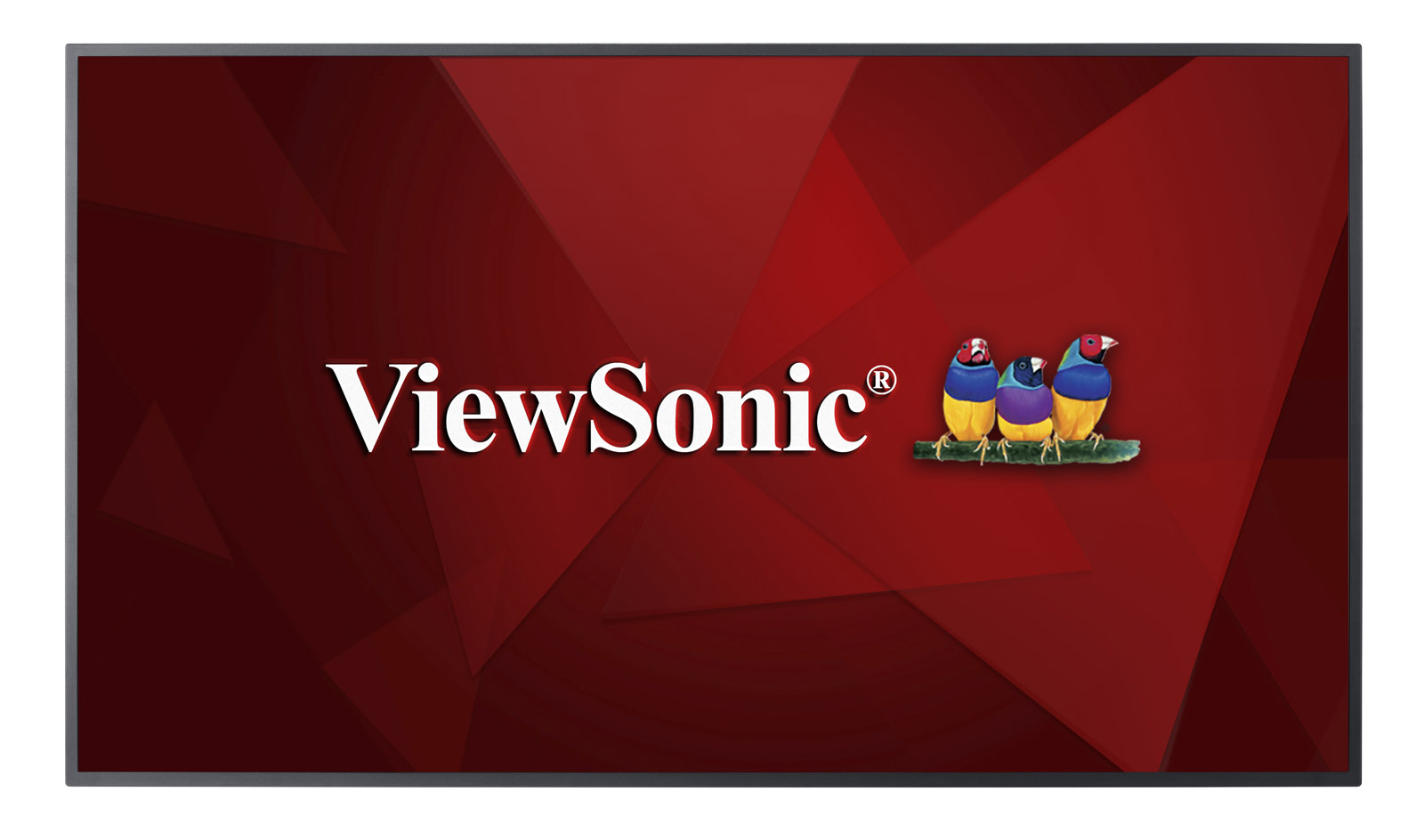

The ViewSonic CDE6510 is a great value 65” 4K LED presenation display with high-reliability 16 hours per day/7 days a week operating time. The embedded Android SOC enables CDE6510 to install Android apps for rich content broadcasting while the Intel OPS PC slot supports higher computing performance with 4K DisplayPort for a wide range of user scenarios. A built-in browser offers a convenient method for displaying internet content without a PC. In addition to versatile connectivity options, including 4K DisplayPort, HDMI, VGA, USB, IR, RJ45, the display comes with a convenient USB multimedia playback function. With 3840 x 2160 resolution, 350-nit brightness with 178-degree wide viewing angles, and 2 x 10W stereo speakers, the slim-bezel CDE6510 delivers vivid images and remarkable sound for superior multimedia performance. The HDMI CEC pass-through support provides one control for multiple HDMI-connected devices while the free-bundled vController software makes remote display management easier via RSS232/RJ45 port. The display also comes equipped with Blue Light Filter technology to create a more comfortable viewing experience.
تفضل بزيارة لنا
- www.viewsonic.com
-
LCD PANEL
Panel Size: 65" Type/ Tech: TFT LCD Module with DLED Backlight منطقة العرض (مم): 1428.48 (H) x 803.52 (V) الابعاد المتزنة: 16:9 Resolution: 3840x2160 @60Hz Colors: 1.07B colors السطوع: 350 nits (typ.) نسبة التباين: 4000:1 (typ.) Response Time: 8 ms زوايا النظر: H = 178, V = 178 (typ.) Backlight: DLED عمر الإضاءة الخلفية: 30,000 Hours Min. Hardness: 3H -
INPUT
HDMI: x 4 RGB / VGA: x 1 منفذ الشاشة: x 1 الصوت: x1 PC audio (3.5 mm) RS232: x 1 PC Slot: x 1 (optional VPC12-WPO-2) IR: x 1 -
OUTPUT
RS232: x 1 IR: x 1 -
LAN
RJ45: x 1 -
USB
Type A: x 1 for 5V/2A 2.0 Type A: x 2 (USB Playback) 3.0 Type A: x 1 (USB Playback) -
SPEAKERS
10W x 2 -
COMPATIBILITY
VGA: 1920 x 1080 منفذ الشاشة: 480i, 480p,720p,1080i,1080p, 4K2K@30Hz HDMI: 480i, 480p,720p,1080i,1080p, 4K2K@60Hz -
POWER
Voltage: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz الاستهلاك: Normal 165 W, Max 295 W -
ERGONOMICS
Wall Mount (VESA® ): 400 x 400mm ; Screw: M6*(10+X) mm. (X=thickness of wall mount plate) -
OPERATING CONDITIONS
Temperature (º C): 5°C to 40°C Humidity: 20% ~ 80% non-condensing -
DIMENSIONS
(W X H X D)Physical (mm / inch): 1458.7 x 938.8 x 540 mm / 57.43 x 36.96 x 21.26 in. (with Stand) Physical w/o Stand (mm / inch): 1458.7 x 834.7 x 81.6 mm / 57.43 x 32.86 x 3.21 in. (w/o Stand) Packaging (mm / inch): 1655 x 1078 x 280 mm / 65.16 x 42.44 x 11.02 in -
WEIGHT
Net (kg / lb): 28.9 kg / 63.71 lbs (with Stand) Net w/o Stand (kg / lb): 24.8 kg / 54.67 lbs (w/o stand) Gross (kg / lb): 34.84 kg / 76.80 lbs -
WHAT'S IN THE BOX?
1. CDE6510 presenation display
2. Remote Control with batteries
3. User manual CD wizard
4. Quick Start Guide
5. Power Cables
6. RS232 cable
7. RS232 daisy chain cable (2.4mm – 2.4mm)
8. IR sensor cable
