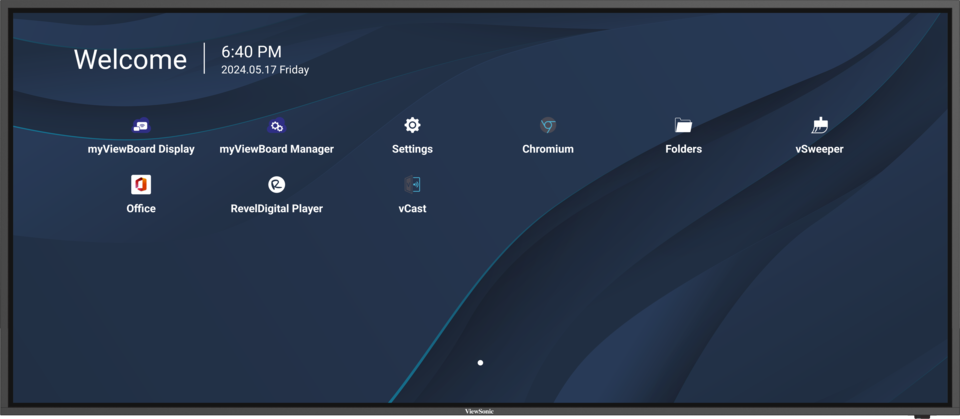

فيوسونيك شاشة عرض تقديمية CDE92UW مقاس 92 بوصة بدقة 5K - البيانات

الشاشة

Panel Size:	92"
Type/ Tech:	TFT LCD Module with DLED Backlight, VA
منطقة العرض (مم):	2141.952 (H) × 903.636 (V) (91.52” diagonal)
Native Resolution:	5120 x 2160
الابعاد المتزنة:	21:9
Colors:	1.07G colors (8bits+ 2bits FRC)
السطوع:	500 nits (Typ.)
نسبة التباين:	OC spec 5000:1 (typ.)
Response Time:	<6.5ms
زوايا النظر:	H = 178, V = 178 (Typ.)
عمر الإضاءة الخلفية:	50,000 hrs (typ.)
Surface Treatment:	Anti-Glaire, 3H hardness, Haze 25%
الحافة:	18/18/18/18 mm (L/R/T/B)
Orientation:	Landscape & Portrait

PLATFORM

Processor: RockChip RK3588 Octa-Core CPU (A76*4 + A55*4)

RAM: DDR4 8GB

Storage: 128GB (eMMC)
INPUT

HDMI: REAR x 4 (1x HDMI 2.1 5K@60Hz/ 3x HDMI 2.1 4K@60Hz)

منفذ الشاشة: 1

الصوت: 1

RS-232: 1

OPS Slot: 1 (OPS Slot 80pin)

WiFi Slot: 1 (Module Slot)
OUTPUT

HDMI: 1

الصوت: 1

SPDIF: 1
LAN

RJ45: 1
USB

Type A: REAR x 1 (USB 2.0 support OTG)
REAR x 2 (USB 3.2 Gen 1)
TOP x 2 (USB 3.2 Gen 1)
support smart USB

Type C: REAR x1 (PD100W, DP1.2, USB2.0, 100M ethernet)
SPEAKERS

20W x 2+ 20W x 1 (Subwoofer)
COMPATIBILITY

HDMI: HDMI 1: 5120x2160 @60Hz (YUV444),
5120x2160 @30Hz (YUV420)
HDMI 2/3/4: 3840x2160 @60Hz

منفذ الشاشة: 5120 x 2160
EMBEDDED OS

Android 13

BUNDLED SOFTWARE

Wireless Presentation:	myViewBoard Display, vCast, AirSync* *myViewBoard Display will be replaced by AirSync in Q1 2025.
Device Management:	ViewSonic® Manager
ViewSonic Launcher:	Yes
Revel Digital:	Yes

POWER

Voltage: 100-240VAC +/- 10% Wide Range

الاستهلاك: 330W with Energy Star
ERGONOMICS

Wall Mount (VESA® ): 800 x 600
OPERATING CONDITIONS

Temperature (º C): 0°C to 40°C

Humidity: 20% ~ 80% RH non-condensing
OPERATING HOURS

24/7
المقاسات (العرض × الارتفاع × العمق)

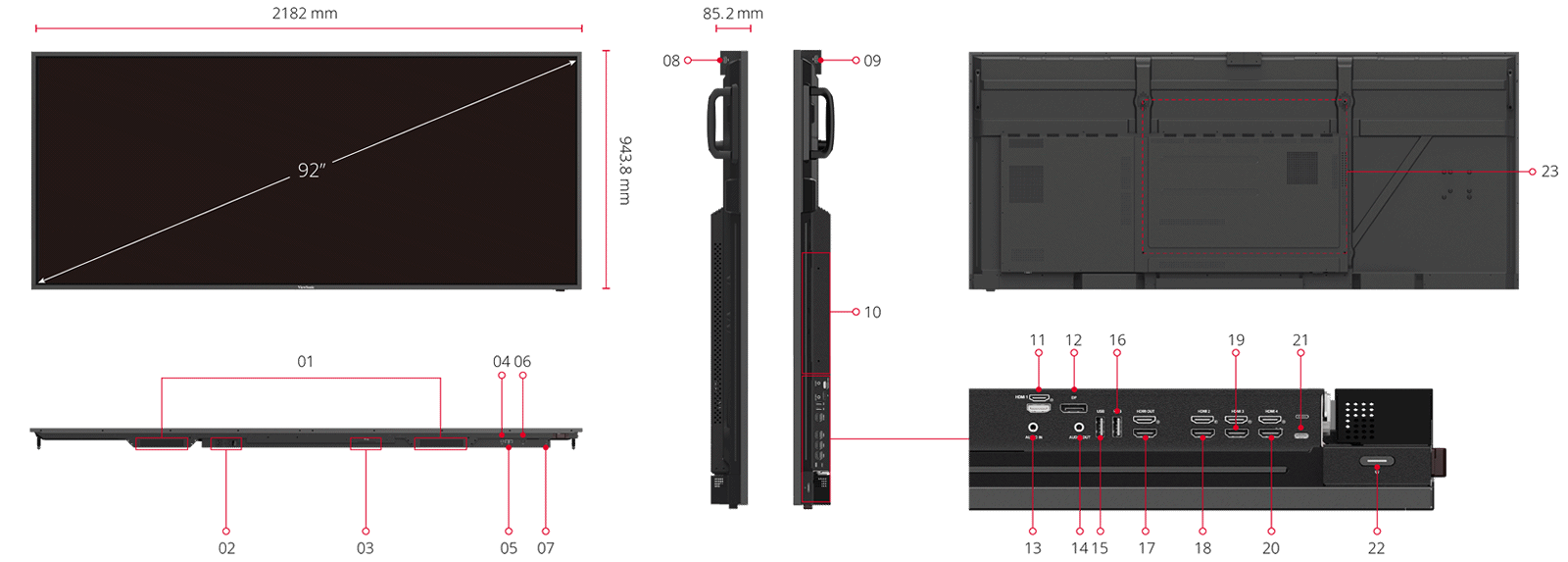

Physical (inch / mm): 85.91 x 37.16 x 3.35 in/ 2182 x 943.8 x 85.2 mm

Packaging (inch / mm): 92.52 x 44.72 x 8.5 in/ 2350 x 1136 x 216 mm
WEIGHT

Net (lb / kg): 93.7 lb/ 42.5 kg

Gross (lb / kg): 131.18 lb/ 59.5 kg
REGULATIONS

cTUVus,FCC/ICES003,CE/EMC,CB/LVD,EAC,UkrSEPRO,UKCA,UK-EEL,LBL,FF,ErP-EEL,WEEE,Green BOM,RoHS DoC,ErP-Eco,REACH, EPEAT
ENERGY STAR

ES 8.0

PACKAGE CONTENTS

1. 3m power cord by ship area
2. Type C cable 1.8m(USB-IF certified)
3. Remote control with AAA battery
4. Quick Start Guide
5. RS232 adapter
6. Clamp x 5
7. Camera Plate x 2(1 for VB-CAM-201, 1 for UMB202)
8. Screw x 8 (camera 2+2, wall mount 4)
9. HDMI cable 3m(HDMI LA certified)
10. AAA Battery x 2
11. Compliance statement

Processor:	RockChip RK3588 Octa-Core CPU (A764 + A554)
RAM:	DDR4 8GB
Storage:	128GB (eMMC)

HDMI:	REAR x 4 (1x HDMI 2.1 5K@60Hz/ 3x HDMI 2.1 4K@60Hz)
منفذ الشاشة:	1
الصوت:	1
RS-232:	1
OPS Slot:	1 (OPS Slot 80pin)
WiFi Slot:	1 (Module Slot)

Type A:	REAR x 1 (USB 2.0 support OTG) REAR x 2 (USB 3.2 Gen 1) TOP x 2 (USB 3.2 Gen 1) support smart USB
Type C:	REAR x1 (PD100W, DP1.2, USB2.0, 100M ethernet)

HDMI:	HDMI 1: 5120x2160 @60Hz (YUV444), 5120x2160 @30Hz (YUV420) HDMI 2/3/4: 3840x2160 @60Hz
منفذ الشاشة:	5120 x 2160

Voltage:	100-240VAC +/- 10% Wide Range
الاستهلاك:	330W with Energy Star

Temperature (º C):	0°C to 40°C
Humidity:	20% ~ 80% RH non-condensing

Physical (inch / mm):	85.91 x 37.16 x 3.35 in/ 2182 x 943.8 x 85.2 mm
Packaging (inch / mm):	92.52 x 44.72 x 8.5 in/ 2350 x 1136 x 216 mm

Net (lb / kg):	93.7 lb/ 42.5 kg
Gross (lb / kg):	131.18 lb/ 59.5 kg
