الشاشة التجارية
CDE9800
الميزات الرئيسية
- ViewBoard® Cast 4-way split screen content sharing software
- USB Plug and Play
- Remote Management with vController™ Software
- Supports HDMI CEC Pass Through
- Embedded LAN, Optional Wi-Fi, Internet Browser
المنتج وصف

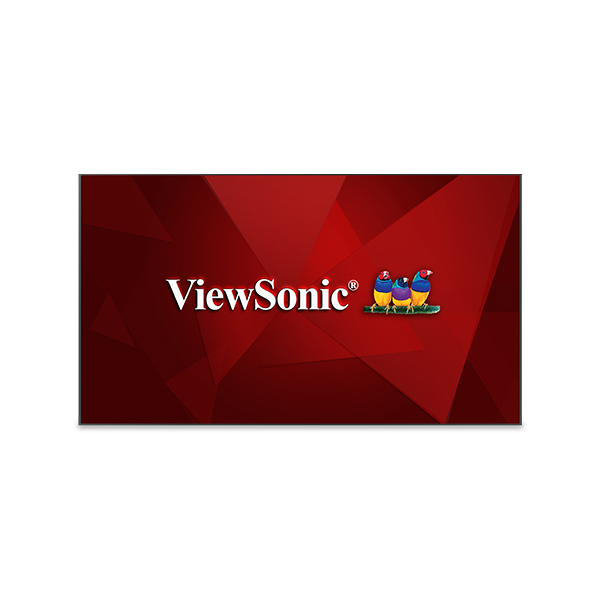

The ViewSonic® CDE9800 is a 98’’ 4K Ultra HD presenation display for meeting rooms. This display provides immersive and high-impact presentation with stunning 3840x2160 resolution, 500-nit typical high brightness, wide viewing angles, dual 16W speakers, and content sharing software. The built-in ViewBoard® Cast software enables wireless content streaming from mobile devices onto the display. In addition to HDMI and VGA inputs to connect with various high definition devices, this display utilises an integrated multi-core processor, allowing customers to playback multimedia content via USB without the need for a PC. To make life even easier, the vController™ software offers easy maintenance and intuitive interfaces for remote management via a PC server or laptop.
- Internal Speakers
- VESA® Compatible Wall Mount 800 x 600 mm
- Menu Controls
- Power Switch
- AC In
- HDMI Out
- SPDIF
- USB Type A x2
- DisplayPort
- HDMI x2
- VGA
- Audio In
- RS232 In
- LAN x2
تفضل بزيارة لنا
- www.viewsonic.com
-
الشاشة
Panel Size: 98" Type/ Tech: TFT LCD Module with LED Backlight منطقة العرض (مم): 2158.848mm*1214.352mm Native Resolution: 3840 x 2160 الابعاد المتزنة: 16:9 الألوان: 1.07B (10bit) السطوع: 500 nits(typ.) نسبة التباين: 1300:1 Response Time: 5 ms(typ.) زوايا النظر: H = 178, V = 178 (typ.) عمر الإضاءة الخلفية: 30,000 hrs(min.) Surface Treatment: 3H, Haze 1% (typ) الحافة: 20.3mm Orientation: Landscape -
INPUT
HDMI: x2
1 port to support CECRGB / VGA: 1 منفذ الشاشة: DP1.2 x1 الصوت: PC audio in (3.5 mm) x1 RS-232: x1 OPS: OPS x1
SDM-L x1 -
OUTPUT
HDMI: HDMI2.0 x1 الصوت: 3.5mm Earphone Out x1 SPDIF: x1 -
LAN
RJ45: X2
10M/100 -
USB
Type A: USB2.0 x2 -
SPEAKERS
SPEAKERS: 16W x2 -
COMPATIBILITY
HDMI: HDMI in: 4k@60Hz
HDMI out: 1080/4k @60Hzمنفذ الشاشة: 3840x2160@60Hz نسخة أندرويد: Resolution: 1080p -
POWER
Voltage: 100-240VAC +/- 10% Wide Range الاستهلاك: On: 385W(Typ.)
Off: <0.5W -
ERGONOMICS
Wall Mount (VESA® ): 800x600mm -
OPERATING CONDITIONS
Temperature (º C): 0°C to 40°C Humidity: 20% ~ 80% RH non-condensing -
المقاسات (العرض × الارتفاع × العمق)
Physical (mm): 2198.8*109.5*1253.8mm Packaging (mm): 2525*435*1750mm -
WEIGHT
Net (kg): 98.15 kg Gross (kg): 153.65 kg -
PACKAGE CONTENTS
PACKAGE CONTENTS: 1. US/EU/UK/AU power cord 3M
2. QSG
3. Compliance statement
4. HDMI cable 3M*1
5. Remote control with AAA batteries
6. Webcam plate
7. Wall mount screws
