الميزات الرئيسية
  • Wireless presentation for enhanced efficiency ​
  • Single USB-C cable for 65W power delivery
  • 24/7 video playback for continuous communication
  • Remote device management with myViewBoard Manager ​
  • ProAV compatibility with Crestron, Extron, and AMX​
  • Portrait-oriented display for impactful brand signage

CDE9830
المنتج وصف
With stunning 4K Ultra HD resolution, high brightness, and landscape and portrait modes, the CDE30 Series offers continuous and sustainable 24/7 display for both corporate and campus communication. Purpose-engineered for ease of use, the display is equipped with a Quad Core SoC to run multiple operations seamlessly, and its USB-C one-cable solution sorts for effortless connection with external devices. Designed for easy-to-operate continuous multimedia playback, the CDE30 Series offers cable-free screen casting and screen sharing through myViewBoard Display and vCast, which also supports Airplay and Chromecast. Remote management via the intuitive myViewBoard Manager makes changing content, broadcasting, and software updates a breeze. Available in six sizes ranging from 43" to 98", the CDE30 Series features HDMI input and output for seamless tiling of up to 9 screens, meeting the communication needs of any campus, corporate, or retail space.

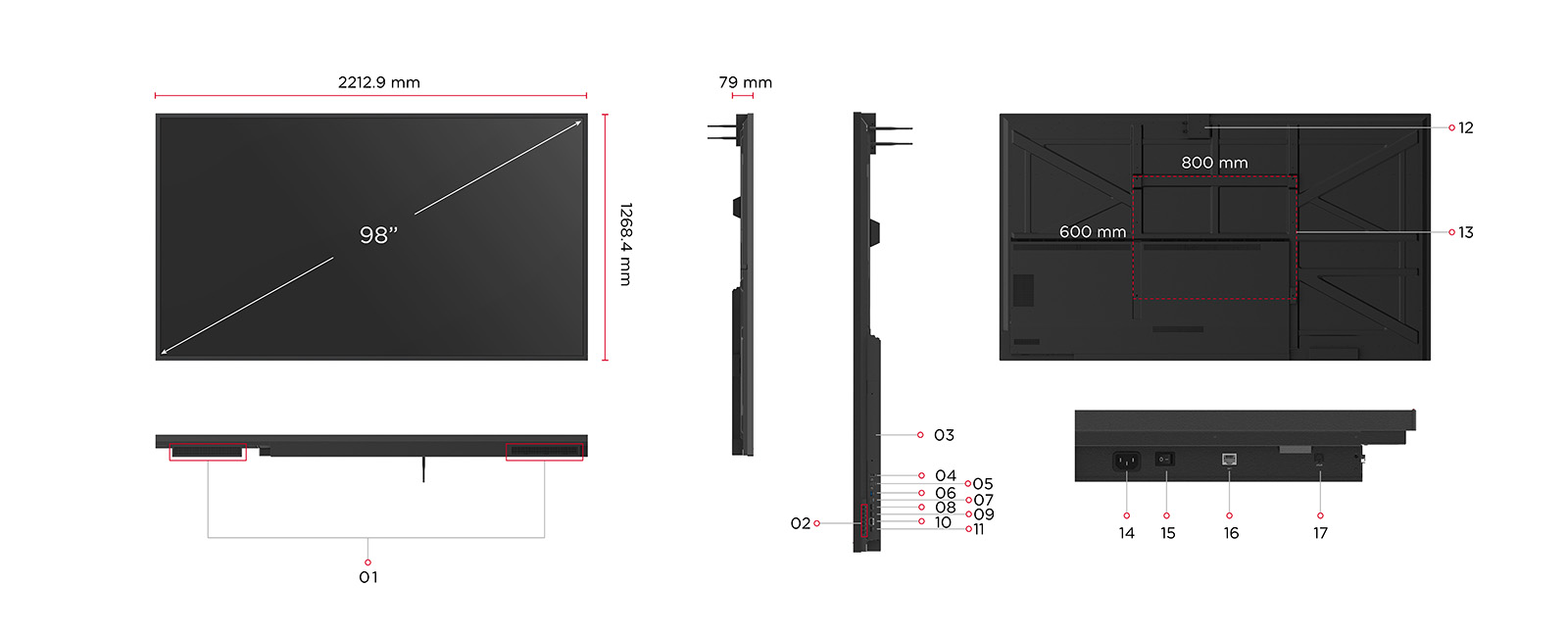

  1. Speaker
  2. Control Panel
  3. OPS Slot
  4. USB 2.0
  5. RS-232
  6. USB 3.0
  7. USB-C
  8. HDMI 1(ARC)
  9. HDMI 2
  10. HDMI OUT
  11. HDMI 3
  12. WiFi Slot
  13. VESA® Wall Mount (800x600mm)
  14. AC IN
  15. Power Switch
  16. LAN
  17. SPDIF
تفضل بزيارة لنا
  • www.viewsonic.com
  • الشاشة
    حجم اللوحة: 98"
    النوع/ التقنية: TFT LCD Module. ADS type, DLED backlight
    منطقة العرض (مم): 2158.848 (H) × 1214.352 (V) (98” diagonal)
    الدقة الأصلية: 3840 x 2160
    الابعاد المتزنة: 16:9
    الألوان: 1.07G (8bits + FRC-)
    السطوع: 500 nits (typ.)
    نسبة التباين: 1200:1 (typ.), 5000:1 (DCR enabled)
    زمن الاستجابة: 8ms
    زوايا النظر: H = 178, V = 178 typ.
    عمر الإضاءة الخلفية: 50,000 hours
    معالجة السطح: Anti-Glaire, 3H hardness, Haze 25%
    الحافة: 25/25/25/25 mm (L/R/T/B)
    الاتجاه: Landscape & Portrait
  • المنصة
    المعالج: Quad-core ARM Cortex A55
    ذاكرة RAM: 4GB
    التخزين: 32GB
  • الإدخال
    HDMI: 2.1x3 ( 3840x2160 @60Hz, HDMI 1 support ARC)
    RS-232: x 1
    فتحة OPS: x 1
    فتحة WiFi: x 1
  • الإخراج
    HDMI: 2.0 x1 ( 3840x2160 @60Hz )
    SPDIF: x 1
  • LAN
    RJ45: x 1
  • USB
    Type A: USB 2.0 x 1; USB 3.0 x 1 (USB 3.0 Support Smart USB)
    Type C: x 1 (Support Smart USB, DP1.2, PD 65W, USB2.0, 100M ethernet)
  • مكبرات الصوت
    10W x2
  • نظام التشغيل المدمج
    Android 11
  • الطاقة
    الجهد: 100-240 VAC +/- 10%
    الاستهلاك: 190 W(typ.) < 0.5W(off)
  • ظروف التشغيل
    درجة الحرارة (º م): 0 to 40℃
    الرطوبة: 10%-90% RH
  • ساعات التشغيل
    7/24
  • المقاسات (العرض × الارتفاع × العمق)
    الأبعاد الفعلية (بوصة / مم): 87.12 x 49.94 x 3.11in/2212.9 x 1268.4 x 79 mm
    العبوة (بوصة / مم): 92.91 x 56.1 x 11.02 in./2360 x 1425 x 280 mm
  • الوزن
    الوزن الصافي (رطل / كجم): 153.0 lbs/69.40 kg
    الوزن الإجمالي (رطل / كجم): 199.1 lbs/90.30 kg
  • اللوائح التنظيمية
    cTUVus, FCC/ICES003, Energy star 8.0, EPEAT, Mexico NOM , Mexico Energy, EMC/CE , CB, EAC, UkrSEPRO, RCM, LBL, Flicker free, Green BOM, RoHS , ErP, REACH, SCIP, WEEE , Annex I, Annex II, TPCH , Packing waste, CA65
  • محتويات العبوة
    1. Remote Control with batteries
    2. Quick Start Guide
    3. Power Cables
    4. HDMI cable
    5. USB-C cable
    6. Wall Mount Screw x 4
    7. RS232 adapter
    8. Compliance statement
