الميزات الرئيسية
  • Slim, freestanding design for modern settings​
  • Exceptional picture quality​
  • Superb processing power with built-in quad-core media player ​
  • Total remote control with RS232 commands within Local Area Network​
  • Effortless integrated device and content management

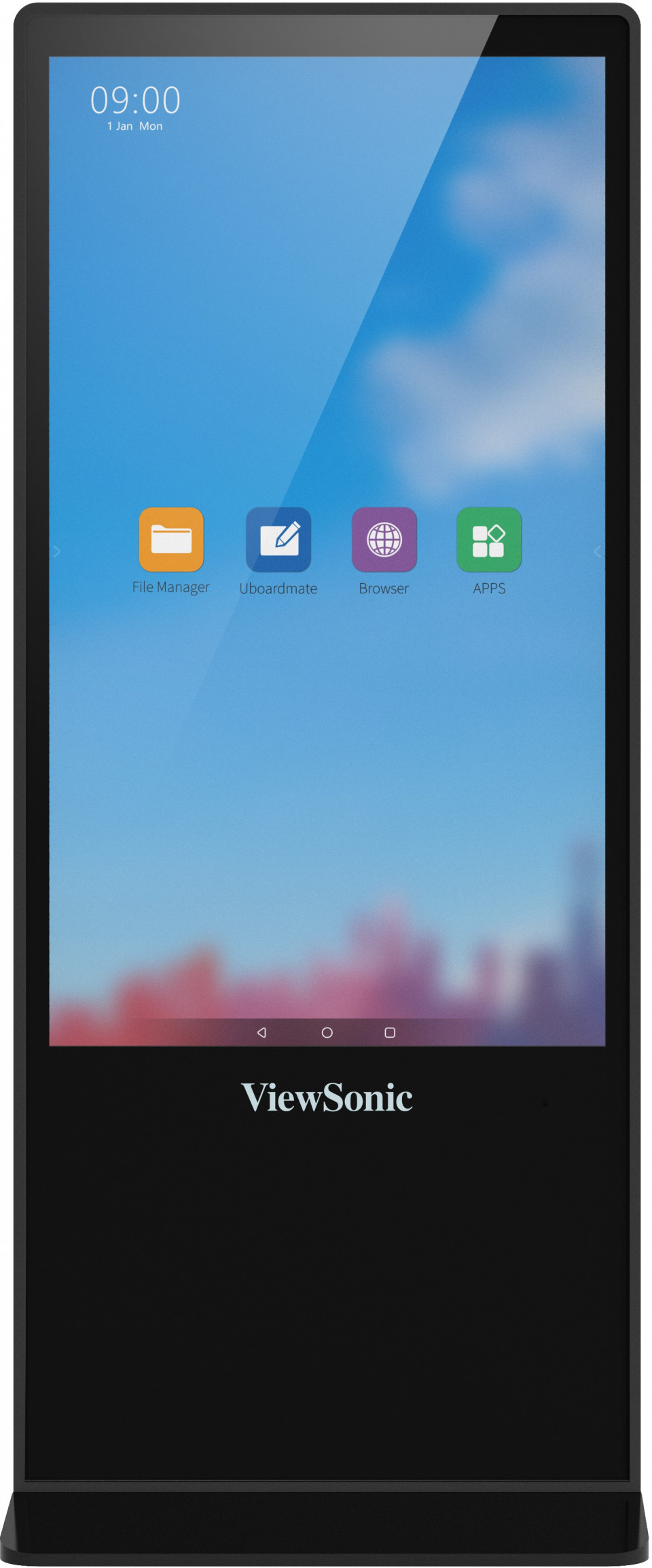

EP5542
المنتج وصف
Uber-sleek and slim, the freestanding ViewSonic EP5542 is the ideal digital ePoster kiosk for high-impact visual messaging. Designed with a scratch-proof glass faceplate for added durability, it delivers unsurpassable visibility regardless of dust or ambient light. The 4K UHD IPS panel is equipped with dual 10W stereo speakers, 178° wide-angle viewing, and 500 nits of brightness, projecting crisp, vivid images and videos to engage the crowd. The EP5542 allows seamless multimedia playback with its embedded Quad-core media player and 16GB worth of internal memory. Made for effortless remote control, manage settings of multiple devices wherever via the vController app integrated with RS232 and LAN command.
  1. RJ45(LAN In)
  2. RS232
  3. Audio Out
  4. SPDIF
  5. PC In(Audio)
  6. PC In(VGA)
  7. USB 2.0(Type A)
  8. HDMI In x3
  9. DP In
  10. AC Out
  11. Power Switch
  12. AC In
  13. RJ45
  14. USB 2.0(Type A) x2
  15. Remote Sensor
  16. Internal Speakers
تفضل بزيارة لنا
  • www.viewsonic.com
  • الشاشة
    حجم اللوحة: 55"
    النوع/التقنية: TFT LCD (VA type,DLED Backlight)
    منطقة العرض (مم): 1209.6 (H) x 680.4 (V)
    الابعاد المتزنة: 9:16
    الدقة الأصلية: 2160 x 3840
    الألوان: 1.07B
    السطوع: 450 nits (typ.)
    نسبة التباين: 1300:1 (typ.)
    زمن الاستجابة: 9 ms (typ. G to G)
    زوايا النظر: H = 178, V = 178 typ.
    عمر الإضاءة الخلفية: 30,000 Hours Typ.
    معالجة السطح: Anti-Glare, pencil hardness 7H , Haze = 2%
    الاتجاه: Portrait
  • الإدخال
    HDMI: (2.0) x 3
    RGB / VGA: x1
    منفذ الشاشة: (1.2) x 1
    الصوت: x1 PC audio(3.5 mm)
    RS232: x1
  • الإخراج
    الصوت: x1 (Earphone out)
    SPDIF: x1
  • LAN
    RJ45: x1
  • USB
    Type A: x3 (2.0)
  • مكبرات الصوت
    10W x 2
  • التوافق
    RGB PC/HDMI PC: 1920 x 1080 @60Hz
    HDMI: 2160 x 3840 @60Hz
    منفذ الشاشة: 2160 x 3840 @60Hz
  • نسخة أندرويد
    8.0
  • الوسائط المتعددة
    Image: JPG, BMP, PNG;
    Video: MP4, MOV, MKV, DAT, MPG, MPEG, AVI, TS, WMV,RM,RMVB;
    Audio: MP3,WAV,AAC
  • البرامج المثبتة مسبقًا*
    Revel Digital, 42Gears SureMDM
    *Activation requires a separate subscription license, sold separately for Revel Digital and 42Gears SureMDM.
  • الطاقة
    الجهد: 100-240VAC +/- 10% Wide Range
    الاستهلاك: 126 W (Normal), 149 W (Max.), < 0.5W (Off)
  • ظروف التشغيل
    درجة الحرارة (º م): 0°C to 40°C
    الرطوبة: 20% ~ 80% non-condensing
  • الأبعاد (العرض × الارتفاع × العمق)
    الأبعاد الفعلية (بوصة / مم): 30.26 x 73.62 x 17.72 in / 768.5 x 1870 x 450 mm
    العبوة (بوصة / مم): 38.19 x 80.08 x 23.98 in / 970 x 2034 x 609 mm
  • الوزن
    الوزن الصافي (رطل / كجم): 138.23 lbs / 62.7 kg
    الوزن الإجمالي (رطل / كجم): 164.69 lbs / 74.7 kg
  • اللوائح التنظيمية
    cTUVus, FCC, Energy Star 8.0, CE, CB, RoHS, ErP, EEI, WEEE, BSMI
  • محتويات العبوة
    1. Power Cord;
    2. Remote control with battery;
    3. Quick Start Guide;
    4. Key

    *Actual content may differ from market to market
