شاشات ال سي دي

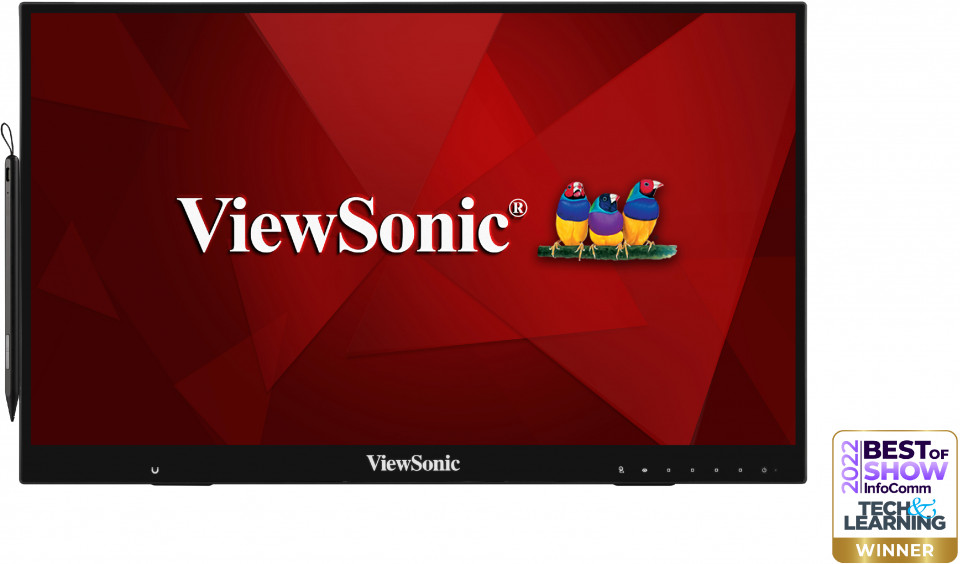

ID2456
الميزات الرئيسية
- PCAP touch technology for fast and accurate touch response
- USB-C for instant plug-and-play connectivity via a single cable
- Ergonomic flexibility for optimal positioning in any task or setup
- Extended Windows Ink workspace for digital writing and design
- Compatible with all devices that support Microsoft Pen Protocol
المنتج وصف
Expand your workspace with the ID2456, a 24” Full HD touch monitor designed to break free from the limitations of a mouse and give you the freedom of working with a pen in hand. The MPP2.0 active pen combines with PCAP technology and Palm Rejection to deliver pinpoint accuracy when writing or drawing so you can optimize presentations, collaboration, and communication with the ability to freely capture and convey ideas in digital form. The multifunctional display covers 120% sRGB color gamut for a stunning viewing experience supported by advanced eye-care technology and ergonomic flexibility. Complete with seamless connectivity via USB-C and compatibility with all devices that support Microsoft Pen Protocol, the ID2456 adds a natural, intuitive, and hands-on experience to your personal workflow.
تفضل بزيارة لنا
- www.viewsonic.com
-
الشاشة
حجم الشاشة (بوصة): 24 Viewable Area (in.): 23.8 Panel Type: IPS Technology Resolution: 1920 x 1080 Resolution Type: FHD (Full HD) Static Contrast Ratio: 1,000:1 (typ) Dynamic Contrast Ratio: 50M:1 Light Source: LED السطوع: 250 cd/m² (typ) Colors: 16.7M Color Space Support: 8 bit (6 bit + FRC) الابعاد المتزنة: 16:9 Response Time (Typical GTG): 5ms Response Time (GTG w/OD): 5ms زوايا النظر: 178º horizontal, 178º vertical عمر الإضاءة الخلفية (ساعات): 30000 Hrs (Min) انحناء: Flat Refresh Rate (Hz): 60 فلتر الضوء الأزرق: Yes Low Blue Light: Software solution Flicker-Free: Yes Color Gamut: NTSC: 88% size (Typ) sRGB: 120% size (Typ) Pixel Size: 0.275 mm (H) x 0.275 mm (V) Touch Screen: Projected Capacitive, 10-point multi-touch Surface Treatment: Anti-Glare, Hard Coating (6H) Cover Glass Thickness: 2mm -
التوافق
PC Resolution (max): 1920x1080 Mac® Resolution (max): 1920x1080 PC Operating System: Windows 10 certified; macOS tested Mac® Resolution (min): 1920x1080 - موصل
-
الصوت
Internal Speakers: 3Watts x2 -
POWER
Eco Mode (Conserve): 25.72W Eco Mode (optimized): 29.22W الاستهلاك (نموذجي): 31W الاستهلاك (الحد الأقصى): 32W Voltage: AC 100-240V Stand-by: 0.5W Power Supply: Internal Power Supply -
أجهزة إضافية
Kensington Lock Slot: 1 -
ادواة التحكم
Physical Controls: Key 0 (touch enable/disable), Key 1, Key 2, Key 3, Key 4, Key 5, Key 6 (power) On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu -
OPERATING CONDITIONS
Temperature: 32°F to 104°F (0°C to 40°C) Humidity (non-condensing): 20% to 90% -
WALL MOUNT
VESA Compatible: 100 x 100 mm -
INPUT SIGNAL
Frequency Horizontal: RGB Analog: 24 ~ 86KHz, HDMI (v1.4): 15 ~ 86KHz, Type C: 15 ~ 86KHz Frequency Vertical: RGB Analog: 50 ~ 75Hz, HDMI (v1.4): 24 ~ 75Hz, Type C: 24 ~ 75Hz -
VIDEO INPUT
مزامنة رقمية: TMDS - HDMI (v1.4), Micro-Packet - Type C Analog Sync: Separate/Composite/SOG - RGB Analog -
ERGONOMICS
Tilt (Forward/Back): 15º / 70º -
WEIGHT (IMPERIAL)
Net (lbs): 11 Net Without Stand (lbs): 11 Gross (lbs): 15 -
WEIGHT (METRIC)
Net (kg): 5 Net Without Stand (kg): 5 Gross (kg): 6.8 -
المقاسات (عرض × ارتفاع × عمق)
Packaging (in.): 23.8 x 15.9 x 4.9 Physical (in.): 21.44 x 13.11 x 1.7 Physical Without Stand (in.): 21.44 x 13.11 x 1.7 -
المقاسات (متري) (عرض × ارتفاع × عمق)
Packaging (mm): 605 x 405 x 125 Physical (mm): 544.6 x 333.1 x 43.3 Physical Without Stand (mm): 544.6 x 333.1 x 43.3 -
GENERAL
Regulations: cTUVus, FCC-B, ICES003, Energy Star, CEC, CE, CE EMC, LVD/CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, PSE, BIS PACKAGE CONTENTS: ID2456 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB A/B Cable (v3.2; Male-Male) x1, USB Type-C Cable (Male-Male) x1, USB Type-C to Type-A 3.2 Gen1 Cable (Male-Male) x1, Quick Start Guide x1, MPP2.0 Active Pen x1 Recycle/Disposal: Please dispose of in accordance with local, state or federal laws. Warranty: *Warranty offered may differ from market to market Power Management: Energy Star standards
