الميزات الرئيسية
  • UFT (Ultra Fine Touch) Technology
  • myViewBoard™ digital whiteboard software
  • Dual-pen writing with 3mm/8mm diameter pen tips
  • Ambient Light Sensor
  • ENERGY STAR® certified

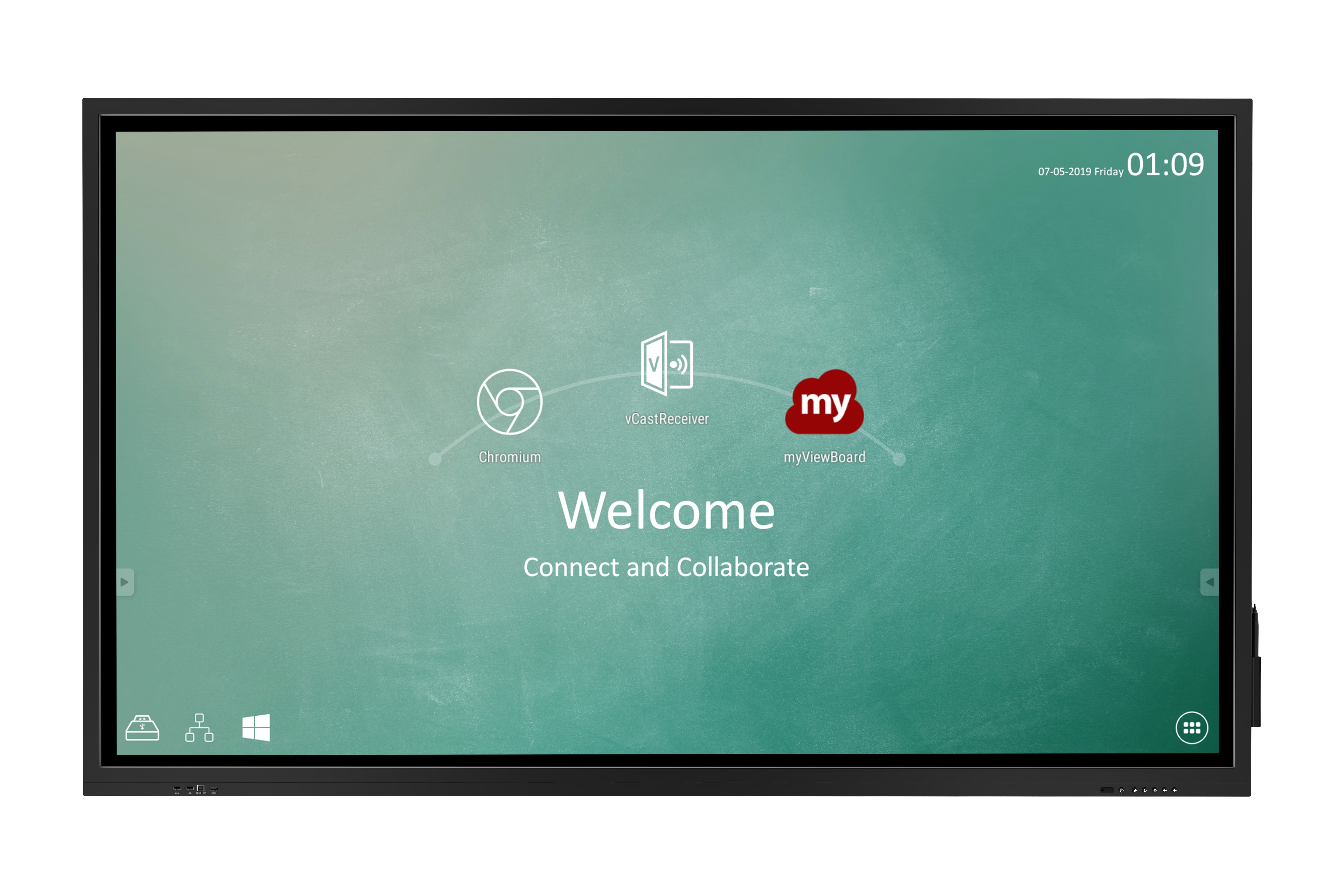

IFP6530
المنتج وصف
The ViewBoard® IFP30 series embraces UFT (Ultra Fine Touch) Technology to offer more precise writing and faster processing time than traditional IR panels. 2mm height sensitivity increases writing accuracy while allowing for dual-pen annotation with both 3mm & 8mm diameter pens. It’s also incredibly responsive, distinguishing the different touch diameters among pens, fingers and palms to avoid false strokes. In addition, the IFP30 series is integrated with myViewBoard™ digital whiteboard software to provide collaboration on the go, and is further complimented by native casting including Miracast, Airplay, and Chromecast. Interactive whiteboards are becoming commonplace. The IFP30 series is the solution for schools and workplaces of all sizes and considerations.
  1. CONTROLS PANEL
  2. USB X 2
  3. TOUCH USB
  4. HDMI IN
  5. HDMI OUT
  6. SPDIF OUT
  7. TOUCH USB
  8. USB X 2
  9. DISPLAY PORT IN
  10. HDMI IN X 2
  11. VESA® WALL Mount 600x400 mm
  12. RS232 IN
  13. AUDIO OUT
  14. VGA IN
  15. LAN X 2
  16. PC AUDIO IN
تفضل بزيارة لنا
  • www.viewsonic.com
  • TOUCH
    Touch Resolution: 32767W*32767D
    Touch Point: 20 points
    10 writing
    Type/ Tech: IR Recognition
  • INPUT
    HDMI: Front*1
    Rear* 2
    All ports HDMI2.0
    RGB / VGA: 1
    منفذ الشاشة: DP1.2*1
    الصوت: PC audio in (3.5 mm)*1
    RS232: x1
    OPS: 1
  • OUTPUT
    الصوت: 3.5mm Earphone Out *1, SPDIF*1
    HDMI: *1
    SPDIF: x1
  • LAN
    RJ45: *2
    10M/100
  • USB
    Type A: USB2.0 *4 (Front:*2 Rear: *2 )
    Type B: For touch (Front*1, rear*1))
  • SPEAKERS
    SPEAKERS: 15WX2
  • COMPATIBILITY
    RGB PC/HDMI PC: VGA: 1080p
    HDMI: 4K
    HDMI: 3840x2160
    منفذ الشاشة: 3840x2160
  • POWER
    Voltage: PB model:
    100-240VAC +/- 10% Wide Range
    الاستهلاك: On:129W(Typ.)
    Off: <0.5W
  • ERGONOMICS
    Wall Mount (VESA® ): 600x400
  • OPERATING CONDITIONS
    Temperature (º C): 0°C to 40°C
    Humidity: 20% ~ 80% RH Non-Condensing(working)
  • WEIGHT
    Net (lb / kg): 97.4lb/44.2kg
    Gross (lb / kg): 126.8lb/57.5kg
  • الشاشة
    Panel Size: 65"
    Type/Tech: IPS/V-by-one
    منطقة العرض (مم): 1428.48*803.52mm
    الابعاد المتزنة: 16:9
    Native Resolution: 4K60hz
    الألوان: 10 bits
    السطوع: 360(Typ.)
    320(min.)
    نسبة التباين: 1200:1
    Response Time: 6ms(Type)
    زوايا النظر: H = 178, V = 178 typ.
    عمر الإضاءة الخلفية: 30,000hr(min)
    Surface Treatment: Hardness: 7H
    Costing: AG coating
    Thickness: 4mm
    الحافة: 29/29/29/49.7mm(btm.)
    Orientation: Landscape
  • PLATFORM
    Processor: ARM Cortex-A73*2 + Cortex-A53*2 1.5Hz
    RAM: 3GB DDR4
    Storage: 16GB
  • لوحة الكاميرا في الأعلى لتثبيت كاميرا الويب ببراغي
    لوحة الكاميرا في الأعلى لتثبيت كاميرا الويب ببراغي: yes
  • EMBEDDED OS
    Embedded OS: OS 8.0
    Resolution: 1080p
  • المقاسات (العرض × الارتفاع × العمق)
    Physical (inch / mm): 1523.5*919.24*89.2(mm)
    59.98*36.19*3.51(inch)
    Packaging (inch / mm): 1660*1045*245(mm)
    65.4*41.1*9.6(inch)
  • ENERGY STAR VERSION
    Energy Star version: YES
  • EEI RATING
    EEI rating: A
  • PACKAGE CONTENTS
    PACKAGE CONTENTS:
    1. US/EU/UK/AU power cord, no PE bag
    2. QSG
    3. Compliance statement
    4. HDMI cable*1
    5. Touch USB cable*1
    6. Touch PEN *2. Extra tip: Thick*2, thin*1
    7. Remote control with AAA batteries (VS version)
    8. Webcam plate with screws pack
    a. Need to compatible with Logi CC4000e)
    b. Add screw holes on top of the frame
    9. Pen tray*1 (two pen, detachable, mount for both side)
    10. Wall mount screws
  • جهاز كمبيوتر متوافق مع فتحة
    جهاز كمبيوتر متوافق مع فتحة: VPC12 series
