الميزات الرئيسية
  • Integrated with myViewBoard software
  • Multi-tasking capabilities for enhanced lesson delivery
  • Embrace simplicity and organization with the USB-C one-cable solution, offering 65W of Power Delivery.
  • Intuitive user interface and fast app launch for smooth operation
  • Powered by Android 11

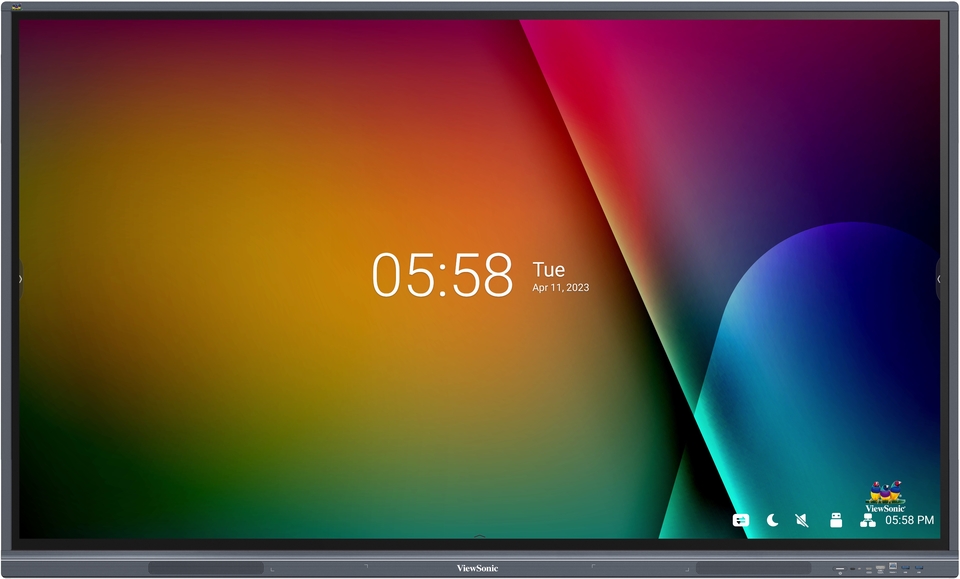

ViewBoard IFP6533-G
المنتج وصف
The ViewBoard IFP33 Series harmonizes a touch display with versatile software to create a comprehensive classroom solution for interactive and engaging learning. This interactive flat panel delivers exceptional image quality in 4K UHD, thanks to cutting-edge bonding technology that provides clearer colors, enhanced contrast, and reduced glare. The 40-point touchscreen interface, equipped with Ultra Fine Touch Technology, empowers students and teachers to collaborate seamlessly, using either their fingers or dual-tip pens, for an intuitive pen-on-paper experience. Powerful built-in front-facing speakers and a USB-C port sort out for a complete and convenient multimedia experience. The ViewBoard IFP33 Series is preinstalled with myViewBoard to offer advanced lesson delivery options for teachers and powerful device management tools for administrators.
  1. POWER ON/OFF
  2. USB C
  3. HDMI 1
  4. TOUCH 1
  5. USB 3.0x2
  6. OPS Slot
  7. RS-232
  8. LAN
  9. USB 2.0x2
  10. TOUCH 2
  11. HDMI 2
  12. HDMI 3
  13. HDMI OUT
  14. USB
  15. VESA® Wall Mount (600x400mm)
  16. SPDIF
  17. AUDIO in
  18. AUDIO out
  19. VGA
  20. Power On/OFF
  21. AC IN
  22. Wi-Fi Slot
  23. Sensor Mount
تفضل بزيارة لنا
  • www.viewsonic.com
  • الشاشة
    حجم اللوحة: 65"
    نوع اللوحة: TFT LCD Module with DLED Backlight. IPS
    منطقة العرض (مم): 1428.48(H) × 803.52(V) (64.5” diagonal)
    الابعاد المتزنة: 16:9
    الدقة: UHD 3840x2160(Pixels)
    الألوان: 1.07B colors
    السطوع: 400 nits
    نسبة التباين: 5000:1 (max. with DCR enabled)
    زمن الاستجابة: 8ms
    زوايا النظر: H=178, V=178
    عمر الإضاءة الخلفية: 30,000 Hours (Min.)
    معالجة السطح: Hardness: 9H Anti-glare coating
    الاتجاه: Landscape
  • المنصة
    المعالج: Quad-core ARM Cortex (A55*4 )
    ذاكرة RAM: 8GB DDR4
    التخزين: 128 GB
  • اللمس
    النوع/ التقنية: Ultra Fine Touch Technology
    نقاط اللمس: 40 points touch
  • الإدخال
    HDMI: HDMI-IN 2.0 x 3 (3840x2160 @60Hz)
    RGB / VGA: x1
    الصوت: x1
    RS232: x1
    OPS: x1 (Optional Intel Standard OPS)
    WiFi: x1 (Optional VB-WIFI-002/VB-WIFI-004/VSB-050)
  • الإخراج
    HDMI: HDMI 2.0 x1
    الصوت: x1
    SPDIF: x1
  • LAN
    RJ45: x2
  • USB
    Type A: USB3.0:Front x2, Rear x2;
    USB2.0 x1
    Type B: x2 (Rear x1 + Front x1)
    Type C: Front*1 (PD65W + DP1.2 + Data USB2.0 + 10M/100M sharing)
  • مكبرات الصوت
    16W x 2
  • لوحة الكاميرا العلوية
    Yes
  • نظام التشغيل المدمج
    Android 11
  • حزمة البرامج
    برنامج الشرح الأساسي: myViewBoard Whiteboard
    برنامج التعليق الاحترافي: myViewBoard for Windows (Embedded in optional Windows Slot-in PC)
    العرض التقديمي اللاسلكي: myViewBoard Display
    عرض تقديمي لاسلكي مع استجابة اللمس: Viewboard Cast: Yes
    ViewSonic Launcher: Split-screen and picture-in-picture mode
  • ميزات خاصة
    منفذ USB متعدد الوظائف: (combine slot-in PC/Android/HDMI USB port) Front “SmartPort™ USB” to all channels.
    مشاركة LAN بسيطة بين الشاشة التفاعلية (IFP) والجهاز المُدرج: 10/100M for Android & Slot-in PC
    مستشعر الضوء: Yes
  • الطاقة
    الجهد: 100-240V AC
    الاستهلاك: On:99W ; Off: ≤ 0.5W
  • التصميم المريح
    التثبيت على الحائط (VESA®): 600*400
  • ظروف التشغيل
    درجة الحرارة (º م): 0°C to 40°C
    الرطوبة: 20% ~ 80% RH non-condensing
  • المقاسات (العرض × الارتفاع × العمق)
    الأبعاد الفعلية (بوصة / مم): 1488 x 897 x 88 mm / 58.6 x 35.3 x 3.5 in
    العبوة (بوصة / مم): 1628x1005x208 mm / 64.1x 39.6x 8.2in
  • الوزن
    الوزن الصافي (رطل / كجم): 77.1lb/34.95kg
    الوزن الإجمالي (رطل / كجم): 98.5 lb/44.7kg
  • اللوائح التنظيمية
    FCC/ICES003, EPEAT, CE EMC, LVD or CB, RoHS Green BOM, & RoHS DoC, ErP, REACH SVHC List, & DoC, EEL, WEEE, BSMI,BIS
  • محتويات العبوة
    1. 3m power cord by ship area 2. Remote control with AAA battery 3. 3m touch USB cable 4. Touch pen x 2 (VB-PEN-009) 5. Quick Start Guide + Compliance statement 6. RS232 adapter 7. Clamp x 5 8. Camera Plate 9. Screw x 8 (camera 2+2, wall mount 4) 10. HDMI cable 3m
  • جهاز كمبيوتر متوافق مع فتحة
    VPC2-O series/VPC2-O-1B series/VPC12-WPO-15/16
