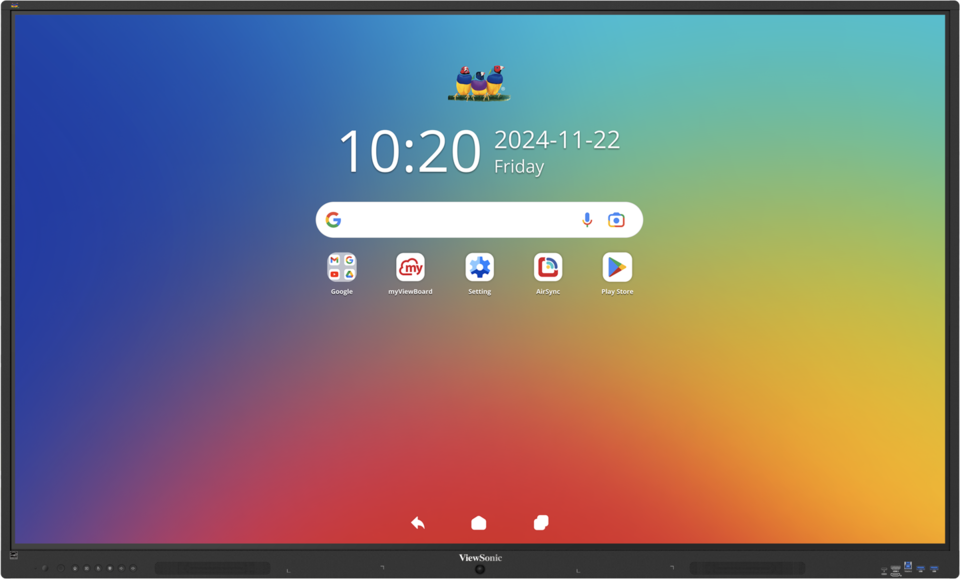

فيوسونيك شاشة ViewBoard IFP6535-1-1C مقاس 65 بوصة حاصلة على شهادة EDLA ومزودة بمستشعر حركة موفر للطاقة - البيانات

الشاشة

Panel Size:	65"
Panel Type:	TFT LCD Module with DLED Backlight
منطقة العرض (مم):	1428.48mm(H) x 803.52mm(V)(64.5" diagonal)
الابعاد المتزنة:	16:9
Resolution:	UHD 3840 x 2160
Colors:	1.07B colors (8bit+FRC)
السطوع:	350 nits (typ.)
نسبة التباين:	5000:1 (max. with DCR enabled)
Response Time:	6.5ms
زوايا النظر:	H = 178°, V = 178° typ.
عمر الإضاءة الخلفية:	50,000 Hours
Surface Treatment:	Hardness: 9H, Anti-glare coating
Orientation:	Landscape

PLATFORM

Processor: Octa-Core CPU

RAM: 8GB

Storage: 64GB/ 128GB
TOUCH

Type/ Tech: Ultra Fine Touch Technology (IR Recognition)

Touch Resolution: 32767 x 32767

Touch Point: Up to 64 points of touch

Palm Rejection: Yes

INPUT

HDMI:	x3 (Frontx1: HDMI 2.1 4K@60Hz with CEC ; Rearx2: [(HDMI2.1 4K@60Hz with CEC, ARC)x1+(HDMI2.1 4K@60Hz with CEC)x1]
RGB / VGA:	x1
منفذ الشاشة:	x1
الصوت:	x1
RS232:	x1
SD/SDHC:	x1 TF Card Slot (Micro SD)
OPS:	x1 PC Slot

OUTPUT

HDMI: x1 (HDMI 2.1 4K@60Hz)

الصوت: x1 (Line out)

SPDIF: x1 (Optical)
LAN

RJ45: x2

USB

Type A:	x5 (Front x2 and Rear x2 with USB3.2 Gen 1, all support SmartPort USB ; Rear x1 with USB 2.0 for system update)
Type B:	x2 (Front x1 and Rear x1 with USB 3.2 Gen 1 connectors, Touch 1 with 3.2 data and Touch 2 with 2.0 data)
Type C:	x2 (Frontx1 with USB 3.2 Gen 1, DP1.2, Ethernet 100M, PD 65W; Rearx1 with USB 3.2 Gen 1, DP1.2, Ethernet 100M, PD 15W)

SPEAKERS

20W x 2 Front soundbar
EMBEDDED OS

EDLA-Certified with Android 16

BUNDLED SOFTWARE

برنامج الشرح الأساسي:	myViewBoard for Android
Pro Annotation Software:	myViewBoard for Windows (embedded in VPC)
Wireless Presentation:	AirSync
Device Management:	Manager
ViewSonic Launcher:	Yes

SPECIAL FEATURES

All-in-one USB port:	USB 3.2 Gen 1 “SmartPort USB” to all channels
Simple LAN sharing between IFP and slot-in device:	10/100/1000M (USB Type-C 10/100, Android & PC 10/100/1000)
Light Sensor:	Yes
PIR Sensor:	Yes

POWER

Voltage: 100-240VAC +/- 10% Wide Range

الاستهلاك: On: 69.56 W ; Off:< 0.5 W
ERGONOMICS

Wall Mount (VESA® ): 600 mm x 400 mm
OPERATING CONDITIONS

Temperature (º C): 0°C to 40°C

Humidity: 20% ~ 80% RH Non-Condensing
المقاسات (العرض × الارتفاع × العمق)

Physical (inch / mm): 58.58 x 35.29 x 3.96 in / 1488 x 896.3 x 98 mm

Packaging (inch / mm): 63.78 x 39.80 x 7.05 in / 1620 x 1011 x 179 mm
WEIGHT

Net (lb / kg): 63.27 lb / 28.7 kg

Gross (lb / kg): 70.70 lb / 35.7 kg
REGULATIONS

cTUVus, EPEAT Silver, BSMI, TGM, LBL, FF, REACH , WEEE, FCC_ICES003, ES8.0, CE_EMC, CB, EAC, UKr,ErP-EEL
ENERGY STAR VERSION

8.0
EEI RATING

D

PACKAGE CONTENTS

1. Power Cord x1 3 meters,

by shipping area (VSA: US / VSE: UK, EU / VSI: UK, AU / VSCN: CN)

2. USB Touch cable x1 3 meters

3. Touch pen (Passive pen) x2

4. Quick Start Guide (With Compliance statement )

5. Screw x4 (for wall mount)

6. HDMI cable x1 3 meters,

(HDMI LA certified)

7. Remote controller x1

8. AAA battery x2

9. Warranty card (only for VSCN)

جهاز كمبيوتر متوافق مع فتحة

VPCF5-W33-G1 / VPC37-W53-G1 / VPC35-W53-G1 / VPC-A31-O1 / VPC11-C33-G1 / VPC13-C33-G1 / VPC15-C53-G1

Type/ Tech:	Ultra Fine Touch Technology (IR Recognition)
Touch Resolution:	32767 x 32767
Touch Point:	Up to 64 points of touch
Palm Rejection:	Yes

HDMI:	x1 (HDMI 2.1 4K@60Hz)
الصوت:	x1 (Line out)
SPDIF:	x1 (Optical)

Voltage:	100-240VAC +/- 10% Wide Range
الاستهلاك:	On: 69.56 W ; Off:< 0.5 W

Temperature (º C):	0°C to 40°C
Humidity:	20% ~ 80% RH Non-Condensing

Physical (inch / mm):	58.58 x 35.29 x 3.96 in / 1488 x 896.3 x 98 mm
Packaging (inch / mm):	63.78 x 39.80 x 7.05 in / 1620 x 1011 x 179 mm

Net (lb / kg):	63.27 lb / 28.7 kg
Gross (lb / kg):	70.70 lb / 35.7 kg

Processor:	Octa-Core CPU
RAM:	8GB
Storage:	64GB/ 128GB
