الميزات الرئيسية
  • Ultra fine touch technology enables real-time response dual-pen writing with a 3mm diameter pen tip
  • 2.1 Stereo sound with a built-in woofer
  • Built-in myViewBoard™ whiteboarding software to collaborate on the go
  • 4-way split screen content sharing with built-in ViewBoard® Cast software
  • SmartPort™ shared front USB ports for internal & external PCs

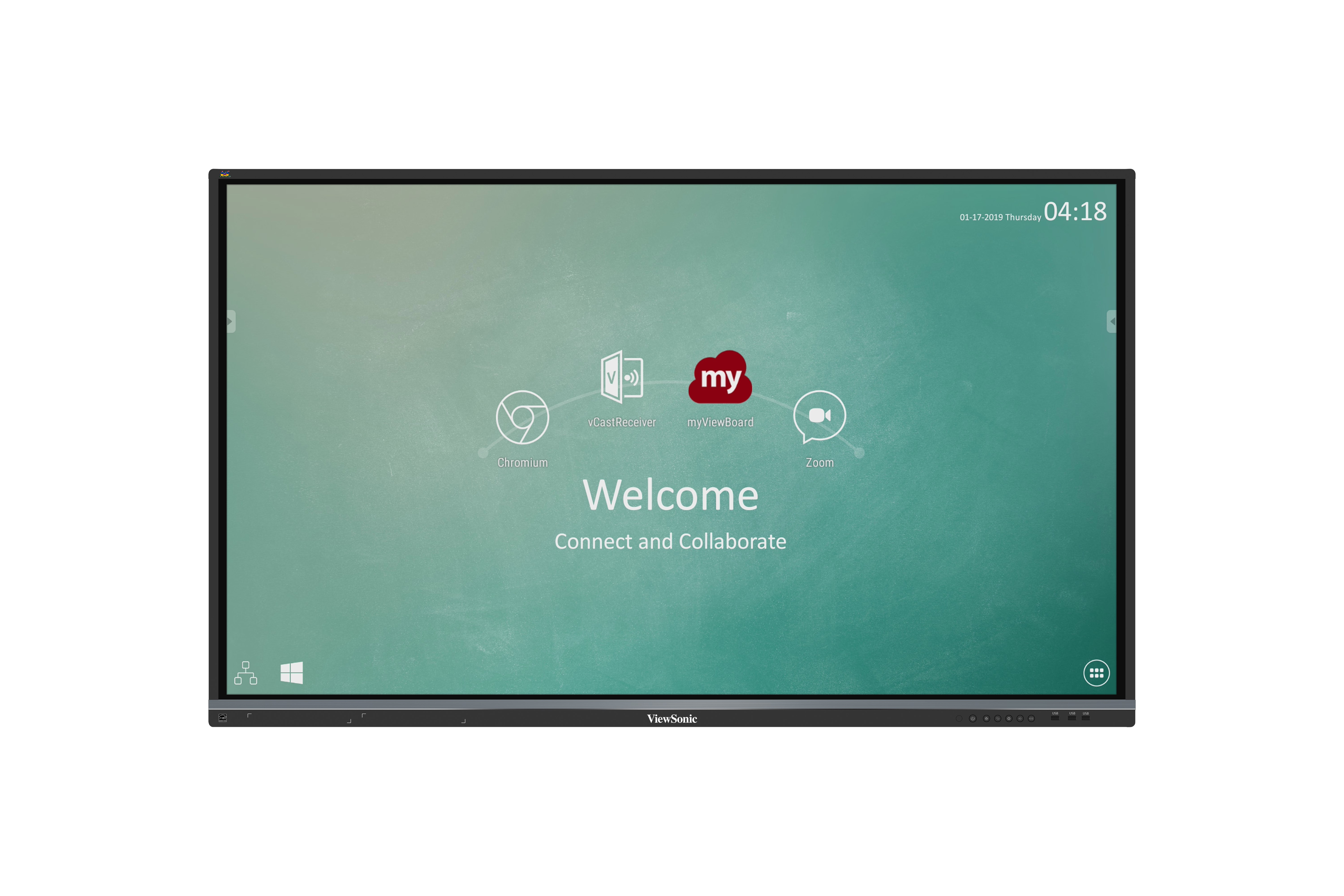

IFP6550-2
المنتج وصف
The ViewBoard® IFP50 series embraces ultra fine touch technology to offer fine precision writing. Along with slim IR touch and its optimized integration, the processing time is faster than traditional IR panels. Meanwhile, smooth dual-pen writing with our new, slim 3mm pens enables teachers and students to work efficiently on any detailed tasks that require the accurate use of fine tipped pens during group discussion. On top of that, the ViewBoard® IFP50 series is designed with a slim bezel to broaden your viewing experience, so that even at the edge you can write clearly and thinly. It is also well integrated with myViewBoard™ whiteboarding software to collaborate on the go, and further complimented by ViewBoard® Cast software for 4 way split screen content sharing.

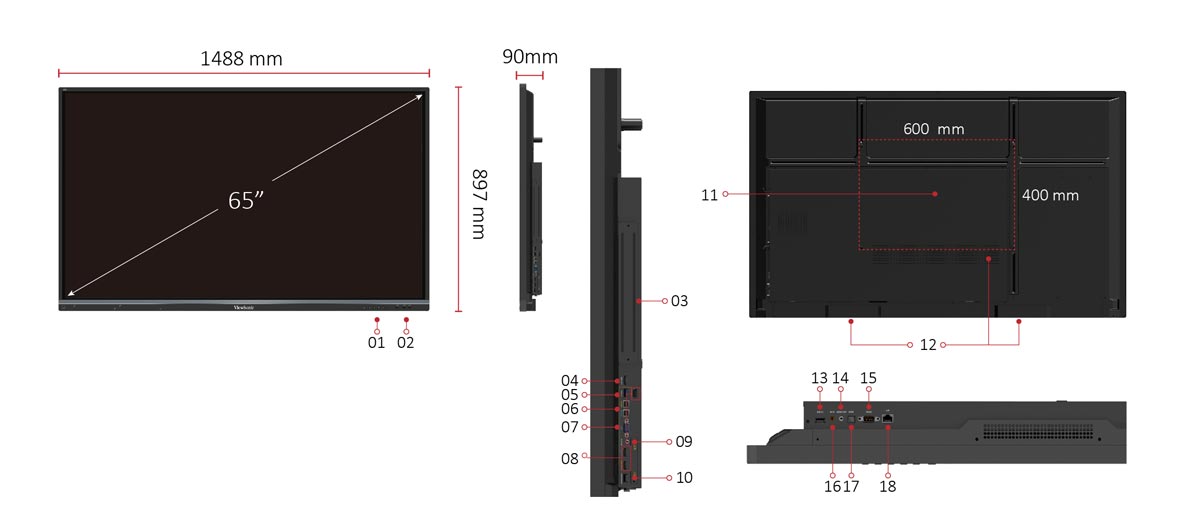

  1. MENU CONTROLS
  2. USB X 3
  3. Intel Unite® Certified OPS Slot
  4. HDMI OUT
  5. USB 3.0
  6. TOUCH X 2
  7. VGA
  8. HDMI IN X 3
  9. AUDIO IN
  10. CAMERA PORT
  11. VESA® WALL Mount 600x400 mm
  12. INTERNAL SPEAKERS
  13. USB 2.0
  14. AUDIO OUT
  15. RS232
  16. AV IN
  17. SPDIF
  18. LAN
تفضل بزيارة لنا
  • www.viewsonic.com
  • الشاشة
    Panel Size: 65"
    Type/Tech: TFT LCD Module with DLED Backlight.
    منطقة العرض (مم): 1431 (H) x 807 (V) (64.5” diagonal)
    الابعاد المتزنة: 16:9
    Native Resolution: UHD 3840x2160(Pixels)
    الألوان: 1.07B colours (10bit)
    السطوع: 350 nits (typ.) 300 nits (min.)
    نسبة التباين: 5000:1 (DCR)
    Response Time: 8ms
    زوايا النظر: H = 178, V = 178 typ.
    عمر الإضاءة الخلفية: 30,000 Hours (Min)
    Surface Treatment: Anti-Glare
    الحافة: Slim
    Orientation: Landscape
  • PLATFORM
    Processor: ARM Cortex A73 dual-core 1.2GHz
    RAM: 2GB DDR4
    Storage: 16GB
  • TOUCH
    Type/ Tech: IR Recognition
    Touch Resolution: 32767 x 32767
    Touch Point: 20 points touch, 10 points writing
  • INPUT
    HDMI: 2.0 x3 (3840x2160 @60Hz)
    RGB / VGA: x1
    الصوت: x1 (PC audio in)
    CVBS: x1
    RS232: x1
    OPS: x1 PC Slot (proprietary)
  • OUTPUT
    HDMI: x1
    الصوت: x1 (Earphone out)
    SPDIF: 1(optical)
  • LAN
    RJ45: x1
  • USB
    Type A: USB 2.0 x4(including 2 USB port in front)
    USB 3.0 x2(including 1 USB port in front)
    Type B: x2, for touch
  • SPEAKERS
    SPEAKERS: 10W x 2 + 15W x 1
  • EMBEDDED OS
    Embedded OS: Android 7
  • USB SUPPORTED FILE FORMAT
    USB SUPPORTED FILE FORMAT: Picture -
    BMP, JPEG, PNG

    Video -
    Codec: MPEG1, MPEG2, MPEG2-PS, MPEG4, MKV
    Container: MPG, MP4, MOV, VOB, DAT, MKV

    Audio -
    Codec: AAC, HEAAC, MPEG1, MPEG2
    Container: AAC, M4A, MP3
  • حزمة البرامج
    برنامج الشرح الأساسي: myViewBoard
    Pro Annotation Software: myViewBoard for windows (Embedded in Windows Slot-in PC)
    Wireless Presentation with Touch Feedback: Viewboard Cast: yes
    ViewSonic Launcher: Embedded
  • SPECIAL FEATURES
    منفذ USB متعدد الإمكانات (يجمع بين منفذ Windows / Android USB ؛ لا داعي للتمييز بينهما بعد الآن): Front “SmartPort™ USB” to all channels.
    Simple LAN sharing between IFP and slot-in device: Yes
  • POWER
    Voltage: 100-240VAC +/- 10% Wide Range
    الاستهلاك: 104W (Typ.)
    < 0.5 W ("Off")
  • ERGONOMICS
    Wall Mount (VESA® ): 600 x 400
  • OPERATING CONDITIONS
    Temperature (º C): 0°C to 40°C
    Humidity: 10% ~ 90% RH non-condensing
  • المقاسات (العرض × الارتفاع × العمق)
    Physical (inch / mm): 58.6 x 35.3 x 3.5 in / 1488 x 897 x 90 mm
    Packaging (inch / mm): 65.7 x 39.8 x 8.8 in / 1669 x 1010 x 223 mm
  • WEIGHT
    Net (lb / kg): 88.85 lb / 40 Kg
    Gross (lb / kg): 102.63 lb / 47 Kg
  • REGULATIONS
    REGULATIONS: FCC, cTUVus, CB, CE, BSMI, RCM, BIS, EAC
  • ENERGY STAR VERSION
    Energy Star version: ES8.0
  • EEI RATING
    EEI rating: A+
  • PACKAGE CONTENTS
    PACKAGE CONTENTS: 1. Power cable (3 meters) x 4
    2. Remote control
    3. USB cable (3 meters)
    4. AV cable
    5. Touching pen x 2
    6. Quick Start Guide
    7. RS232 adapter
    8. Clamp x 5
    9. Plate
    10. Screw x 8
    11. HDMI cable
  • جهاز كمبيوتر متوافق مع فتحة
    جهاز كمبيوتر متوافق مع فتحة: VPC14-WP series
    VPC10-WP series
    VPC15-WP series
    VPC16-WP series
    VPC17-WP series
