الميزات الرئيسية
  • InGlass™ Technology for increased accuracy
  • FIPS201 certified fingerprint reader
  • 20-Point Multi-Touch
  • Dual Expansion PC Slots
  • Built-in ARM Quad-core CPU with 16GB Storage

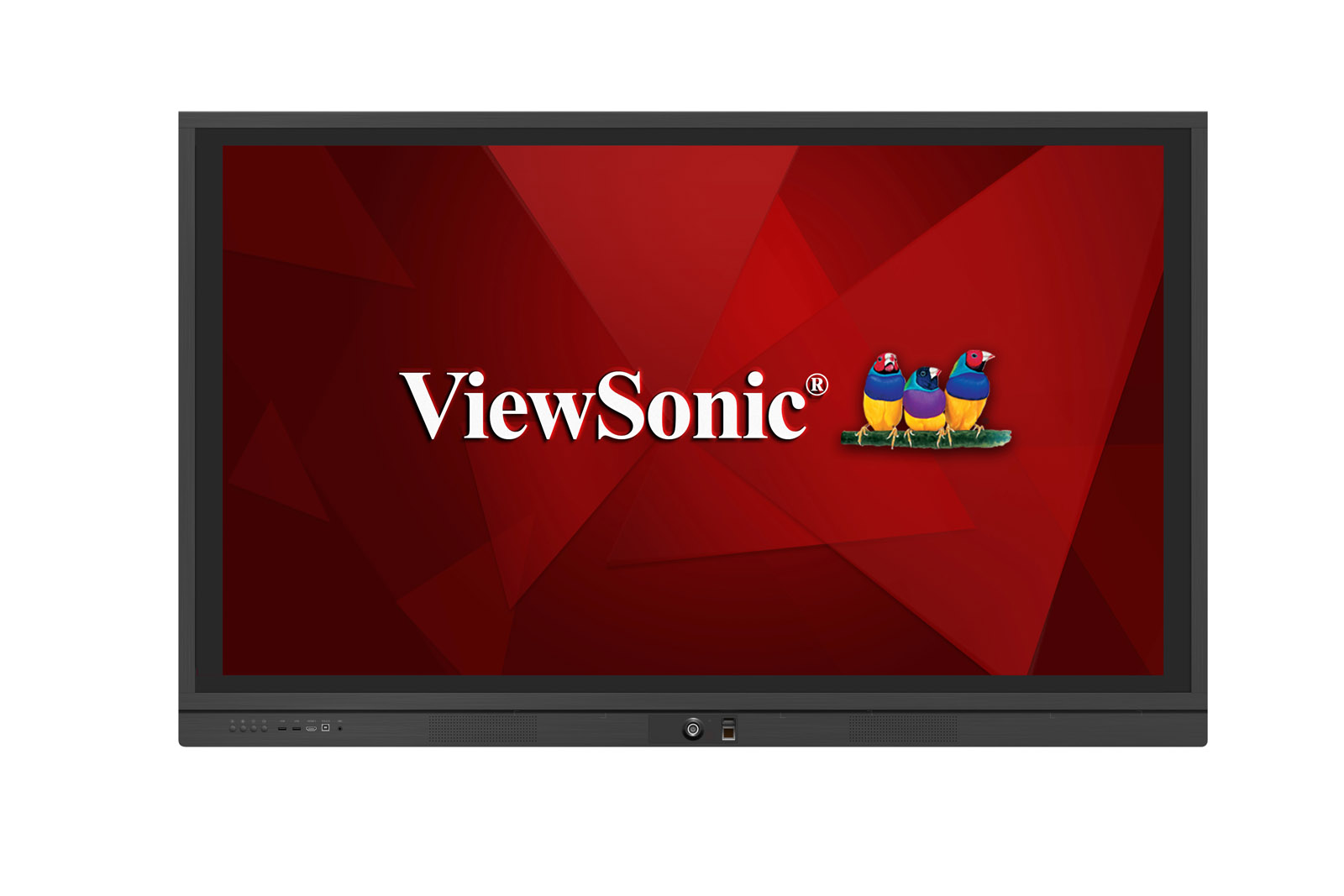

IFP6560
المنتج وصف
The ViewBoard® IFP6560 is an 65” 4K (3840 x 2160) interactive flat panel display with an open platform design and diverse collaborative capabilities. ViewBoard® IFP6560 is fit for integration into Google-based environments, offers seamless Windows accessories & office365 compatibility, comes equipped with Mac multi-touch gesture mirroring, and supports Linux PC touch back remote control. InGlass™ technology delivers a more accurate and sleek touchscreen experience with lag-free writing and drawing in two colors with different thicknesses. Pairing ViewBoard® IFP6560’s 20-point touch display with pre-installed tools, such as myViewBoard™ whiteboarding software, ViewBoard® Cast for content sharing, and Zoom conference software, allows multiple users to remotely write, share, and interact simultaneously. Connecting to more powerful computing platforms is possible via the board’s PC slots for the optional Intel certified OPS (Open Pluggable Specification) which allows users to switch their system to Windows OS. Connecting to the board is made easy through SmartPort™ shared front USB ports for internal and external PCs. Finger print recognition bolsters security and enables easy login to Windows or myViewBoard™ for your digital whiteboad in the cloud. Versatile connectivity to a multitude of devices combined with VESA-compatibility and a trolley design allows for flexible installation anywhere, no matter the occasion.
تفضل بزيارة لنا
  • www.viewsonic.com
  • لوحة LCD
    حجم اللوحة: 65"
    النوع/ التقنية: TFT LCD Module with DLED Backlight
    منطقة العرض (مم): 1428.48(H) x 803.52(V) mm (64.5” diagonal)
    الابعاد المتزنة: 16:9
    الدقة: 3840 x 2160
    الألوان: 1.07B (8Bit+FRC)
    السطوع: 350 nits (typ.)
    نسبة التباين: 4000:1 (typ.)
    زمن الاستجابة: 8 ms
    زوايا النظر: H = 178, V = 178 (typ.)
    الإضاءة الخلفية: DLED
    عمر الإضاءة الخلفية: 30,000 Hours Min.
    Hardness: 7H
  • اللمس
    النوع/ التقنية: Flatfrog InGlass IR
    دقة اللمس: 22855 x 12856
    نقاط اللمس: 20 points touch, 10 points writing
    زمن الاستجابة: 6.7ms
    System: Win 7pro/Ultimate/8/8.1/10, Chrome OS Linux kernel 3.15 or later, Android 4.4 with linux kernel 3.15 or later, Linux OS kernel 3.15 or later, Mac OS 10.10 or later
  • الإدخال
    HDMI: 1 x HDMI 1.4a, 4K@30Hz, support CEC on/off, HDCP 1.4
    2 x HDMI 2.0, 4K@60Hz, support CEC on/off, HDCP 2.2
    RGB / VGA: x 1
    منفذ الشاشة: x 1 (4K@30Hz)
    الصوت: x 1 PC audio (3.5mm)
    CVBS (AV): x 1
    RS232: x 1
    PC Slot: x 1 (Intel OPS)
  • الإخراج
    HDMI: x 1 HDMI 2.0, 4K@60Hz, no CEC support
    Audio (Earphone out): x 1
    SPDIF: x 1
    RS232: x 1
  • LAN
    RJ45: x 1
  • USB
    2.0 Type A: x 3 (front x 2, for both embedded player and slot-in PC)
    3.0 Type A: x 2
    2.0 Type B (For touch): x 2 (front x 1 for HDMI 1.4; back side x 1 for HDMI2.0, DP, VGA)
  • مكبرات الصوت
    10W x 2
  • BUILT-IN PC
    المعالج: ARM Cortex A53 Quad Core 1.4G Hz CPU
    Graphic: ARM Mali-450 MP4 Quad Core
    الذاكرة: 2GB DDR3
    التخزين: 16GB eMMC
    Networking: 10/100M auto-identification and DHCP
  • التوافق
    VGA: Refer to timing table
    HDMI: 3840x2160
    DP: 3840x2160
  • الطاقة
    الجهد: 100V-240V,50/60Hz (AC)
    الاستهلاك: 210 W (without OPS)
    270 W (With OPS)
  • التصميم المريح
    التثبيت على الحائط (VESA®): 600 x 400mm; Screw: M8 x 25mm
  • ظروف التشغيل
    درجة الحرارة (º م): 32°F to 104°F (0°C to 40°C)
    الرطوبة: 20% ~ 80% non-condensing
  • DIMENSIONS (W X H X D)
    Physical w/o Stand (mm / inch): 1565.5 x 967.1 x 94.5 mm / 61.63 x 38.07 x 3.72 inch
    Packaging (mm / inch): 1715 x 1100 x 280 mm / 67.52 x 40.31 x 11.02 inch
  • الوزن
    Net w/o Stand (kg / lb): 48.5kg/106.9lb
    Gross (kg / lb): 61kg/134.5lb
  • اللوائح التنظيمية
    Standard: FCC, CE, CB, RoHS, WEEE, ES7.1
  • WHAT'S IN THE BOX?
    1. HDMI cable(1.5 meters)
    2. Power cable(3 meters) x 4 (A+E+M+U)
    3. Remote control with AA battery
    4. USB cable(1.8 meters)
    5. Touch pen x 2
    6. Quick Start Guide & Compliance statement
    7. Webcam Plate
    8. Wall mount Screw x 4
